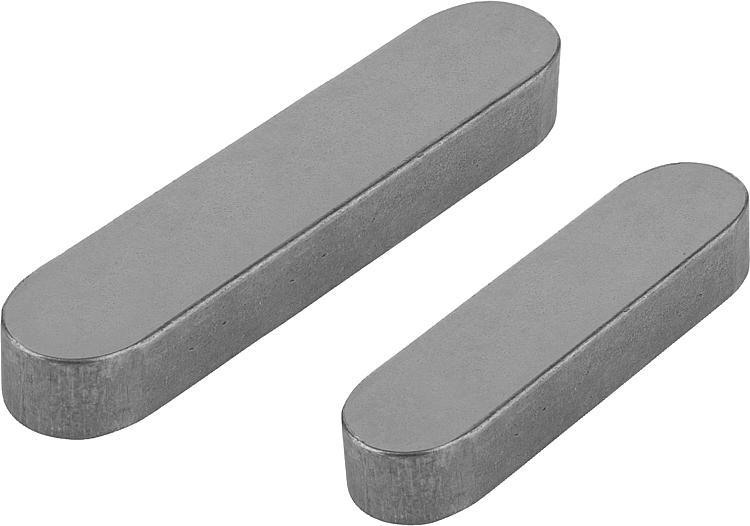

B0111Passfedern DIN 6885 A |
zurück |
|
Artikelbeschreibung/Produktabbildungen |
|
|
BeschreibungWerkstoff:Stahl 1.1192 oder Edelstahl 1.4571 (entspricht AISI 316 Ti).Ausführung:blank. DownloadHier gibt es die Informationen gesammelt als PDF:
Suchen Sie CAD Daten? Diese finden Sie direkt in der Produkttabelle.
|
| Bestellnummer | Material

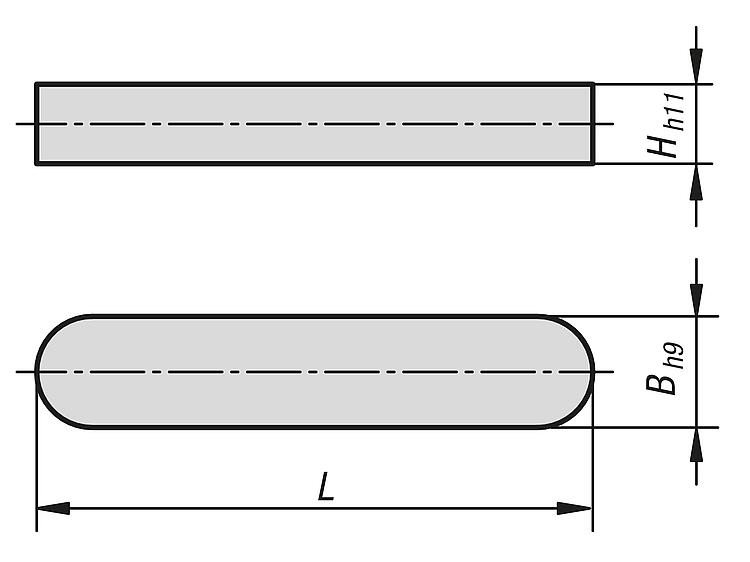

Grundkörper | B | H | L = Länge | CAD | Zub. | Preis | Bestellen |
|---|
| B0111.03X8 | Stahl | 3 | 3 | 8 |  | | 0,31 € | | | B0111.03X10 | Stahl | 3 | 3 | 10 | | | 0,31 € | | | B0111.03X12 | Stahl | 3 | 3 | 12 | | | 0,31 € | | | B0111.03X14 | Stahl | 3 | 3 | 14 | | | 0,29 € | | | B0111.03X16 | Stahl | 3 | 3 | 16 | | | 0,29 € | | | B0111.03X18 | Stahl | 3 | 3 | 18 | | | 0,29 € | | | B0111.03X20 | Stahl | 3 | 3 | 20 | | | 0,29 € | | | B0111.03X22 | Stahl | 3 | 3 | 22 | | | 0,29 € | | | B0111.03X25 | Stahl | 3 | 3 | 25 | | | 0,31 € | | | B0111.03X28 | Stahl | 3 | 3 | 28 | | | 0,31 € | | | B0111.04X8 | Stahl | 4 | 4 | 8 | | | 0,29 € | | | B0111.04X10 | Stahl | 4 | 4 | 10 | | | 0,31 € | | | B0111.04X12 | Stahl | 4 | 4 | 12 | | | 0,31 € | | | B0111.04X14 | Stahl | 4 | 4 | 14 | | | 0,29 € | | | B0111.04X16 | Stahl | 4 | 4 | 16 | | | 0,29 € | | | B0111.04X18 | Stahl | 4 | 4 | 18 | | | 0,29 € | | | B0111.04X20 | Stahl | 4 | 4 | 20 | | | 0,31 € | | | B0111.04X22 | Stahl | 4 | 4 | 22 | | | 0,31 € | | | B0111.04X25 | Stahl | 4 | 4 | 25 | | | 0,31 € | | | B0111.04X28 | Stahl | 4 | 4 | 28 | | | 0,31 € | | | B0111.05X12 | Stahl | 5 | 5 | 12 | | | 0,31 € | | | B0111.05X14 | Stahl | 5 | 5 | 14 | | | 0,29 € | | | B0111.05X16 | Stahl | 5 | 5 | 16 | | | 0,29 € | | | B0111.05X18 | Stahl | 5 | 5 | 18 | | | 0,29 € | | | B0111.05X20 | Stahl | 5 | 5 | 20 | | | 0,31 € | | | B0111.05X22 | Stahl | 5 | 5 | 22 | | | 0,31 € | | | B0111.05X25 | Stahl | 5 | 5 | 25 | | | 0,31 € | | | B0111.05X28 | Stahl | 5 | 5 | 28 | | | 0,31 € | | | B0111.05X32 | Stahl | 5 | 5 | 32 | | | 0,31 € | | | B0111.05X36 | Stahl | 5 | 5 | 36 | | | 0,33 € | | | B0111.05X40 | Stahl | 5 | 5 | 40 | | | 0,33 € | | | B0111.06X12 | Stahl | 6 | 6 | 12 | | | 0,33 € | | | B0111.06X14 | Stahl | 6 | 6 | 14 | | | 0,33 € | | | B0111.06X16 | Stahl | 6 | 6 | 16 | | | 0,33 € | | | B0111.06X18 | Stahl | 6 | 6 | 18 | | | 0,33 € | | | B0111.06X20 | Stahl | 6 | 6 | 20 | | | 0,33 € | | | B0111.06X22 | Stahl | 6 | 6 | 22 | | | 0,33 € | | | B0111.06X25 | Stahl | 6 | 6 | 25 | | | 0,35 € | | | B0111.06X28 | Stahl | 6 | 6 | 28 | | | 0,35 € | | | B0111.06X32 | Stahl | 6 | 6 | 32 | | | 0,35 € | | | B0111.06X36 | Stahl | 6 | 6 | 36 | | | 0,35 € | | | B0111.06X40 | Stahl | 6 | 6 | 40 | | | 0,37 € | | | B0111.06X45 | Stahl | 6 | 6 | 45 | | | 0,37 € | | | B0111.08X14 | Stahl | 8 | 7 | 14 | | | 0,37 € | | | B0111.08X16 | Stahl | 8 | 7 | 16 | | | 0,37 € | | | B0111.08X18 | Stahl | 8 | 7 | 18 | | | 0,37 € | | | B0111.08X20 | Stahl | 8 | 7 | 20 | | | 0,39 € | | | B0111.08X22 | Stahl | 8 | 7 | 22 | | | 0,39 € | | | B0111.08X25 | Stahl | 8 | 7 | 25 | | | 0,44 € | | | B0111.08X28 | Stahl | 8 | 7 | 28 | | | 0,44 € | | | B0111.08X32 | Stahl | 8 | 7 | 32 | | | 0,44 € | | | B0111.08X36 | Stahl | 8 | 7 | 36 | | | 0,46 € | | | B0111.08X40 | Stahl | 8 | 7 | 40 | | | 0,46 € | | | B0111.08X45 | Stahl | 8 | 7 | 45 | | | 0,48 € | | | B0111.08X50 | Stahl | 8 | 7 | 50 | | | 0,48 € | | | B0111.08X70 | Stahl | 8 | 7 | 70 | | | 0,57 € | | | B0111.10X22 | Stahl | 10 | 8 | 22 | | | 0,48 € | | | B0111.10X25 | Stahl | 10 | 8 | 25 | | | 0,50 € | | | B0111.10X28 | Stahl | 10 | 8 | 28 | | | 0,50 € | | | B0111.10X32 | Stahl | 10 | 8 | 32 | | | 0,50 € | | | B0111.10X36 | Stahl | 10 | 8 | 36 | | | 0,53 € | | | B0111.10X40 | Stahl | 10 | 8 | 40 | | | 0,57 € | | | B0111.10X45 | Stahl | 10 | 8 | 45 | | | 0,58 € | | | B0111.10X50 | Stahl | 10 | 8 | 50 | | | 0,60 € | | | B0111.10X56 | Stahl | 10 | 8 | 56 | | | 0,63 € | | | B0111.10X70 | Stahl | 10 | 8 | 70 | | | 0,73 € | | | B0111.10X80 | Stahl | 10 | 8 | 80 | | | 0,76 € | | | B0111.12X25 | Stahl | 12 | 8 | 25 | | | 0,58 € | | | B0111.12X28 | Stahl | 12 | 8 | 28 | | | 0,58 € | | | B0111.12X32 | Stahl | 12 | 8 | 32 | | | 0,60 € | | | B0111.12X36 | Stahl | 12 | 8 | 36 | | | 0,62 € | | | B0111.12X40 | Stahl | 12 | 8 | 40 | | | 0,63 € | | | B0111.12X45 | Stahl | 12 | 8 | 45 | | | 0,65 € | | | B0111.12X50 | Stahl | 12 | 8 | 50 | | | 0,68 € | | | B0111.12X56 | Stahl | 12 | 8 | 56 | | | 0,73 € | | | B0111.12X70 | Stahl | 12 | 8 | 70 | | | 0,80 € | | | B0111.12X80 | Stahl | 12 | 8 | 80 | | | 0,81 € | | | B0111.14X25 | Stahl | 14 | 9 | 25 | | | 0,63 € | | | B0111.14X28 | Stahl | 14 | 9 | 28 | | | 0,63 € | | | B0111.14X32 | Stahl | 14 | 9 | 32 | | | 0,67 € | | | B0111.14X36 | Stahl | 14 | 9 | 36 | | | 0,76 € | | | B0111.14X40 | Stahl | 14 | 9 | 40 | | | 0,73 € | | | B0111.14X45 | Stahl | 14 | 9 | 45 | | | 0,76 € | | | B0111.14X50 | Stahl | 14 | 9 | 50 | | | 0,80 € | | | B0111.14X56 | Stahl | 14 | 9 | 56 | | | 0,81 € | | | B0111.14X70 | Stahl | 14 | 9 | 70 | | | 0,85 € | | | B0111.14X80 | Stahl | 14 | 9 | 80 | | | 0,90 € | | | B0111.16X50 | Stahl | 16 | 10 | 50 | | | 0,95 € | | | B0111.16X56 | Stahl | 16 | 10 | 56 | | | 0,97 € | | | B0111.16X63 | Stahl | 16 | 10 | 63 | | | 0,98 € | | | B0111.16X70 | Stahl | 16 | 10 | 70 | | | 0,99 € | | | B0111.16X80 | Stahl | 16 | 10 | 80 | | | 1,12 € | | | B0111.16X90 | Stahl | 16 | 10 | 90 | | | 1,23 € | | | B0111.16X100 | Stahl | 16 | 10 | 100 | | | 1,33 € | | | B0111.103X10 | Edelstahl | 3 | 3 | 10 | | | 0,38 € | | | B0111.103X12 | Edelstahl | 3 | 3 | 12 | | | 0,39 € | | | B0111.103X16 | Edelstahl | 3 | 3 | 16 | | | 0,39 € | | | B0111.103X20 | Edelstahl | 3 | 3 | 20 | | | 0,40 € | | | B0111.104X10 | Edelstahl | 4 | 4 | 10 | | | 0,42 € | | | B0111.104X12 | Edelstahl | 4 | 4 | 12 | | | 0,43 € | | | B0111.104X14 | Edelstahl | 4 | 4 | 14 | | | 0,42 € | | | B0111.104X16 | Edelstahl | 4 | 4 | 16 | | | 0,43 € | | | B0111.104X18 | Edelstahl | 4 | 4 | 18 | | | 0,47 € | | | B0111.104X20 | Edelstahl | 4 | 4 | 20 | | | 0,48 € | | | B0111.104X22 | Edelstahl | 4 | 4 | 22 | | | 0,55 € | | | B0111.105X12 | Edelstahl | 5 | 5 | 12 | | | 0,48 € | | | B0111.105X14 | Edelstahl | 5 | 5 | 14 | | | 0,56 € | | | B0111.105X16 | Edelstahl | 5 | 5 | 16 | | | 0,56 € | | | B0111.105X18 | Edelstahl | 5 | 5 | 18 | | | 0,58 € | | | B0111.105X20 | Edelstahl | 5 | 5 | 20 | | | 0,59 € | | | B0111.105X22 | Edelstahl | 5 | 5 | 22 | | | 0,65 € | | | B0111.105X25 | Edelstahl | 5 | 5 | 25 | | | 0,70 € | | | B0111.105X28 | Edelstahl | 5 | 5 | 28 | | | 0,80 € | | | B0111.105X36 | Edelstahl | 5 | 5 | 36 | | | 0,95 € | | | B0111.105X40 | Edelstahl | 5 | 5 | 40 | | | 1,00 € | | | B0111.106X12 | Edelstahl | 6 | 6 | 12 | | | 0,59 € | | | B0111.106X14 | Edelstahl | 6 | 6 | 14 | | | 0,65 € | | | B0111.106X16 | Edelstahl | 6 | 6 | 16 | | | 0,70 € | | | B0111.106X18 | Edelstahl | 6 | 6 | 18 | | | 0,74 € | | | B0111.106X20 | Edelstahl | 6 | 6 | 20 | | | 0,81 € | | | B0111.106X22 | Edelstahl | 6 | 6 | 22 | | | 0,87 € | | | B0111.106X25 | Edelstahl | 6 | 6 | 25 | | | 0,94 € | | | B0111.106X28 | Edelstahl | 6 | 6 | 28 | | | 0,99 € | | | B0111.106X32 | Edelstahl | 6 | 6 | 32 | | | 1,12 € | | | B0111.106X36 | Edelstahl | 6 | 6 | 36 | | | 1,26 € | | | B0111.106X40 | Edelstahl | 6 | 6 | 40 | | | 1,33 € | | | B0111.108X16 | Edelstahl | 8 | 7 | 16 | | | 1,08 € | | | B0111.108X18 | Edelstahl | 8 | 7 | 18 | | | 1,15 € | | | B0111.108X20 | Edelstahl | 8 | 7 | 20 | | | 1,22 € | | | B0111.108X22 | Edelstahl | 8 | 7 | 22 | | | 1,29 € | | | B0111.108X25 | Edelstahl | 8 | 7 | 25 | | | 1,41 € | | | B0111.108X28 | Edelstahl | 8 | 7 | 28 | | | 1,57 € | | | B0111.108X32 | Edelstahl | 8 | 7 | 32 | | | 1,74 € | | | B0111.108X36 | Edelstahl | 8 | 7 | 36 | | | 1,92 € | | | B0111.108X40 | Edelstahl | 8 | 7 | 40 | | | 2,12 € | | | B0111.108X45 | Edelstahl | 8 | 7 | 45 | | | 2,36 € | | | B0111.108X50 | Edelstahl | 8 | 7 | 50 | | | 2,56 € | | | B0111.108X70 | Edelstahl | 8 | 7 | 70 | | | 2,69 € | | | B0111.110X22 | Edelstahl | 10 | 8 | 22 | | | 1,85 € | | | B0111.110X25 | Edelstahl | 10 | 8 | 25 | | | 2,05 € | | | B0111.110X28 | Edelstahl | 10 | 8 | 28 | | | 2,33 € | | | B0111.110X32 | Edelstahl | 10 | 8 | 32 | | | 2,48 € | | | B0111.110X36 | Edelstahl | 10 | 8 | 36 | | | 2,78 € | | | B0111.110X40 | Edelstahl | 10 | 8 | 40 | | | 3,02 € | | | B0111.110X45 | Edelstahl | 10 | 8 | 45 | | | 3,36 € | | | B0111.110X50 | Edelstahl | 10 | 8 | 50 | | | 3,69 € | | | B0111.110X56 | Edelstahl | 10 | 8 | 56 | | | 4,16 € | | | B0111.110X70 | Edelstahl | 10 | 8 | 70 | | | 5,04 € | | | B0111.110X80 | Edelstahl | 10 | 8 | 80 | | | 5,73 € | | | B0111.112X28 | Edelstahl | 12 | 8 | 28 | | | 2,72 € | | | B0111.112X32 | Edelstahl | 12 | 8 | 32 | | | 2,98 € | | | B0111.112X36 | Edelstahl | 12 | 8 | 36 | | | 3,36 € | | | B0111.112X40 | Edelstahl | 12 | 8 | 40 | | | 3,62 € | | | B0111.112X45 | Edelstahl | 12 | 8 | 45 | | | 4,08 € | | | B0111.112X50 | Edelstahl | 12 | 8 | 50 | | | 4,34 € | | | B0111.112X56 | Edelstahl | 12 | 8 | 56 | | | 4,79 € | | | B0111.112X70 | Edelstahl | 12 | 8 | 70 | | | 5,96 € | | | B0111.112X80 | Edelstahl | 12 | 8 | 80 | | | 6,70 € | | | B0111.114X32 | Edelstahl | 14 | 9 | 32 | | | 3,24 € | | | B0111.114X40 | Edelstahl | 14 | 9 | 40 | | | aktuell nicht lieferbar | | | B0111.114X45 | Edelstahl | 14 | 9 | 45 | | | 4,25 € | | | B0111.114X50 | Edelstahl | 14 | 9 | 50 | | | 4,68 € | | | B0111.114X56 | Edelstahl | 14 | 9 | 56 | | | 5,26 € | | | B0111.114X80 | Edelstahl | 14 | 9 | 80 | | | 7,15 € | | | B0111.114X70 | Edelstahl | 14 | 9 | 70 | | | 6,54 € | | | B0111.116X50 | Edelstahl | 16 | 10 | 50 | | | 6,24 € | | | B0111.116X63 | Edelstahl | 16 | 10 | 63 | | | 7,64 € | | | B0111.116X70 | Edelstahl | 16 | 10 | 70 | | | 8,05 € | | | B0111.116X80 | Edelstahl | 16 | 10 | 80 | | | 10,05 € | | | B0111.116X90 | Edelstahl | 16 | 10 | 90 | | | 10,78 € | | | B0111.116X100 | Edelstahl | 16 | 10 | 100 | | | 11,42 € | |
