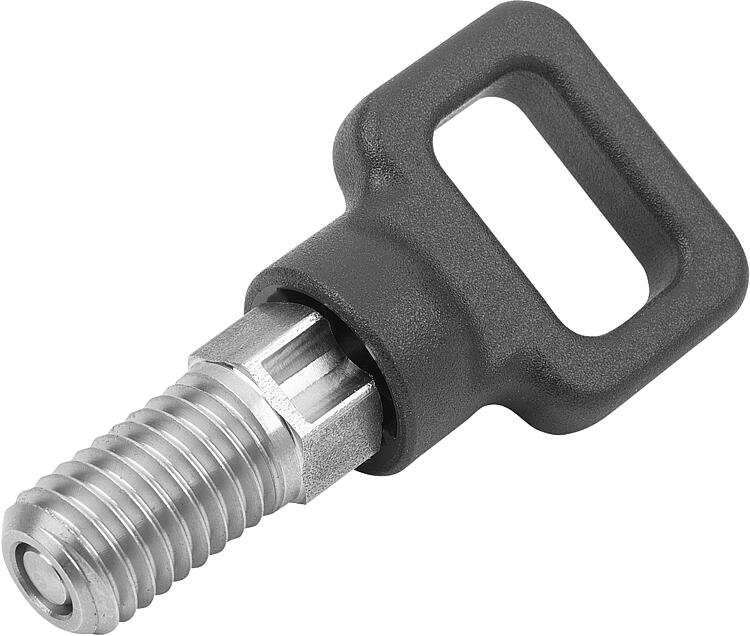

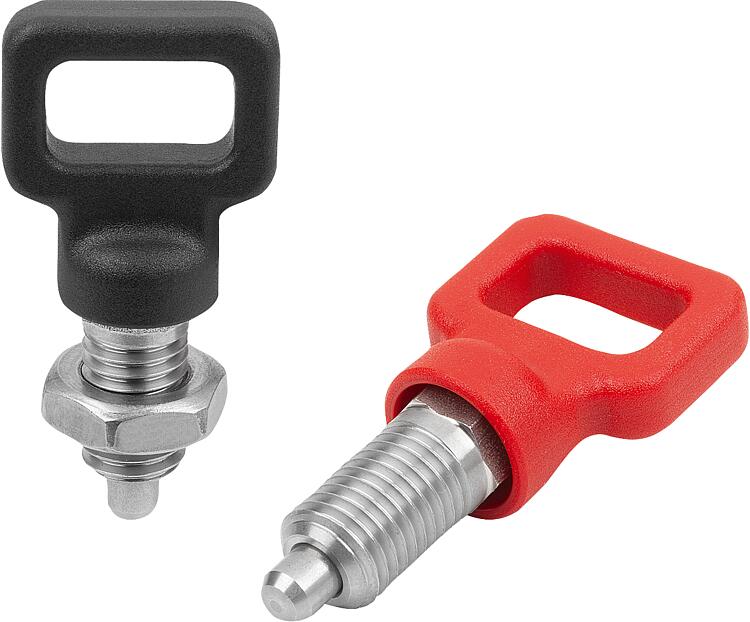

B0525Indexing plungers steel or stainless steel with plastic eyelet... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used to prevent changes to the locking position due to lateral forces. Another locking position can be set only after the plunger has been manually released. Material:Steel version:
Threaded sleeve 1.0715.
Indexing pin 1.4305 (AISI 303 equivalent).
Stainless steel version:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).
Eyelet grip thermoplastic, black grey RAL 7021 or traffic red RAL 3020. Version:Steel version:
Indexing pin hardened.
Threaded sleeve trivalent blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.Note:Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

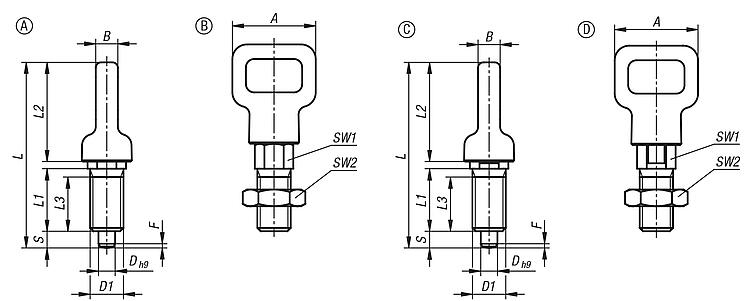

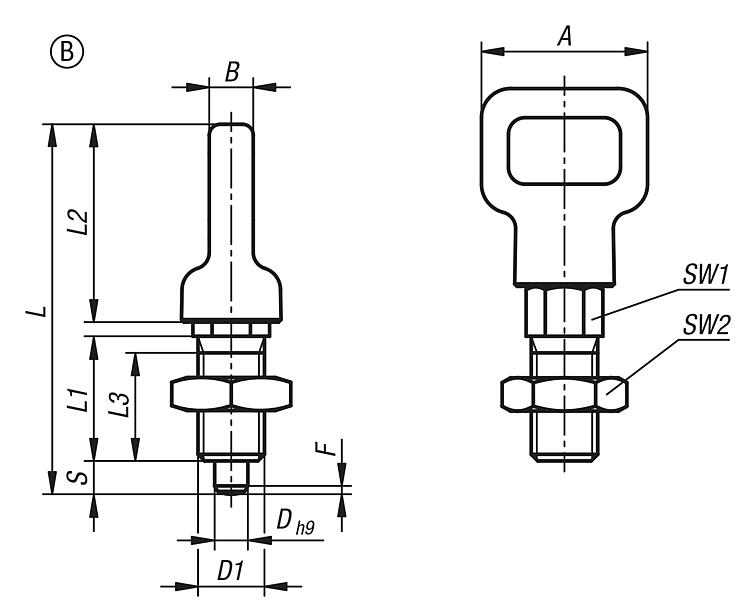

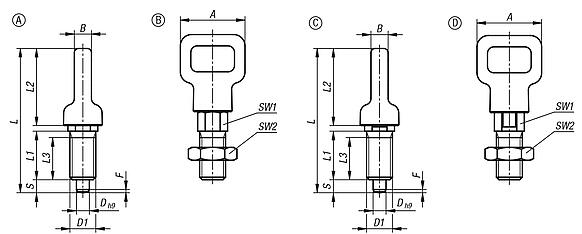

Pay attention to the max. tightening torque when assembling.On request:Other travels possible on request.Drawing reference:Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

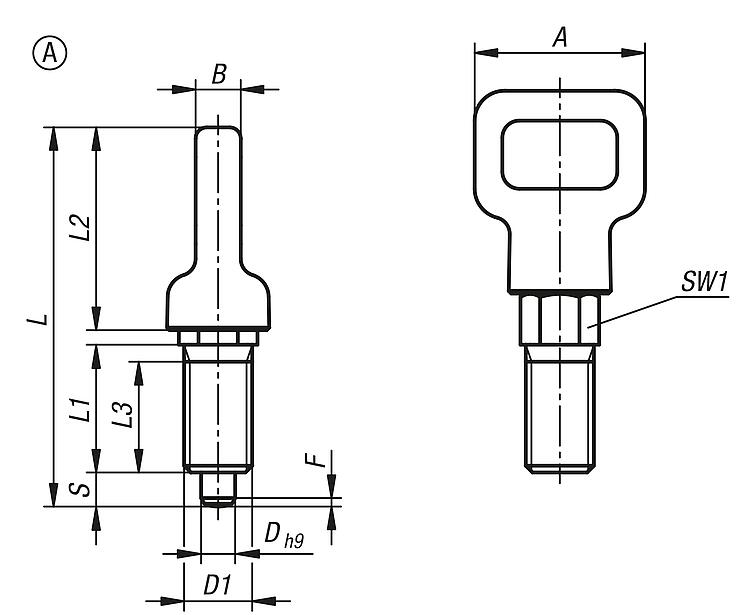

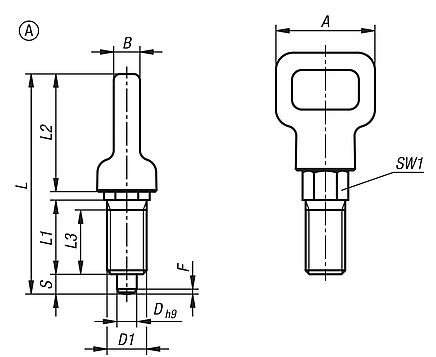

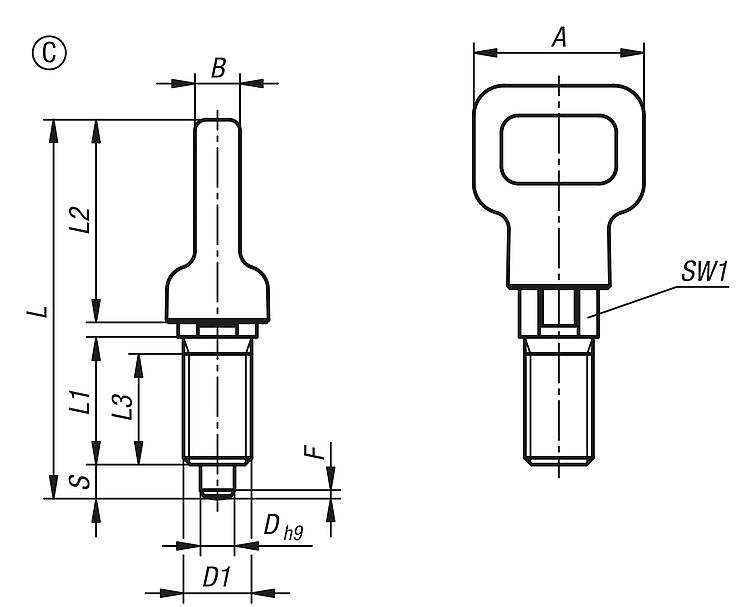

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form A |
More information |
| Order No. | Form | Main
material | Component
colour | D | D1 | A | B | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0525.0104080 | A | steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 |  | | 6.83 € | | | B0525.0115100 | A | steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.33 € | | | B0525.0126120 | A | steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.84 € | | | B0525.0138160 | A | steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.35 € | | | B0525.0104081 | A | steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.83 € | | | B0525.0115101 | A | steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.33 € | | | B0525.0126121 | A | steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.84 € | | | B0525.0138161 | A | steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.35 € | | | B0525.010408084 | A | steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.83 € | | | B0525.011510084 | A | steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.33 € | | | B0525.012612084 | A | steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.84 € | | | B0525.013816084 | A | steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.35 € | | | B0525.010408184 | A | steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.83 € | | | B0525.011510184 | A | steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.33 € | | | B0525.012612184 | A | steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.84 € | | | B0525.013816184 | A | steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.35 € | | | B0525.1104080 | A | stainless steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.22 € | | | B0525.1115100 | A | stainless steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.78 € | | | B0525.1126120 | A | stainless steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.34 € | | | B0525.1138160 | A | stainless steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 9.90 € | | | B0525.1104081 | A | stainless steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.22 € | | | B0525.1115101 | A | stainless steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.78 € | | | B0525.1126121 | A | stainless steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.34 € | | | B0525.1138161 | A | stainless steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 9.90 € | | | B0525.110408084 | A | stainless steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.22 € | | | B0525.111510084 | A | stainless steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.78 € | | | B0525.112612084 | A | stainless steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.34 € | | | B0525.113816084 | A | stainless steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 9.90 € | | | B0525.110408184 | A | stainless steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.22 € | | | B0525.111510184 | A | stainless steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.78 € | | | B0525.112612184 | A | stainless steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.34 € | | | B0525.113816184 | A | stainless steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 9.90 € | |
|
Indexing plungers steel or stainless steel, with plastic eyelet grip, Form B |
More information |
| Order No. | Form | Main
material | Component
colour | D | D1 | A | B | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0525.0204080 | B | steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.0215100 | B | steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.0226120 | B | steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.0238160 | B | steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.0204081 | B | steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.0215101 | B | steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.0226121 | B | steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.0238161 | B | steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.020408084 | B | steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.021510084 | B | steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.022612084 | B | steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.023816084 | B | steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.020408184 | B | steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.021510184 | B | steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.022612184 | B | steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.023816184 | B | steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.1204080 | B | stainless steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.1215100 | B | stainless steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.1226120 | B | stainless steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.1238160 | B | stainless steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.1204081 | B | stainless steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.1215101 | B | stainless steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.1226121 | B | stainless steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.1238161 | B | stainless steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.120408084 | B | stainless steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.121510084 | B | stainless steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.122612084 | B | stainless steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.123816084 | B | stainless steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.120408184 | B | stainless steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.121510184 | B | stainless steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.122612184 | B | stainless steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.123816184 | B | stainless steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.01 € | |
|

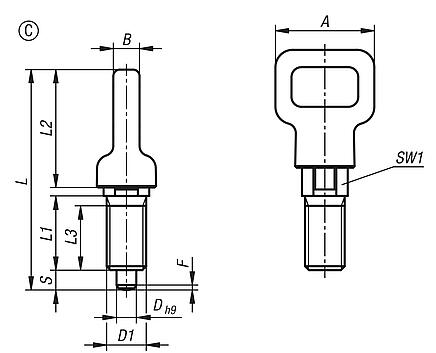

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form C |
More information |
| Order No. | Form | Main
material | Component
colour | D | D1 | A | B | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0525.0304080 | C | steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.0315100 | C | steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.0326120 | C | steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.0338160 | C | steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.0304081 | C | steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.0315101 | C | steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.0326121 | C | steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.0338161 | C | steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.030408084 | C | steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.031510084 | C | steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.032612084 | C | steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.033816084 | C | steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.030408184 | C | steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 6.93 € | | | B0525.031510184 | C | steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 7.44 € | | | B0525.032612184 | C | steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 7.94 € | | | B0525.033816184 | C | steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 8.45 € | | | B0525.1304080 | C | stainless steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.1315100 | C | stainless steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.1326120 | C | stainless steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.1338160 | C | stainless steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.1304081 | C | stainless steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.1315101 | C | stainless steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.1326121 | C | stainless steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.1338161 | C | stainless steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.130408084 | C | stainless steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.131510084 | C | stainless steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.132612084 | C | stainless steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.133816084 | C | stainless steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 10.01 € | | | B0525.130408184 | C | stainless steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 1 | 6 | 12 | 2 | | | 8.33 € | | | B0525.131510184 | C | stainless steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 1,3 | 6 | 12 | 7 | | | 8.89 € | | | B0525.132612184 | C | stainless steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 1,8 | 8 | 15 | 15 | | | 9.45 € | | | B0525.133816184 | C | stainless steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 2,3 | 8 | 19 | 20 | | | 10.01 € | |
|

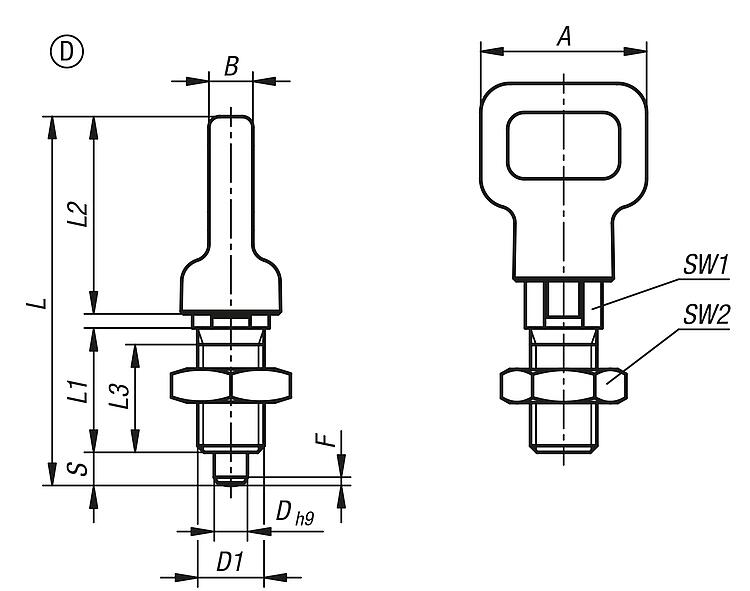

Indexing plungers steel or stainless steel, with plastic eyelet grip, Form D |
More information |
| Order No. | Form | Main
material | Component
colour | D | D1 | A | B | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0525.0404080 | D | steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 7.02 € | | | B0525.0415100 | D | steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.54 € | | | B0525.0426120 | D | steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 8.04 € | | | B0525.0438160 | D | steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.55 € | | | B0525.0404081 | D | steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 7.02 € | | | B0525.0415101 | D | steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.54 € | | | B0525.0426121 | D | steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 8.04 € | | | B0525.0438161 | D | steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.55 € | | | B0525.040408084 | D | steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 7.02 € | | | B0525.041510084 | D | steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.54 € | | | B0525.042612084 | D | steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 8.04 € | | | B0525.043816084 | D | steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.55 € | | | B0525.040408184 | D | steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 7.02 € | | | B0525.041510184 | D | steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 7.54 € | | | B0525.042612184 | D | steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 8.04 € | | | B0525.043816184 | D | steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 8.55 € | | | B0525.1404080 | D | stainless steel | black grey RAL 7021 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.45 € | | | B0525.1415100 | D | stainless steel | black grey RAL 7021 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 9.00 € | | | B0525.1426120 | D | stainless steel | black grey RAL 7021 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.57 € | | | B0525.1438160 | D | stainless steel | black grey RAL 7021 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.11 € | | | B0525.1404081 | D | stainless steel | black grey RAL 7021 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.45 € | | | B0525.1415101 | D | stainless steel | black grey RAL 7021 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 9.00 € | | | B0525.1426121 | D | stainless steel | black grey RAL 7021 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.57 € | | | B0525.1438161 | D | stainless steel | black grey RAL 7021 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.11 € | | | B0525.140408084 | D | stainless steel | traffic red RAL 3020 | 4 | M8 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.45 € | | | B0525.141510084 | D | stainless steel | traffic red RAL 3020 | 5 | M10 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 9.00 € | | | B0525.142612084 | D | stainless steel | traffic red RAL 3020 | 6 | M12 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.57 € | | | B0525.143816084 | D | stainless steel | traffic red RAL 3020 | 8 | M16 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.11 € | | | B0525.140408184 | D | stainless steel | traffic red RAL 3020 | 4 | M8x1 | 20 | 5,3 | 44,5 | 15 | 23,8 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 2 | | | 8.45 € | | | B0525.141510184 | D | stainless steel | traffic red RAL 3020 | 5 | M10x1 | 25 | 6,7 | 52,2 | 17 | 28,5 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 7 | | | 9.00 € | | | B0525.142612184 | D | stainless steel | traffic red RAL 3020 | 6 | M12x1,5 | 30 | 8 | 61,7 | 20 | 34 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 15 | | | 9.57 € | | | B0525.143816184 | D | stainless steel | traffic red RAL 3020 | 8 | M16x1,5 | 40 | 10,7 | 81 | 26 | 45,3 | 23 | 8 | 16 | 24 | 2,3 | 8 | 19 | 20 | | | 10.11 € | |
|
