B0615Indexing plungers, steel or stainless steel, short version, with... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged. Special grips can be fitted on the projecting threaded pin. This pin is also suitable for automatic actuation e.g. programme controlled pneumatic cylinder or by remote control using bowden cables.Material:Steel version:
Threaded sleeve and indexing pin free-cutting steel.
Stainless steel version A1:
Threaded sleeve 1.4305.
Arretierstift gehärtet 1.4034.
Indexing pin not hardened 1.4305.
Stainless steel version A4:
Threaded sleeve and indexing pin 1.4404. Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version A1:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Stainless steel version A4:
Threaded sleeve bright.
Indexing pin ground and chemically nickel-plated.
Indexing pin ground, bright.Note:The materials used enable a wide range of applications.
Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements.

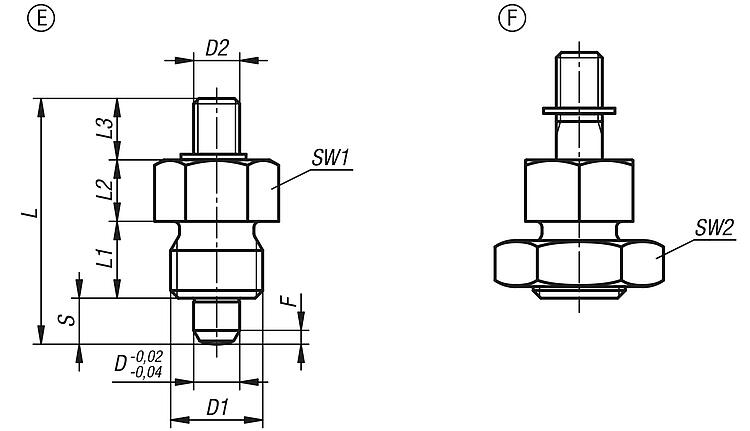

Drawing reference:Form E: with threaded pin, without locknut
Form F: with threaded pin, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

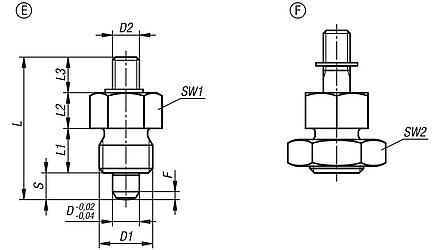

Drawings (total overview) |

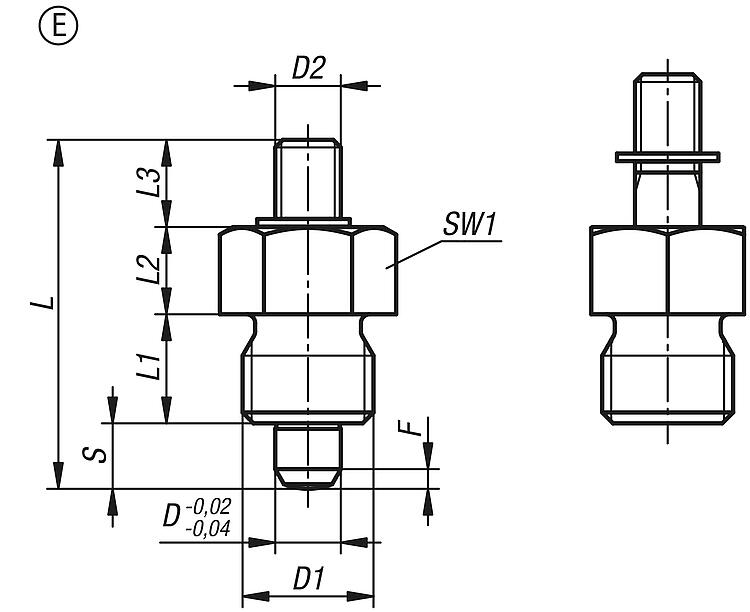

Indexing plungers, steel or stainless steel, short version, with threaded pin, Form E without locknut |
More information |
| Order No. | Form | Main
material | Steel key | Surface finish
body | Size | Locknut | D | D1 | D2 | CAD | Acc. | Price | Order |
|---|
| B0615.5903 | E | steel | - | hardened | 9 | without locknut | 3 | M6x0,75 | M2 |  | | 7.53 € | | | B0615.5004 | E | steel | - | hardened | 0 | without locknut | 4 | M8x1 | M3 | | | 7.17 € | | | B0615.5105 | E | steel | - | hardened | 1 | without locknut | 5 | M10x1 | M4 | | | 6.82 € | | | B0615.5206 | E | steel | - | hardened | 2 | without locknut | 6 | M12x1,5 | M6 | | | 7.58 € | | | B0615.5308 | E | steel | - | hardened | 3 | without locknut | 8 | M16x1,5 | M8 | | | 9.80 € | | | B0615.5410 | E | steel | - | hardened | 4 | without locknut | 10 | M20x1,5 | M8 | | | 14.03 € | | | B0615.15903 | E | stainless steel | 1.4305 | not hardened | 9 | without locknut | 3 | M6x0,75 | M2 | | | 12.49 € | | | B0615.15004 | E | stainless steel | 1.4305 | not hardened | 0 | without locknut | 4 | M8x1 | M3 | | | 11.89 € | | | B0615.15105 | E | stainless steel | 1.4305 | not hardened | 1 | without locknut | 5 | M10x1 | M4 | | | 11.33 € | | | B0615.15206 | E | stainless steel | 1.4305 | not hardened | 2 | without locknut | 6 | M12x1,5 | M6 | | | 13.35 € | | | B0615.15308 | E | stainless steel | 1.4305 | not hardened | 3 | without locknut | 8 | M16x1,5 | M8 | | | 17.84 € | | | B0615.15410 | E | stainless steel | 1.4305 | not hardened | 4 | without locknut | 10 | M20x1,5 | M8 | | | 28.12 € | | | B0615.05903 | E | stainless steel | 1.4034 | hardened | 9 | without locknut | 3 | M6x0,75 | M2 | | | 12.49 € | | | B0615.05004 | E | stainless steel | 1.4034 | hardened | 0 | without locknut | 4 | M8x1 | M3 | | | 11.89 € | | | B0615.05105 | E | stainless steel | 1.4034 | hardened | 1 | without locknut | 5 | M10x1 | M4 | | | 11.33 € | | | B0615.05206 | E | stainless steel | 1.4034 | hardened | 2 | without locknut | 6 | M12x1,5 | M6 | | | 13.35 € | | | B0615.05308 | E | stainless steel | 1.4034 | hardened | 3 | without locknut | 8 | M16x1,5 | M8 | | | 17.84 € | | | B0615.05410 | E | stainless steel | 1.4034 | hardened | 4 | without locknut | 10 | M20x1,5 | M8 | | | 28.12 € | | | B0615.75903 | E | stainless steel | 1.4404 | bright | 9 | without locknut | 3 | M6x0,75 | M2 | | | 15.00 € | | | B0615.75004 | E | stainless steel | 1.4404 | bright | 0 | without locknut | 4 | M8x1 | M3 | | | 14.27 € | | | B0615.75105 | E | stainless steel | 1.4404 | bright | 1 | without locknut | 5 | M10x1 | M4 | | | 13.60 € | | | B0615.75206 | E | stainless steel | 1.4404 | bright | 2 | without locknut | 6 | M12x1,5 | M6 | | | 16.02 € | | | B0615.75308 | E | stainless steel | 1.4404 | bright | 3 | without locknut | 8 | M16x1,5 | M8 | | | 21.41 € | | | B0615.75410 | E | stainless steel | 1.4404 | bright | 4 | without locknut | 10 | M20x1,5 | M8 | | | 33.74 € | | | B0615.65903 | E | stainless steel | 1.4404 | nickel-plated | 9 | without locknut | 3 | M6x0,75 | M2 | | | 15.00 € | | | B0615.65004 | E | stainless steel | 1.4404 | nickel-plated | 0 | without locknut | 4 | M8x1 | M3 | | | 14.27 € | | | B0615.65105 | E | stainless steel | 1.4404 | nickel-plated | 1 | without locknut | 5 | M10x1 | M4 | | | 13.60 € | | | B0615.65206 | E | stainless steel | 1.4404 | nickel-plated | 2 | without locknut | 6 | M12x1,5 | M6 | | | 16.02 € | | | B0615.65308 | E | stainless steel | 1.4404 | nickel-plated | 3 | without locknut | 8 | M16x1,5 | M8 | | | 21.41 € | | | B0615.65410 | E | stainless steel | 1.4404 | nickel-plated | 4 | without locknut | 10 | M20x1,5 | M8 | | | 33.74 € | |
| Order No. | Fx30° | L | L1 | L2 | L3 | Travel
S | SW1 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0615.5903 | 0,8 | 18 | 6 | 5 | 3,5 | 3,5 | 8 | 4 | 10 | | | 7.53 € | | | B0615.5004 | 1 | 23 | 6 | 6 | 7 | 4 | 10 | 4 | 12 | | | 7.17 € | | | B0615.5105 | 1,3 | 28 | 8 | 7 | 8 | 5 | 13 | 5 | 12 | | | 6.82 € | | | B0615.5206 | 1,8 | 32 | 10 | 8 | 8 | 6 | 14 | 6 | 14 | | | 7.58 € | | | B0615.5308 | 2,3 | 42 | 12 | 10 | 12 | 8 | 19 | 14 | 28 | | | 9.80 € | | | B0615.5410 | 2,8 | 49 | 15 | 12 | 12 | 10 | 22 | 15 | 32 | | | 14.03 € | | | B0615.15903 | 0,8 | 18 | 6 | 5 | 3,5 | 3,5 | 8 | 4 | 10 | | | 12.49 € | | | B0615.15004 | 1 | 23 | 6 | 6 | 7 | 4 | 10 | 4 | 12 | | | 11.89 € | | | B0615.15105 | 1,3 | 28 | 8 | 7 | 8 | 5 | 13 | 5 | 12 | | | 11.33 € | | | B0615.15206 | 1,8 | 32 | 10 | 8 | 8 | 6 | 14 | 6 | 14 | | | 13.35 € | | | B0615.15308 | 2,3 | 42 | 12 | 10 | 12 | 8 | 19 | 14 | 28 | | | 17.84 € | | | B0615.15410 | 2,8 | 49 | 15 | 12 | 12 | 10 | 22 | 15 | 32 | | | 28.12 € | | | B0615.05903 | 0,8 | 18 | 6 | 5 | 3,5 | 3,5 | 8 | 4 | 10 | | | 12.49 € | | | B0615.05004 | 1 | 23 | 6 | 6 | 7 | 4 | 10 | 4 | 12 | | | 11.89 € | | | B0615.05105 | 1,3 | 28 | 8 | 7 | 8 | 5 | 13 | 5 | 12 | | | 11.33 € | | | B0615.05206 | 1,8 | 32 | 10 | 8 | 8 | 6 | 14 | 6 | 14 | | | 13.35 € | | | B0615.05308 | 2,3 | 42 | 12 | 10 | 12 | 8 | 19 | 14 | 28 | | | 17.84 € | | | B0615.05410 | 2,8 | 49 | 15 | 12 | 12 | 10 | 22 | 15 | 32 | | | 28.12 € | | | B0615.75903 | 0,8 | 18 | 6 | 5 | 3,5 | 3,5 | 8 | 4 | 10 | | | 15.00 € | | | B0615.75004 | 1 | 23 | 6 | 6 | 7 | 4 | 10 | 4 | 12 | | | 14.27 € | | | B0615.75105 | 1,3 | 28 | 8 | 7 | 8 | 5 | 13 | 5 | 12 | | | 13.60 € | | | B0615.75206 | 1,8 | 32 | 10 | 8 | 8 | 6 | 14 | 6 | 14 | | | 16.02 € | | | B0615.75308 | 2,3 | 42 | 12 | 10 | 12 | 8 | 19 | 14 | 28 | | | 21.41 € | | | B0615.75410 | 2,8 | 49 | 15 | 12 | 12 | 10 | 22 | 15 | 32 | | | 33.74 € | | | B0615.65903 | 0,8 | 18 | 6 | 5 | 3,5 | 3,5 | 8 | 4 | 10 | | | 15.00 € | | | B0615.65004 | 1 | 23 | 6 | 6 | 7 | 4 | 10 | 4 | 12 | | | 14.27 € | | | B0615.65105 | 1,3 | 28 | 8 | 7 | 8 | 5 | 13 | 5 | 12 | | | 13.60 € | | | B0615.65206 | 1,8 | 32 | 10 | 8 | 8 | 6 | 14 | 6 | 14 | | | 16.02 € | | | B0615.65308 | 2,3 | 42 | 12 | 10 | 12 | 8 | 19 | 14 | 28 | | | 21.41 € | | | B0615.65410 | 2,8 | 49 | 15 | 12 | 12 | 10 | 22 | 15 | 32 | | | 33.74 € | |
|

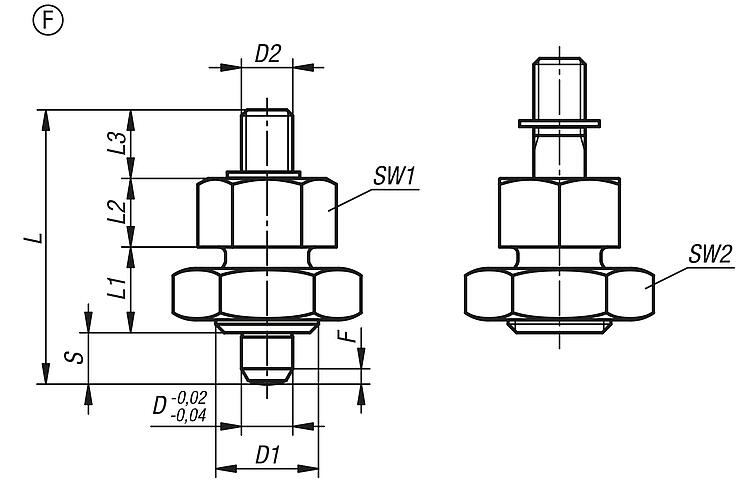

Indexing plungers, steel or stainless steel, short version, with threaded pin, Form F with lockut |
More information |
| Order No. | Form | Main
material | Steel key | Surface finish
body | Size | Locknut | D | D1 | D2 | CAD | Acc. | Price | Order |
|---|
| B0615.6903 | F | steel | - | hardened | 9 | with locknut | 3 | M6x0,75 | M2 | | | 7.64 € | | | B0615.6004 | F | steel | - | hardened | 0 | with locknut | 4 | M8x1 | M3 | | | 7.27 € | | | B0615.6105 | F | steel | - | hardened | 1 | with locknut | 5 | M10x1 | M4 | | | 6.95 € | | | B0615.6206 | F | steel | - | hardened | 2 | with locknut | 6 | M12x1,5 | M6 | | | 7.71 € | | | B0615.6308 | F | steel | - | hardened | 3 | with locknut | 8 | M16x1,5 | M8 | | | 10.11 € | | | B0615.6410 | F | steel | - | hardened | 4 | with locknut | 10 | M20x1,5 | M8 | | | 14.16 € | | | B0615.16903 | F | stainless steel | 1.4305 | not hardened | 9 | with locknut | 3 | M6x0,75 | M2 | | | 13.33 € | | | B0615.16004 | F | stainless steel | 1.4305 | not hardened | 0 | with locknut | 4 | M8x1 | M3 | | | 12.71 € | | | B0615.16105 | F | stainless steel | 1.4305 | not hardened | 1 | with locknut | 5 | M10x1 | M4 | | | 12.10 € | | | B0615.16206 | F | stainless steel | 1.4305 | not hardened | 2 | with locknut | 6 | M12x1,5 | M6 | | | 14.30 € | | | B0615.16308 | F | stainless steel | 1.4305 | not hardened | 3 | with locknut | 8 | M16x1,5 | M8 | | | 19.17 € | | | B0615.16410 | F | stainless steel | 1.4305 | not hardened | 4 | with locknut | 10 | M20x1,5 | M8 | | | 28.79 € | | | B0615.06903 | F | stainless steel | 1.4034 | hardened | 9 | with locknut | 3 | M6x0,75 | M2 | | | 13.33 € | | | B0615.06004 | F | stainless steel | 1.4034 | hardened | 0 | with locknut | 4 | M8x1 | M3 | | | 12.71 € | | | B0615.06105 | F | stainless steel | 1.4034 | hardened | 1 | with locknut | 5 | M10x1 | M4 | | | 12.10 € | | | B0615.06206 | F | stainless steel | 1.4034 | hardened | 2 | with locknut | 6 | M12x1,5 | M6 | | | 14.30 € | | | B0615.06308 | F | stainless steel | 1.4034 | hardened | 3 | with locknut | 8 | M16x1,5 | M8 | | | 19.17 € | | | B0615.06410 | F | stainless steel | 1.4034 | hardened | 4 | with locknut | 10 | M20x1,5 | M8 | | | 28.79 € | | | B0615.76903 | F | stainless steel | 1.4404 | bright | 9 | with locknut | 3 | M6x0,75 | M2 | | | 16.00 € | | | B0615.76004 | F | stainless steel | 1.4404 | bright | 0 | with locknut | 4 | M8x1 | M3 | | | 15.25 € | | | B0615.76105 | F | stainless steel | 1.4404 | bright | 1 | with locknut | 5 | M10x1 | M4 | | | 14.53 € | | | B0615.76206 | F | stainless steel | 1.4404 | bright | 2 | with locknut | 6 | M12x1,5 | M6 | | | 17.16 € | | | B0615.76308 | F | stainless steel | 1.4404 | bright | 3 | with locknut | 8 | M16x1,5 | M8 | | | 23.01 € | | | B0615.76410 | F | stainless steel | 1.4404 | bright | 4 | with locknut | 10 | M20x1,5 | M8 | | | 34.56 € | | | B0615.66903 | F | stainless steel | 1.4404 | nickel-plated | 9 | with locknut | 3 | M6x0,75 | M2 | | | 16.00 € | | | B0615.66004 | F | stainless steel | 1.4404 | nickel-plated | 0 | with locknut | 4 | M8x1 | M3 | | | 15.25 € | | | B0615.66105 | F | stainless steel | 1.4404 | nickel-plated | 1 | with locknut | 5 | M10x1 | M4 | | | 14.53 € | | | B0615.66206 | F | stainless steel | 1.4404 | nickel-plated | 2 | with locknut | 6 | M12x1,5 | M6 | | | 17.16 € | | | B0615.66308 | F | stainless steel | 1.4404 | nickel-plated | 3 | with locknut | 8 | M16x1,5 | M8 | | | 23.01 € | | | B0615.66410 | F | stainless steel | 1.4404 | nickel-plated | 4 | with locknut | 10 | M20x1,5 | M8 | | | 34.56 € | |
| Order No. | Fx30° | Travel
S | L | L1 | L2 | L3 | SW1 | SW2 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0615.6903 | 0,8 | 3,5 | 18 | 6 | 5 | 3,5 | 8 | 10 | 4 | 10 | | | 7.64 € | | | B0615.6004 | 1 | 4 | 23 | 6 | 6 | 7 | 10 | 13 | 4 | 12 | | | 7.27 € | | | B0615.6105 | 1,3 | 5 | 28 | 8 | 7 | 8 | 13 | 17 | 5 | 12 | | | 6.95 € | | | B0615.6206 | 1,8 | 6 | 32 | 10 | 8 | 8 | 14 | 19 | 6 | 14 | | | 7.71 € | | | B0615.6308 | 2,3 | 8 | 42 | 12 | 10 | 12 | 19 | 24 | 14 | 28 | | | 10.11 € | | | B0615.6410 | 2,8 | 10 | 49 | 15 | 12 | 12 | 22 | 30 | 15 | 32 | | | 14.16 € | | | B0615.16903 | 0,8 | 3,5 | 18 | 6 | 5 | 3,5 | 8 | 10 | 4 | 10 | | | 13.33 € | | | B0615.16004 | 1 | 4 | 23 | 6 | 6 | 7 | 10 | 13 | 4 | 12 | | | 12.71 € | | | B0615.16105 | 1,3 | 5 | 28 | 8 | 7 | 8 | 13 | 17 | 5 | 12 | | | 12.10 € | | | B0615.16206 | 1,8 | 6 | 32 | 10 | 8 | 8 | 14 | 19 | 6 | 14 | | | 14.30 € | | | B0615.16308 | 2,3 | 8 | 42 | 12 | 10 | 12 | 19 | 24 | 14 | 28 | | | 19.17 € | | | B0615.16410 | 2,8 | 10 | 49 | 15 | 12 | 12 | 22 | 30 | 15 | 32 | | | 28.79 € | | | B0615.06903 | 0,8 | 3,5 | 18 | 6 | 5 | 3,5 | 8 | 10 | 4 | 10 | | | 13.33 € | | | B0615.06004 | 1 | 4 | 23 | 6 | 6 | 7 | 10 | 13 | 4 | 12 | | | 12.71 € | | | B0615.06105 | 1,3 | 5 | 28 | 8 | 7 | 8 | 13 | 17 | 5 | 12 | | | 12.10 € | | | B0615.06206 | 1,8 | 6 | 32 | 10 | 8 | 8 | 14 | 19 | 6 | 14 | | | 14.30 € | | | B0615.06308 | 2,3 | 8 | 42 | 12 | 10 | 12 | 19 | 24 | 14 | 28 | | | 19.17 € | | | B0615.06410 | 2,8 | 10 | 49 | 15 | 12 | 12 | 22 | 30 | 15 | 32 | | | 28.79 € | | | B0615.76903 | 0,8 | 3,5 | 18 | 6 | 5 | 3,5 | 8 | 10 | 4 | 10 | | | 16.00 € | | | B0615.76004 | 1 | 4 | 23 | 6 | 6 | 7 | 10 | 13 | 4 | 12 | | | 15.25 € | | | B0615.76105 | 1,3 | 5 | 28 | 8 | 7 | 8 | 13 | 17 | 5 | 12 | | | 14.53 € | | | B0615.76206 | 1,8 | 6 | 32 | 10 | 8 | 8 | 14 | 19 | 6 | 14 | | | 17.16 € | | | B0615.76308 | 2,3 | 8 | 42 | 12 | 10 | 12 | 19 | 24 | 14 | 28 | | | 23.01 € | | | B0615.76410 | 2,8 | 10 | 49 | 15 | 12 | 12 | 22 | 30 | 15 | 32 | | | 34.56 € | | | B0615.66903 | 0,8 | 3,5 | 18 | 6 | 5 | 3,5 | 8 | 10 | 4 | 10 | | | 16.00 € | | | B0615.66004 | 1 | 4 | 23 | 6 | 6 | 7 | 10 | 13 | 4 | 12 | | | 15.25 € | | | B0615.66105 | 1,3 | 5 | 28 | 8 | 7 | 8 | 13 | 17 | 5 | 12 | | | 14.53 € | | | B0615.66206 | 1,8 | 6 | 32 | 10 | 8 | 8 | 14 | 19 | 6 | 14 | | | 17.16 € | | | B0615.66308 | 2,3 | 8 | 42 | 12 | 10 | 12 | 19 | 24 | 14 | 28 | | | 23.01 € | | | B0615.66410 | 2,8 | 10 | 49 | 15 | 12 | 12 | 22 | 30 | 15 | 32 | | | 34.56 € | |
|
