B0587Indexing plungers, stainless steel with stainless steel mushroom... |
go back |
|

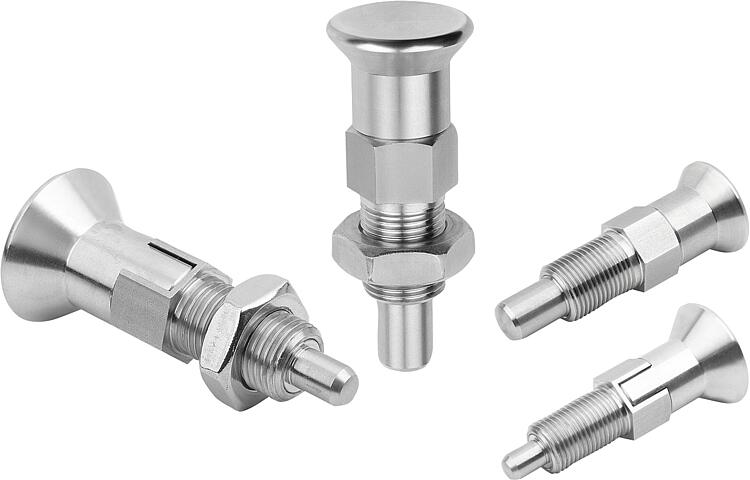

Item description/product images |
|
|
DescriptionProduct description:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.Material:Stainless steel version A1:
Threaded sleeve and mushroom grip 1.4305.
Indexing pin hardened 1.4034.
Indexing pin not hardened 1.4305.
Stainless steel version A4:
Threaded sleeve, mushroom grip and indexing pin 1.4404. Version:Stainless steel version A1:
Threaded sleeve and mushroom grip bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Stainless steel version A4:
Threaded sleeve bright.
Mushroom grip bright or abrasive blasted.
Indexing pin ground and chemically nickel-plated.
Indexing pin ground, bright.Note:The materials used enable a wide range of applications.
Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements.
Accessory:Spacer rings B0064.Drawing reference:Form A: non-lockout type, without locknut

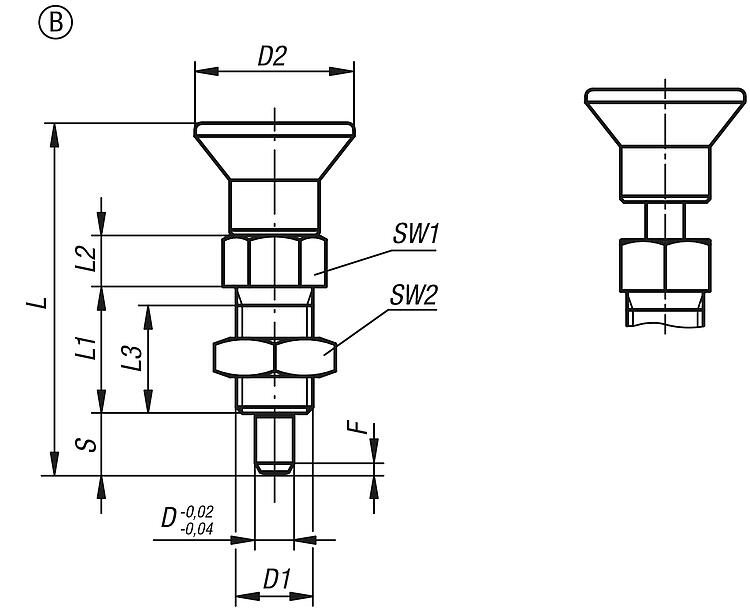

Form B: non-lockout type, with locknut

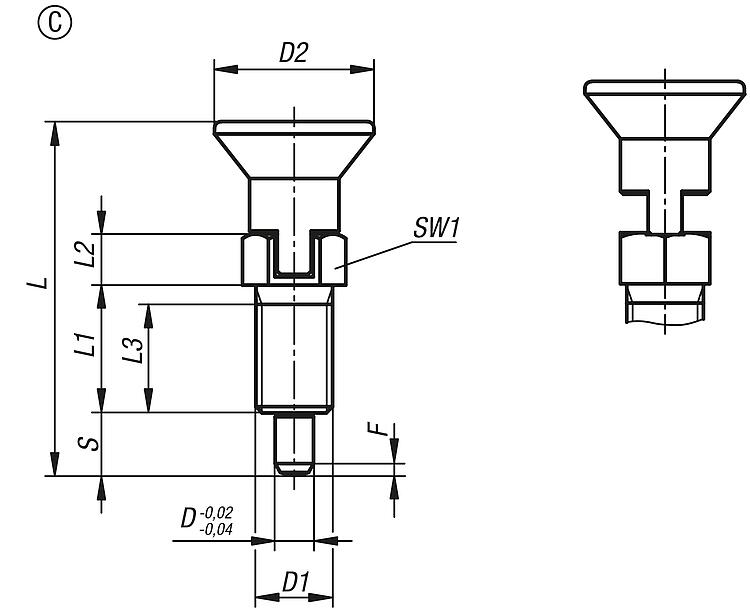

Form C: lockout type, without locknut

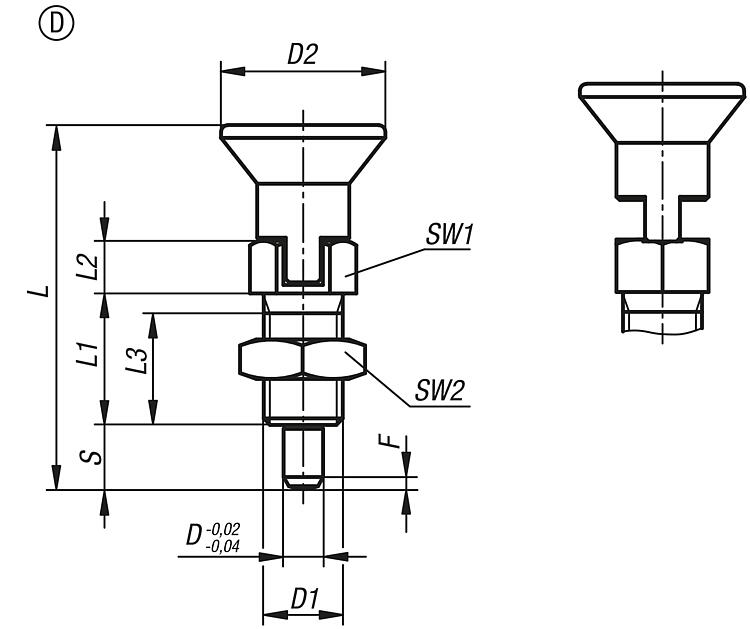

Form D: lockout type, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

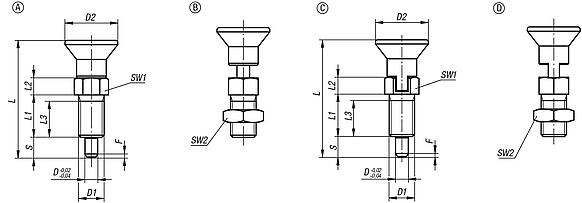

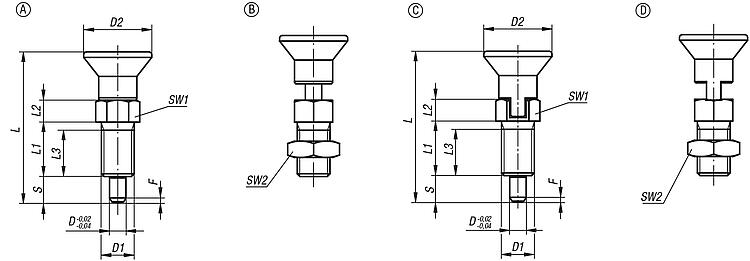

Drawings (total overview) |

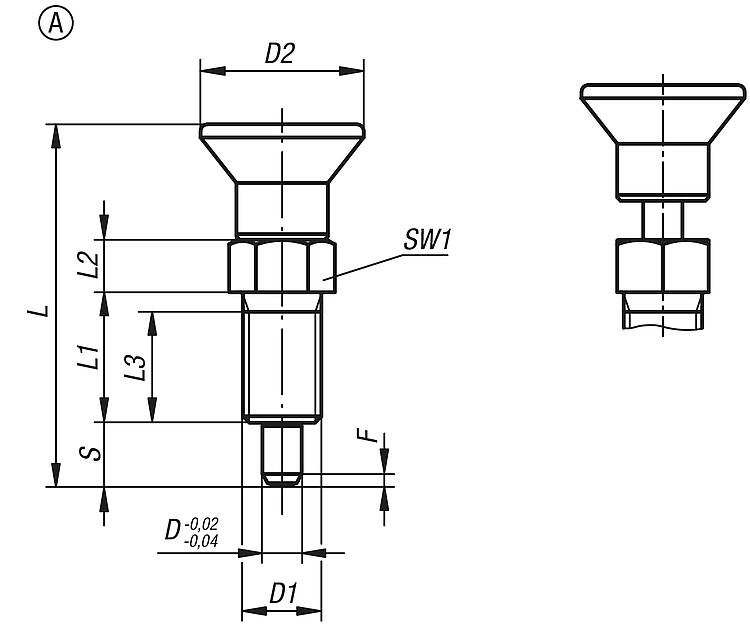

Indexing plungers, stainless steel with stainless steel mushroom grip and extended indexing pin, without locking slot or locknut |
More information |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | D | D1 | D2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| B0587.2001903 | 9 | A | without locking slot, without locknut | 1.4034 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 |  | | 17.83 € | | | B0587.2001004 | 0 | A | without locking slot, without locknut | 1.4034 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 16.97 € | | | B0587.2001105 | 1 | A | without locking slot, without locknut | 1.4034 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 14.54 € | | | B0587.2001206 | 2 | A | without locking slot, without locknut | 1.4034 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 17.18 € | | | B0587.2001308 | 3 | A | without locking slot, without locknut | 1.4034 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.05 € | | | B0587.2001410 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 28.58 € | | | B0587.2001412 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 47.54 € | | | B0587.2001516 | 5 | A | without locking slot, without locknut | 1.4034 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 54.03 € | | | B0587.2111903 | 9 | A | without locking slot, without locknut | 1.4305 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 17.83 € | | | B0587.2111004 | 0 | A | without locking slot, without locknut | 1.4305 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 16.97 € | | | B0587.2111105 | 1 | A | without locking slot, without locknut | 1.4305 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 14.54 € | | | B0587.2111206 | 2 | A | without locking slot, without locknut | 1.4305 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 17.18 € | | | B0587.2111308 | 3 | A | without locking slot, without locknut | 1.4305 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.05 € | | | B0587.2111410 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 28.58 € | | | B0587.2111412 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 47.54 € | | | B0587.2111516 | 5 | A | without locking slot, without locknut | 1.4305 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 54.03 € | | | B0587.2061903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.2061004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.2061105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.2061206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.2061308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.2061410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.2061412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.2061516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.2171903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.2171004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.2171105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.2171206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.2171308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.2171410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.2171412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.2171516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.20619031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.20610041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.20611051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.20612061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.20613081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.20614101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.20614121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.20615161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.21719031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.21710041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.21711051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.21712061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.21713081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.21714101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.21714121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.21715161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0587.2001903 | 9 | A | without locking slot, without locknut | 1.4034 | bright | 5 | 8 | 0,8 | 4,5 | 12 | | | 17.83 € | | | B0587.2001004 | 0 | A | without locking slot, without locknut | 1.4034 | bright | 6 | 10 | 1 | 6 | 15 | | | 16.97 € | | | B0587.2001105 | 1 | A | without locking slot, without locknut | 1.4034 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 14.54 € | | | B0587.2001206 | 2 | A | without locking slot, without locknut | 1.4034 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 17.18 € | | | B0587.2001308 | 3 | A | without locking slot, without locknut | 1.4034 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 24.05 € | | | B0587.2001410 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 15 | 22 | 2,8 | 15 | 43 | | | 28.58 € | | | B0587.2001412 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 47.54 € | | | B0587.2001516 | 5 | A | without locking slot, without locknut | 1.4034 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 54.03 € | | | B0587.2111903 | 9 | A | without locking slot, without locknut | 1.4305 | bright | 5 | 8 | 0,8 | 4,5 | 12 | | | 17.83 € | | | B0587.2111004 | 0 | A | without locking slot, without locknut | 1.4305 | bright | 6 | 10 | 1 | 6 | 15 | | | 16.97 € | | | B0587.2111105 | 1 | A | without locking slot, without locknut | 1.4305 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 14.54 € | | | B0587.2111206 | 2 | A | without locking slot, without locknut | 1.4305 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 17.18 € | | | B0587.2111308 | 3 | A | without locking slot, without locknut | 1.4305 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 24.05 € | | | B0587.2111410 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 15 | 22 | 2,8 | 15 | 43 | | | 28.58 € | | | B0587.2111412 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 47.54 € | | | B0587.2111516 | 5 | A | without locking slot, without locknut | 1.4305 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 54.03 € | | | B0587.2061903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.2061004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.2061105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.2061206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.2061308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.2061410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.2061412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.2061516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.2171903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.2171004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.2171105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.2171206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.2171308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.2171410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.2171412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.2171516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.20619031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.20610041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.20611051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.20612061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.20613081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.20614101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.20614121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.20615161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.21719031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.21710041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.21711051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.21712061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.21713081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.21714101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.21714121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.21715161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | |
|

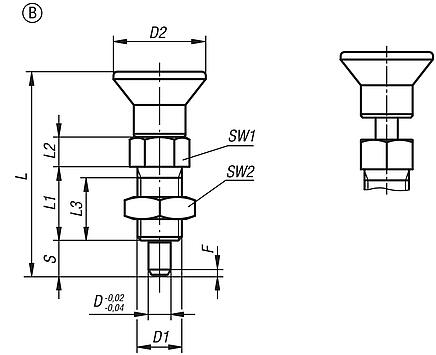

Indexing plungers, stainless steel with stainless steel mushroom grip, extended indexing pin and locknut |
More information |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | D | D1 | D2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| B0587.2002903 | 9 | B | without locking slot, with locknut | 1.4034 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 19.04 € | | | B0587.2002004 | 0 | B | without locking slot, with locknut | 1.4034 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 18.13 € | | | B0587.2002105 | 1 | B | without locking slot, with locknut | 1.4034 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 15.57 € | | | B0587.2002206 | 2 | B | without locking slot, with locknut | 1.4034 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 18.28 € | | | B0587.2002308 | 3 | B | without locking slot, with locknut | 1.4034 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.40 € | | | B0587.2002410 | 4 | B | without locking slot, with locknut | 1.4034 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 31.35 € | | | B0587.2002412 | 4 | B | without locking slot, with locknut | 1.4034 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.23 € | | | B0587.2002516 | 5 | B | without locking slot, with locknut | 1.4034 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 55.96 € | | | B0587.2112903 | 9 | B | without locking slot, with locknut | 1.4305 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 19.04 € | | | B0587.2112004 | 0 | B | without locking slot, with locknut | 1.4305 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 18.13 € | | | B0587.2112105 | 1 | B | without locking slot, with locknut | 1.4305 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 15.57 € | | | B0587.2112206 | 2 | B | without locking slot, with locknut | 1.4305 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 18.28 € | | | B0587.2112308 | 3 | B | without locking slot, with locknut | 1.4305 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.40 € | | | B0587.2112410 | 4 | B | without locking slot, with locknut | 1.4305 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 31.35 € | | | B0587.2112412 | 4 | B | without locking slot, with locknut | 1.4305 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.23 € | | | B0587.2112516 | 5 | B | without locking slot, with locknut | 1.4305 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 55.96 € | | | B0587.2062903 | 9 | B | without locking slot, with locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 24.76 € | | | B0587.2062004 | 0 | B | without locking slot, with locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 23.57 € | | | B0587.2062105 | 1 | B | without locking slot, with locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 20.24 € | | | B0587.2062206 | 2 | B | without locking slot, with locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 23.77 € | | | B0587.2062308 | 3 | B | without locking slot, with locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.72 € | | | B0587.2062410 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 37.62 € | | | B0587.2062412 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 51.70 € | | | B0587.2062516 | 5 | B | without locking slot, with locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 61.56 € | | | B0587.2172903 | 9 | B | without locking slot, with locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 24.76 € | | | B0587.2172004 | 0 | B | without locking slot, with locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 23.57 € | | | B0587.2172105 | 1 | B | without locking slot, with locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 20.24 € | | | B0587.2172206 | 2 | B | without locking slot, with locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 23.77 € | | | B0587.2172308 | 3 | B | without locking slot, with locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.72 € | | | B0587.2172410 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 37.62 € | | | B0587.2172412 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 51.70 € | | | B0587.2172516 | 5 | B | without locking slot, with locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 61.56 € | | | B0587.20629031 | 9 | B | without locking slot, with locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 24.76 € | | | B0587.20620041 | 0 | B | without locking slot, with locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 23.57 € | | | B0587.20621051 | 1 | B | without locking slot, with locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 20.24 € | | | B0587.20622061 | 2 | B | without locking slot, with locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 23.77 € | | | B0587.20623081 | 3 | B | without locking slot, with locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.72 € | | | B0587.20624101 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 37.62 € | | | B0587.20624121 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 51.70 € | | | B0587.20625161 | 5 | B | without locking slot, with locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 61.56 € | | | B0587.21729031 | 9 | B | without locking slot, with locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 24.76 € | | | B0587.21720041 | 0 | B | without locking slot, with locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 23.57 € | | | B0587.21721051 | 1 | B | without locking slot, with locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 20.24 € | | | B0587.21722061 | 2 | B | without locking slot, with locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 23.77 € | | | B0587.21723081 | 3 | B | without locking slot, with locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.72 € | | | B0587.21724101 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 37.62 € | | | B0587.21724121 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 51.70 € | | | B0587.21725161 | 5 | B | without locking slot, with locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 61.56 € | |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0587.2002903 | 9 | B | without locking slot, with locknut | 1.4034 | bright | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 19.04 € | | | B0587.2002004 | 0 | B | without locking slot, with locknut | 1.4034 | bright | 6 | 10 | 13 | 1 | 6 | 15 | | | 18.13 € | | | B0587.2002105 | 1 | B | without locking slot, with locknut | 1.4034 | bright | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 15.57 € | | | B0587.2002206 | 2 | B | without locking slot, with locknut | 1.4034 | bright | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 18.28 € | | | B0587.2002308 | 3 | B | without locking slot, with locknut | 1.4034 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 24.40 € | | | B0587.2002410 | 4 | B | without locking slot, with locknut | 1.4034 | bright | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 31.35 € | | | B0587.2002412 | 4 | B | without locking slot, with locknut | 1.4034 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 49.23 € | | | B0587.2002516 | 5 | B | without locking slot, with locknut | 1.4034 | bright | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 55.96 € | | | B0587.2112903 | 9 | B | without locking slot, with locknut | 1.4305 | bright | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 19.04 € | | | B0587.2112004 | 0 | B | without locking slot, with locknut | 1.4305 | bright | 6 | 10 | 13 | 1 | 6 | 15 | | | 18.13 € | | | B0587.2112105 | 1 | B | without locking slot, with locknut | 1.4305 | bright | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 15.57 € | | | B0587.2112206 | 2 | B | without locking slot, with locknut | 1.4305 | bright | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 18.28 € | | | B0587.2112308 | 3 | B | without locking slot, with locknut | 1.4305 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 24.40 € | | | B0587.2112410 | 4 | B | without locking slot, with locknut | 1.4305 | bright | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 31.35 € | | | B0587.2112412 | 4 | B | without locking slot, with locknut | 1.4305 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 49.23 € | | | B0587.2112516 | 5 | B | without locking slot, with locknut | 1.4305 | bright | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 55.96 € | | | B0587.2062903 | 9 | B | without locking slot, with locknut | 1.4404 | bright | 5 | 8 | 10 | 0,8 | 3 | 8 | | | 24.76 € | | | B0587.2062004 | 0 | B | without locking slot, with locknut | 1.4404 | bright | 6 | 10 | 13 | 1 | 7 | 19 | | | 23.57 € | | | B0587.2062105 | 1 | B | without locking slot, with locknut | 1.4404 | bright | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 20.24 € | | | B0587.2062206 | 2 | B | without locking slot, with locknut | 1.4404 | bright | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 23.77 € | | | B0587.2062308 | 3 | B | without locking slot, with locknut | 1.4404 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 31.72 € | | | B0587.2062410 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 15 | 22 | 30 | 2,8 | 15 | 40 | | | 37.62 € | | | B0587.2062412 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 51.70 € | | | B0587.2062516 | 5 | B | without locking slot, with locknut | 1.4404 | bright | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 61.56 € | | | B0587.2172903 | 9 | B | without locking slot, with locknut | 1.4404 | bright | 5 | 8 | 10 | 0,8 | 3 | 8 | | | 24.76 € | | | B0587.2172004 | 0 | B | without locking slot, with locknut | 1.4404 | bright | 6 | 10 | 13 | 1 | 7 | 19 | | | 23.57 € | | | B0587.2172105 | 1 | B | without locking slot, with locknut | 1.4404 | bright | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 20.24 € | | | B0587.2172206 | 2 | B | without locking slot, with locknut | 1.4404 | bright | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 23.77 € | | | B0587.2172308 | 3 | B | without locking slot, with locknut | 1.4404 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 31.72 € | | | B0587.2172410 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 15 | 22 | 30 | 2,8 | 15 | 40 | | | 37.62 € | | | B0587.2172412 | 4 | B | without locking slot, with locknut | 1.4404 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 51.70 € | | | B0587.2172516 | 5 | B | without locking slot, with locknut | 1.4404 | bright | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 61.56 € | | | B0587.20629031 | 9 | B | without locking slot, with locknut | 1.4404 | blasted | 5 | 8 | 10 | 0,8 | 3 | 8 | | | 24.76 € | | | B0587.20620041 | 0 | B | without locking slot, with locknut | 1.4404 | blasted | 6 | 10 | 13 | 1 | 7 | 19 | | | 23.57 € | | | B0587.20621051 | 1 | B | without locking slot, with locknut | 1.4404 | blasted | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 20.24 € | | | B0587.20622061 | 2 | B | without locking slot, with locknut | 1.4404 | blasted | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 23.77 € | | | B0587.20623081 | 3 | B | without locking slot, with locknut | 1.4404 | blasted | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 31.72 € | | | B0587.20624101 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 15 | 22 | 30 | 2,8 | 15 | 40 | | | 37.62 € | | | B0587.20624121 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 51.70 € | | | B0587.20625161 | 5 | B | without locking slot, with locknut | 1.4404 | blasted | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 61.56 € | | | B0587.21729031 | 9 | B | without locking slot, with locknut | 1.4404 | blasted | 5 | 8 | 10 | 0,8 | 3 | 8 | | | 24.76 € | | | B0587.21720041 | 0 | B | without locking slot, with locknut | 1.4404 | blasted | 6 | 10 | 13 | 1 | 7 | 19 | | | 23.57 € | | | B0587.21721051 | 1 | B | without locking slot, with locknut | 1.4404 | blasted | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 20.24 € | | | B0587.21722061 | 2 | B | without locking slot, with locknut | 1.4404 | blasted | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 23.77 € | | | B0587.21723081 | 3 | B | without locking slot, with locknut | 1.4404 | blasted | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 31.72 € | | | B0587.21724101 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 15 | 22 | 30 | 2,8 | 15 | 40 | | | 37.62 € | | | B0587.21724121 | 4 | B | without locking slot, with locknut | 1.4404 | blasted | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 51.70 € | | | B0587.21725161 | 5 | B | without locking slot, with locknut | 1.4404 | blasted | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 61.56 € | |
|

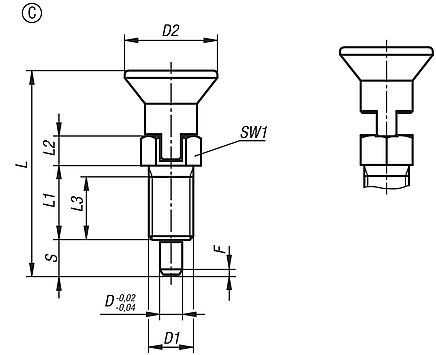

Indexing plungers, stainless steel with stainless steel mushroom grip, extended indexing pin and locking slot |
More information |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | D | D1 | D2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| B0587.2003903 | 9 | C | with locking slot, without locknut | 1.4034 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 21.43 € | | | B0587.2003004 | 0 | C | with locking slot, without locknut | 1.4034 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 20.44 € | | | B0587.2003105 | 1 | C | with locking slot, without locknut | 1.4034 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 19.48 € | | | B0587.2003206 | 2 | C | with locking slot, without locknut | 1.4034 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 23.02 € | | | B0587.2003308 | 3 | C | with locking slot, without locknut | 1.4034 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 31.22 € | | | B0587.2003410 | 4 | C | with locking slot, without locknut | 1.4034 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 42.16 € | | | B0587.2003412 | 4 | C | with locking slot, without locknut | 1.4034 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 66.23 € | | | B0587.2003516 | 5 | C | with locking slot, without locknut | 1.4034 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 75.25 € | | | B0587.2113903 | 9 | C | with locking slot, without locknut | 1.4305 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 21.43 € | | | B0587.2113004 | 0 | C | with locking slot, without locknut | 1.4305 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 20.44 € | | | B0587.2113105 | 1 | C | with locking slot, without locknut | 1.4305 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 19.48 € | | | B0587.2113206 | 2 | C | with locking slot, without locknut | 1.4305 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 23.02 € | | | B0587.2113308 | 3 | C | with locking slot, without locknut | 1.4305 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 31.22 € | | | B0587.2113410 | 4 | C | with locking slot, without locknut | 1.4305 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 42.16 € | | | B0587.2113412 | 4 | C | with locking slot, without locknut | 1.4305 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 66.23 € | | | B0587.2113516 | 5 | C | with locking slot, without locknut | 1.4305 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 75.25 € | | | B0587.2063903 | 9 | C | with locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 27.86 € | | | B0587.2063004 | 0 | C | with locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 26.57 € | | | B0587.2063105 | 1 | C | with locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 25.32 € | | | B0587.2063206 | 2 | C | with locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 29.92 € | | | B0587.2063308 | 3 | C | with locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 40.59 € | | | B0587.2063410 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 50.58 € | | | B0587.2063412 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 69.53 € | | | B0587.2063516 | 5 | C | with locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 82.79 € | | | B0587.2173903 | 9 | C | with locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 27.86 € | | | B0587.2173004 | 0 | C | with locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 26.57 € | | | B0587.2173105 | 1 | C | with locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 25.32 € | | | B0587.2173206 | 2 | C | with locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 29.92 € | | | B0587.2173308 | 3 | C | with locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 40.59 € | | | B0587.2173410 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 50.58 € | | | B0587.2173412 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 69.53 € | | | B0587.2173516 | 5 | C | with locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 82.79 € | | | B0587.20639031 | 9 | C | with locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 27.86 € | | | B0587.20630041 | 0 | C | with locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 26.57 € | | | B0587.20631051 | 1 | C | with locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 25.32 € | | | B0587.20632061 | 2 | C | with locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 29.92 € | | | B0587.20633081 | 3 | C | with locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 40.59 € | | | B0587.20634101 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 50.58 € | | | B0587.20634121 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 69.53 € | | | B0587.20635161 | 5 | C | with locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 82.79 € | | | B0587.21739031 | 9 | C | with locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 27.86 € | | | B0587.21730041 | 0 | C | with locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 26.57 € | | | B0587.21731051 | 1 | C | with locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 25.32 € | | | B0587.21732061 | 2 | C | with locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 29.92 € | | | B0587.21733081 | 3 | C | with locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 40.59 € | | | B0587.21734101 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 50.58 € | | | B0587.21734121 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 69.53 € | | | B0587.21735161 | 5 | C | with locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 82.79 € | |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0587.2003903 | 9 | C | with locking slot, without locknut | 1.4034 | bright | 5 | 8 | 0,8 | 3 | 10 | | | 21.43 € | | | B0587.2003004 | 0 | C | with locking slot, without locknut | 1.4034 | bright | 6 | 10 | 1 | 6 | 21 | | | 20.44 € | | | B0587.2003105 | 1 | C | with locking slot, without locknut | 1.4034 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 19.48 € | | | B0587.2003206 | 2 | C | with locking slot, without locknut | 1.4034 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 23.02 € | | | B0587.2003308 | 3 | C | with locking slot, without locknut | 1.4034 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.22 € | | | B0587.2003410 | 4 | C | with locking slot, without locknut | 1.4034 | bright | 15 | 22 | 2,8 | 14 | 42 | | | 42.16 € | | | B0587.2003412 | 4 | C | with locking slot, without locknut | 1.4034 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 66.23 € | | | B0587.2003516 | 5 | C | with locking slot, without locknut | 1.4034 | bright | 24 | 27 | 3,2 | 18 | 48 | | | 75.25 € | | | B0587.2113903 | 9 | C | with locking slot, without locknut | 1.4305 | bright | 5 | 8 | 0,8 | 3 | 10 | | | 21.43 € | | | B0587.2113004 | 0 | C | with locking slot, without locknut | 1.4305 | bright | 6 | 10 | 1 | 6 | 21 | | | 20.44 € | | | B0587.2113105 | 1 | C | with locking slot, without locknut | 1.4305 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 19.48 € | | | B0587.2113206 | 2 | C | with locking slot, without locknut | 1.4305 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 23.02 € | | | B0587.2113308 | 3 | C | with locking slot, without locknut | 1.4305 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.22 € | | | B0587.2113410 | 4 | C | with locking slot, without locknut | 1.4305 | bright | 15 | 22 | 2,8 | 14 | 42 | | | 42.16 € | | | B0587.2113412 | 4 | C | with locking slot, without locknut | 1.4305 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 66.23 € | | | B0587.2113516 | 5 | C | with locking slot, without locknut | 1.4305 | bright | 24 | 27 | 3,2 | 18 | 48 | | | 75.25 € | | | B0587.2063903 | 9 | C | with locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 2 | 7 | | | 27.86 € | | | B0587.2063004 | 0 | C | with locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 26.57 € | | | B0587.2063105 | 1 | C | with locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 25.32 € | | | B0587.2063206 | 2 | C | with locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 29.92 € | | | B0587.2063308 | 3 | C | with locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 40.59 € | | | B0587.2063410 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 14 | 42 | | | 50.58 € | | | B0587.2063412 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 69.53 € | | | B0587.2063516 | 5 | C | with locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 18 | 48 | | | 82.79 € | | | B0587.2173903 | 9 | C | with locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 2 | 7 | | | 27.86 € | | | B0587.2173004 | 0 | C | with locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 26.57 € | | | B0587.2173105 | 1 | C | with locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 25.32 € | | | B0587.2173206 | 2 | C | with locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 29.92 € | | | B0587.2173308 | 3 | C | with locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 40.59 € | | | B0587.2173410 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 14 | 42 | | | 50.58 € | | | B0587.2173412 | 4 | C | with locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 69.53 € | | | B0587.2173516 | 5 | C | with locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 18 | 48 | | | 82.79 € | | | B0587.20639031 | 9 | C | with locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 2 | 7 | | | 27.86 € | | | B0587.20630041 | 0 | C | with locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 26.57 € | | | B0587.20631051 | 1 | C | with locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 25.32 € | | | B0587.20632061 | 2 | C | with locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 29.92 € | | | B0587.20633081 | 3 | C | with locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 40.59 € | | | B0587.20634101 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 14 | 42 | | | 50.58 € | | | B0587.20634121 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 69.53 € | | | B0587.20635161 | 5 | C | with locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 18 | 48 | | | 82.79 € | | | B0587.21739031 | 9 | C | with locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 2 | 7 | | | 27.86 € | | | B0587.21730041 | 0 | C | with locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 26.57 € | | | B0587.21731051 | 1 | C | with locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 25.32 € | | | B0587.21732061 | 2 | C | with locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 29.92 € | | | B0587.21733081 | 3 | C | with locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 40.59 € | | | B0587.21734101 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 14 | 42 | | | 50.58 € | | | B0587.21734121 | 4 | C | with locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 69.53 € | | | B0587.21735161 | 5 | C | with locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 18 | 48 | | | 82.79 € | |
|

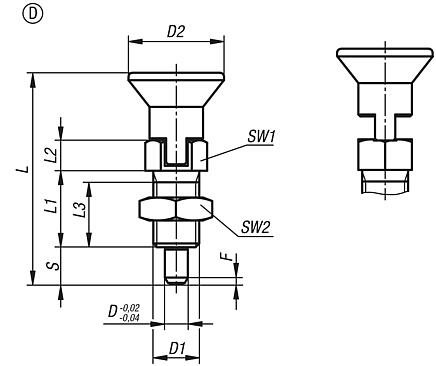

Indexing plungers, stainless steel with stainless steel mushroom grip, extended indexing pin, locking slot and locknut |
More information |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | D | D1 | D2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| B0587.2004903 | 9 | D | with locking slot, with locknut | 1.4034 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 22.72 € | | | B0587.2004004 | 0 | D | with locking slot, with locknut | 1.4034 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 21.65 € | | | B0587.2004105 | 1 | D | with locking slot, with locknut | 1.4034 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 20.57 € | | | B0587.2004206 | 2 | D | with locking slot, with locknut | 1.4034 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 24.29 € | | | B0587.2004308 | 3 | D | with locking slot, with locknut | 1.4034 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 33.10 € | | | B0587.2004410 | 4 | D | with locking slot, with locknut | 1.4034 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 42.95 € | | | B0587.2004412 | 4 | D | with locking slot, with locknut | 1.4034 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 67.42 € | | | B0587.2004516 | 5 | D | with locking slot, with locknut | 1.4034 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 76.62 € | | | B0587.2114903 | 9 | D | with locking slot, with locknut | 1.4305 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 22.72 € | | | B0587.2114004 | 0 | D | with locking slot, with locknut | 1.4305 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 21.65 € | | | B0587.2114105 | 1 | D | with locking slot, with locknut | 1.4305 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 20.57 € | | | B0587.2114206 | 2 | D | with locking slot, with locknut | 1.4305 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 24.29 € | | | B0587.2114308 | 3 | D | with locking slot, with locknut | 1.4305 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 33.10 € | | | B0587.2114410 | 4 | D | with locking slot, with locknut | 1.4305 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 42.95 € | | | B0587.2114412 | 4 | D | with locking slot, with locknut | 1.4305 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 67.42 € | | | B0587.2114516 | 5 | D | with locking slot, with locknut | 1.4305 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 76.62 € | | | B0587.2064903 | 9 | D | with locking slot, with locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 29.55 € | | | B0587.2064004 | 0 | D | with locking slot, with locknut | 1.4404 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 28.16 € | | | B0587.2064105 | 1 | D | with locking slot, with locknut | 1.4404 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 26.74 € | | | B0587.2064206 | 2 | D | with locking slot, with locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 31.57 € | | | B0587.2064308 | 3 | D | with locking slot, with locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 43.02 € | | | B0587.2064410 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 51.53 € | | | B0587.2064412 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 70.80 € | | | B0587.2064516 | 5 | D | with locking slot, with locknut | 1.4404 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 84.30 € | | | B0587.2174903 | 9 | D | with locking slot, with locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 29.55 € | | | B0587.2174004 | 0 | D | with locking slot, with locknut | 1.4404 | bright | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 28.16 € | | | B0587.2174105 | 1 | D | with locking slot, with locknut | 1.4404 | bright | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 26.74 € | | | B0587.2174206 | 2 | D | with locking slot, with locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 31.57 € | | | B0587.2174308 | 3 | D | with locking slot, with locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 43.02 € | | | B0587.2174410 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 51.53 € | | | B0587.2174412 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 70.80 € | | | B0587.2174516 | 5 | D | with locking slot, with locknut | 1.4404 | bright | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 84.30 € | | | B0587.20649031 | 9 | D | with locking slot, with locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 29.55 € | | | B0587.20640041 | 0 | D | with locking slot, with locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 28.16 € | | | B0587.20641051 | 1 | D | with locking slot, with locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 26.74 € | | | B0587.20642061 | 2 | D | with locking slot, with locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 31.57 € | | | B0587.20643081 | 3 | D | with locking slot, with locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 43.02 € | | | B0587.20644101 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 51.53 € | | | B0587.20644121 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 70.80 € | | | B0587.20645161 | 5 | D | with locking slot, with locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 84.30 € | | | B0587.21749031 | 9 | D | with locking slot, with locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | | | 29.55 € | | | B0587.21740041 | 0 | D | with locking slot, with locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | | | 28.16 € | | | B0587.21741051 | 1 | D | with locking slot, with locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | | | 26.74 € | | | B0587.21742061 | 2 | D | with locking slot, with locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | | | 31.57 € | | | B0587.21743081 | 3 | D | with locking slot, with locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | | | 43.02 € | | | B0587.21744101 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | | | 51.53 € | | | B0587.21744121 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | | | 70.80 € | | | B0587.21745161 | 5 | D | with locking slot, with locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | | | 84.30 € | |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0587.2004903 | 9 | D | with locking slot, with locknut | 1.4034 | bright | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 22.72 € | | | B0587.2004004 | 0 | D | with locking slot, with locknut | 1.4034 | bright | 6 | 10 | 13 | 1 | 6 | 21 | | | 21.65 € | | | B0587.2004105 | 1 | D | with locking slot, with locknut | 1.4034 | bright | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 20.57 € | | | B0587.2004206 | 2 | D | with locking slot, with locknut | 1.4034 | bright | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 24.29 € | | | B0587.2004308 | 3 | D | with locking slot, with locknut | 1.4034 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 33.10 € | | | B0587.2004410 | 4 | D | with locking slot, with locknut | 1.4034 | bright | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 42.95 € | | | B0587.2004412 | 4 | D | with locking slot, with locknut | 1.4034 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 67.42 € | | | B0587.2004516 | 5 | D | with locking slot, with locknut | 1.4034 | bright | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 76.62 € | | | B0587.2114903 | 9 | D | with locking slot, with locknut | 1.4305 | bright | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 22.72 € | | | B0587.2114004 | 0 | D | with locking slot, with locknut | 1.4305 | bright | 6 | 10 | 13 | 1 | 6 | 21 | | | 21.65 € | | | B0587.2114105 | 1 | D | with locking slot, with locknut | 1.4305 | bright | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 20.57 € | | | B0587.2114206 | 2 | D | with locking slot, with locknut | 1.4305 | bright | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 24.29 € | | | B0587.2114308 | 3 | D | with locking slot, with locknut | 1.4305 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 33.10 € | | | B0587.2114410 | 4 | D | with locking slot, with locknut | 1.4305 | bright | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 42.95 € | | | B0587.2114412 | 4 | D | with locking slot, with locknut | 1.4305 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 67.42 € | | | B0587.2114516 | 5 | D | with locking slot, with locknut | 1.4305 | bright | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 76.62 € | | | B0587.2064903 | 9 | D | with locking slot, with locknut | 1.4404 | bright | 5 | 8 | 10 | 0,8 | 2 | 7 | | | 29.55 € | | | B0587.2064004 | 0 | D | with locking slot, with locknut | 1.4404 | bright | 6 | 10 | 13 | 1 | 7 | 19 | | | 28.16 € | | | B0587.2064105 | 1 | D | with locking slot, with locknut | 1.4404 | bright | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 26.74 € | | | B0587.2064206 | 2 | D | with locking slot, with locknut | 1.4404 | bright | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 31.57 € | | | B0587.2064308 | 3 | D | with locking slot, with locknut | 1.4404 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 43.02 € | | | B0587.2064410 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 51.53 € | | | B0587.2064412 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 70.80 € | | | B0587.2064516 | 5 | D | with locking slot, with locknut | 1.4404 | bright | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 84.30 € | | | B0587.2174903 | 9 | D | with locking slot, with locknut | 1.4404 | bright | 5 | 8 | 10 | 0,8 | 2 | 7 | | | 29.55 € | | | B0587.2174004 | 0 | D | with locking slot, with locknut | 1.4404 | bright | 6 | 10 | 13 | 1 | 7 | 19 | | | 28.16 € | | | B0587.2174105 | 1 | D | with locking slot, with locknut | 1.4404 | bright | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 26.74 € | | | B0587.2174206 | 2 | D | with locking slot, with locknut | 1.4404 | bright | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 31.57 € | | | B0587.2174308 | 3 | D | with locking slot, with locknut | 1.4404 | bright | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 43.02 € | | | B0587.2174410 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 51.53 € | | | B0587.2174412 | 4 | D | with locking slot, with locknut | 1.4404 | bright | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 70.80 € | | | B0587.2174516 | 5 | D | with locking slot, with locknut | 1.4404 | bright | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 84.30 € | | | B0587.20649031 | 9 | D | with locking slot, with locknut | 1.4404 | blasted | 5 | 8 | 10 | 0,8 | 2 | 7 | | | 29.55 € | | | B0587.20640041 | 0 | D | with locking slot, with locknut | 1.4404 | blasted | 6 | 10 | 13 | 1 | 7 | 19 | | | 28.16 € | | | B0587.20641051 | 1 | D | with locking slot, with locknut | 1.4404 | blasted | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 26.74 € | | | B0587.20642061 | 2 | D | with locking slot, with locknut | 1.4404 | blasted | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 31.57 € | | | B0587.20643081 | 3 | D | with locking slot, with locknut | 1.4404 | blasted | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 43.02 € | | | B0587.20644101 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 51.53 € | | | B0587.20644121 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 70.80 € | | | B0587.20645161 | 5 | D | with locking slot, with locknut | 1.4404 | blasted | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 84.30 € | | | B0587.21749031 | 9 | D | with locking slot, with locknut | 1.4404 | blasted | 5 | 8 | 10 | 0,8 | 2 | 7 | | | 29.55 € | | | B0587.21740041 | 0 | D | with locking slot, with locknut | 1.4404 | blasted | 6 | 10 | 13 | 1 | 7 | 19 | | | 28.16 € | | | B0587.21741051 | 1 | D | with locking slot, with locknut | 1.4404 | blasted | 8 | 13 | 17 | 1,3 | 4 | 17 | | | 26.74 € | | | B0587.21742061 | 2 | D | with locking slot, with locknut | 1.4404 | blasted | 9 | 14 | 19 | 1,8 | 7 | 18 | | | 31.57 € | | | B0587.21743081 | 3 | D | with locking slot, with locknut | 1.4404 | blasted | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 43.02 € | | | B0587.21744101 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 51.53 € | | | B0587.21744121 | 4 | D | with locking slot, with locknut | 1.4404 | blasted | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 70.80 € | | | B0587.21745161 | 5 | D | with locking slot, with locknut | 1.4404 | blasted | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 84.30 € | |
|
