B0061Precision indexing plungers, steel with plastic spherical knob... |
go back |
|
|
DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.
Form B is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
The indexing plungers with bushes are a perfect combination for quick positioning and securing. The precise design of both the indexing plunger and the bush guarantees high repeat accuracy when joining two elements.
Material:Free-cutting steel.
Spherical knob thermoplastic.Version:Hardened and ground,

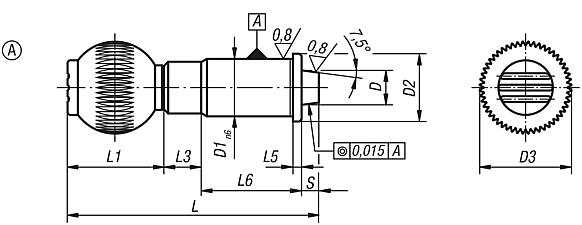

Spherical knob black-grey RAL7021.Note:Technical Information see assembly and installation instructions.Drawing reference:Form A: standard

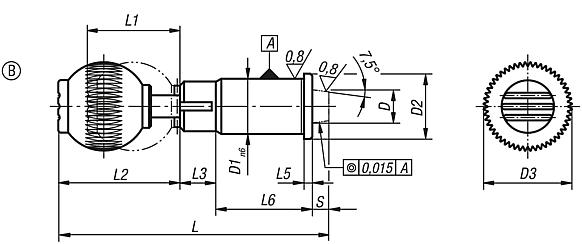

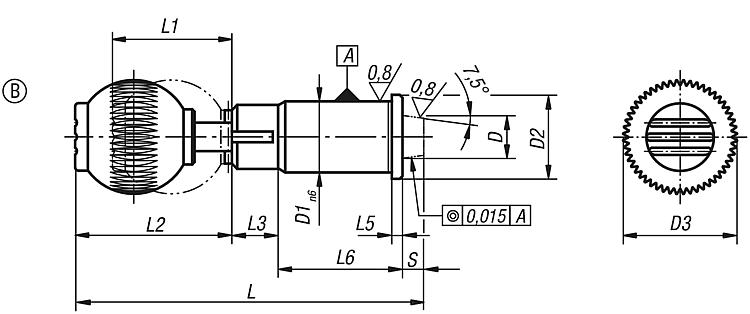

Form B: lockable DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

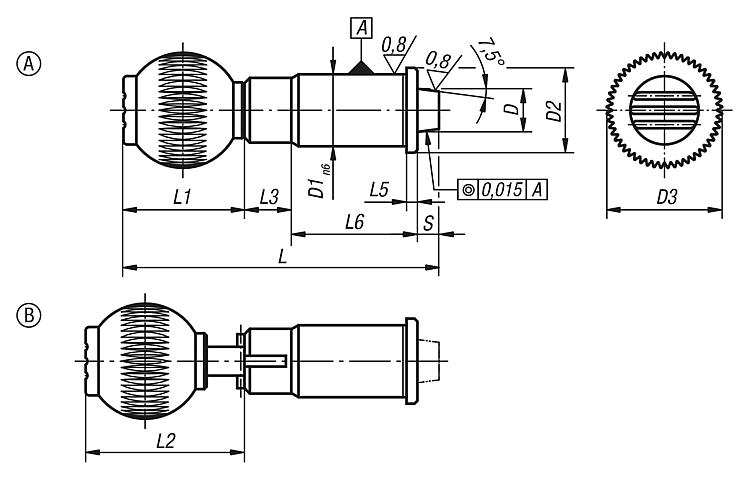

Drawings (total overview) |
|
Precision indexing plungers, steel with plastic spherical knob, tapered indexing pin and locking slot |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L5 | L6 | Travel
S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | female thread grip ball | CAD | Acc. | Price | Order |
|---|
| B0061.110 | B | lockable | 10 | 16 | 19 | 25 | 75 | 25 | 30,5 | 13 | 2,5 | 31 | 6 | 19 | 29 | M6 |  | | 82.97 € | | | B0061.112 | B | lockable | 12 | 20 | 23 | 32 | 87 | 33 | 40,5 | 13 | 3 | 35 | 6 | 22 | 35 | M8 | | | 93.34 € | | | B0061.116 | B | lockable | 16 | 25 | 28 | 40 | 102,5 | 41,5 | 49 | 13 | 3 | 42 | 6 | 30 | 50 | M10 | | | 107.35 € | | | B0061.120 | B | lockable | 20 | 30 | 33 | 40 | 110,5 | 41,5 | 49 | 13 | 3 | 50 | 6 | 46 | 63 | M10 | | | 122.82 € | | | B0061.125 | B | lockable | 25 | 38 | 42 | 50 | 130 | 51 | 58,5 | 13 | 3 | 60 | 6 | 39 | 73 | M10 | | | 144.93 € | |
|
