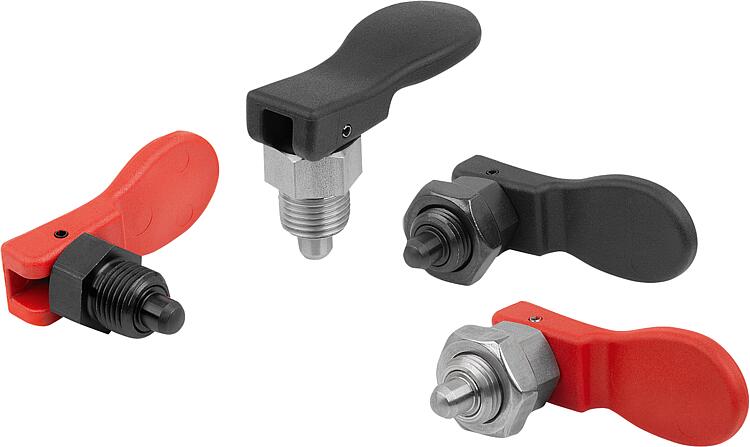

B0601Indexing plunger, steel or stainless steel short version with... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead-centre of the cam.
The ergonomic cam lever enables light handling with low effort. Material:Steel version:
Grub screw and indexing pin steel.
Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Handle fibreglass reinforced thermoplastic PPA (high temperature resistant). Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve, bright.
Indexing pin ground and left bright.
Grip black or traffic red RAL3020.Temperature range:Permanent operating temperature acc. to IEC 216 max. 160°C.
Short-term operating temperature max. 250°C.Advantages:Fast and simple to use.
Suitable for high temperature applications.
With integrated detent.
Short version.
Ideal for where space is restricted.Accessory:Spacer rings B0064.
Positioning bushes for indexing plunger B0063.Drawing reference:Form A: without locknut
Form B: with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

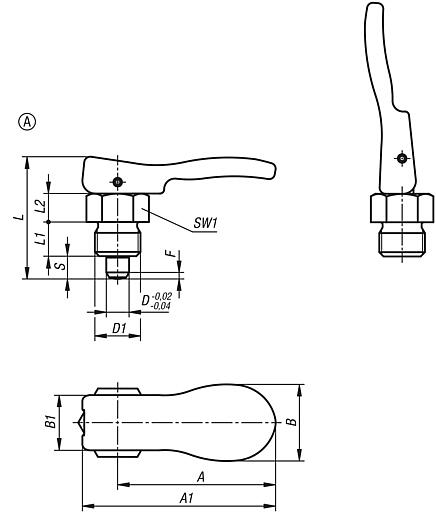

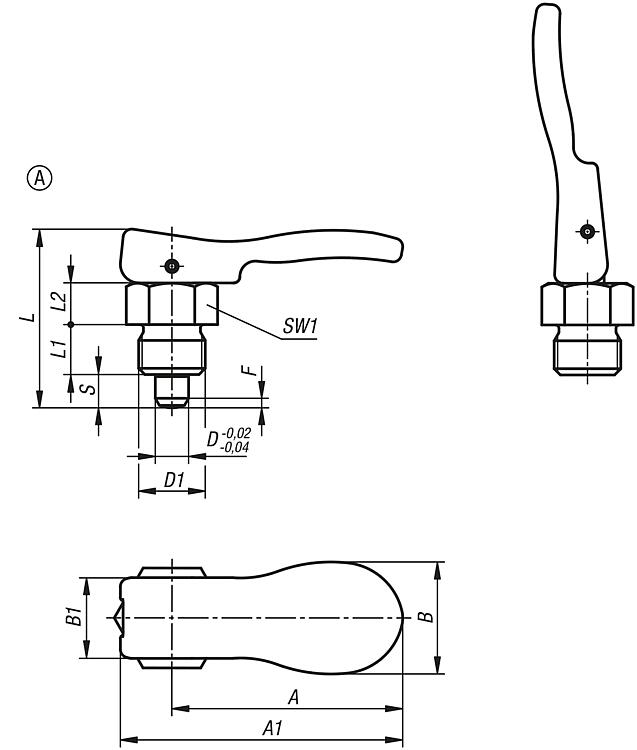

Indexing plunger, steel or stainless steel, short version with plastic cam lever, no locknut |
More information |
| Order No. | Main
material | Component
colour | Form | A | A1 | B | B1 | D
| D1 | Travel
S | L | L1 | L2 | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0601.8105 | steel | black | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 1,3 | 5 | 12 |  | | 10.33 € | | | B0601.8206 | steel | black | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 1,8 | 6 | 14 | | | 11.68 € | | | B0601.8308 | steel | black | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 2,3 | 14 | 28 | | | 13.72 € | | | B0601.8410 | steel | black | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 2,8 | 15 | 32 | | | 22.27 € | | | B0601.8105154 | steel | traffic red RAL 3020 | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 1,3 | 5 | 12 | | | 10.33 € | | | B0601.8206154 | steel | traffic red RAL 3020 | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 1,8 | 6 | 14 | | | 11.68 € | | | B0601.8308154 | steel | traffic red RAL 3020 | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 2,3 | 14 | 28 | | | 13.72 € | | | B0601.8410154 | steel | traffic red RAL 3020 | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 2,8 | 15 | 32 | | | 22.27 € | | | B0601.18105 | stainless steel | black | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 1,3 | 5 | 12 | | | 15.05 € | | | B0601.18206 | stainless steel | black | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 1,8 | 6 | 14 | | | 17.80 € | | | B0601.18308 | stainless steel | black | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 2,3 | 14 | 28 | | | 24.14 € | | | B0601.18410 | stainless steel | black | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 2,8 | 15 | 32 | | | 42.60 € | | | B0601.18105154 | stainless steel | traffic red RAL 3020 | A | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 1,3 | 5 | 12 | | | 15.05 € | | | B0601.18206154 | stainless steel | traffic red RAL 3020 | A | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 1,8 | 6 | 14 | | | 17.80 € | | | B0601.18308154 | stainless steel | traffic red RAL 3020 | A | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 2,3 | 14 | 28 | | | 24.14 € | | | B0601.18410154 | stainless steel | traffic red RAL 3020 | A | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 2,8 | 15 | 32 | | | 42.60 € | |
|

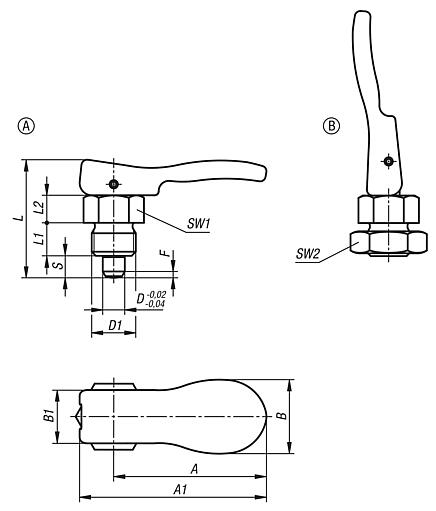

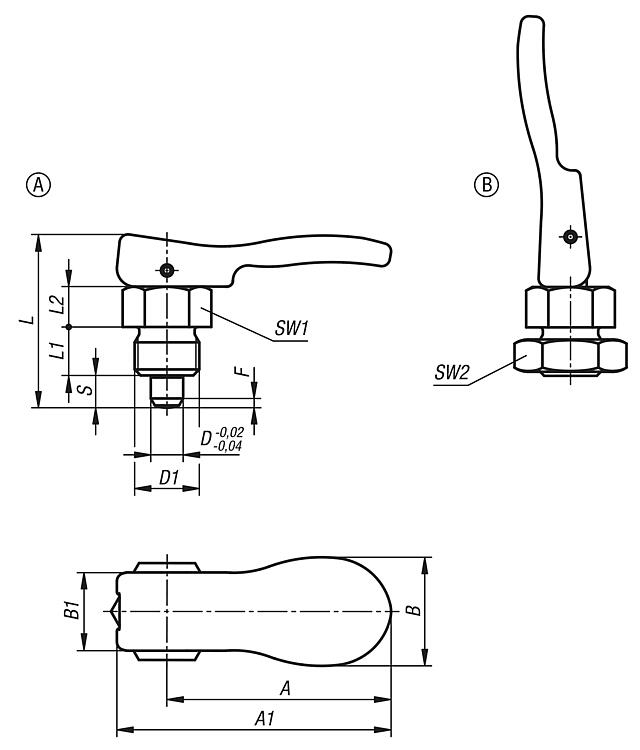

Indexing plunger, steel or stainless steel, short version with plastic can lever and locknut |
More information |
| Order No. | Main
material | Component
colour | Form | A | A1 | B | B1 | D
| D1 | Travel
S | L | L1 | L2 | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0601.9105 | steel | black | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 17 | 1,3 | 5 | 12 | | | 10.46 € | | | B0601.9206 | steel | black | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 19 | 1,8 | 6 | 14 | | | 11.86 € | | | B0601.9308 | steel | black | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 24 | 2,3 | 14 | 28 | | | 14.05 € | | | B0601.9410 | steel | black | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 30 | 2,8 | 15 | 32 | | | 22.70 € | | | B0601.9105154 | steel | traffic red RAL 3020 | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 17 | 1,3 | 5 | 12 | | | 10.46 € | | | B0601.9206154 | steel | traffic red RAL 3020 | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 19 | 1,8 | 6 | 14 | | | 11.86 € | | | B0601.9308154 | steel | traffic red RAL 3020 | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 24 | 2,3 | 14 | 28 | | | 14.05 € | | | B0601.9410154 | steel | traffic red RAL 3020 | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 30 | 2,8 | 15 | 32 | | | 22.70 € | | | B0601.19105 | stainless steel | black | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 17 | 1,3 | 5 | 12 | | | 15.93 € | | | B0601.19206 | stainless steel | black | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 19 | 1,8 | 6 | 14 | | | 18.78 € | | | B0601.19308 | stainless steel | black | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 24 | 2,3 | 14 | 28 | | | 25.62 € | | | B0601.19410 | stainless steel | black | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 30 | 2,8 | 15 | 32 | | | 43.14 € | | | B0601.19105154 | stainless steel | traffic red RAL 3020 | B | 31,7 | 41,7 | 17,9 | 12,9 | 5 | M10x1 | 5 | 30 | 8 | 7 | 13 | 17 | 1,3 | 5 | 12 | | | 15.93 € | | | B0601.19206154 | stainless steel | traffic red RAL 3020 | B | 31,6 | 41,7 | 17,9 | 12,9 | 6 | M12x1,5 | 6 | 34 | 10 | 8 | 14 | 19 | 1,8 | 6 | 14 | | | 18.78 € | | | B0601.19308154 | stainless steel | traffic red RAL 3020 | B | 55,5 | 67,8 | 26,9 | 19,4 | 8 | M16x1,5 | 8 | 42,9 | 12 | 10 | 19 | 24 | 2,3 | 14 | 28 | | | 25.62 € | | | B0601.19410154 | stainless steel | traffic red RAL 3020 | B | 53,4 | 67,8 | 26,9 | 19,4 | 10 | M20x1,5 | 10 | 49,9 | 15 | 12 | 22 | 30 | 2,8 | 15 | 32 | | | 43.14 € | |
|
