Locking pins, stainless steel with stainless steel key ring
B0087

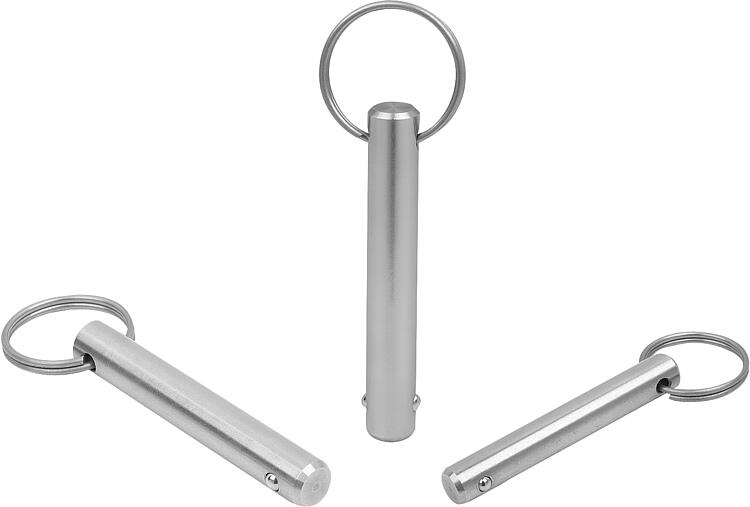

Locking pins, stainless steel with stainless steel key ring

go back

Item description/product images

DescriptionMaterial:

Pin 1.4305 stainless steel.
Key ring 1.4310 stainless steel.
Balls 1.4125 stainless steel.
Spring stainless steel 1.4310.

Version:Bright.Note:Locking pins are used for quick and easy fixating and joining of parts and workpieces.

Shearing force double shear (F) = S · τ aB max.

The locking pins with key ring represent a cost-effective alternative to other locking pins.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0087 Locking pins, stainless steel with stainless steel key ring 146 kB

Drawings

Locking pins, stainless steel with stainless steel key ring

Item selection/filter

Order No.DD1D2LL1L5Shearing force
double shear
max.kN
CADAcc.PriceOrder
B0087.1123060102366,51071722 4.45 €
B0087.1123060152366,51572222 4.55 €
B0087.1123060202366,52072722 4.67 €
B0087.1123060252366,52573222 4.77 €
B0087.1123060302366,53073722 4.87 €
B0087.1123060402366,54074722 4.99 €
B0087.1123060502366,55075722 5.09 €
B0087.1128080152888,81582338 4.67 €
B0087.1128080202888,82082838 4.77 €
B0087.1128080252888,82583338 4.87 €
B0087.1128080302888,83083838 4.99 €
B0087.1128080402888,84084838 5.09 €
B0087.1128080502888,85085838 5.19 €
B0087.1128100152810121592460 4.77 €
B0087.1128100202810122092960 4.87 €
B0087.1128100252810122593460 4.99 €
B0087.1128100302810123093960 5.09 €
B0087.1128100402810124094460 5.19 €
B0087.1128100502810125095460 5.30 €
B0087.112812020281214,520103086 4.87 €
B0087.112812030281214,530104086 4.99 €
B0087.112812040281214,540105086 5.09 €
B0087.112812050281214,550106086 5.19 €
