B0085

Locking pins, stainless steel with plastic grip and magnetic...

go back

Products
- Product overview
  - Spring plungers, locating pins, quick-release pins
    - Locking Pins

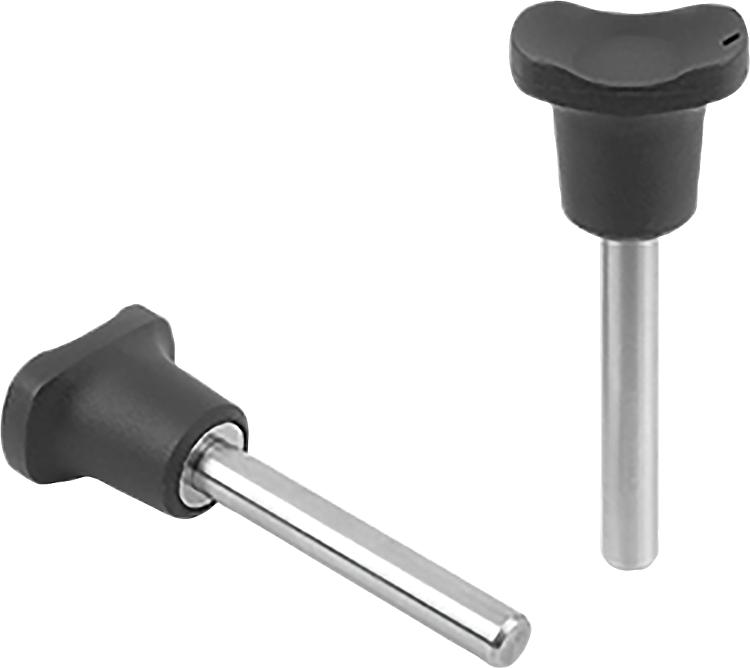

      - Locking pins, stainless steel with plastic grip and magnetic axial lock

Item description/product images

DescriptionMaterial:

Grip thermoplastic.
Steel parts 1.4305 (AISI 303 equivalent) stainless steel.
Magnet NdFeB.

Version:Grip black.
Stainless steel bright.Note:The locking pins with magnetic axial lock are used for fast and easy fixating and joining of parts and workpieces.
Magnets integrated into the grip ensure axial positioning and hold the locking pin in the inserted position.

Smooth surfaces and a perpendicular insertion bore have a positive effect on the retaining forces.

Optional retainer systems can be used to make the locking pins captive.

Shear force double-shear (F) = S · τ aB max.On request:Other pin lengths.Accessory:Safety spiral cable B0091....
Retaining cable with loop B0092....
Key ring B0090....

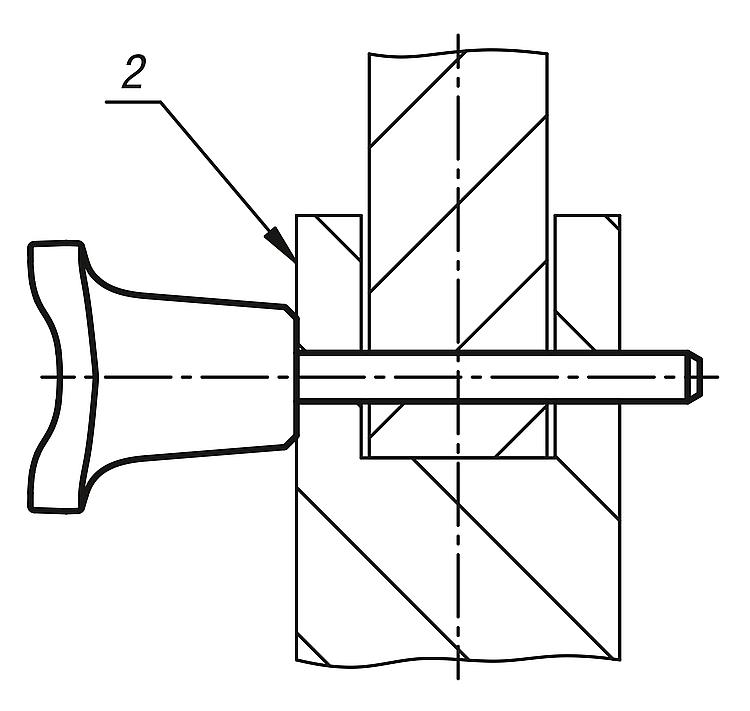

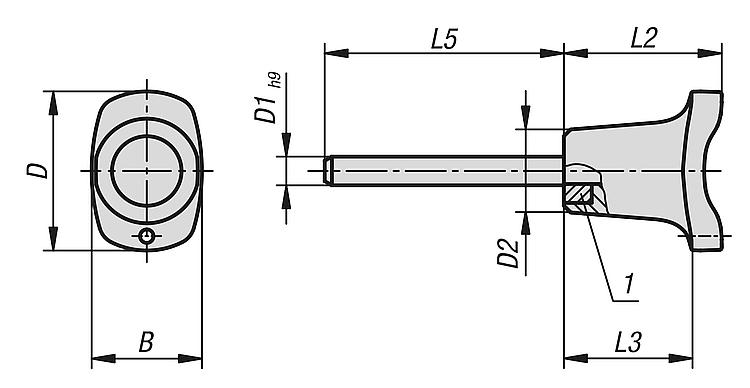

Ball chains B0093....Drawing reference:

1) Magnet
2) Steel part/workpiece

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0085 Locking pins, stainless steel with plastic grip and magnetic axial lock

166 kB

Drawings

Item selection/filter

Order No.	B	D	D1	D2	L2	L3	L5	Receiving hole	Shearing force double shear max.kN	Clamping force ca. N	Price
B0085.3306015	23	33,2	6	17,3	33	26,1	15	6	22	43	6.23 €
B0085.3306030	23	33,2	6	17,3	33	26,1	30	6	22	43	6.58 €
B0085.3306040	23	33,2	6	17,3	33	26,1	40	6	22	43	6.66 €
B0085.3306050	23	33,2	6	17,3	33	26,1	50	6	22	43	6.82 €
B0085.3306060	23	33,2	6	17,3	33	26,1	60	6	22	43	6.93 €
B0085.3306070	23	33,2	6	17,3	33	26,1	70	6	22	43	7.06 €
B0085.3306080	23	33,2	6	17,3	33	26,1	80	6	22	43	7.16 €
B0085.3308015	23	33,2	8	17,3	33	26,1	15	8	38	43	6.41 €
B0085.3308030	23	33,2	8	17,3	33	26,1	30	8	38	43	6.73 €
B0085.3308040	23	33,2	8	17,3	33	26,1	40	8	38	43	6.92 €
B0085.3308050	23	33,2	8	17,3	33	26,1	50	8	38	43	7.13 €
B0085.3308060	23	33,2	8	17,3	33	26,1	60	8	38	43	7.32 €
B0085.3308070	23	33,2	8	17,3	33	26,1	70	8	38	43	7.53 €
B0085.3308080	23	33,2	8	17,3	33	26,1	80	8	38	43	7.73 €
B0085.4610015	33	45,9	10	26,3	39,5	31,3	15	10	60	74	8.10 €
B0085.4610030	33	45,9	10	26,3	39,5	31,3	30	10	60	74	8.49 €
B0085.4610040	33	45,9	10	26,3	39,5	31,3	40	10	60	74	8.69 €
B0085.4610050	33	45,9	10	26,3	39,5	31,3	50	10	60	74	8.89 €
B0085.4610060	33	45,9	10	26,3	39,5	31,3	60	10	60	74	9.12 €
B0085.4610070	33	45,9	10	26,3	39,5	31,3	70	10	60	74	9.34 €
B0085.4610080	33	45,9	10	26,3	39,5	31,3	80	10	60	74	9.47 €
B0085.4612030	33	45,9	12	26,3	39,5	31,3	30	12	86	74	8.72 €
B0085.4612040	33	45,9	12	26,3	39,5	31,3	40	12	86	74	8.99 €
B0085.4612050	33	45,9	12	26,3	39,5	31,3	50	12	86	74	9.22 €
B0085.4612060	33	45,9	12	26,3	39,5	31,3	60	12	86	74	9.48 €
B0085.4612070	33	45,9	12	26,3	39,5	31,3	70	12	86	74	9.98 €
B0085.4612080	33	45,9	12	26,3	39,5	31,3	80	12	86	74	10.42 €
