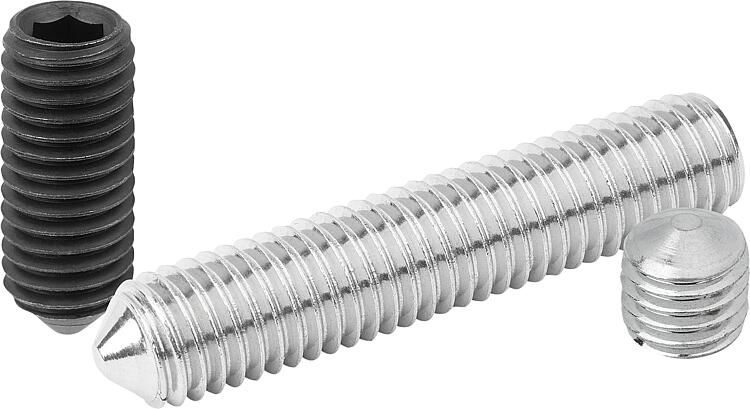

Grub screw with hexagon socket and pointed end DIN EN ISO 4027
 B0121

Grub screw with hexagon socket and pointed end DIN EN ISO 4027

 go back

Item description/product images
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 45 H, bright (black) or electro zinc-plated.
Stainless steel A2-70, brightNote:By M4x5, M5x5, M5x6, M6x6, M8x8, M10x10 the point angle is 120°.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0121 Grub screw with hexagon socket and pointed end DIN EN ISO 4027 244 kB

Drawings

Grub screw with hexagon socket and pointed end DIN EN ISO 4027

Item selection/filter
Order No.MaterialSurface finish
body		D1D2LTSWCADAcc.PriceOrder
B0121.03X5steelbright (black)M3-51,21,5 0.14 €
B0121.03X6steelbright (black)M3-61,21,5 0.14 €
B0121.03X8steelbright (black)M3-81,21,5 0.14 €
B0121.03X10steelbright (black)M3-101,21,5 0.26 €
B0121.03X12steelbright (black)M3-121,21,5 0.26 €
B0121.03X16steelbright (black)M3-161,21,5 0.32 €
B0121.03X20steelbright (black)M3-201,21,5 0.33 €
B0121.04X5steelbright (black)M4-51,52 0.11 €
B0121.04X6steelbright (black)M4-61,52 0.11 €
B0121.04X8steelbright (black)M4-81,52 0.11 €
B0121.04X10steelbright (black)M4-101,52 0.14 €
B0121.04X12steelbright (black)M4-121,52 0.14 €
B0121.04X16steelbright (black)M4-161,52 0.26 €
B0121.04X20steelbright (black)M4-201,52 0.26 €
B0121.04X25steelbright (black)M4-251,52 0.33 €
B0121.05X5steelbright (black)M5-522,5 0.26 €
B0121.05X6steelbright (black)M5-622,5 0.14 €
B0121.05X8steelbright (black)M5-822,5 0.14 €
B0121.05X10steelbright (black)M5-1022,5 0.14 €
B0121.05X12steelbright (black)M5-1222,5 0.26 €
B0121.05X14steelbright (black)M5-1422,5 0.26 €
B0121.05X16steelbright (black)M5-1622,5 0.26 €
B0121.05X20steelbright (black)M5-2022,5 0.32 €
B0121.05X25steelbright (black)M5-2522,5 0.37 €
B0121.05X30steelbright (black)M5-3022,5 0.39 €
B0121.06X6steelbright (black)M61,5623 0.32 €
B0121.06X8steelbright (black)M61,5823 0.14 €
B0121.06X10steelbright (black)M61,51023 0.14 €
B0121.06X12steelbright (black)M61,51223 0.26 €
B0121.06X16steelbright (black)M61,51623 0.32 €
B0121.06X20steelbright (black)M61,52023 0.33 €
B0121.06X25steelbright (black)M61,52523 0.37 €
B0121.06X30steelbright (black)M61,53023 0.39 €
B0121.06X35steelbright (black)M61,53523 0.49 €
B0121.06X40steelbright (black)M61,54023 0.54 €
B0121.06X45steelbright (black)M61,54523 0.62 €
B0121.08X8steelbright (black)M82834 0.33 €
B0121.06X50steelbright (black)M61,55023 0.66 €
B0121.06X60steelbright (black)M61,56023 0.73 €
B0121.08X10steelbright (black)M821034 0.32 €
B0121.08X12steelbright (black)M821234 0.32 €
B0121.08X14steelbright (black)M821434 0.32 €
B0121.08X16steelbright (black)M821634 0.33 €
B0121.08X20steelbright (black)M822034 0.33 €
B0121.08X25steelbright (black)M822534 0.39 €
B0121.08X30steelbright (black)M823034 0.49 €
B0121.08X35steelbright (black)M823534 0.52 €
B0121.08X40steelbright (black)M824034 0.64 €
B0121.08X45steelbright (black)M824534 0.71 €
B0121.08X50steelbright (black)M825034 0.84 €
B0121.08X60steelbright (black)M826034 0.89 €
B0121.10X10steelbright (black)M102,51045 0.37 €
B0121.10X12steelbright (black)M102,51265 0.37 €
B0121.10X16steelbright (black)M102,51665 0.37 €
B0121.10X20steelbright (black)M102,52065 0.41 €
B0121.10X25steelbright (black)M102,52565 0.49 €
B0121.10X30steelbright (black)M102,53065 0.54 €
B0121.10X35steelbright (black)M102,53565 0.64 €
B0121.10X40steelbright (black)M102,54065 0.72 €
B0121.10X45steelbright (black)M102,54565 0.87 €
B0121.10X50steelbright (black)M102,55065 0.91 €
B0121.10X60steelbright (black)M102,56065 0.97 €
B0121.10X70steelbright (black)M102,57065 1.11 €
B0121.10X80steelbright (black)M102,58065 1.34 €
B0121.403X5steelelectro zinc-platedM3-51,21,5 0.18 €
B0121.403X6steelelectro zinc-platedM3-61,21,5 0.18 €
B0121.403X8steelelectro zinc-platedM3-81,21,5 0.18 €
B0121.403X10steelelectro zinc-platedM3-101,21,5 0.31 €
B0121.403X12steelelectro zinc-platedM3-121,21,5 0.31 €
B0121.404X5steelelectro zinc-platedM4-51,52 0.13 €
B0121.404X6steelelectro zinc-platedM4-61,52 0.13 €
B0121.404X8steelelectro zinc-platedM4-81,52 0.13 €
B0121.404X10steelelectro zinc-platedM4-101,52 0.18 €
B0121.404X12steelelectro zinc-platedM4-121,52 0.18 €
B0121.404X16steelelectro zinc-platedM4-161,52 0.31 €
B0121.404X20steelelectro zinc-platedM4-201,52 0.31 €
B0121.405X5steelelectro zinc-platedM5-522,5 0.31 €
B0121.405X6steelelectro zinc-platedM5-622,5 0.18 €
B0121.405X8steelelectro zinc-platedM5-822,5 0.18 €
B0121.405X10steelelectro zinc-platedM5-1022,5 0.18 €
B0121.405X12steelelectro zinc-platedM5-1222,5 0.31 €
B0121.405X16steelelectro zinc-platedM5-1622,5 0.31 €
B0121.405X20steelelectro zinc-platedM5-2022,5 0.38 €
B0121.405X25steelelectro zinc-platedM5-2522,5 0.44 €
B0121.406X6steelelectro zinc-platedM61,5623 0.38 €
B0121.406X8steelelectro zinc-platedM61,5823 0.18 €
B0121.406X10steelelectro zinc-platedM61,51023 0.18 €
B0121.406X12steelelectro zinc-platedM61,51223 0.31 €
B0121.406X16steelelectro zinc-platedM61,51623 0.38 €
B0121.406X20steelelectro zinc-platedM61,52023 0.39 €
B0121.406X25steelelectro zinc-platedM61,52523 0.44 €
B0121.406X30steelelectro zinc-platedM61,53023 0.47 €
B0121.408X8steelelectro zinc-platedM82834 0.39 €
B0121.408X10steelelectro zinc-platedM821034 0.38 €
B0121.408X12steelelectro zinc-platedM821234 0.38 €
B0121.408X16steelelectro zinc-platedM821634 0.39 €
B0121.408X20steelelectro zinc-platedM822034 0.39 €
B0121.408X25steelelectro zinc-platedM822534 0.47 €
B0121.408X30steelelectro zinc-platedM823034 0.60 €
B0121.408X40steelelectro zinc-platedM824034 0.76 €
B0121.410X10steelelectro zinc-platedM102,51045 0.44 €
B0121.410X12steelelectro zinc-platedM102,51265 0.44 €
B0121.410X16steelelectro zinc-platedM102,51665 0.44 €
B0121.410X20steelelectro zinc-platedM102,52065 0.49 €
B0121.410X25steelelectro zinc-platedM102,52565 0.60 €
B0121.410X30steelelectro zinc-platedM102,53065 0.64 €
B0121.410X40steelelectro zinc-platedM102,54065 0.87 €
B0121.410X50steelelectro zinc-platedM102,55065 1.09 €
B0121.103X5stainless steelbrightM3-51,21,5 0.64 €
B0121.103X6stainless steelbrightM3-61,21,5 0.66 €
B0121.103X8stainless steelbrightM3-81,21,5 0.71 €
B0121.103X10stainless steelbrightM3-101,21,5 0.72 €
B0121.103X12stainless steelbrightM3-121,21,5 0.77 €
B0121.103X16stainless steelbrightM3-161,21,5 0.87 €
B0121.103X20stainless steelbrightM3-201,21,5 0.91 €
B0121.104X5stainless steelbrightM4-51,52 0.46 €
B0121.104X6stainless steelbrightM4-61,52 0.57 €
B0121.104X8stainless steelbrightM4-81,52 0.62 €
B0121.104X10stainless steelbrightM4-101,52 0.64 €
B0121.104X12stainless steelbrightM4-121,52 0.64 €
B0121.104X16stainless steelbrightM4-161,52 0.72 €
B0121.104X20stainless steelbrightM4-201,52 0.77 €
B0121.104X25stainless steelbrightM4-251,52 0.81 €
B0121.105X5stainless steelbrightM5-522,5 0.54 €
B0121.105X6stainless steelbrightM5-622,5 0.66 €
B0121.105X8stainless steelbrightM5-822,5 0.71 €
B0121.105X10stainless steelbrightM5-1022,5 0.72 €
B0121.105X12stainless steelbrightM5-1222,5 0.73 €
B0121.105X14stainless steelbrightM5-1422,5 0.72 €
B0121.105X16stainless steelbrightM5-1622,5 0.72 €
B0121.105X20stainless steelbrightM5-2022,5 0.87 €
B0121.105X25stainless steelbrightM5-2522,5 0.93 €
B0121.105X30stainless steelbrightM5-3022,5 0.93 €
B0121.106X6stainless steelbrightM61,5623 0.71 €
B0121.106X8stainless steelbrightM61,5823 0.72 €
B0121.106X10stainless steelbrightM61,51023 0.77 €
B0121.106X12stainless steelbrightM61,51223 0.81 €
B0121.106X16stainless steelbrightM61,51623 0.84 €
B0121.106X20stainless steelbrightM61,52023 0.96 €
B0121.106X25stainless steelbrightM61,52523 0.96 €
B0121.106X30stainless steelbrightM61,53023 0.97 €
B0121.106X35stainless steelbrightM61,53523 0.97 €
B0121.106X40stainless steelbrightM61,54023 1.00 €
B0121.106X45stainless steelbrightM61,54523 1.04 €
B0121.106X50stainless steelbrightM61,55023 1.25 €
B0121.106X60stainless steelbrightM61,56023 1.72 €
B0121.108X8stainless steelbrightM82834 0.87 €
B0121.108X10stainless steelbrightM821034 0.93 €
B0121.108X12stainless steelbrightM821234 0.96 €
B0121.108X14stainless steelbrightM821434 0.96 €
B0121.108X16stainless steelbrightM821634 0.96 €
B0121.108X20stainless steelbrightM822034 1.02 €
B0121.108X25stainless steelbrightM822534 1.11 €
B0121.108X30stainless steelbrightM823034 1.34 €
B0121.108X35stainless steelbrightM823534 1.34 €
B0121.108X40stainless steelbrightM824034 1.38 €
B0121.108X45stainless steelbrightM824534 1.41 €
B0121.108X50stainless steelbrightM825034 1.48 €
B0121.108X60stainless steelbrightM826034 2.09 €
B0121.110X10stainless steelbrightM102,51045 1.04 €
B0121.110X12stainless steelbrightM102,51265 1.10 €
B0121.110X16stainless steelbrightM102,51665 1.32 €
B0121.110X20stainless steelbrightM102,52065 1.66 €
B0121.110X25stainless steelbrightM102,52565 1.67 €
B0121.110X30stainless steelbrightM102,53065 1.86 €
B0121.110X35stainless steelbrightM102,53565 1.86 €
B0121.110X40stainless steelbrightM102,54065 1.92 €
B0121.110X45stainless steelbrightM102,54565 1.92 €
B0121.110X50stainless steelbrightM102,55065 2.03 €
B0121.110X60stainless steelbrightM102,56065 2.94 €
B0121.110X70stainless steelbrightM102,57065 2.98 €
B0121.110X80stainless steelbrightM102,58065 3.04 €
