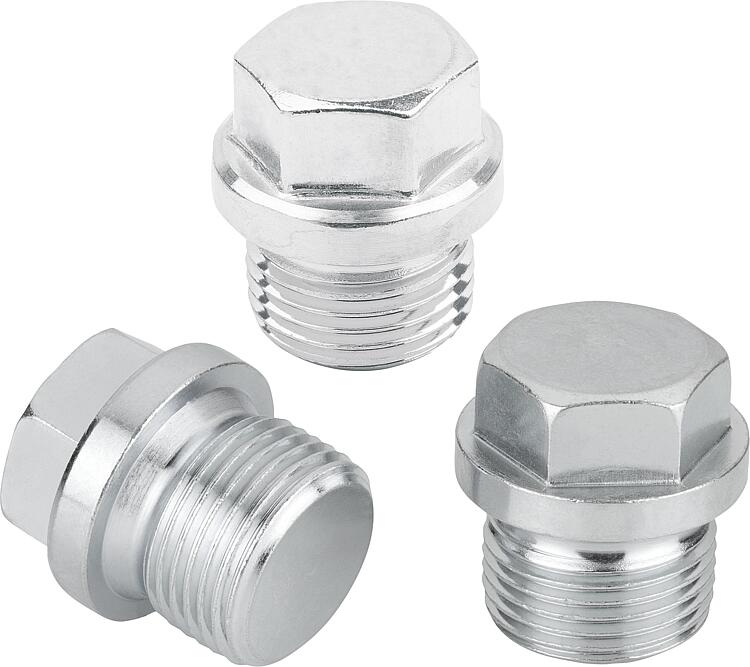

B0472Screw plugs, steel or stainless steel, with collar and external... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4571. Version:Steel electro zinc-plated.
Stainless steel bright.Note:Screw plugs with collar and hexagonal head for plugging holes with parallel threads. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D
| D1 | K | L | L1 | SW | CAD | Acc. | Price | Order |
|---|
| B0472.101010 | steel | 14 | M10X1 | 6 | 8 | 3 | 10 |  | | 0.69 € | | | B0472.101215 | steel | 17 | M12X1,5 | 6 | 12 | 3 | 13 | | | 0.90 € | | | B0472.101415 | steel | 19 | M14X1,5 | 6 | 12 | 3 | 13 | | | 0.94 € | | | B0472.101615 | steel | 21 | M16X1,5 | 6 | 12 | 3 | 17 | | | 1.16 € | | | B0472.101815 | steel | 23 | M18X1,5 | 8 | 12 | 4 | 17 | | | 1.48 € | | | B0472.102015 | steel | 25 | M20X1,5 | 8 | 14 | 4 | 19 | | | 1.61 € | | | B0472.102215 | steel | 27 | M22X1,5 | 8 | 14 | 4 | 19 | | | 1.83 € | | | B0472.102415 | steel | 29 | M24X1,5 | 9 | 14 | 4 | 22 | | | 2.60 € | | | B0472.102615 | steel | 31 | M26X1,5 | 10 | 16 | 4 | 24 | | | 3.02 € | | | B0472.102720 | steel | 32 | M27X2 | 10 | 16 | 4 | 24 | | | 3.13 € | | | B0472.103015 | steel | 36 | M30X1,5 | 10 | 16 | 4 | 24 | | | 3.62 € | | | B0472.103320 | steel | 39 | M33X2 | 11 | 16 | 5 | 27 | | | 4.48 € | | | B0472.103615 | steel | 42 | M36X1,5 | 11 | 16 | 5 | 27 | | | 6.87 € | | | B0472.104215 | steel | 49 | M42X1,5 | 12 | 16 | 5 | 30 | | | 8.45 € | | | B0472.104220 | steel | 49 | M42X2 | 12 | 16 | 5 | 30 | | | 8.45 € | | | B0472.104815 | steel | 55 | M48X1,5 | 12 | 16 | 5 | 30 | | | 12.01 € | | | B0472.104820 | steel | 55 | M48X2 | 12 | 16 | 5 | 30 | | | 12.02 € | | | B0472.10018 | steel | 14 | G1/8 | 6 | 8 | 3 | 10 | | | 0.67 € | | | B0472.10014 | steel | 18 | G1/4 | 6 | 12 | 3 | 13 | | | 0.94 € | | | B0472.10038 | steel | 22 | G3/8 | 6 | 12 | 3 | 17 | | | 1.10 € | | | B0472.10012 | steel | 26 | G1/2 | 8 | 14 | 4 | 19 | | | 1.67 € | | | B0472.10034 | steel | 32 | G3/4 | 10 | 16 | 4 | 24 | | | 2.90 € | | | B0472.10100 | steel | 39 | G1 | 11 | 16 | 5 | 27 | | | 3.79 € | | | B0472.10114 | steel | 49 | G1 1/4 | 12 | 16 | 5 | 30 | | | 8.38 € | | | B0472.10112 | steel | 55 | G1 1/2 | 12 | 16 | 5 | 30 | | | 10.89 € | | | B0472.201010 | stainless steel A4 | 14 | M10X1 | 6 | 8 | 3 | 10 | | | 1.08 € | | | B0472.201215 | stainless steel A4 | 17 | M12X1,5 | 6 | 12 | 3 | 13 | | | 1.39 € | | | B0472.201415 | stainless steel A4 | 19 | M14X1,5 | 6 | 12 | 3 | 13 | | | 1.65 € | | | B0472.201615 | stainless steel A4 | 21 | M16X1,5 | 6 | 12 | 3 | 17 | | | 1.81 € | | | B0472.201815 | stainless steel A4 | 23 | M18X1,5 | 8 | 12 | 4 | 17 | | | 2.22 € | | | B0472.202015 | stainless steel A4 | 25 | M20X1,5 | 8 | 14 | 4 | 19 | | | 2.65 € | | | B0472.202215 | stainless steel A4 | 27 | M22X1,5 | 8 | 14 | 4 | 19 | | | 3.16 € | | | B0472.202415 | stainless steel A4 | 29 | M24X1,5 | 9 | 14 | 4 | 22 | | | 3.58 € | | | B0472.202615 | stainless steel A4 | 31 | M26X1,6 | 10 | 16 | 4 | 24 | | | 5.01 € | | | B0472.202720 | stainless steel A4 | 32 | M27X1,5 | 10 | 16 | 4 | 24 | | | 5.89 € | | | B0472.203015 | stainless steel A4 | 36 | M30X1,5 | 10 | 16 | 4 | 24 | | | 6.63 € | | | B0472.20018 | stainless steel A4 | 14 | G1/8 | 6 | 8 | 3 | 10 | | | 1.04 € | | | B0472.20014 | stainless steel A4 | 18 | G1/4 | 6 | 12 | 3 | 13 | | | 1.49 € | | | B0472.20038 | stainless steel A4 | 22 | G3/8 | 6 | 12 | 3 | 17 | | | 1.90 € | | | B0472.20012 | stainless steel A4 | 26 | G1/2 | 8 | 14 | 4 | 19 | | | 3.14 € | | | B0472.20034 | stainless steel A4 | 32 | G3/4 | 10 | 16 | 4 | 24 | | | 4.64 € | | | B0472.20100 | stainless steel A4 | 39 | G1 | 11 | 16 | 5 | 27 | | | 6.60 € | | | B0472.20114 | stainless steel A4 | 49 | G1 1/4 | 12 | 16 | 5 | 30 | | | 11.73 € | | | B0472.20112 | stainless steel A4 | 55 | G1 1/2 | 12 | 16 | 5 | 30 | | | 13.95 € | |
