B0048Indexing plungers, steel or stainless steel with plastic... |
go back |
|
Item description/product images |
|
|

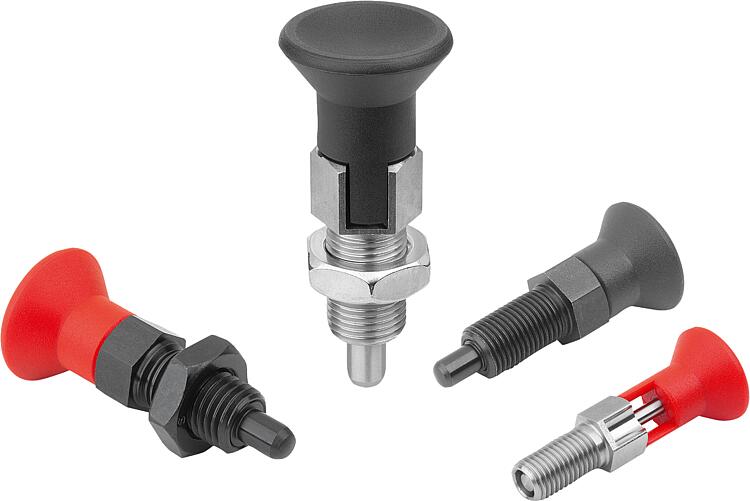

DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can only be attained after the pin has been manually disengaged. Forms C or D should be used where the plunger remains disengaged for an extended period and the indexing pin prevented from springing back. Material:Steel version:
threaded sleeve and indexing pin, free-cutting steel.
Stainless steel version:
Threaded sleeve 1.4305.
Locking pin hardened 1.4034.
Locking pin not hardened 1.4305.
Mushroom grip. thermoplastic. Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black-gray RAL 7021 or traffic red RAL 3020.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.On request:Special versions.Accessory:Spacer rings B0064.Drawing reference:Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Indexing plungers, steel or stainless steel, with plastic mushroom grip and extended indexing pin, no locking slot or locknut |
More information |
| Order No. | Form | Component
colour | Main
material | locating pin | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0048.21903 | A | black grey RAL 7021 | steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 |  | | 7.42 € | | | B0048.21004 | A | black grey RAL 7021 | steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | |  | 6.72 € | | | B0048.21105 | A | black grey RAL 7021 | steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 7.11 € | | | B0048.21206 | A | black grey RAL 7021 | steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 7.84 € | | | B0048.21308 | A | black grey RAL 7021 | steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 10.14 € | | | B0048.21410 | A | black grey RAL 7021 | steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 10.29 € | | | B0048.21412 | A | black grey RAL 7021 | steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 14.53 € | | | B0048.21516 | A | black grey RAL 7021 | steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 19.26 € | | | B0048.201903 | A | black grey RAL 7021 | stainless steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 | | | 12.10 € | | | B0048.201004 | A | black grey RAL 7021 | stainless steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | | | 10.32 € | | | B0048.201105 | A | black grey RAL 7021 | stainless steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 11.55 € | | | B0048.201206 | A | black grey RAL 7021 | stainless steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 13.61 € | | | B0048.201308 | A | black grey RAL 7021 | stainless steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 18.10 € | | | B0048.201410 | A | black grey RAL 7021 | stainless steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 18.52 € | | | B0048.201412 | A | black grey RAL 7021 | stainless steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 27.16 € | | | B0048.201516 | A | black grey RAL 7021 | stainless steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 38.60 € | | | B0048.211903 | A | black grey RAL 7021 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 | | | 12.10 € | | | B0048.211004 | A | black grey RAL 7021 | stainless steel | not hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | | | 10.32 € | | | B0048.211105 | A | black grey RAL 7021 | stainless steel | not hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 11.55 € | | | B0048.211206 | A | black grey RAL 7021 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 13.61 € | | | B0048.211308 | A | black grey RAL 7021 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 18.10 € | | | B0048.211410 | A | black grey RAL 7021 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 18.52 € | | | B0048.211412 | A | black grey RAL 7021 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 27.16 € | | | B0048.211516 | A | black grey RAL 7021 | stainless steel | not hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 38.60 € | | | B0048.2190384 | A | traffic red RAL 3020 | steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 | | | 7.42 € | | | B0048.2100484 | A | traffic red RAL 3020 | steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | | | 6.72 € | | | B0048.2110584 | A | traffic red RAL 3020 | steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 7.11 € | | | B0048.2120684 | A | traffic red RAL 3020 | steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 7.84 € | | | B0048.2130884 | A | traffic red RAL 3020 | steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 10.14 € | | | B0048.2141084 | A | traffic red RAL 3020 | steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 10.29 € | | | B0048.2141284 | A | traffic red RAL 3020 | steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 14.53 € | | | B0048.2151684 | A | traffic red RAL 3020 | steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 19.26 € | | | B0048.20190384 | A | traffic red RAL 3020 | stainless steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 | | | 12.10 € | | | B0048.20100484 | A | traffic red RAL 3020 | stainless steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | | | 10.32 € | | | B0048.20110584 | A | traffic red RAL 3020 | stainless steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 11.55 € | | | B0048.20120684 | A | traffic red RAL 3020 | stainless steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 13.61 € | | | B0048.20130884 | A | traffic red RAL 3020 | stainless steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 18.10 € | | | B0048.20141084 | A | traffic red RAL 3020 | stainless steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 18.52 € | | | B0048.20141284 | A | traffic red RAL 3020 | stainless steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 27.16 € | | | B0048.20151684 | A | traffic red RAL 3020 | stainless steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 38.60 € | | | B0048.21190384 | A | traffic red RAL 3020 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 0,8 | 4,5 | 12 | | | 12.10 € | | | B0048.21100484 | A | traffic red RAL 3020 | stainless steel | not hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 1 | 6 | 15 | | | 10.32 € | | | B0048.21110584 | A | traffic red RAL 3020 | stainless steel | not hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 11.55 € | | | B0048.21120684 | A | traffic red RAL 3020 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 13.61 € | | | B0048.21130884 | A | traffic red RAL 3020 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 18.10 € | | | B0048.21141084 | A | traffic red RAL 3020 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 2,8 | 15 | 43 | | | 18.52 € | | | B0048.21141284 | A | traffic red RAL 3020 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 27.16 € | | | B0048.21151684 | A | traffic red RAL 3020 | stainless steel | not hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 3,2 | 20 | 50 | | | 38.60 € | |
|
Indexing plungers, steel or stainless steel with plastic mushroom grip, extended indexing pin and locknut |
More information |
| Order No. | Form | Component
colour | Main
material | locating pin | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0048.22903 | B | black grey RAL 7021 | steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 7.51 € | | | B0048.22004 | B | black grey RAL 7021 | steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 6.79 € | | | B0048.22105 | B | black grey RAL 7021 | steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 7.19 € | | | B0048.22206 | B | black grey RAL 7021 | steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 8.00 € | | | B0048.22308 | B | black grey RAL 7021 | steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 9.94 € | | | B0048.22410 | B | black grey RAL 7021 | steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 10.39 € | | | B0048.22412 | B | black grey RAL 7021 | steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 14.71 € | | | B0048.22516 | B | black grey RAL 7021 | steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 19.52 € | | | B0048.202903 | B | black grey RAL 7021 | stainless steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 12.92 € | | | B0048.202004 | B | black grey RAL 7021 | stainless steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 11.01 € | | | B0048.202105 | B | black grey RAL 7021 | stainless steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 12.35 € | | | B0048.202206 | B | black grey RAL 7021 | stainless steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 14.49 € | | | B0048.202308 | B | black grey RAL 7021 | stainless steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 18.40 € | | | B0048.202410 | B | black grey RAL 7021 | stainless steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 19.20 € | | | B0048.202412 | B | black grey RAL 7021 | stainless steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 28.15 € | | | B0048.202516 | B | black grey RAL 7021 | stainless steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 39.96 € | | | B0048.212903 | B | black grey RAL 7021 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 12.92 € | | | B0048.212004 | B | black grey RAL 7021 | stainless steel | not hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 11.01 € | | | B0048.212105 | B | black grey RAL 7021 | stainless steel | not hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 12.35 € | | | B0048.212206 | B | black grey RAL 7021 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 14.49 € | | | B0048.212308 | B | black grey RAL 7021 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 18.40 € | | | B0048.212410 | B | black grey RAL 7021 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 19.20 € | | | B0048.212412 | B | black grey RAL 7021 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 28.15 € | | | B0048.212516 | B | black grey RAL 7021 | stainless steel | not hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 39.96 € | | | B0048.2290384 | B | traffic red RAL 3020 | steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 7.51 € | | | B0048.2200484 | B | traffic red RAL 3020 | steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 6.79 € | | | B0048.2210584 | B | traffic red RAL 3020 | steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 7.19 € | | | B0048.2220684 | B | traffic red RAL 3020 | steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 8.00 € | | | B0048.2230884 | B | traffic red RAL 3020 | steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 9.94 € | | | B0048.2241084 | B | traffic red RAL 3020 | steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 10.39 € | | | B0048.2241284 | B | traffic red RAL 3020 | steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 14.71 € | | | B0048.2251684 | B | traffic red RAL 3020 | steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 19.52 € | | | B0048.20290384 | B | traffic red RAL 3020 | stainless steel | hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 12.92 € | | | B0048.20200484 | B | traffic red RAL 3020 | stainless steel | hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 11.01 € | | | B0048.20210584 | B | traffic red RAL 3020 | stainless steel | hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 12.35 € | | | B0048.20220684 | B | traffic red RAL 3020 | stainless steel | hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 14.49 € | | | B0048.20230884 | B | traffic red RAL 3020 | stainless steel | hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 18.40 € | | | B0048.20241084 | B | traffic red RAL 3020 | stainless steel | hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 19.20 € | | | B0048.20241284 | B | traffic red RAL 3020 | stainless steel | hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 28.15 € | | | B0048.20251684 | B | traffic red RAL 3020 | stainless steel | hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 39.96 € | | | B0048.21290384 | B | traffic red RAL 3020 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | 5 | 8 | 10 | 0,8 | 4,5 | 12 | | | 12.92 € | | | B0048.21200484 | B | traffic red RAL 3020 | stainless steel | not hardened | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | 6 | 10 | 13 | 1 | 6 | 15 | | | 11.01 € | | | B0048.21210584 | B | traffic red RAL 3020 | stainless steel | not hardened | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 12.35 € | | | B0048.21220684 | B | traffic red RAL 3020 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 14.49 € | | | B0048.21230884 | B | traffic red RAL 3020 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 18.40 € | | | B0048.21241084 | B | traffic red RAL 3020 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | 15 | 22 | 30 | 2,8 | 15 | 43 | | | 19.20 € | | | B0048.21241284 | B | traffic red RAL 3020 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 28.15 € | | | B0048.21251684 | B | traffic red RAL 3020 | stainless steel | not hardened | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | 24 | 27 | 36 | 3,2 | 20 | 50 | | | 39.96 € | |
|
Indexing plungers, steel or stainless steel, with plastic mushroom grip extended indexing pin and load slot |
More information |
| Order No. | Form | Component
colour | Main
material | locating pin | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0048.23903 | C | black grey RAL 7021 | steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 9.27 € | | | B0048.23004 | C | black grey RAL 7021 | steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 8.40 € | | | B0048.23105 | C | black grey RAL 7021 | steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 8.91 € | | | B0048.23206 | C | black grey RAL 7021 | steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 9.89 € | | | B0048.23308 | C | black grey RAL 7021 | steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 11.83 € | | | B0048.23410 | C | black grey RAL 7021 | steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 12.35 € | | | B0048.23412 | C | black grey RAL 7021 | steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 17.44 € | | | B0048.23516 | C | black grey RAL 7021 | steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 23.10 € | | | B0048.203903 | C | black grey RAL 7021 | stainless steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 13.55 € | | | B0048.203004 | C | black grey RAL 7021 | stainless steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 11.56 € | | | B0048.203105 | C | black grey RAL 7021 | stainless steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 12.97 € | | | B0048.203206 | C | black grey RAL 7021 | stainless steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 15.35 € | | | B0048.203308 | C | black grey RAL 7021 | stainless steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 20.81 € | | | B0048.203410 | C | black grey RAL 7021 | stainless steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 21.29 € | | | B0048.203412 | C | black grey RAL 7021 | stainless steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 30.42 € | | | B0048.203516 | C | black grey RAL 7021 | stainless steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 43.23 € | | | B0048.213903 | C | black grey RAL 7021 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 13.55 € | | | B0048.213004 | C | black grey RAL 7021 | stainless steel | not hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 11.56 € | | | B0048.213105 | C | black grey RAL 7021 | stainless steel | not hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 12.97 € | | | B0048.213206 | C | black grey RAL 7021 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 15.35 € | | | B0048.213308 | C | black grey RAL 7021 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 20.81 € | | | B0048.213410 | C | black grey RAL 7021 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 21.29 € | | | B0048.213412 | C | black grey RAL 7021 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 30.42 € | | | B0048.213516 | C | black grey RAL 7021 | stainless steel | not hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 43.23 € | | | B0048.2390384 | C | traffic red RAL 3020 | steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 9.27 € | | | B0048.2300484 | C | traffic red RAL 3020 | steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 8.40 € | | | B0048.2310584 | C | traffic red RAL 3020 | steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 8.91 € | | | B0048.2320684 | C | traffic red RAL 3020 | steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 9.89 € | | | B0048.2330884 | C | traffic red RAL 3020 | steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 11.83 € | | | B0048.2341084 | C | traffic red RAL 3020 | steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 12.35 € | | | B0048.2341284 | C | traffic red RAL 3020 | steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 17.44 € | | | B0048.2351684 | C | traffic red RAL 3020 | steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 23.10 € | | | B0048.20390384 | C | traffic red RAL 3020 | stainless steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 13.55 € | | | B0048.20300484 | C | traffic red RAL 3020 | stainless steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 11.56 € | | | B0048.20310584 | C | traffic red RAL 3020 | stainless steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 12.97 € | | | B0048.20320684 | C | traffic red RAL 3020 | stainless steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 15.35 € | | | B0048.20330884 | C | traffic red RAL 3020 | stainless steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 20.81 € | | | B0048.20341084 | C | traffic red RAL 3020 | stainless steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 21.29 € | | | B0048.20341284 | C | traffic red RAL 3020 | stainless steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 30.42 € | | | B0048.20351684 | C | traffic red RAL 3020 | stainless steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 43.23 € | | | B0048.21390384 | C | traffic red RAL 3020 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 0,8 | 3 | 10 | | | 13.55 € | | | B0048.21300484 | C | traffic red RAL 3020 | stainless steel | not hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 1 | 6 | 21 | | | 11.56 € | | | B0048.21310584 | C | traffic red RAL 3020 | stainless steel | not hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 1,3 | 5 | 16 | | | 12.97 € | | | B0048.21320684 | C | traffic red RAL 3020 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 1,8 | 6 | 18 | | | 15.35 € | | | B0048.21330884 | C | traffic red RAL 3020 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 2,3 | 15 | 45 | | | 20.81 € | | | B0048.21341084 | C | traffic red RAL 3020 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 2,8 | 14 | 42 | | | 21.29 € | | | B0048.21341284 | C | traffic red RAL 3020 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 2,8 | 15 | 51 | | | 30.42 € | | | B0048.21351684 | C | traffic red RAL 3020 | stainless steel | not hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 3,2 | 18 | 48 | | | 43.23 € | |
|
Indexing plungers, steel or stainless steel, with plastic mushroom grip, extended indexing pin, locking slot and locknut |
More information |
| Order No. | Form | Component
colour | Main
material | locating pin | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0048.24903 | D | black grey RAL 7021 | steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 9.47 € | | | B0048.24004 | D | black grey RAL 7021 | steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 8.48 € | | | B0048.24105 | D | black grey RAL 7021 | steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 9.04 € | | | B0048.24206 | D | black grey RAL 7021 | steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 10.09 € | | | B0048.24308 | D | black grey RAL 7021 | steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 12.22 € | | | B0048.24410 | D | black grey RAL 7021 | steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 12.72 € | | | B0048.24412 | D | black grey RAL 7021 | steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 17.96 € | | | B0048.24516 | D | black grey RAL 7021 | steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 23.79 € | | | B0048.204903 | D | black grey RAL 7021 | stainless steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 14.23 € | | | B0048.204004 | D | black grey RAL 7021 | stainless steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 12.13 € | | | B0048.204105 | D | black grey RAL 7021 | stainless steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 13.74 € | | | B0048.204206 | D | black grey RAL 7021 | stainless steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 16.17 € | | | B0048.204308 | D | black grey RAL 7021 | stainless steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 22.06 € | | | B0048.204410 | D | black grey RAL 7021 | stainless steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 22.36 € | | | B0048.204412 | D | black grey RAL 7021 | stainless steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 31.94 € | | | B0048.204516 | D | black grey RAL 7021 | stainless steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 45.39 € | | | B0048.214903 | D | black grey RAL 7021 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 14.23 € | | | B0048.214004 | D | black grey RAL 7021 | stainless steel | not hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 12.13 € | | | B0048.214105 | D | black grey RAL 7021 | stainless steel | not hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 13.74 € | | | B0048.214206 | D | black grey RAL 7021 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 16.17 € | | | B0048.214308 | D | black grey RAL 7021 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 22.06 € | | | B0048.214410 | D | black grey RAL 7021 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 22.36 € | | | B0048.214412 | D | black grey RAL 7021 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 31.94 € | | | B0048.214516 | D | black grey RAL 7021 | stainless steel | not hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 45.39 € | | | B0048.2490384 | D | traffic red RAL 3020 | steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 9.47 € | | | B0048.2400484 | D | traffic red RAL 3020 | steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 8.48 € | | | B0048.2410584 | D | traffic red RAL 3020 | steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 9.04 € | | | B0048.2420684 | D | traffic red RAL 3020 | steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 10.09 € | | | B0048.2430884 | D | traffic red RAL 3020 | steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 12.22 € | | | B0048.2441084 | D | traffic red RAL 3020 | steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 12.72 € | | | B0048.2441284 | D | traffic red RAL 3020 | steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 17.96 € | | | B0048.2451684 | D | traffic red RAL 3020 | steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 23.79 € | | | B0048.20490384 | D | traffic red RAL 3020 | stainless steel | hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 14.23 € | | | B0048.20400484 | D | traffic red RAL 3020 | stainless steel | hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 12.13 € | | | B0048.20410584 | D | traffic red RAL 3020 | stainless steel | hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 13.74 € | | | B0048.20420684 | D | traffic red RAL 3020 | stainless steel | hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 16.17 € | | | B0048.20430884 | D | traffic red RAL 3020 | stainless steel | hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 22.06 € | | | B0048.20441084 | D | traffic red RAL 3020 | stainless steel | hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 22.36 € | | | B0048.20441284 | D | traffic red RAL 3020 | stainless steel | hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 31.94 € | | | B0048.20451684 | D | traffic red RAL 3020 | stainless steel | hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 45.39 € | | | B0048.21490384 | D | traffic red RAL 3020 | stainless steel | not hardened | 3 | M6x0,75 | 14 | 34,5 | 12 | 6,5 | 10 | 5 | 8 | 10 | 0,8 | 3 | 10 | | | 14.23 € | | | B0048.21400484 | D | traffic red RAL 3020 | stainless steel | not hardened | 4 | M8x1 | 18 | 42,5 | 15 | 8 | 13 | 6 | 10 | 13 | 1 | 6 | 21 | | | 12.13 € | | | B0048.21410584 | D | traffic red RAL 3020 | stainless steel | not hardened | 5 | M10x1 | 21 | 49,5 | 17 | 10 | 15 | 8 | 13 | 17 | 1,3 | 5 | 16 | | | 13.74 € | | | B0048.21420684 | D | traffic red RAL 3020 | stainless steel | not hardened | 6 | M12x1,5 | 25 | 57,7 | 20 | 11 | 17 | 9 | 14 | 19 | 1,8 | 6 | 18 | | | 16.17 € | | | B0048.21430884 | D | traffic red RAL 3020 | stainless steel | not hardened | 8 | M16x1,5 | 33 | 76 | 26 | 14 | 23 | 12 | 19 | 24 | 2,3 | 15 | 45 | | | 22.06 € | | | B0048.21441084 | D | traffic red RAL 3020 | stainless steel | not hardened | 10 | M20x1,5 | 33 | 84 | 28 | 17 | 25 | 15 | 22 | 30 | 2,8 | 14 | 42 | | | 22.36 € | | | B0048.21441284 | D | traffic red RAL 3020 | stainless steel | not hardened | 12 | M20x1,5 | 33 | 90 | 28 | 20 | 25 | 18 | 22 | 30 | 2,8 | 15 | 51 | | | 31.94 € | | | B0048.21451684 | D | traffic red RAL 3020 | stainless steel | not hardened | 16 | M24x2 | 40 | 112 | 32 | 26 | 28 | 24 | 27 | 36 | 3,2 | 18 | 48 | | | 45.39 € | |
|
