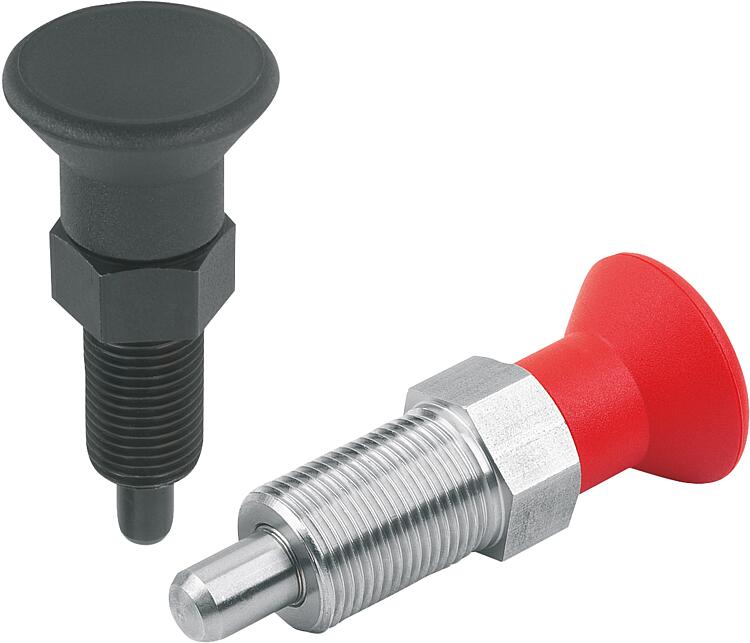

Indexing plungers, steel or stainless steel, with plastic mushroom grip and extended indexing pin, no locking slot or locknut
 B0048_A

Indexing plungers, steel or stainless steel, with plastic...

 go back

Item description/product images
DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can only be attained after the pin has been manually disengaged. Forms C or D should be used where the plunger remains disengaged for an extended period and the indexing pin prevented from springing back. Material:

Steel version:
threaded sleeve and indexing pin, free-cutting steel.

Stainless steel version:
Threaded sleeve 1.4305.
Locking pin hardened 1.4034.
Locking pin not hardened 1.4305.

Mushroom grip. thermoplastic.

Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.

Mushroom grip black-gray RAL 7021 or traffic red RAL 3020.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.On request:Special versions.Accessory:Spacer rings B0064.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0048_A Indexing plungers, steel or stainless steel, with plastic mushroom grip and extended indexing pin, no locking slot or locknut 324 kB

Drawings

Indexing plungers, steel or stainless steel, with plastic mushroom grip and extended indexing pin, no locking slot or locknut

Item selection/filter
Order No.FormComponent
colour		Main
material		locating pinDD1D2LL1L2L3Travel
S		SW1Fx30°Spring force
initial pressure
F1 approx. N		Spring force
final pressure
F2 approx. N		CADAcc.PriceOrder
B0048.21903Ablack grey RAL 7021steelhardened3M6x0,75143312510580,84,512 7.42 €
B0048.21004Ablack grey RAL 7021steelhardened4M8x11840,5156136101615 6.72 €
B0048.21105Ablack grey RAL 7021steelhardened5M10x12146,5177158131,3516 7.11 €
B0048.21206Ablack grey RAL 7021steelhardened6M12x1,52554,7208179141,8618 7.84 €
B0048.21308Ablack grey RAL 7021steelhardened8M16x1,5337226102312192,31545 10.14 €
B0048.21410Ablack grey RAL 7021steelhardened10M20x1,5337928122515222,81543 10.29 €
B0048.21412Ablack grey RAL 7021steelhardened12M20x1,5338428142518222,81551 14.53 €
B0048.21516Ablack grey RAL 7021steelhardened16M24x24010432182824273,22050 19.26 €
B0048.201903Ablack grey RAL 7021stainless steelhardened3M6x0,75143312510580,84,512 12.10 €
B0048.201004Ablack grey RAL 7021stainless steelhardened4M8x11840,5156136101615 10.32 €
B0048.201105Ablack grey RAL 7021stainless steelhardened5M10x12146,5177158131,3516 11.55 €
B0048.201206Ablack grey RAL 7021stainless steelhardened6M12x1,52554,7208179141,8618 13.61 €
B0048.201308Ablack grey RAL 7021stainless steelhardened8M16x1,5337226102312192,31545 18.10 €
B0048.201410Ablack grey RAL 7021stainless steelhardened10M20x1,5337928122515222,81543 18.52 €
B0048.201412Ablack grey RAL 7021stainless steelhardened12M20x1,5338428142518222,81551 27.16 €
B0048.201516Ablack grey RAL 7021stainless steelhardened16M24x24010432182824273,22050 38.60 €
B0048.211903Ablack grey RAL 7021stainless steelnot hardened3M6x0,75143312510580,84,512 12.10 €
B0048.211004Ablack grey RAL 7021stainless steelnot hardened4M8x11840,5156136101615 10.32 €
B0048.211105Ablack grey RAL 7021stainless steelnot hardened5M10x12146,5177158131,3516 11.55 €
B0048.211206Ablack grey RAL 7021stainless steelnot hardened6M12x1,52554,7208179141,8618 13.61 €
B0048.211308Ablack grey RAL 7021stainless steelnot hardened8M16x1,5337226102312192,31545 18.10 €
B0048.211410Ablack grey RAL 7021stainless steelnot hardened10M20x1,5337928122515222,81543 18.52 €
B0048.211412Ablack grey RAL 7021stainless steelnot hardened12M20x1,5338428142518222,81551 27.16 €
B0048.211516Ablack grey RAL 7021stainless steelnot hardened16M24x24010432182824273,22050 38.60 €
B0048.2190384Atraffic red RAL 3020steelhardened3M6x0,75143312510580,84,512 7.42 €
B0048.2100484Atraffic red RAL 3020steelhardened4M8x11840,5156136101615 6.72 €
B0048.2110584Atraffic red RAL 3020steelhardened5M10x12146,5177158131,3516 7.11 €
B0048.2120684Atraffic red RAL 3020steelhardened6M12x1,52554,7208179141,8618 7.84 €
B0048.2130884Atraffic red RAL 3020steelhardened8M16x1,5337226102312192,31545 10.14 €
B0048.2141084Atraffic red RAL 3020steelhardened10M20x1,5337928122515222,81543 10.29 €
B0048.2141284Atraffic red RAL 3020steelhardened12M20x1,5338428142518222,81551 14.53 €
B0048.2151684Atraffic red RAL 3020steelhardened16M24x24010432182824273,22050 19.26 €
B0048.20190384Atraffic red RAL 3020stainless steelhardened3M6x0,75143312510580,84,512 12.10 €
B0048.20100484Atraffic red RAL 3020stainless steelhardened4M8x11840,5156136101615 10.32 €
B0048.20110584Atraffic red RAL 3020stainless steelhardened5M10x12146,5177158131,3516 11.55 €
B0048.20120684Atraffic red RAL 3020stainless steelhardened6M12x1,52554,7208179141,8618 13.61 €
B0048.20130884Atraffic red RAL 3020stainless steelhardened8M16x1,5337226102312192,31545 18.10 €
B0048.20141084Atraffic red RAL 3020stainless steelhardened10M20x1,5337928122515222,81543 18.52 €
B0048.20141284Atraffic red RAL 3020stainless steelhardened12M20x1,5338428142518222,81551 27.16 €
B0048.20151684Atraffic red RAL 3020stainless steelhardened16M24x24010432182824273,22050 38.60 €
B0048.21190384Atraffic red RAL 3020stainless steelnot hardened3M6x0,75143312510580,84,512 12.10 €
B0048.21100484Atraffic red RAL 3020stainless steelnot hardened4M8x11840,5156136101615 10.32 €
B0048.21110584Atraffic red RAL 3020stainless steelnot hardened5M10x12146,5177158131,3516 11.55 €
B0048.21120684Atraffic red RAL 3020stainless steelnot hardened6M12x1,52554,7208179141,8618 13.61 €
B0048.21130884Atraffic red RAL 3020stainless steelnot hardened8M16x1,5337226102312192,31545 18.10 €
B0048.21141084Atraffic red RAL 3020stainless steelnot hardened10M20x1,5337928122515222,81543 18.52 €
B0048.21141284Atraffic red RAL 3020stainless steelnot hardened12M20x1,5338428142518222,81551 27.16 €
B0048.21151684Atraffic red RAL 3020stainless steelnot hardened16M24x24010432182824273,22050 38.60 €
