B0587_AIndexing plungers, stainless steel with stainless steel mushroom... |
go back |
|
Item description/product images |
|
|

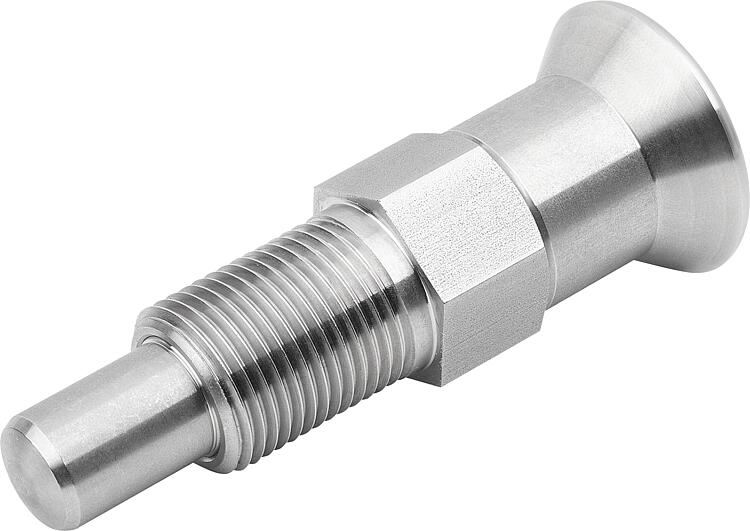

DescriptionProduct description:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.Material:Stainless steel version A1:
Threaded sleeve and mushroom grip 1.4305.
Indexing pin hardened 1.4034.
Indexing pin not hardened 1.4305.
Stainless steel version A4:
Threaded sleeve, mushroom grip and indexing pin 1.4404. Version:Stainless steel version A1:
Threaded sleeve and mushroom grip bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Stainless steel version A4:
Threaded sleeve bright.
Mushroom grip bright or abrasive blasted.
Indexing pin ground and chemically nickel-plated.
Indexing pin ground, bright.Note:The materials used enable a wide range of applications.
Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements.
Accessory:Spacer rings B0064.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | D | D1 | D2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| B0587.2001903 | 9 | A | without locking slot, without locknut | 1.4034 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 |  | | 17.83 € | | | B0587.2001004 | 0 | A | without locking slot, without locknut | 1.4034 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 16.97 € | | | B0587.2001105 | 1 | A | without locking slot, without locknut | 1.4034 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 14.54 € | | | B0587.2001206 | 2 | A | without locking slot, without locknut | 1.4034 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 17.18 € | | | B0587.2001308 | 3 | A | without locking slot, without locknut | 1.4034 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.05 € | | | B0587.2001410 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 28.58 € | | | B0587.2001412 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 47.54 € | | | B0587.2001516 | 5 | A | without locking slot, without locknut | 1.4034 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 54.03 € | | | B0587.2111903 | 9 | A | without locking slot, without locknut | 1.4305 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 17.83 € | | | B0587.2111004 | 0 | A | without locking slot, without locknut | 1.4305 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 16.97 € | | | B0587.2111105 | 1 | A | without locking slot, without locknut | 1.4305 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 14.54 € | | | B0587.2111206 | 2 | A | without locking slot, without locknut | 1.4305 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 17.18 € | | | B0587.2111308 | 3 | A | without locking slot, without locknut | 1.4305 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 24.05 € | | | B0587.2111410 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 28.58 € | | | B0587.2111412 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 47.54 € | | | B0587.2111516 | 5 | A | without locking slot, without locknut | 1.4305 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 54.03 € | | | B0587.2061903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.2061004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.2061105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.2061206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.2061308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.2061410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.2061412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.2061516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.2171903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.2171004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.2171105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.2171206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.2171308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.2171410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.2171412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.2171516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.20619031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.20610041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.20611051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.20612061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.20613081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.20614101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.20614121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.20615161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | | | B0587.21719031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 3 | M6x0,75 | 14 | 33 | 12 | 5 | 10 | | | 23.16 € | | | B0587.21710041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 4 | M8x1 | 18 | 40,5 | 15 | 6 | 13 | | | 22.07 € | | | B0587.21711051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | M10x1 | 21 | 46,5 | 17 | 7 | 15 | | | 18.91 € | | | B0587.21712061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | M12x1,5 | 25 | 54,7 | 20 | 8 | 17 | | | 22.33 € | | | B0587.21713081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | M16x1,5 | 33 | 72 | 26 | 10 | 23 | | | 31.26 € | | | B0587.21714101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 10 | M20x1,5 | 33 | 79 | 28 | 12 | 25 | | | 34.31 € | | | B0587.21714121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | M20x1,5 | 33 | 84 | 28 | 14 | 25 | | | 49.93 € | | | B0587.21715161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 16 | M24x2 | 40 | 104 | 32 | 18 | 28 | | | 59.44 € | |
| Order No. | Size | Form | Form definition | Steel key | Surface finish
component | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0587.2001903 | 9 | A | without locking slot, without locknut | 1.4034 | bright | 5 | 8 | 0,8 | 4,5 | 12 | | | 17.83 € | | | B0587.2001004 | 0 | A | without locking slot, without locknut | 1.4034 | bright | 6 | 10 | 1 | 6 | 15 | | | 16.97 € | | | B0587.2001105 | 1 | A | without locking slot, without locknut | 1.4034 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 14.54 € | | | B0587.2001206 | 2 | A | without locking slot, without locknut | 1.4034 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 17.18 € | | | B0587.2001308 | 3 | A | without locking slot, without locknut | 1.4034 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 24.05 € | | | B0587.2001410 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 15 | 22 | 2,8 | 15 | 43 | | | 28.58 € | | | B0587.2001412 | 4 | A | without locking slot, without locknut | 1.4034 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 47.54 € | | | B0587.2001516 | 5 | A | without locking slot, without locknut | 1.4034 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 54.03 € | | | B0587.2111903 | 9 | A | without locking slot, without locknut | 1.4305 | bright | 5 | 8 | 0,8 | 4,5 | 12 | | | 17.83 € | | | B0587.2111004 | 0 | A | without locking slot, without locknut | 1.4305 | bright | 6 | 10 | 1 | 6 | 15 | | | 16.97 € | | | B0587.2111105 | 1 | A | without locking slot, without locknut | 1.4305 | bright | 8 | 13 | 1,3 | 5 | 16 | | | 14.54 € | | | B0587.2111206 | 2 | A | without locking slot, without locknut | 1.4305 | bright | 9 | 14 | 1,8 | 6 | 18 | | | 17.18 € | | | B0587.2111308 | 3 | A | without locking slot, without locknut | 1.4305 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 24.05 € | | | B0587.2111410 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 15 | 22 | 2,8 | 15 | 43 | | | 28.58 € | | | B0587.2111412 | 4 | A | without locking slot, without locknut | 1.4305 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 47.54 € | | | B0587.2111516 | 5 | A | without locking slot, without locknut | 1.4305 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 54.03 € | | | B0587.2061903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.2061004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.2061105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.2061206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.2061308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.2061410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.2061412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.2061516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.2171903 | 9 | A | without locking slot, without locknut | 1.4404 | bright | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.2171004 | 0 | A | without locking slot, without locknut | 1.4404 | bright | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.2171105 | 1 | A | without locking slot, without locknut | 1.4404 | bright | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.2171206 | 2 | A | without locking slot, without locknut | 1.4404 | bright | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.2171308 | 3 | A | without locking slot, without locknut | 1.4404 | bright | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.2171410 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.2171412 | 4 | A | without locking slot, without locknut | 1.4404 | bright | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.2171516 | 5 | A | without locking slot, without locknut | 1.4404 | bright | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.20619031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.20610041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.20611051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.20612061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.20613081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.20614101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.20614121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.20615161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | | | B0587.21719031 | 9 | A | without locking slot, without locknut | 1.4404 | blasted | 5 | 8 | 0,8 | 3 | 8 | | | 23.16 € | | | B0587.21710041 | 0 | A | without locking slot, without locknut | 1.4404 | blasted | 6 | 10 | 1 | 7 | 19 | | | 22.07 € | | | B0587.21711051 | 1 | A | without locking slot, without locknut | 1.4404 | blasted | 8 | 13 | 1,3 | 4 | 17 | | | 18.91 € | | | B0587.21712061 | 2 | A | without locking slot, without locknut | 1.4404 | blasted | 9 | 14 | 1,8 | 7 | 18 | | | 22.33 € | | | B0587.21713081 | 3 | A | without locking slot, without locknut | 1.4404 | blasted | 12 | 19 | 2,3 | 15 | 45 | | | 31.26 € | | | B0587.21714101 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 15 | 22 | 2,8 | 15 | 40 | | | 34.31 € | | | B0587.21714121 | 4 | A | without locking slot, without locknut | 1.4404 | blasted | 18 | 22 | 2,8 | 15 | 51 | | | 49.93 € | | | B0587.21715161 | 5 | A | without locking slot, without locknut | 1.4404 | blasted | 24 | 27 | 3,2 | 20 | 50 | | | 59.44 € | |
