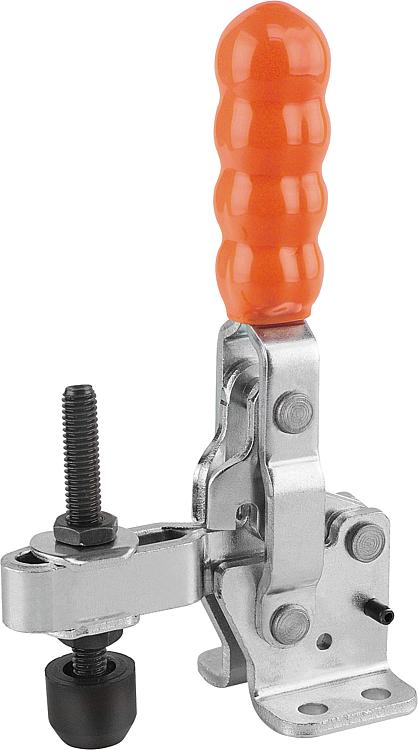

Toggle clamps vertical with flat foot and adjustable clamping spindle
B0634

Toggle clamps vertical with flat foot and adjustable clamping...

go back

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Stainless steel bright.
Plastic grip oil-resistant.
Note:The opening angle between the holding arm and the handle can be reduced or increased by repositioning or removing the stop pin.

A neoprene pressure pad is supplied with versions B0634.0075, B0634.0100 and B0634.0150.

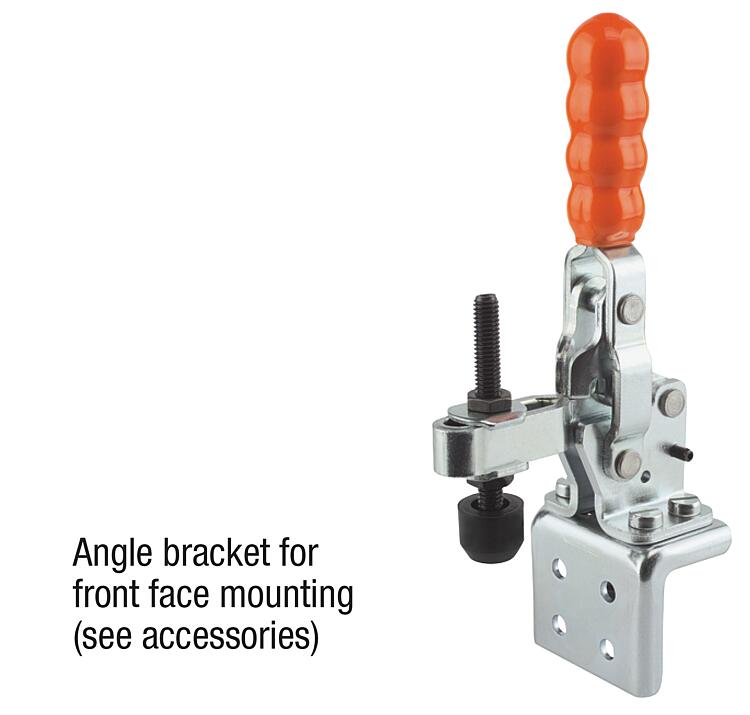

An angle bracket cannot be supplied in stainless steel with versions B0634.0075N, B0634.0150N and B0634.0250N.
Accessory:Drawing reference:
1) stop pin position 1
2) stop pin position 2
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0634 Toggle clamps vertical with flat foot and adjustable clamping spindle 325 kB

Drawings

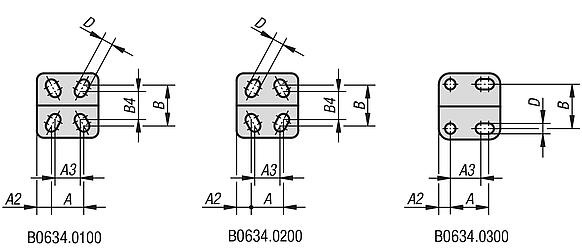

Toggle clamps vertical with flat foot and adjustable clamping spindle

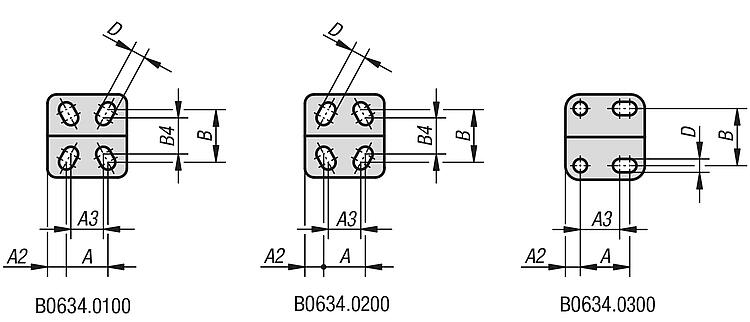

Toggle clamps vertical with flat foot and adjustable clamping spindle

Item selection/filter

Order No.Main
material
Opening angle
holding arm
position 1
Opening angle
holding arm
position 2
Opening angle
holding arm
stop pin removed
Opening angle
handle
position 1
Opening angle
handle
position 2
Opening angle
handle
stop pin removed
Order No.
Angle bracket
Matching
plastic grip
CADAcc.PriceOrder
B0634.0075steel130°-160°90°-100°B0663.02B0655.16  12.31 €
B0634.0100steel95°-185°65°-105°-B0655.16  12.15 €
B0634.0150steel95°-185°75°-110°B0663.02B0655.19  13.98 €
B0634.0200steel105°-175°70°-95°-B0655.22  15.59 €
B0634.0250steel95°125°160°70°85°100°B0663.04B0655.28  21.64 €
B0634.0300steel105°-160°65°-90°-B0655.28  26.02 €
B0634.0350steel90°120°180°70°80°110°B0663.06B0655.30  28.98 €
B0634.0450steel90°125°180°70°85°110°B0663.06B0655.34  36.86 €
B0634.0550steel90°120°180°65°80°110°-B0655.35  49.45 €
B0634.0075Nstainless steel130°-160°90°-100°-B0655.16  31.02 €
B0634.0150Nstainless steel95°-185°75°-110°-B0655.19  39.86 €
B0634.0250Nstainless steel95°125°160°70°85°100°-B0655.28  55.74 €
Order No.

Main
material
AA1A2A3BB1B3B4CC1DHLL1MHand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
B0634.0075steel16255-24345,5-1694,4945732M5x35807001100500750  12.31 €
B0634.0100steel162961424345,517,5229,54,8986738M5x35807001000500800  12.15 €
B0634.0150steel12,7277-27386,4-23115,11217043M6x50120135016508001050  13.98 €
B0634.0200steel1935812,727426,3253012,75,51357944M6x50100100022009501350  15.59 €
B0634.0250steel19358-32478,8-3217,57,117511075M8x60190100028009001700  21.64 €
B0634.0300steel254391934,5538,8-34198186143100M8x60130200037009001850  26.02 €
B0634.0350steel32509-456410,6-43228,322014595M10x802302200450014003000  28.98 €
B0634.0450steel325310-456412,7-51258,7228177124M12x1002603200700014003000  36.86 €
B0634.0550steel517612,5-709516,5-843212,3312232156M16x1502903000800018003900  49.45 €
B0634.0075Nstainless steel16255-24345,5-1694,4945732M5x35807001100500750  31.02 €
B0634.0150Nstainless steel12,7277-27386,4-23115,11217043M6x50120135016508001050  39.86 €
B0634.0250Nstainless steel19358-32478,8-3217,57,117511075M8x60190100028009001700  55.74 €
