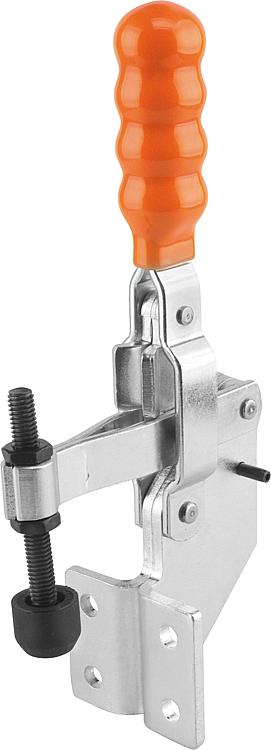

B0639Toggle clamps vertical with angled foot and fixed clamping... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.Note:The opening angle between the arm and the grip can be reduced or increased by repositioning or removing the stop pin.

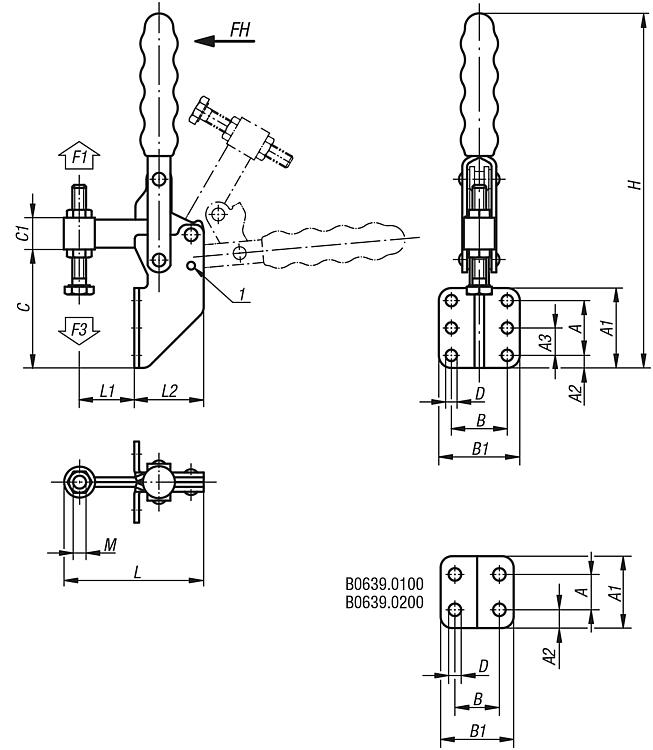

A neoprene thrust pad is supplied with version B0639.0100 and B0639.0200Accessory:Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
