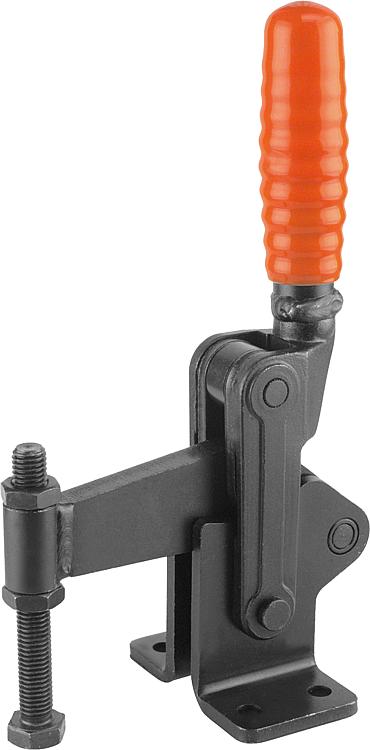

Toggle clamps vertical heavy-duty with fixed clamping spindle
 B0642

Toggle clamps vertical heavy-duty with fixed clamping spindle

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Black oxidised.
Thrust spindle and nuts phosphated.
Hinge pins and hinge bushes case-hardened.
Plastic grip oil-resistant.Note:Oil all joints regularly.Accessory:Drawing reference:
1) adjustable clamp arm guide
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0642 Toggle clamps vertical heavy-duty with fixed clamping spindle 180 kB

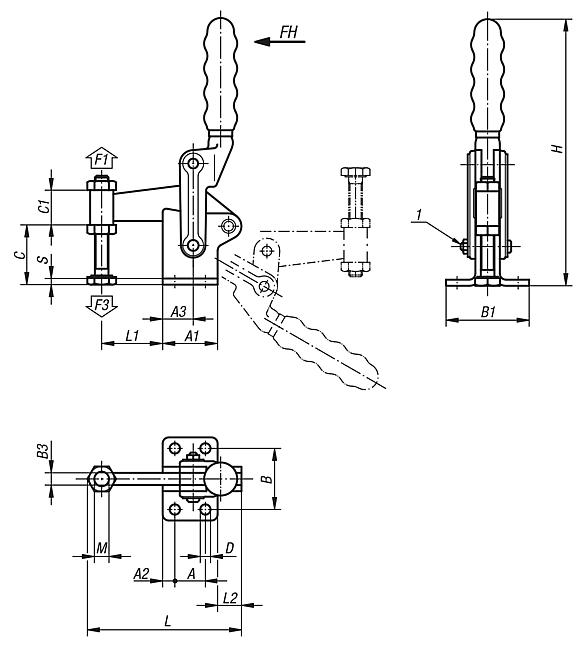

Drawings

Toggle clamps vertical heavy-duty with fixed clamping spindle

Item selection/filter
Order No.

Opening
angle of
holding arm		Opening
angle of
handle		Hand
force
FH N		Retaining
force
F1 N		Clamping force
F3
N		Matching
plastic grip
CADAcc.PriceOrder
B0642.0700180°120°34060001400B0654.28 93.89 €
B0642.1200180°125°50080001400B0654.30 124.68 €
B0642.2400195°130°500150001850B0654.33 171.92 €
Order No.

AA1A2A3BB1B3CC1DHLL1L2MSCADAcc.PriceOrder
B0642.07002545102550681045308,32151245020M12x1005 93.89 €
B0642.1200305110256086,51258308,32501446023M12x1006 124.68 €
B0642.2400406412407510416703810,32951887537M16x1508 171.92 €
