Toggle clamps horizontal heavy-duty with adjustable clamping spindle
B0631

Toggle clamps horizontal heavy-duty with adjustable clamping...

go back

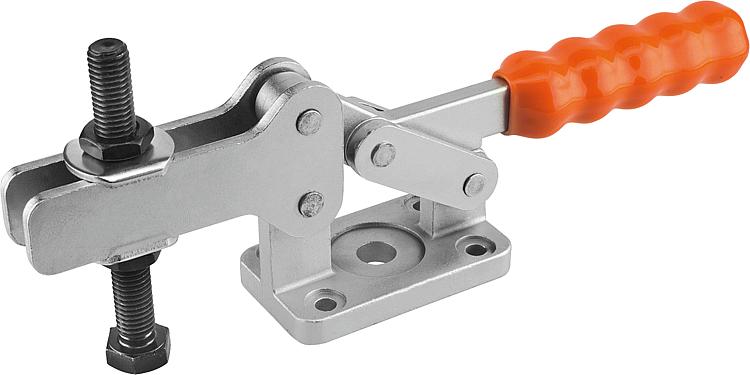

Item description/product images

DescriptionMaterial:Steel. Body and grip cast steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.
Accessory:Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0631 Toggle clamps horizontal heavy-duty with adjustable clamping spindle 188 kB

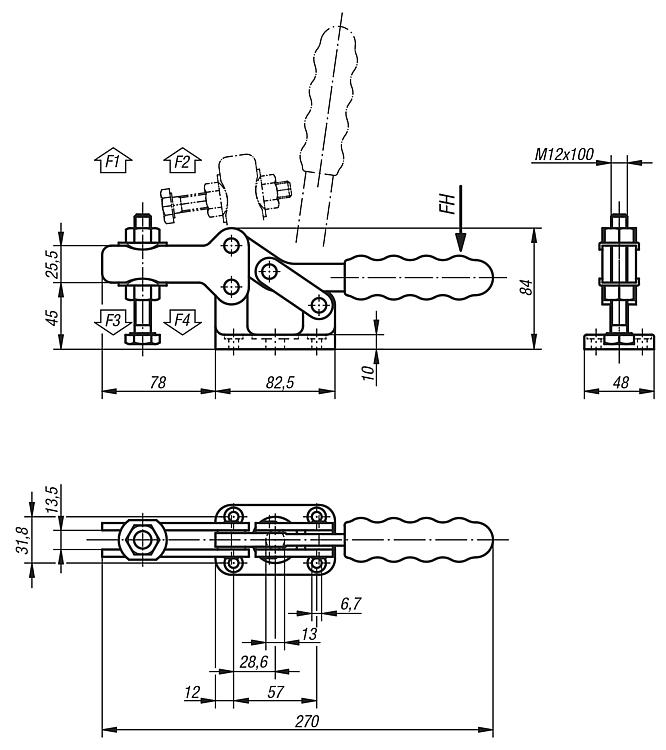

Drawings

Toggle clamps horizontal heavy-duty with adjustable clamping spindle

Item selection/filter

Order No.Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping force
F3
N
Clamping
force
F4 N
Matching
plastic grip
CADAcc.PriceOrder
B0631.070090°95°2504500900018003550B0655.32  87.86 €
