Toggle clamps vertical heavy-duty with full holding arm
 B0643

Toggle clamps vertical heavy-duty with full holding arm

 go back

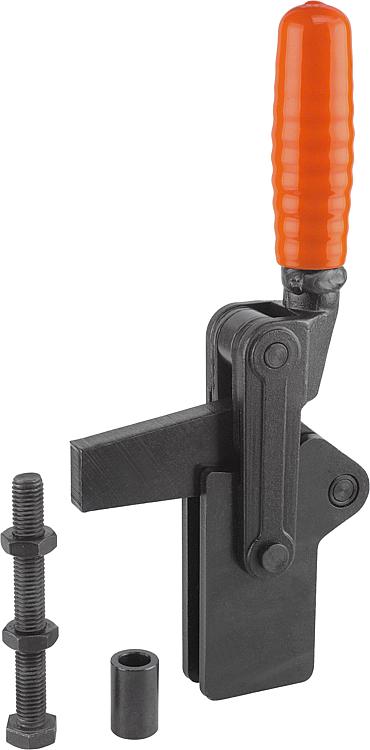

Item description/product images
DescriptionMaterial:Steel.Version:Black oxidised.
Hinge pins and hinge bushes case-hardened.
Plastic grip oil-resistant.Note:Oil all joints regularly.Accessory:Drawing reference:
1) adjustable clamp arm guide
2) bush with hex head bolt and nuts
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0643 Toggle clamps vertical heavy-duty with full holding arm 178 kB

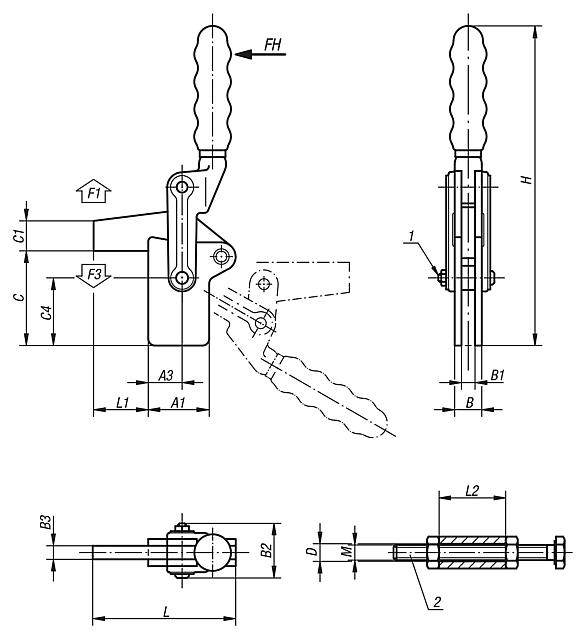

Drawings

Toggle clamps vertical heavy-duty with full holding arm

Item selection/filter
Order No.

Opening
angle of
holding arm		Opening
angle of
handle		Hand
force
FH N		Retaining
force
F1 N		Clamping force
F3
N		Matching
plastic grip
CADAcc.PriceOrder
B0643.0700205°130°34070001400B0654.28 84.76 €
B0643.1200195°130°500120001400B0654.30 107.81 €
B0643.2400195°130°500150001850B0654.33 143.87 €
Order No.

A1A3BB1B2B3CC1C4DHLL1L2MCADAcc.PriceOrder
B0643.070045252010431070225012,22351044030M12x100 84.76 €
B0643.120051262412511288266312,22761245030M12x100 107.81 €
B0643.2400644032166416105327616,33181626038M16x150 143.87 €
