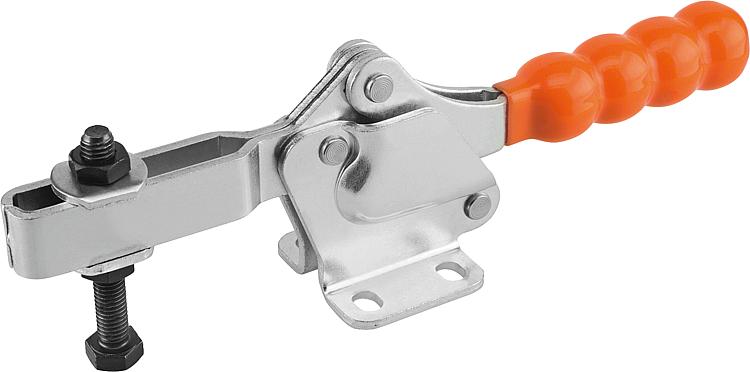

DescriptionMaterial:Steel or stainless steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Stainless steel bright.
Plastic grip oil-resistant.Note:A neoprene thrust pad is supplied with versions B0628.0075 and B0628.0150.
An angle bracket cannot be supplied in stainless steel with versions B0628.0075N and B0628.0150N.Accessory:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Main
material | Opening
angle of
holding arm | Opening
angle of
handle | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping force
F3
N | Clamping
force
F4 N | Matching
plastic grip
| CAD | Acc. | Price | Order |
|---|
| B0628.0075 | steel | 90° | 75° | 80 | 500 | 1100 | 250 | 700 | B0655.16 |  |  | 13.03 € | | | B0628.0150 | steel | 90° | 80° | 140 | 1200 | 2600 | 400 | 1000 | B0655.20 | | | 16.48 € | | | B0628.0250 | steel | 95° | 80° | 200 | 1500 | 3500 | 800 | 1950 | B0655.28 | | | 22.65 € | | | B0628.0350 | steel | 90° | 75° | 250 | 2500 | 5500 | 1150 | 3100 | B0655.30 | | | 28.87 € | | | B0628.0450 | steel | 90° | 75° | 250 | 3000 | 6500 | 1150 | 3100 | B0655.34 | | | 41.82 € | | | B0628.0075N | stainless steel | 90° | 75° | 80 | 500 | 1100 | 250 | 700 | B0655.16 | | | 26.39 € | | | B0628.0150N | stainless steel | 90° | 80° | 140 | 1200 | 2600 | 400 | 1000 | B0655.20 | | | 30.35 € | |
Order No.
| Main

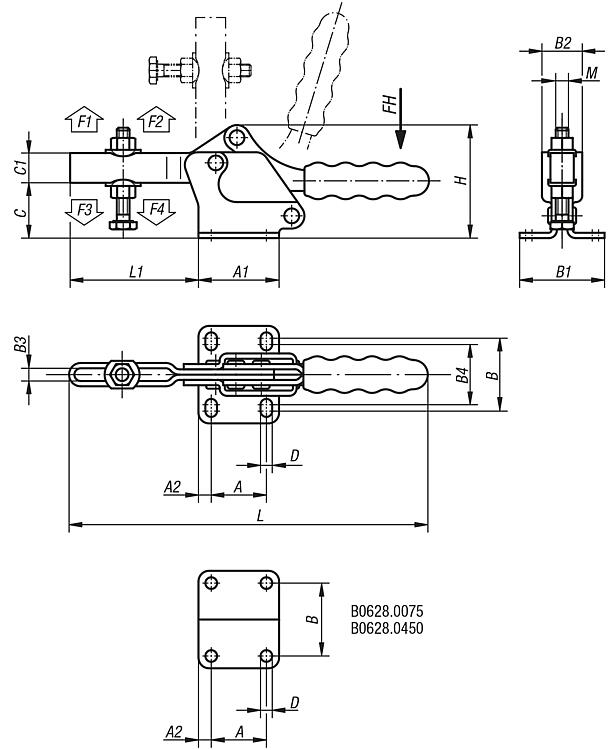

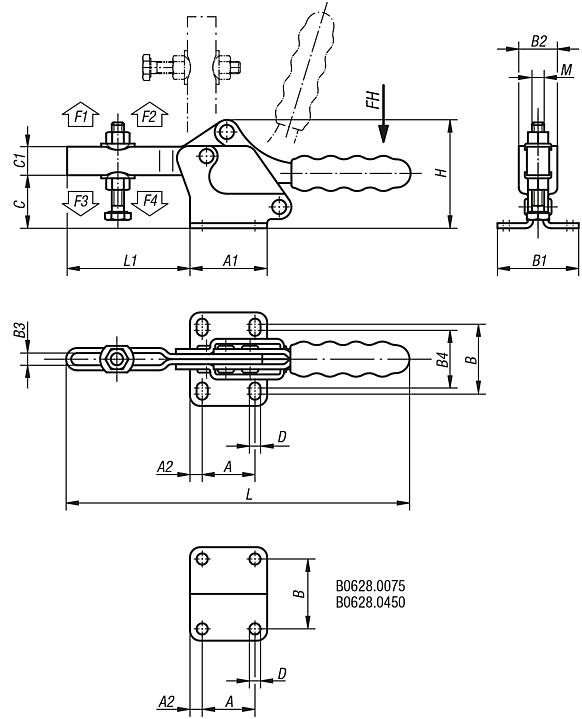

material | A | A1 | A2 | B | B1 | B2 | B3 | B4 | C | C1 | D | H | L | L1 | M | Order No.
Angle bracket | CAD | Acc. | Price | Order |
|---|
| B0628.0075 | steel | 13,5 | 25 | 5,7 | 17,4 | 27 | 16 | 5,8 | - | 19 | 9,5 | 5,2 | 38 | 116 | 37 | M5x35 | B0663.02 | | | 13.03 € | | | B0628.0150 | steel | 26 | 38 | 6 | 28 | 40 | 20 | 6,2 | 22 | 24 | 14 | 5,5 | 53 | 170 | 60 | M6x50 | B0663.04 | | | 16.48 € | | | B0628.0250 | steel | 26 | 42 | 8 | 31 | 47 | 23 | 8,5 | 26 | 35 | 17,5 | 6,6 | 68 | 224 | 79 | M8x60 | B0663.04 | | | 22.65 € | | | B0628.0350 | steel | 41,2 | 59 | 9 | 43 | 59 | 30 | 12 | 39 | 45 | 24 | 8,7 | 91 | 274 | 108 | M10x80 | B0663.06 | | | 28.87 € | | | B0628.0450 | steel | 41,2 | 67 | 13 | 41,3 | 67 | 38 | 14,2 | - | 59 | 27 | 8,7 | 110 | 305 | 128 | M12x100 | B0663.06 | | | 41.82 € | | | B0628.0075N | stainless steel | 13,5 | 25 | 5,7 | 17,4 | 27 | 16 | 5,8 | - | 19 | 9,5 | 5,2 | 38 | 116 | 37 | M5x35 | - | | | 26.39 € | | | B0628.0150N | stainless steel | 26 | 38 | 6 | 28 | 40 | 20 | 6,2 | 22 | 24 | 14 | 5,5 | 53 | 170 | 60 | M6x50 | - | | | 30.35 € | |
