B0651

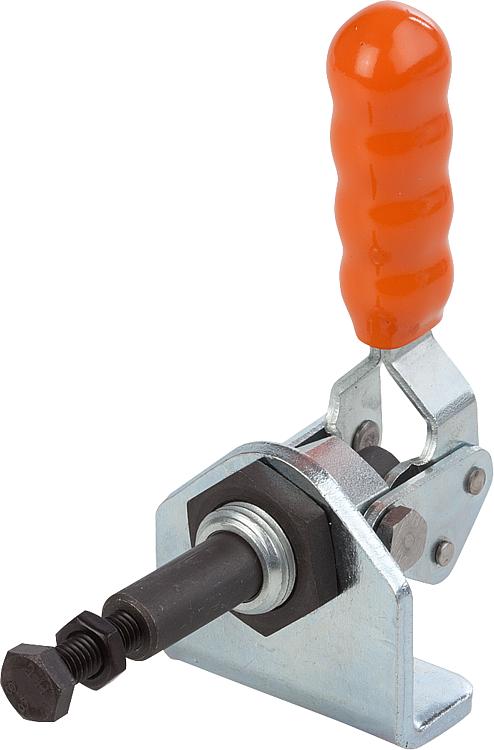

Toggle clamps push-pull with mounting bracket

go back

Products
- Product news
  - New products
    - Toggle clamps push-pull with mounting bracket

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Trivalent passivated.
Connecting rod and thrust screw phosphated.
Stainless steel bright.
Plastic grip oil-resistant.Note:As the push-pull toggle clamps lock in open and closed handle positions, they can be used to clamp when pushing or pulling.
The fastening nut supplied allows the clamps to be mounted in any desired position.

A neoprene pressure pad is supplied with version B0651.0100.

Versions B0651.0100N, B0651.0200N and B0651.0400N are supplied without mounting bracket.Accessory:Drawing reference:

1) By version B0651.0400, the bracket must be mounted in the direction of the push rod.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0651 Toggle clamps push-pull with mounting bracket

188 kB

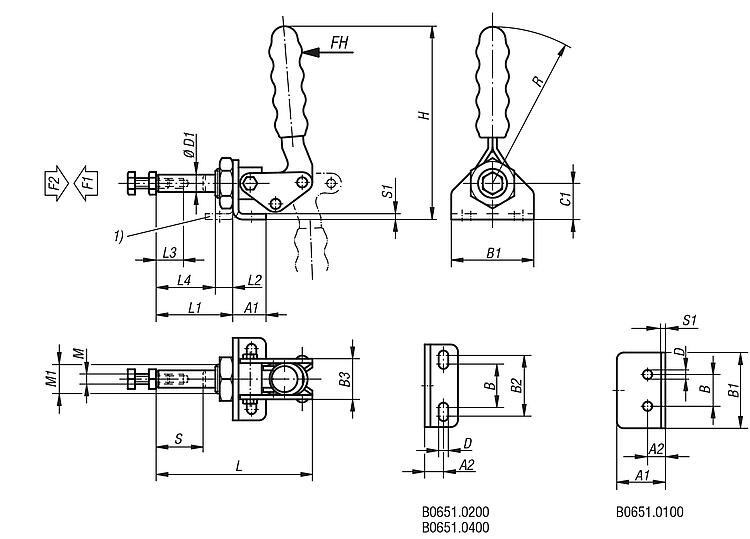

Drawings

Item selection/filter

Order No.	Main material	Opening angle of handle	Hand force FH N	Retaining force F2 N	Clamping force F1 N	Matching plastic grip	Price
B0651.0100	steel	190°	40	1000	500	B0655.22	40.15 €
B0651.0200	steel	190°	50	2000	2000	B0655.28	51.68 €
B0651.0400	steel	190°	150	4000	2500	B0655.30	76.65 €
B0651.0100N	stainless steel	190°	40	1000	500	B0655.22	79.95 €
B0651.0200N	stainless steel	190°	50	2000	2000	B0655.28	93.89 €
B0651.0400N	stainless steel	190°	150	4000	2500	B0655.30	147.30 €

Order No.	Main material	A1	A2	B	B1	B2	B3	C1	D	D1	H	L	L1	L2	L3	L4	M	M1	S1	R	Travel S	Price
B0651.0100	steel	20	13,5	18	44	-	25	28	5,2	10	98	69	34	10	15	23	M6x25	M16x1,5	4	70	20	40.15 €
B0651.0200	steel	23	13	30	57	42	28	34	6,5	12	147	108	53	12	25	41	M8x40	M20x1,5	4	112	40	51.68 €
B0651.0400	steel	30	18	30	64	45	38	30	8,5	16	160	175	88	17	35	71	M10x50	M24x1,5	5	130	68	76.65 €
B0651.0100N	stainless steel	30	13,5	18	44	-	25	26	5,2	10	98	69	34	10	15	23	M6x25	M16x1,5	2	70	20	79.95 €
B0651.0200N	stainless steel	23	13	30	57	42	28	25	6,5	12	137	108	53	12	25	41	M8x40	M20x1,5	4	112	40	93.89 €
B0651.0400N	stainless steel	30	18	30	64	45	38	30	8,5	16	160	175	88	17	35	71	M10x50	M24x1,5	5	130	68	147.30 €
