Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle
B0625

Toggle clamps mini horizontal with flat right foot and...

go back

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.
Accessory:Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0625 Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle 176 kB

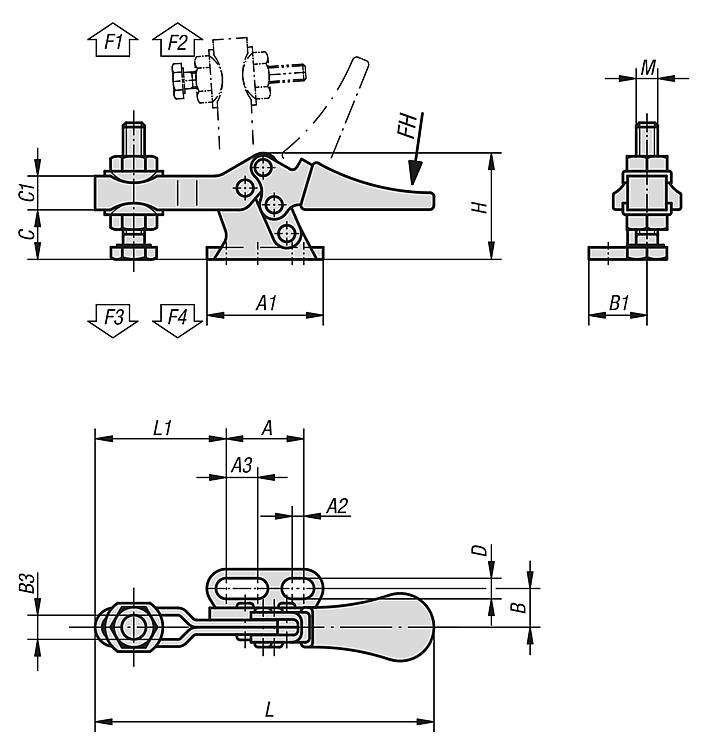

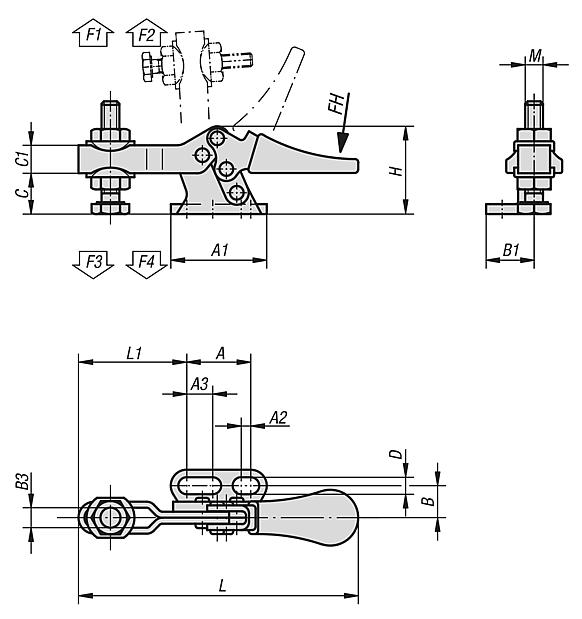

Drawings

Toggle clamps mini horizontal with flat right foot and adjustable clamping spindle

Item selection/filter

Order No.

Opening
angle of
holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping force
F3
N
Clamping
force
F4 N
CADAcc.PriceOrder
B0625.005085°65°80250550170370  10.69 €
Order No.

A1AA2A3BB1B3CC1DHLL1MCADAcc.PriceOrder
B0625.005024162,46,58125,29,574,2227027M5x20  10.69 €
