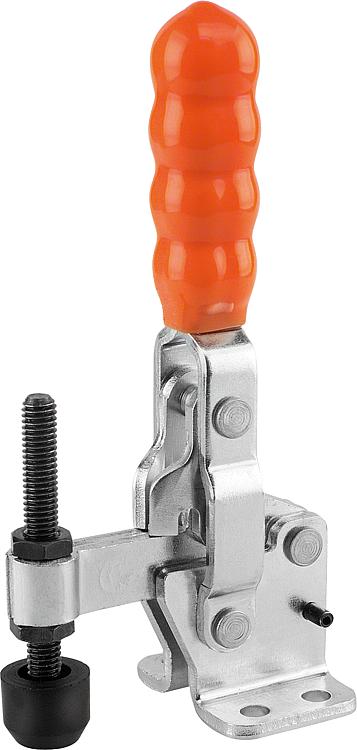

B0636Toggle clamps vertical with flat foot and fixed clamping spindle |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Trivalent passivated.
Clamping spindle and nuts phosphated.
Plastic grip oil-resistant.Note:The opening angle between the holding arm and the handle can be reduced or increased by repositioning or removing the stop pin.
A neoprene pressure pad is supplied with version B0636.0100 and B0636.0150.Accessory:Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Opening angle
holding arm
position 1 | Opening angle
holding arm
stop pin removed | Opening angle
handle
position 1 | Opening angle
handle
stop pin removed | Hand
force
FH N | Retaining
force
F1 N | Clamping force
F3
N | Matching
plastic grip
| CAD | Acc. | Price | Order |
|---|
| B0636.0100 | 95° | 185° | 65° | 105° | 80 | 850 | 650 | B0655.16 |  |  | 12.15 € | | | B0636.0150 | 95° | 185° | 75° | 110° | 120 | 1500 | 900 | B0655.19 | | | 13.98 € | | | B0636.0200 | 105° | 175° | 70° | 95° | 100 | 1600 | 1150 | B0655.22 | | | 15.59 € | | | B0636.0250 | 95° | 160° | 70° | 100° | 190 | 2500 | 1150 | B0655.28 | | | 21.64 € | | | B0636.0300 | 105° | 160° | 65° | 90° | 130 | 3000 | 1150 | B0655.28 | | | 26.02 € | | | B0636.0350 | 90° | 180° | 70° | 110° | 230 | 3500 | 1650 | B0655.30 | | | 28.98 € | | | B0636.0450 | 90° | 180° | 70° | 110° | 260 | 4500 | 1650 | B0655.34 | | | 36.86 € | | | B0636.0550 | 90° | 180° | 65° | 110° | 290 | 5500 | 1900 | B0655.35 | | | 53.94 € | |
Order No.

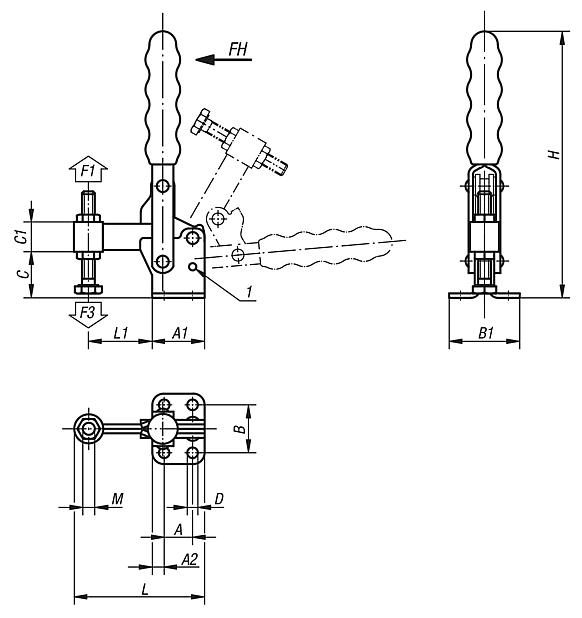

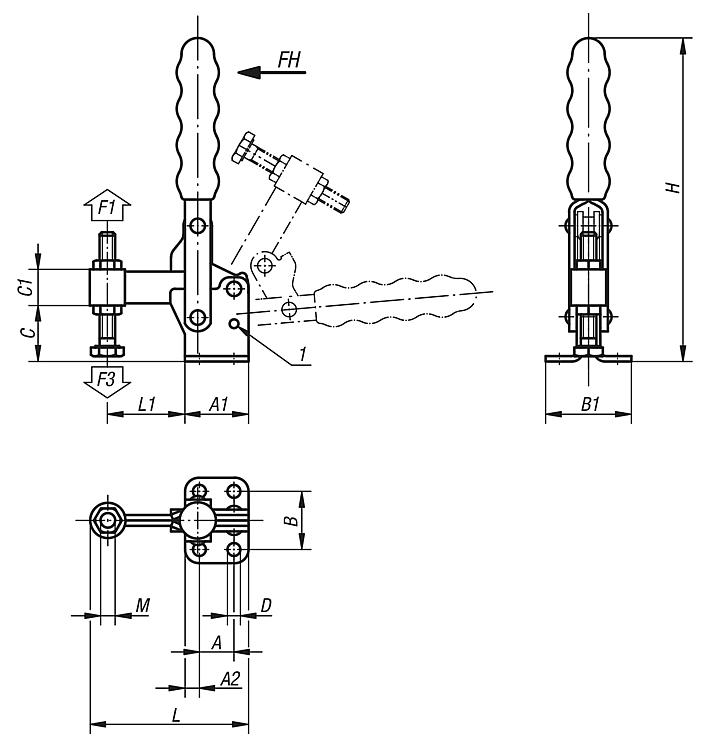

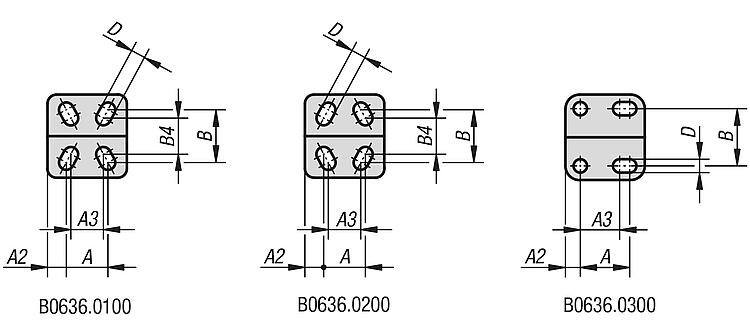

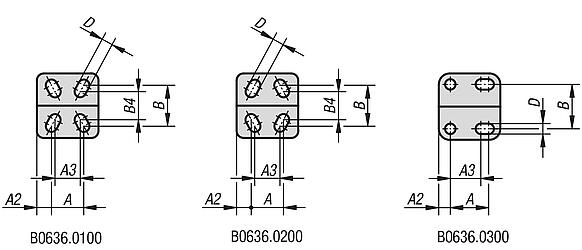

| A | A1 | A2 | A3 | B | B1 | B4 | C | C1 | D | H | L | L1 | M | Order No.

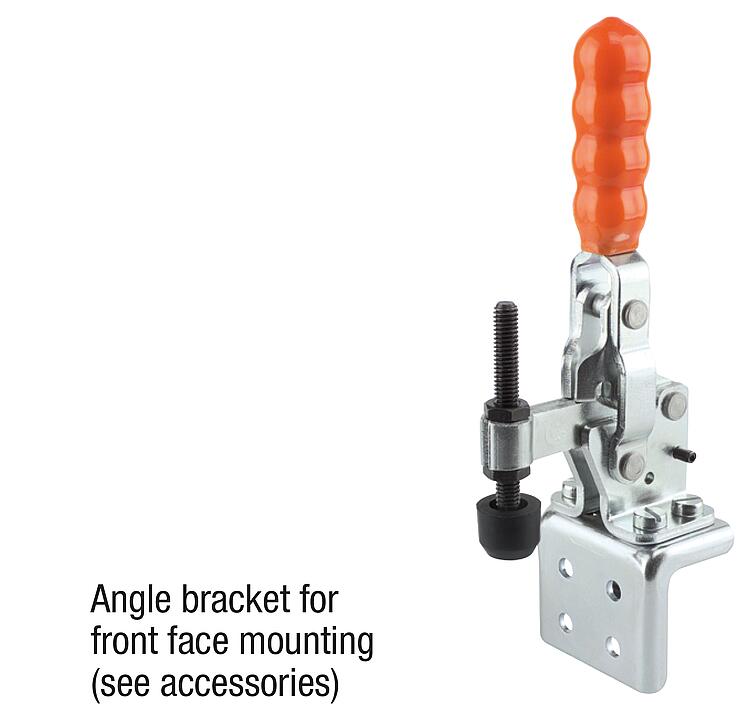

Angle bracket | CAD | Acc. | Price | Order |
|---|
| B0636.0100 | 16 | 28 | 6 | 14 | 24 | 34 | 17,5 | 22 | 9,5 | 4,8 | 103 | 65 | 32 | M5x35 | - | | | 12.15 € | | | B0636.0150 | 12,7 | 27 | 7 | - | 27 | 38 | - | 23 | 11 | 5,1 | 125 | 60 | 26 | M6x50 | B0663.02 | | | 13.98 € | | | B0636.0200 | 19 | 35 | 8 | 12,7 | 27 | 42 | 25 | 29 | 12,7 | 5,5 | 135 | 77 | 37 | M6x50 | - | | | 15.59 € | | | B0636.0250 | 19 | 35 | 8 | - | 32 | 47 | - | 29 | 21,5 | 7,1 | 175 | 87 | 45 | M8x60 | B0663.04 | | | 21.64 € | | | B0636.0300 | 25 | 43 | 9 | 19 | 34,5 | 52 | - | 32 | 21,5 | 8 | 186 | 115 | 65 | M8x60 | - | | | 26.02 € | | | B0636.0350 | 32 | 50 | 9 | - | 45 | 64 | - | 40 | 25,5 | 8,3 | 220 | 123 | 65 | M10x80 | B0663.06 | | | 28.98 € | | | B0636.0450 | 32 | 53 | 10 | - | 45 | 64 | - | 47 | 30 | 8,7 | 228 | 136,5 | 74 | M12x100 | B0663.06 | | | 36.86 € | | | B0636.0550 | 51 | 76 | 12,5 | - | 70 | 95 | - | 81 | 38 | 12,3 | 312 | 196,5 | 108 | M16x150 | - | | | 53.94 € | |
