B0653

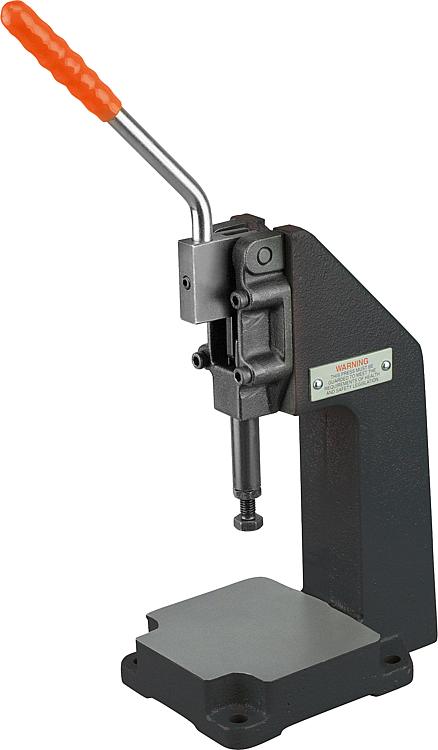

Toggle presses for manual operation

go back

Products
- Product news
  - New products
    - Toggle presses for manual operation

Item description/product images

DescriptionMaterial:Press stand cast steel.
For push-pull clamp see B0399Version:Press stand painted black.
For push-pull clamp see B0399Note:The thrust clamps can be re-ordered as a complete assembly kit. See B0399for specifications.Accessory:B0399
B0654
B0656
B0657
B0658

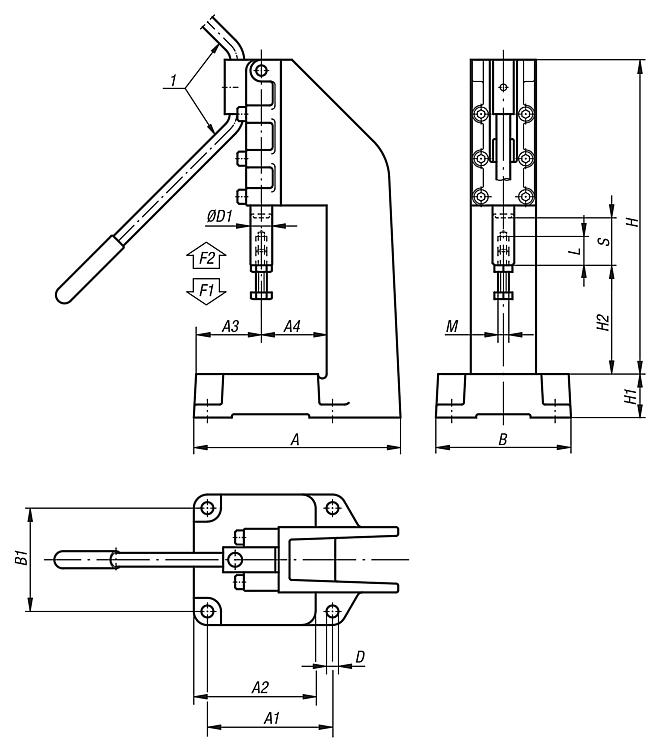

B0661Drawing reference:

1) handle can be mounted right or left

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0653 Toggle presses for manual operation

175 kB

Drawings

Item selection/filter

Order No.	A	A1	A2	A3	A4	B	B1	D	D1	H	H1	H2	L	M	Travel S	Hand force FH N	Retaining force F2 N	Opening angle of handle	Price
B0653.0600	150	95	94	50	50	100	80	9	14	202	30	75	30	M8	32	140	6000	185°	258.41 €
B0653.1200	192	115	112	60	60	120	95	11	20	290	40	100	40	M10	50	150	12000	185°	406.56 €
B0653.2500	238	145	142	75	75	150	125	11	25	418	50	120	60	M12	75	170	25000	185°	560.75 €

Order No.	Thrust rod extended / Clamping force F1 N	Price
B0653.0600	5mm/1100N, 10mm/700N, 15mm/750N, 20mm/800N, 25mm/850N, 30mm/1460N, 31mm/1900N, 32mm/5800N	258.41 €
B0653.1200	5mm/1670N, 10mm/900N, 15mm/730N, 20mm/700N, 25mm/720N, 30mm/850N, 35mm/1000N, 40mm/1100N, 45mm/1500N, 48mm/2200N, 49mm/2900N, 50mm/9300N	406.56 €
B0653.2500	10mm/1000N, 20mm/720N, 30mm/600N, 40mm/700N, 50mm/880N, 60mm/1180N, 70mm/1900N, 72mm/2300N, 74mm/3530N, 75mm/11000N	560.75 €
