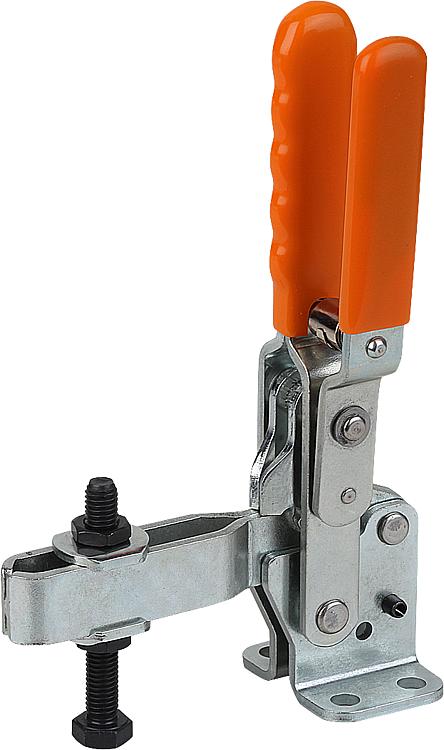

Toggle clamps vertical with safety interlock with flat foot and adjustable clamping spindle
B0635

Toggle clamps vertical with safety interlock with flat foot and...

go back

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent passivated.
Plastic grip oil resistant.
Note:With safety interlock for the clamping point and opened position. Safety clamping element with finger protection. Anti-loosening lock for the press-on bolt on the end of the clamping arm.
The opening angle between the holding arm and the handle can be reduced by pressing in of the stop pin (stop position 2).

Clamping spindle with a neoprene pressure pad.
Accessory:Drawing reference:
1) stop pin position 1
2) stop pin position 2
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0635 Toggle clamps vertical with safety interlock with flat foot and adjustable clamping spindle 215 kB

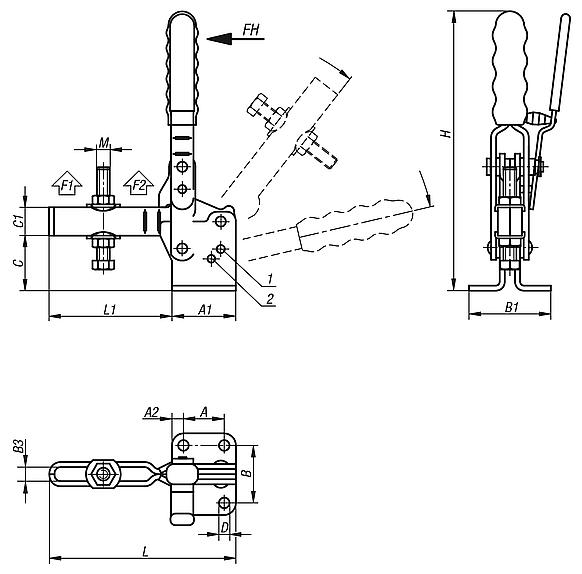

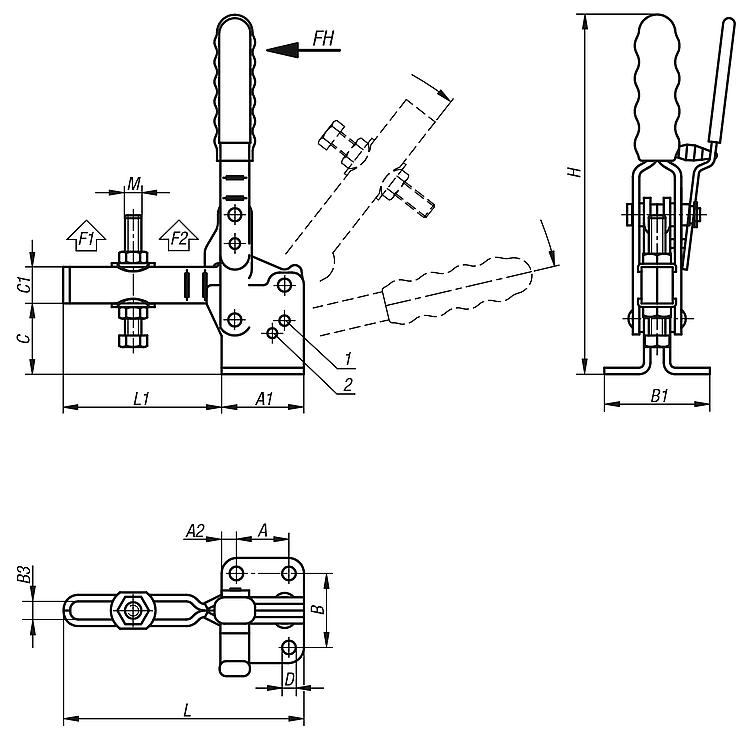

Drawings

Toggle clamps vertical with safety interlock with flat foot and adjustable clamping spindle

Overview of items (compressed)

Item selection/filter
Order No.Opening angle
holding arm
position 1
Opening angle
holding arm
position 2
Opening angle
handle
position 1
Opening angle
handle
position 2
Order No.
Angle bracket
CADAcc.PriceOrder
B0635.025095°125°70°85°B0663.04  84.82 €
B0635.035090°120°70°80°B0663.06  99.79 €
Order No.AA1A2BB1B3CC1DHLL1MHand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
CADAcc.PriceOrder
B0635.02501935832478,83217,57,117511075M8x6019010002800  84.82 €
B0635.035032509456410,643228,322014695M10x8023022004500  99.79 €
