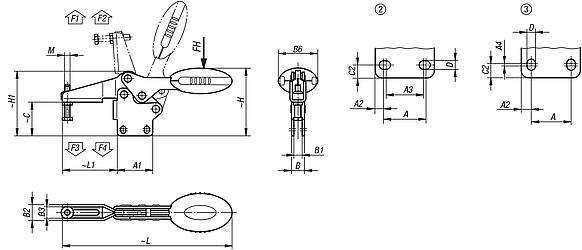

B0388Toggle clamps horizontal with straight foot and adjustable... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel.
Grip polyamide.Version:Bright.
Grip blue, black or red.Note:Maintenance-free high quality link bushings. Sustainable constant use of force during opening and closing. Optimum stability through the conical, U-profile clamping arm.On request:Other grip colours.Accessory:B0400
B0162
B0166Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
colour | hole
arrangement | Opening
angle of
holding arm | Opening
angle of
handle | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping force
F3
N | Clamping
force
F4 N | CAD | Acc. | Price | Order |
|---|
| B0388.105001 | ultramarine RAL 5002 | 2 | 86° | 67° | 100 | 650 | 900 | 550 | 620 |  |  | 29.32 € | | | B0388.106001 | ultramarine RAL 5002 | 3 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 | | | 39.24 € | | | B0388.108001 | ultramarine RAL 5002 | 3 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | | | 54.97 € | | | B0388.105000 | black grey RAL 7021 | 2 | 86° | 67° | 100 | 650 | 900 | 550 | 620 | | | 29.32 € | | | B0388.106000 | black grey RAL 7021 | 3 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 | | | 39.24 € | | | B0388.108000 | black grey RAL 7021 | 3 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | | | 54.97 € | | | B0388.105003 | traffic red RAL 3020 | 2 | 86° | 67° | 100 | 650 | 900 | 550 | 620 | | | 29.32 € | | | B0388.106003 | traffic red RAL 3020 | 3 | 86° | 67° | 160 | 1350 | 1900 | 720 | 1200 | | | 39.24 € | | | B0388.108003 | traffic red RAL 3020 | 3 | 86° | 67° | 200 | 2000 | 2800 | 830 | 1400 | | | 54.97 € | |

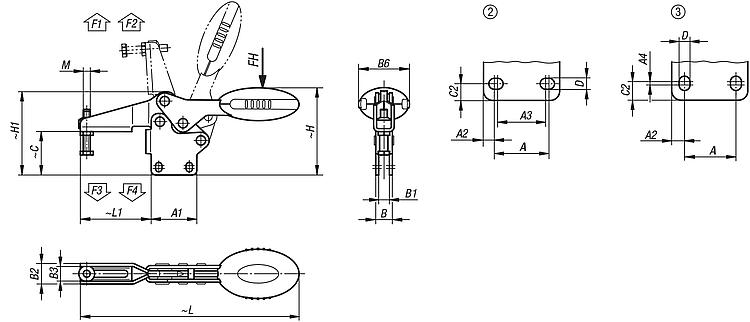

| Order No. | Component
colour | M | A
| A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | B6 | C | C2 | D | H | H1 | L | L1 | CAD | Acc. | Price | Order |
|---|
| B0388.105001 | ultramarine RAL 5002 | M5x25 | 18 | 27 | 4,5 | 13,5 | - | 8,1 | 4,1 | 13,2 | 9,2 | 22,5 | 26,2 | 5,2 | 5,5 | 52,2 | 47,9 | 125,7 | 41,8 | | | 29.32 € | | | B0388.106001 | ultramarine RAL 5002 | M6x35 | 26 | 39 | 6,5 | - | 2,5 | 14,1 | 9,1 | 17,5 | 12,5 | 43,5 | 36,9 | 8 | 5,5 | 75,2 | 71 | 186,6 | 60,5 | | | 39.24 € | | | B0388.108001 | ultramarine RAL 5002 | M8x45 | 26 | 44 | 9 | - | 3,5 | 14,1 | 9,1 | 21 | 16 | 41,5 | 46,5 | 10,5 | 6,2 | 88,2 | 84,3 | 223,1 | 74,9 | | | 54.97 € | | | B0388.105000 | black grey RAL 7021 | M5x25 | 18 | 27 | 4,5 | 13,5 | - | 8,1 | 4,1 | 13,2 | 9,2 | 22,5 | 26,2 | 5,2 | 5,5 | 52,2 | 47,9 | 125,7 | 41,8 | | | 29.32 € | | | B0388.106000 | black grey RAL 7021 | M6x35 | 26 | 39 | 6,5 | - | 2,5 | 14,1 | 9,1 | 17,5 | 12,5 | 43,5 | 36,9 | 8 | 5,5 | 75,2 | 71 | 186,6 | 60,5 | | | 39.24 € | | | B0388.108000 | black grey RAL 7021 | M8x45 | 26 | 44 | 9 | - | 3,5 | 14,1 | 9,1 | 21 | 16 | 41,5 | 46,5 | 10,5 | 6,2 | 88,2 | 84,3 | 223,1 | 74,9 | | | 54.97 € | | | B0388.105003 | traffic red RAL 3020 | M5x25 | 18 | 27 | 4,5 | 13,5 | - | 8,1 | 4,1 | 13,2 | 9,2 | 22,5 | 26,2 | 5,2 | 5,5 | 52,2 | 47,9 | 125,7 | 41,8 | | | 29.32 € | | | B0388.106003 | traffic red RAL 3020 | M6x35 | 26 | 39 | 6,5 | - | 2,5 | 14,1 | 9,1 | 17,5 | 12,5 | 43,5 | 36,9 | 8 | 5,5 | 75,2 | 71 | 186,6 | 60,5 | | | 39.24 € | | | B0388.108003 | traffic red RAL 3020 | M8x45 | 26 | 44 | 9 | - | 3,5 | 14,1 | 9,1 | 21 | 16 | 41,5 | 46,5 | 10,5 | 6,2 | 88,2 | 84,3 | 223,1 | 74,9 | | | 54.97 € | |
