B0667_BScrews with flattened pan head and hexalobular socket similar to... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 10.9, electro zinc-plated.
Stainless steel A2-70, brightNote:DIN 34805-1 - Form A: Screws with flattened pan head and hexalobular socket.

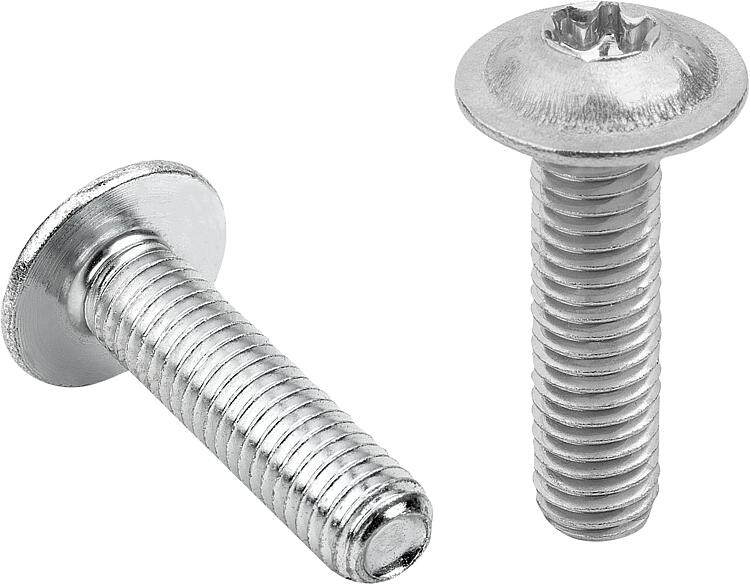

DIN 34805-2 - Form B: Screws with flattened pan head, collar and hexalobular socket.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Main
material | D
| D1 | Grade | K | L | Lg
max. | Ls
min. | TX=Internal drive | CAD | Acc. | Price | Order |
|---|
| B0667.2504X08 | B | steel | M4 | 9,4 | 10.9 | 2,45 | 8 | 2,1 | 0 | 20 | | | 0.62 € | | | B0667.2504X10 | B | steel | M4 | 9,4 | 10.9 | 2,45 | 10 | 2,1 | 0 | 20 | | | 0.65 € | | | B0667.2504X12 | B | steel | M4 | 9,4 | 10.9 | 2,45 | 12 | 2,1 | 0 | 20 | | | 0.71 € | | | B0667.2504X16 | B | steel | M4 | 9,4 | 10.9 | 2,45 | 16 | 2,1 | 0 | 20 | | | 0.74 € | | | B0667.2504X20 | B | steel | M4 | 9,4 | 10.9 | 2,45 | 20 | 2,1 | 0 | 20 | | | 0.77 € | | | B0667.2505X08 | B | steel | M5 | 11,8 | 10.9 | 3 | 8 | 2,4 | 0 | 25 | | | 0.87 € | | | B0667.2505X10 | B | steel | M5 | 11,8 | 10.9 | 3 | 10 | 2,4 | 0 | 25 | | | 0.73 € | | | B0667.2505X12 | B | steel | M5 | 11,8 | 10.9 | 3 | 12 | 2,4 | 0 | 25 | | | 0.79 € | | | B0667.2505X16 | B | steel | M5 | 11,8 | 10.9 | 3 | 16 | 2,4 | 0 | 25 | | | 0.82 € | | | B0667.2505X20 | B | steel | M5 | 11,8 | 10.9 | 3 | 20 | 2,4 | 0 | 25 | | | 0.71 € | | | B0667.2505X25 | B | steel | M5 | 11,8 | 10.9 | 3 | 25 | 2,4 | 0 | 25 | | | 0.89 € | | | B0667.2506X10 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 10 | 3 | 0 | 30 | | | 0.82 € | | | B0667.2506X12 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 12 | 3 | 0 | 30 | | | 0.87 € | | | B0667.2506X16 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 16 | 3 | 0 | 30 | | | 0.90 € | | | B0667.2506X20 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 20 | 3 | 0 | 30 | | | 0.96 € | | | B0667.2506X25 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 25 | 3 | 0 | 30 | | | 1.02 € | | | B0667.2506X30 | B | steel | M6 | 13,6 | 10.9 | 3,3 | 30 | 3 | 0 | 30 | | | 1.07 € | | | B0667.2508X12 | B | steel | M8 | 17,8 | 10.9 | 4,5 | 12 | 3,75 | 0 | 40 | | | 1.33 € | | | B0667.2508X16 | B | steel | M8 | 17,8 | 10.9 | 4,5 | 16 | 3,75 | 0 | 40 | | | 1.24 € | | | B0667.2508X20 | B | steel | M8 | 17,8 | 10.9 | 4,5 | 20 | 3,75 | 0 | 40 | | | 1.14 € | | | B0667.2508X25 | B | steel | M8 | 17,8 | 10.9 | 4,5 | 25 | 3,75 | 0 | 40 | | | 1.11 € | | | B0667.2508X30 | B | steel | M8 | 17,8 | 10.9 | 4,5 | 30 | 3,75 | 0 | 40 | | | 1.29 € | | | B0667.2104X08 | B | stainless steel A2 | M4 | 9,4 | 70 | 2,45 | 8 | 2,1 | 0 | 20 | | | 0.82 € | | | B0667.2104X10 | B | stainless steel A2 | M4 | 9,4 | 70 | 2,45 | 10 | 2,1 | 0 | 20 | | | 1.02 € | | | B0667.2104X12 | B | stainless steel A2 | M4 | 9,4 | 70 | 2,45 | 12 | 2,1 | 0 | 20 | | | 1.05 € | | | B0667.2104X16 | B | stainless steel A2 | M4 | 9,4 | 70 | 2,45 | 16 | 2,1 | 0 | 20 | | | 1.10 € | | | B0667.2104X20 | B | stainless steel A2 | M4 | 9,4 | 70 | 2,45 | 20 | 2,1 | 0 | 20 | | | 1.16 € | | | B0667.2105X08 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 8 | 2,4 | 0 | 25 | | | 1.10 € | | | B0667.2105X10 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 10 | 2,4 | 0 | 25 | | | 1.21 € | | | B0667.2105X12 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 12 | 2,4 | 0 | 25 | | | 1.32 € | | | B0667.2105X16 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 16 | 2,4 | 0 | 25 | | | 1.75 € | | | B0667.2105X20 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 20 | 2,4 | 0 | 25 | | | 2.03 € | | | B0667.2105X25 | B | stainless steel A2 | M5 | 11,8 | 70 | 3 | 25 | 2,4 | 0 | 25 | | | 2.35 € | | | B0667.2106X08 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 8 | 2,4 | 0 | 30 | | | 1.98 € | | | B0667.2106X10 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 10 | 3 | 0 | 30 | | | 2.21 € | | | B0667.2106X12 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 12 | 3 | 0 | 30 | | | 2.47 € | | | B0667.2106X16 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 16 | 3 | 0 | 30 | | | 2.97 € | | | B0667.2106X20 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 20 | 3 | 0 | 30 | | | 3.21 € | | | B0667.2106X25 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 25 | 3 | 0 | 30 | | | 3.45 € | | | B0667.2106X30 | B | stainless steel A2 | M6 | 13,6 | 70 | 3,3 | 30 | 3 | 0 | 30 | | | 2.65 € | | | B0667.2108X12 | B | stainless steel A2 | M8 | 17,8 | 70 | 4,5 | 12 | 3,75 | 0 | 40 | | | 1.55 € | | | B0667.2108X16 | B | stainless steel A2 | M8 | 17,8 | 70 | 4,5 | 16 | 3,75 | 0 | 40 | | | 2.07 € | | | B0667.2108X20 | B | stainless steel A2 | M8 | 17,8 | 70 | 4,5 | 20 | 3,75 | 0 | 40 | | | 2.60 € | | | B0667.2108X25 | B | stainless steel A2 | M8 | 17,8 | 70 | 4,5 | 25 | 3,75 | 0 | 40 | | | 2.62 € | | | B0667.2108X30 | B | stainless steel A2 | M8 | 17,8 | 70 | 4,5 | 30 | 3,75 | 0 | 40 | | | 2.96 € | |
