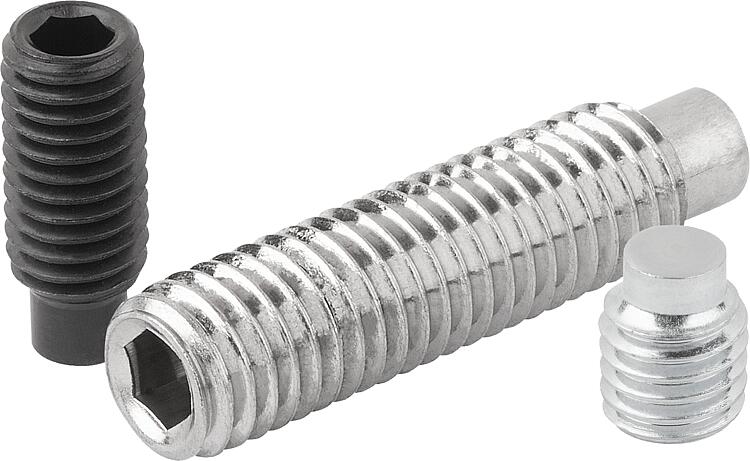

B0527Grub screws with hex socket and pin DIN EN ISO 4028 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 45 H, bright (blackened) or electro zinc-plated.
Stainless steel A2 or stainless steel A4, bright. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

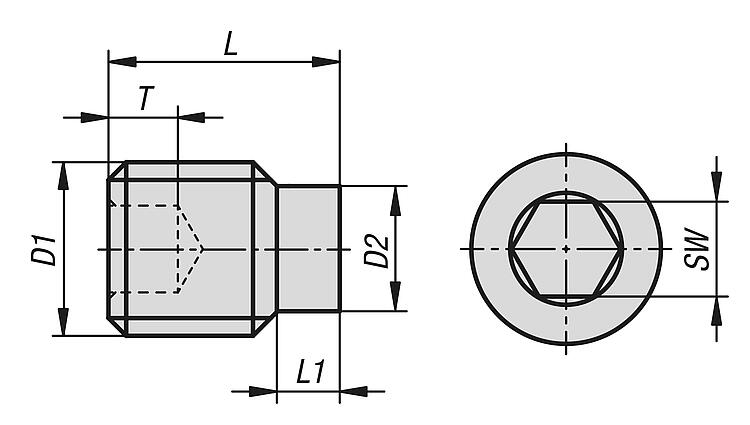

| Order No. | Material | Surface finish
body | Grade | D1 | D2 | L | L1
max. | T | SW | CAD | Acc. | Price | Order |
|---|
| B0527.103X4 | stainless steel A2 | bright | 70 | M3 | 2 | 4 | 1 | 1,2 | 1,5 |  | | 0.10 € | | | B0527.103X5 | stainless steel A2 | bright | 70 | M3 | 2 | 5 | 1 | 1,2 | 1,5 | | | 0.10 € | | | B0527.103X6 | stainless steel A2 | bright | 70 | M3 | 2 | 6 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.103X8 | stainless steel A2 | bright | 70 | M3 | 2 | 8 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.103X10 | stainless steel A2 | bright | 70 | M3 | 2 | 10 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.103X12 | stainless steel A2 | bright | 70 | M3 | 2 | 12 | 1,75 | 2 | 1,5 | | | 0.14 € | | | B0527.104X5 | stainless steel A2 | bright | 70 | M4 | 2,5 | 5 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.104X6 | stainless steel A2 | bright | 70 | M4 | 2,5 | 6 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.104X8 | stainless steel A2 | bright | 70 | M4 | 2,5 | 8 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.104X10 | stainless steel A2 | bright | 70 | M4 | 2,5 | 10 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.104X12 | stainless steel A2 | bright | 70 | M4 | 2,5 | 12 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.104X16 | stainless steel A2 | bright | 70 | M4 | 2,5 | 16 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.104X20 | stainless steel A2 | bright | 70 | M4 | 2,5 | 20 | 2,25 | 2,5 | 2 | | | 0.14 € | | | B0527.104X25 | stainless steel A2 | bright | 70 | M4 | 2,5 | 25 | 2,25 | 2,5 | 2 | | | 0.24 € | | | B0527.105X5 | stainless steel A2 | bright | 70 | M5 | 3,5 | 5 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.105X6 | stainless steel A2 | bright | 70 | M5 | 3,5 | 6 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.105X8 | stainless steel A2 | bright | 70 | M5 | 3,5 | 8 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.105X10 | stainless steel A2 | bright | 70 | M5 | 3,5 | 10 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.105X12 | stainless steel A2 | bright | 70 | M5 | 3,5 | 12 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.105X16 | stainless steel A2 | bright | 70 | M5 | 3,5 | 16 | 2,75 | 3 | 2,5 | | | 0.16 € | | | B0527.105X20 | stainless steel A2 | bright | 70 | M5 | 3,5 | 20 | 2,75 | 3 | 2,5 | | | 0.22 € | | | B0527.105X25 | stainless steel A2 | bright | 70 | M5 | 3,5 | 25 | 2,75 | 3 | 2,5 | | | 0.24 € | | | B0527.105X30 | stainless steel A2 | bright | 70 | M5 | 3,5 | 30 | 2,75 | 3 | 2,5 | | | 0.24 € | | | B0527.105X35 | stainless steel A2 | bright | 70 | M5 | 3,5 | 35 | 2,75 | 3 | 2,5 | | | 0.35 € | | | B0527.106X6 | stainless steel A2 | bright | 70 | M6 | 4 | 6 | 1,75 | 2 | 3 | | | 0.10 € | | | B0527.106X8 | stainless steel A2 | bright | 70 | M6 | 4 | 8 | 1,75 | 2 | 3 | | | 0.12 € | | | B0527.106X10 | stainless steel A2 | bright | 70 | M6 | 4 | 10 | 3,25 | 3,5 | 3 | | | 0.14 € | | | B0527.106X12 | stainless steel A2 | bright | 70 | M6 | 4 | 12 | 3,25 | 3,5 | 3 | | | 0.18 € | | | B0527.106X16 | stainless steel A2 | bright | 70 | M6 | 4 | 16 | 3,25 | 3,5 | 3 | | | 0.22 € | | | B0527.106X20 | stainless steel A2 | bright | 70 | M6 | 4 | 20 | 3,25 | 3,5 | 3 | | | 0.27 € | | | B0527.106X25 | stainless steel A2 | bright | 70 | M6 | 4 | 25 | 3,25 | 3,5 | 3 | | | 0.36 € | | | B0527.106X30 | stainless steel A2 | bright | 70 | M6 | 4 | 30 | 3,25 | 3,5 | 3 | | | 0.31 € | | | B0527.106X35 | stainless steel A2 | bright | 70 | M6 | 4 | 35 | 3,25 | 3,5 | 3 | | | 0.39 € | | | B0527.106X40 | stainless steel A2 | bright | 70 | M6 | 4 | 40 | 3,25 | 3,5 | 3 | | | 0.39 € | | | B0527.108X8 | stainless steel A2 | bright | 70 | M8 | 5,5 | 8 | 2,25 | 3 | 4 | | | 0.14 € | | | B0527.108X10 | stainless steel A2 | bright | 70 | M8 | 5,5 | 10 | 2,25 | 3 | 4 | | | 0.23 € | | | B0527.108X12 | stainless steel A2 | bright | 70 | M8 | 5,5 | 12 | 4,3 | 5 | 4 | | | 0.27 € | | | B0527.108X16 | stainless steel A2 | bright | 70 | M8 | 5,5 | 16 | 4,3 | 5 | 4 | | | 0.27 € | | | B0527.108X20 | stainless steel A2 | bright | 70 | M8 | 5,5 | 20 | 4,3 | 5 | 4 | | | 0.36 € | | | B0527.108X25 | stainless steel A2 | bright | 70 | M8 | 5,5 | 25 | 4,3 | 5 | 4 | | | 0.50 € | | | B0527.108X30 | stainless steel A2 | bright | 70 | M8 | 5,5 | 30 | 4,3 | 5 | 4 | | | 0.62 € | | | B0527.108X35 | stainless steel A2 | bright | 70 | M8 | 5,5 | 35 | 4,3 | 5 | 4 | | | 0.66 € | | | B0527.108X40 | stainless steel A2 | bright | 70 | M8 | 5,5 | 40 | 4,3 | 5 | 4 | | | 0.85 € | | | B0527.110X10 | stainless steel A2 | bright | 70 | M10 | 7 | 10 | 2,75 | 4 | 5 | | | 0.28 € | | | B0527.110X12 | stainless steel A2 | bright | 70 | M10 | 7 | 12 | 2,75 | 4 | 5 | | | 0.36 € | | | B0527.110X16 | stainless steel A2 | bright | 70 | M10 | 7 | 16 | 5,3 | 6 | 5 | | | 0.60 € | | | B0527.110X20 | stainless steel A2 | bright | 70 | M10 | 7 | 20 | 5,3 | 6 | 5 | | | 0.81 € | | | B0527.110X25 | stainless steel A2 | bright | 70 | M10 | 7 | 25 | 5,3 | 6 | 5 | | | 0.89 € | | | B0527.110X30 | stainless steel A2 | bright | 70 | M10 | 7 | 30 | 5,3 | 6 | 5 | | | 1.03 € | | | B0527.110X35 | stainless steel A2 | bright | 70 | M10 | 7 | 35 | 5,3 | 6 | 5 | | | 1.04 € | | | B0527.110X40 | stainless steel A2 | bright | 70 | M10 | 7 | 40 | 5,3 | 6 | 5 | | | 1.08 € | | | B0527.110X50 | stainless steel A2 | bright | 70 | M10 | 7 | 50 | 5,3 | 6 | 5 | | | 1.40 € | | | B0527.112X12 | stainless steel A2 | bright | 70 | M12 | 8,5 | 12 | 3,25 | 4,8 | 6 | | | 0.66 € | | | B0527.112X16 | stainless steel A2 | bright | 70 | M12 | 8,5 | 16 | 3,25 | 4,8 | 6 | | | 0.69 € | | | B0527.112X20 | stainless steel A2 | bright | 70 | M12 | 8,5 | 20 | 6,3 | 8 | 6 | | | 1.03 € | | | B0527.112X25 | stainless steel A2 | bright | 70 | M12 | 8,5 | 25 | 6,3 | 8 | 6 | | | 1.30 € | | | B0527.112X30 | stainless steel A2 | bright | 70 | M12 | 8,5 | 30 | 6,3 | 8 | 6 | | | 1.34 € | | | B0527.112X35 | stainless steel A2 | bright | 70 | M12 | 8,5 | 35 | 6,3 | 8 | 6 | | | 1.22 € | | | B0527.112X40 | stainless steel A2 | bright | 70 | M12 | 8,5 | 40 | 6,3 | 8 | 6 | | | 1.48 € | | | B0527.112X50 | stainless steel A2 | bright | 70 | M12 | 8,5 | 50 | 6,3 | 8 | 6 | | | 2.31 € | | | B0527.112X60 | stainless steel A2 | bright | 70 | M12 | 8,5 | 60 | 6,3 | 8 | 6 | | | 2.60 € | | | B0527.604X6 | stainless steel A4 | bright | 70 | M4 | 2,5 | 6 | 1,25 | 1,5 | 2 | | | 0.11 € | | | B0527.604X8 | stainless steel A4 | bright | 70 | M4 | 2,5 | 8 | 2,25 | 2,5 | 2 | | | 0.11 € | | | B0527.604X10 | stainless steel A4 | bright | 70 | M4 | 2,5 | 10 | 2,25 | 2,5 | 2 | | | 0.12 € | | | B0527.604X12 | stainless steel A4 | bright | 70 | M4 | 2,5 | 12 | 2,25 | 2,5 | 2 | | | 0.14 € | | | B0527.605X6 | stainless steel A4 | bright | 70 | M5 | 3,5 | 6 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.605X8 | stainless steel A4 | bright | 70 | M5 | 3,5 | 8 | 2,75 | 3 | 2,5 | | | 0.12 € | | | B0527.605X10 | stainless steel A4 | bright | 70 | M5 | 3,5 | 10 | 2,75 | 3 | 2,5 | | | 0.14 € | | | B0527.605X12 | stainless steel A4 | bright | 70 | M5 | 3,5 | 12 | 2,75 | 3 | 2,5 | | | 0.20 € | | | B0527.605X16 | stainless steel A4 | bright | 70 | M5 | 3,5 | 16 | 2,75 | 3 | 2,5 | | | 0.27 € | | | B0527.605X20 | stainless steel A4 | bright | 70 | M5 | 3,5 | 20 | 2,75 | 3 | 2,5 | | | 0.32 € | | | B0527.605X25 | stainless steel A4 | bright | 70 | M5 | 3,5 | 25 | 2,75 | 3 | 2,5 | | | 0.32 € | | | B0527.606X6 | stainless steel A4 | bright | 70 | M6 | 4 | 6 | 1,75 | 2 | 3 | | | 0.14 € | | | B0527.606X8 | stainless steel A4 | bright | 70 | M6 | 4 | 8 | 1,75 | 2 | 3 | | | 0.16 € | | | B0527.606X10 | stainless steel A4 | bright | 70 | M6 | 4 | 10 | 3,25 | 3,5 | 3 | | | 0.16 € | | | B0527.606X12 | stainless steel A4 | bright | 70 | M6 | 4 | 12 | 3,25 | 3,5 | 3 | | | 0.23 € | | | B0527.606X16 | stainless steel A4 | bright | 70 | M6 | 4 | 16 | 3,25 | 3,5 | 3 | | | 0.28 € | | | B0527.606X20 | stainless steel A4 | bright | 70 | M6 | 4 | 20 | 3,25 | 3,5 | 3 | | | 0.32 € | | | B0527.606X25 | stainless steel A4 | bright | 70 | M6 | 4 | 25 | 3,25 | 3,5 | 3 | | | 0.40 € | | | B0527.606X30 | stainless steel A4 | bright | 70 | M6 | 4 | 30 | 3,25 | 3,5 | 3 | | | 0.52 € | | | B0527.608X8 | stainless steel A4 | bright | 70 | M8 | 5,5 | 8 | 2,25 | 3 | 4 | | | 0.22 € | | | B0527.608X10 | stainless steel A4 | bright | 70 | M8 | 5,5 | 10 | 2,25 | 3 | 4 | | | 0.27 € | | | B0527.608X12 | stainless steel A4 | bright | 70 | M8 | 5,5 | 12 | 4,3 | 5 | 4 | | | 0.32 € | | | B0527.608X16 | stainless steel A4 | bright | 70 | M8 | 5,5 | 16 | 4,3 | 5 | 4 | | | 0.43 € | | | B0527.608X20 | stainless steel A4 | bright | 70 | M8 | 5,5 | 20 | 4,3 | 5 | 4 | | | 0.50 € | | | B0527.608X25 | stainless steel A4 | bright | 70 | M8 | 5,5 | 25 | 4,3 | 5 | 4 | | | 0.62 € | | | B0527.608X30 | stainless steel A4 | bright | 70 | M8 | 5,5 | 30 | 4,3 | 5 | 4 | | | 0.72 € | | | B0527.610X10 | stainless steel A4 | bright | 70 | M10 | 7 | 10 | 2,75 | 4 | 5 | | | 0.40 € | | | B0527.610X12 | stainless steel A4 | bright | 70 | M10 | 7 | 12 | 2,75 | 4 | 5 | | | 0.47 € | | | B0527.610X16 | stainless steel A4 | bright | 70 | M10 | 7 | 16 | 5,3 | 6 | 5 | | | 0.66 € | | | B0527.610X20 | stainless steel A4 | bright | 70 | M10 | 7 | 20 | 5,3 | 6 | 5 | | | 0.73 € | | | B0527.610X25 | stainless steel A4 | bright | 70 | M10 | 7 | 25 | 5,3 | 6 | 5 | | | 0.85 € | | | B0527.610X30 | stainless steel A4 | bright | 70 | M10 | 7 | 30 | 5,3 | 6 | 5 | | | 1.11 € | | | B0527.612X12 | stainless steel A4 | bright | 70 | M12 | 8,5 | 12 | 3,25 | 4,8 | 6 | | | 0.71 € | | | B0527.612X16 | stainless steel A4 | bright | 70 | M12 | 8,5 | 16 | 6,3 | 8 | 6 | | | 0.67 € | | | B0527.612X20 | stainless steel A4 | bright | 70 | M12 | 8,5 | 20 | 6,3 | 8 | 6 | | | 1.04 € | | | B0527.612X25 | stainless steel A4 | bright | 70 | M12 | 8,5 | 25 | 6,3 | 8 | 6 | | | 1.31 € | | | B0527.612X30 | stainless steel A4 | bright | 70 | M12 | 8,5 | 30 | 6,3 | 8 | 6 | | | 1.61 € | | | B0527.03X6 | steel | bright (black) | 45 H | M3 | 2 | 6 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.03X8 | steel | bright (black) | 45 H | M3 | 2 | 8 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.03X10 | steel | bright (black) | 45 H | M3 | 2 | 10 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.03X12 | steel | bright (black) | 45 H | M3 | 2 | 12 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.03X16 | steel | bright (black) | 45 H | M3 | 2 | 16 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.03X20 | steel | bright (black) | 45 H | M3 | 2 | 20 | 1,75 | 2 | 1,5 | | | 0.16 € | | | B0527.04X4 | steel | bright (black) | 45 H | M4 | 2,5 | 4 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.04X5 | steel | bright (black) | 45 H | M4 | 2,5 | 5 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.04X6 | steel | bright (black) | 45 H | M4 | 2,5 | 6 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.04X8 | steel | bright (black) | 45 H | M4 | 2,5 | 8 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.04X10 | steel | bright (black) | 45 H | M4 | 2,5 | 10 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.04X12 | steel | bright (black) | 45 H | M4 | 2,5 | 12 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.04X16 | steel | bright (black) | 45 H | M4 | 2,5 | 16 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.04X20 | steel | bright (black) | 45 H | M4 | 2,5 | 20 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.04X25 | steel | bright (black) | 45 H | M4 | 2,5 | 25 | 2,25 | 2,5 | 2 | | | 0.16 € | | | B0527.04X30 | steel | bright (black) | 45 H | M4 | 2,5 | 30 | 2,25 | 2,5 | 2 | | | 0.20 € | | | B0527.05X5 | steel | bright (black) | 45 H | M5 | 3,5 | 5 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.05X6 | steel | bright (black) | 45 H | M5 | 3,5 | 6 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.05X8 | steel | bright (black) | 45 H | M5 | 3,5 | 8 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.05X10 | steel | bright (black) | 45 H | M5 | 3,5 | 10 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.05X12 | steel | bright (black) | 45 H | M5 | 3,5 | 12 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.05X16 | steel | bright (black) | 45 H | M5 | 3,5 | 16 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.05X20 | steel | bright (black) | 45 H | M5 | 3,5 | 20 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.05X25 | steel | bright (black) | 45 H | M5 | 3,5 | 25 | 2,75 | 3 | 2,5 | | | 0.16 € | | | B0527.05X30 | steel | bright (black) | 45 H | M5 | 3,5 | 30 | 2,75 | 3 | 2,5 | | | 0.22 € | | | B0527.06X6 | steel | bright (black) | 45 H | M6 | 4 | 6 | 1,75 | 2 | 3 | | | 0.10 € | | | B0527.06X8 | steel | bright (black) | 45 H | M6 | 4 | 8 | 1,75 | 2 | 3 | | | 0.10 € | | | B0527.06X10 | steel | bright (black) | 45 H | M6 | 4 | 10 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.06X12 | steel | bright (black) | 45 H | M6 | 4 | 12 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.06X16 | steel | bright (black) | 45 H | M6 | 4 | 16 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.06X20 | steel | bright (black) | 45 H | M6 | 4 | 20 | 3,25 | 3,5 | 3 | | | 0.11 € | | | B0527.06X25 | steel | bright (black) | 45 H | M6 | 4 | 25 | 3,25 | 3,5 | 3 | | | 0.13 € | | | B0527.06X30 | steel | bright (black) | 45 H | M6 | 4 | 30 | 3,25 | 3,5 | 3 | | | 0.21 € | | | B0527.06X35 | steel | bright (black) | 45 H | M6 | 4 | 35 | 3,25 | 3,5 | 3 | | | 0.26 € | | | B0527.06X40 | steel | bright (black) | 45 H | M6 | 4 | 40 | 3,25 | 3,5 | 3 | | | 0.29 € | | | B0527.06X50 | steel | bright (black) | 45 H | M6 | 4 | 50 | 3,25 | 3,5 | 3 | | | 0.37 € | | | B0527.08X8 | steel | bright (black) | 45 H | M8 | 5,5 | 8 | 2,25 | 3 | 4 | | | 0.10 € | | | B0527.08X10 | steel | bright (black) | 45 H | M8 | 5,5 | 10 | 2,25 | 3 | 4 | | | 0.10 € | | | B0527.08X12 | steel | bright (black) | 45 H | M8 | 5,5 | 12 | 4,3 | 5 | 4 | | | 0.10 € | | | B0527.08X16 | steel | bright (black) | 45 H | M8 | 5,5 | 16 | 4,3 | 5 | 4 | | | 0.11 € | | | B0527.08X20 | steel | bright (black) | 45 H | M8 | 5,5 | 20 | 4,3 | 5 | 4 | | | 0.13 € | | | B0527.08X25 | steel | bright (black) | 45 H | M8 | 5,5 | 25 | 4,3 | 5 | 4 | | | 0.20 € | | | B0527.08X30 | steel | bright (black) | 45 H | M8 | 5,5 | 30 | 4,3 | 5 | 4 | | | 0.22 € | | | B0527.08X35 | steel | bright (black) | 45 H | M8 | 5,5 | 35 | 4,3 | 5 | 4 | | | 0.43 € | | | B0527.08X40 | steel | bright (black) | 45 H | M8 | 5,5 | 40 | 4,3 | 5 | 4 | | | 0.50 € | | | B0527.08X50 | steel | bright (black) | 45 H | M8 | 5,5 | 50 | 4,3 | 5 | 4 | | | 0.66 € | | | B0527.10X8 | steel | bright (black) | 45 H | M10 | 7 | 8 | 2,75 | 4 | 5 | | | 0.14 € | | | B0527.10X10 | steel | bright (black) | 45 H | M10 | 7 | 10 | 2,75 | 4 | 5 | | | 0.10 € | | | B0527.10X12 | steel | bright (black) | 45 H | M10 | 7 | 12 | 2,75 | 4 | 5 | | | 0.11 € | | | B0527.10X16 | steel | bright (black) | 45 H | M10 | 7 | 16 | 5,3 | 6 | 5 | | | 0.14 € | | | B0527.10X20 | steel | bright (black) | 45 H | M10 | 7 | 20 | 5,3 | 6 | 5 | | | 0.20 € | | | B0527.10X25 | steel | bright (black) | 45 H | M10 | 7 | 25 | 5,3 | 6 | 5 | | | 0.25 € | | | B0527.10X30 | steel | bright (black) | 45 H | M10 | 7 | 30 | 5,3 | 6 | 5 | | | 0.36 € | | | B0527.10X35 | steel | bright (black) | 45 H | M10 | 7 | 35 | 5,3 | 6 | 5 | | | 0.40 € | | | B0527.10X40 | steel | bright (black) | 45 H | M10 | 7 | 40 | 5,3 | 6 | 5 | | | 0.43 € | | | B0527.10X50 | steel | bright (black) | 45 H | M10 | 7 | 50 | 5,3 | 6 | 5 | | | 0.62 € | | | B0527.10X60 | steel | bright (black) | 45 H | M10 | 7 | 60 | 5,3 | 6 | 5 | | | 1.02 € | | | B0527.12X12 | steel | bright (black) | 45 H | M12 | 8,5 | 12 | 3,25 | 4,8 | 6 | | | 0.20 € | | | B0527.12X16 | steel | bright (black) | 45 H | M12 | 8,5 | 16 | 3,25 | 4,8 | 6 | | | 0.23 € | | | B0527.12X20 | steel | bright (black) | 45 H | M12 | 8,5 | 20 | 6,3 | 8 | 6 | | | 0.29 € | | | B0527.12X25 | steel | bright (black) | 45 H | M12 | 8,5 | 25 | 6,3 | 8 | 6 | | | 0.35 € | | | B0527.12X30 | steel | bright (black) | 45 H | M12 | 8,5 | 30 | 6,3 | 8 | 6 | | | 0.45 € | | | B0527.12X35 | steel | bright (black) | 45 H | M12 | 8,5 | 35 | 6,3 | 8 | 6 | | | 0.59 € | | | B0527.12X40 | steel | bright (black) | 45 H | M12 | 8,5 | 40 | 6,3 | 8 | 6 | | | 0.62 € | | | B0527.12X50 | steel | bright (black) | 45 H | M12 | 8,5 | 50 | 6,3 | 8 | 6 | | | 0.65 € | | | B0527.12X60 | steel | bright (black) | 45 H | M12 | 8,5 | 60 | 6,3 | 8 | 6 | | | 1.23 € | | | B0527.12X70 | steel | bright (black) | 45 H | M12 | 8,5 | 70 | 6,3 | 8 | 6 | | | 1.60 € | | | B0527.16X16 | steel | bright (black) | 45 H | M16 | 12 | 16 | 4,3 | 6,4 | 8 | | | 0.46 € | | | B0527.16X20 | steel | bright (black) | 45 H | M16 | 12 | 20 | 8,36 | 10 | 8 | | | 0.75 € | | | B0527.16X25 | steel | bright (black) | 45 H | M16 | 12 | 25 | 8,36 | 10 | 8 | | | 0.91 € | | | B0527.16X30 | steel | bright (black) | 45 H | M16 | 12 | 30 | 8,36 | 10 | 8 | | | 1.17 € | | | B0527.16X35 | steel | bright (black) | 45 H | M16 | 12 | 35 | 8,36 | 10 | 8 | | | 1.39 € | | | B0527.16X40 | steel | bright (black) | 45 H | M16 | 12 | 40 | 8,36 | 10 | 8 | | | 1.44 € | | | B0527.16X50 | steel | bright (black) | 45 H | M16 | 12 | 50 | 8,36 | 10 | 8 | | | 1.75 € | | | B0527.16X60 | steel | bright (black) | 45 H | M16 | 12 | 60 | 8,36 | 10 | 8 | | | 2.35 € | | | B0527.16X70 | steel | bright (black) | 45 H | M16 | 12 | 70 | 8,36 | 10 | 8 | | | 2.41 € | | | B0527.20X25 | steel | bright (black) | 45 H | M20 | 15 | 25 | 5,3 | 8 | 10 | | | 1.49 € | | | B0527.20X30 | steel | bright (black) | 45 H | M20 | 15 | 30 | 10,36 | 12 | 10 | | | 1.82 € | | | B0527.20X35 | steel | bright (black) | 45 H | M20 | 15 | 35 | 10,36 | 12 | 10 | | | 1.94 € | | | B0527.20X40 | steel | bright (black) | 45 H | M20 | 15 | 40 | 10,36 | 12 | 10 | | | 2.49 € | | | B0527.20X50 | steel | bright (black) | 45 H | M20 | 15 | 50 | 10,36 | 12 | 10 | | | 3.21 € | | | B0527.20X60 | steel | bright (black) | 45 H | M20 | 15 | 60 | 10,36 | 12 | 10 | | | 3.70 € | | | B0527.20X70 | steel | bright (black) | 45 H | M20 | 15 | 70 | 10,36 | 12 | 10 | | | 4.09 € | | | B0527.403X6 | steel | electro zinc-plated | 45 H | M3 | 2 | 6 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.403X8 | steel | electro zinc-plated | 45 H | M3 | 2 | 8 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.403X10 | steel | electro zinc-plated | 45 H | M3 | 2 | 10 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.403X12 | steel | electro zinc-plated | 45 H | M3 | 2 | 12 | 1,75 | 2 | 1,5 | | | 0.10 € | | | B0527.403X16 | steel | electro zinc-plated | 45 H | M3 | 2 | 16 | 1,75 | 2 | 1,5 | | | 0.12 € | | | B0527.403X20 | steel | electro zinc-plated | 45 H | M3 | 2 | 20 | 1,75 | 2 | 1,5 | | | 0.20 € | | | B0527.404X4 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 4 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.404X5 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 5 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.404X6 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 6 | 1,25 | 1,5 | 2 | | | 0.10 € | | | B0527.404X8 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 8 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.404X10 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 10 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.404X12 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 12 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.404X16 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 16 | 2,25 | 2,5 | 2 | | | 0.10 € | | | B0527.404X20 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 20 | 2,25 | 2,5 | 2 | | | 0.16 € | | | B0527.404X25 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 25 | 2,25 | 2,5 | 2 | | | 0.18 € | | | B0527.404X30 | steel | electro zinc-plated | 45 H | M4 | 2,5 | 30 | 2,25 | 2,5 | 2 | | | 0.25 € | | | B0527.405X5 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 5 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.405X6 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 6 | 1,5 | 2 | 2,5 | | | 0.10 € | | | B0527.405X8 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 8 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.405X10 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 10 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.405X12 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 12 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.405X16 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 16 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.405X20 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 20 | 2,75 | 3 | 2,5 | | | 0.10 € | | | B0527.405X25 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 25 | 2,75 | 3 | 2,5 | | | 0.18 € | | | B0527.405X30 | steel | electro zinc-plated | 45 H | M5 | 3,5 | 30 | 2,75 | 3 | 2,5 | | | 0.24 € | | | B0527.406X6 | steel | electro zinc-plated | 45 H | M6 | 4 | 6 | 1,75 | 2 | 3 | | | 0.10 € | | | B0527.406X8 | steel | electro zinc-plated | 45 H | M6 | 4 | 8 | 1,75 | 2 | 3 | | | 0.10 € | | | B0527.406X10 | steel | electro zinc-plated | 45 H | M6 | 4 | 10 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.406X12 | steel | electro zinc-plated | 45 H | M6 | 4 | 12 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.406X16 | steel | electro zinc-plated | 45 H | M6 | 4 | 16 | 3,25 | 3,5 | 3 | | | 0.10 € | | | B0527.406X20 | steel | electro zinc-plated | 45 H | M6 | 4 | 20 | 3,25 | 3,5 | 3 | | | 0.12 € | | | B0527.406X25 | steel | electro zinc-plated | 45 H | M6 | 4 | 25 | 3,25 | 3,5 | 3 | | | 0.14 € | | | B0527.406X30 | steel | electro zinc-plated | 45 H | M6 | 4 | 30 | 3,25 | 3,5 | 3 | | | 0.21 € | | | B0527.406X35 | steel | electro zinc-plated | 45 H | M6 | 4 | 35 | 3,25 | 3,5 | 3 | | | 0.29 € | | | B0527.406X40 | steel | electro zinc-plated | 45 H | M6 | 4 | 40 | 3,25 | 3,5 | 3 | | | 0.31 € | | | B0527.406X50 | steel | electro zinc-plated | 45 H | M6 | 4 | 50 | 3,25 | 3,5 | 3 | | | 0.41 € | | | B0527.408X8 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 8 | 2,25 | 3 | 4 | | | 0.10 € | | | B0527.408X10 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 10 | 2,25 | 3 | 4 | | | 0.10 € | | | B0527.408X12 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 12 | 4,3 | 5 | 4 | | | 0.10 € | | | B0527.408X16 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 16 | 4,3 | 5 | 4 | | | 0.13 € | | | B0527.408X20 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 20 | 4,3 | 5 | 4 | | | 0.21 € | | | B0527.408X25 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 25 | 4,3 | 5 | 4 | | | 0.27 € | | | B0527.408X30 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 30 | 4,3 | 5 | 4 | | | 0.36 € | | | B0527.408X35 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 35 | 4,3 | 5 | 4 | | | 0.39 € | | | B0527.408X40 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 40 | 4,3 | 5 | 4 | | | 0.50 € | | | B0527.408X50 | steel | electro zinc-plated | 45 H | M8 | 5,5 | 50 | 4,3 | 5 | 4 | | | 0.57 € | | | B0527.410X8 | steel | electro zinc-plated | 45 H | M10 | 7 | 8 | 2,75 | 4 | 5 | | | 0.16 € | | | B0527.410X12 | steel | electro zinc-plated | 45 H | M10 | 7 | 12 | 2,75 | 4 | 5 | | | 0.16 € | | | B0527.410X16 | steel | electro zinc-plated | 45 H | M10 | 7 | 16 | 5,3 | 6 | 5 | | | 0.25 € | | | B0527.410X20 | steel | electro zinc-plated | 45 H | M10 | 7 | 20 | 5,3 | 6 | 5 | | | 0.27 € | | | B0527.410X25 | steel | electro zinc-plated | 45 H | M10 | 7 | 25 | 5,3 | 6 | 5 | | | 0.42 € | | | B0527.410X30 | steel | electro zinc-plated | 45 H | M10 | 7 | 30 | 5,3 | 6 | 5 | | | 0.47 € | | | B0527.410X35 | steel | electro zinc-plated | 45 H | M10 | 7 | 35 | 5,3 | 6 | 5 | | | 0.61 € | | | B0527.410X40 | steel | electro zinc-plated | 45 H | M10 | 7 | 40 | 5,3 | 6 | 5 | | | 0.62 € | | | B0527.410X50 | steel | electro zinc-plated | 45 H | M10 | 7 | 50 | 5,3 | 6 | 5 | | | 0.96 € | | | B0527.410X60 | steel | electro zinc-plated | 45 H | M10 | 7 | 60 | 5,3 | 6 | 5 | | | 1.26 € | | | B0527.412X12 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 12 | 3,25 | 4,8 | 6 | | | 0.36 € | | | B0527.412X16 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 16 | 3,25 | 4,8 | 6 | | | 0.36 € | | | B0527.412X20 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 20 | 6,3 | 8 | 6 | | | 0.39 € | | | B0527.412X25 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 25 | 6,3 | 8 | 6 | | | 0.62 € | | | B0527.412X30 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 30 | 6,3 | 8 | 6 | | | 0.73 € | | | B0527.412X35 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 35 | 6,3 | 8 | 6 | | | 0.79 € | | | B0527.412X40 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 40 | 6,3 | 8 | 6 | | | 0.90 € | | | B0527.412X50 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 50 | 6,3 | 8 | 6 | | | 1.26 € | | | B0527.412X60 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 60 | 6,3 | 8 | 6 | | | 1.53 € | | | B0527.412X70 | steel | electro zinc-plated | 45 H | M12 | 8,5 | 70 | 6,3 | 8 | 6 | | | 2.27 € | | | B0527.416X16 | steel | electro zinc-plated | 45 H | M16 | 12 | 16 | 4,3 | 6,4 | 8 | | | 0.58 € | | | B0527.416X20 | steel | electro zinc-plated | 45 H | M16 | 12 | 20 | 4,3 | 6,4 | 8 | | | 1.06 € | | | B0527.416X25 | steel | electro zinc-plated | 45 H | M16 | 12 | 25 | 8,36 | 10 | 8 | | | 1.32 € | | | B0527.416X30 | steel | electro zinc-plated | 45 H | M16 | 12 | 30 | 8,36 | 10 | 8 | | | 1.49 € | | | B0527.416X35 | steel | electro zinc-plated | 45 H | M16 | 12 | 35 | 8,36 | 10 | 8 | | | 1.67 € | | | B0527.416X40 | steel | electro zinc-plated | 45 H | M16 | 12 | 40 | 8,36 | 10 | 8 | | | 1.91 € | | | B0527.416X50 | steel | electro zinc-plated | 45 H | M16 | 12 | 50 | 8,36 | 10 | 8 | | | 2.08 € | | | B0527.416X60 | steel | electro zinc-plated | 45 H | M16 | 12 | 60 | 8,36 | 10 | 8 | | | 2.96 € | | | B0527.416X70 | steel | electro zinc-plated | 45 H | M16 | 12 | 70 | 8,36 | 10 | 8 | | | 2.89 € | | | B0527.420X25 | steel | electro zinc-plated | 45 H | M20 | 15 | 25 | 5,3 | 8 | 10 | | | 1.84 € | | | B0527.420X35 | steel | electro zinc-plated | 45 H | M20 | 15 | 35 | 10,36 | 12 | 10 | | | 1.94 € | | | B0527.420X40 | steel | electro zinc-plated | 45 H | M20 | 15 | 40 | 10,36 | 12 | 10 | | | 2.60 € | | | B0527.420X50 | steel | electro zinc-plated | 45 H | M20 | 15 | 50 | 10,36 | 12 | 10 | | | 3.39 € | | | B0527.420X60 | steel | electro zinc-plated | 45 H | M20 | 15 | 60 | 10,36 | 12 | 10 | | | 4.13 € | | | B0527.420X70 | steel | electro zinc-plated | 45 H | M20 | 15 | 70 | 10,36 | 12 | 10 | | | 5.02 € | |
