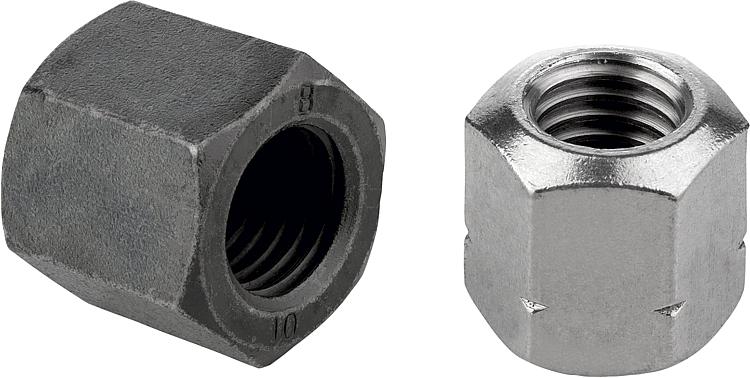

B0106Hexagon nuts height 1.5xD, DIN 6330 enhanced |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel or stainless steel A2.Version:Steel grade 10, bright (blackened).

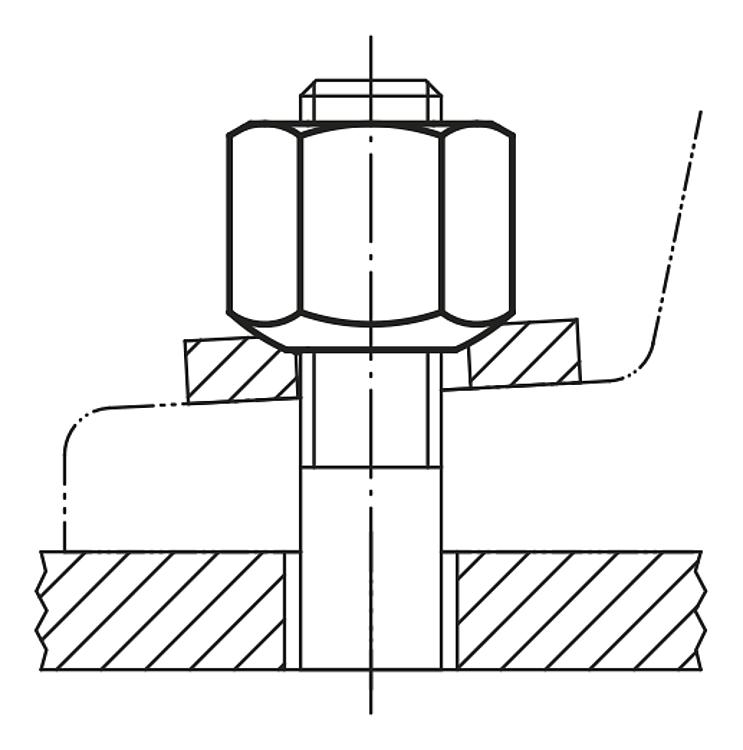

Stainless steel A2-70, brightNote:These hexagon nuts can be used with the conical seats B0197 Form D and G.
B0106.808 = A4 stainless steelSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Main
material | Surface finish

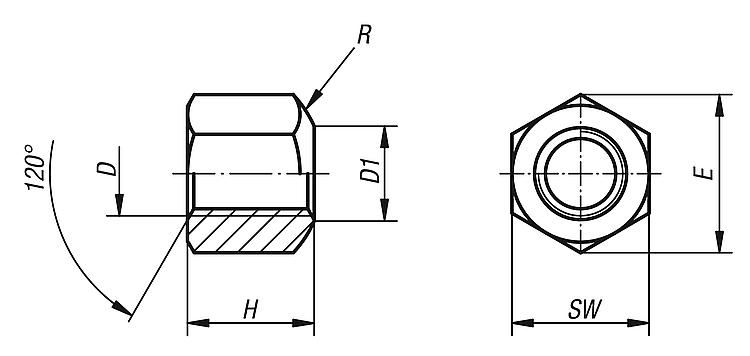

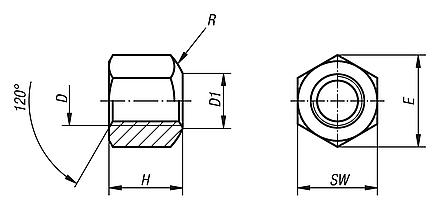

body | D | H = 1,5 x D | D1 | SW | E | R | CAD | Acc. | Price | Order |
|---|
| B0106.05 | steel | bright (black) | M5 | 7,5 | 6,5 | 9 | 10,4 | 7 |  | | 3.00 € | | | B0106.06 | steel | bright (black) | M6 | 9 | 7 | 10 | 11,5 | 9 | | | 0.40 € | | | B0106.08 | steel | bright (black) | M8 | 12 | 9 | 13 | 15 | 11 | | | 0.45 € | | | B0106.10 | steel | bright (black) | M10 | 15 | 11,5 | 16 | 18,4 | 15 | | | 0.52 € | | | B0106.101 | steel | bright (black) | M10 | 15 | 11,5 | 17 | 19,6 | 15 | | | 0.88 € | | | B0106.12 | steel | bright (black) | M12 | 18 | 14 | 18 | 20,7 | 17 | | | 0.65 € | | | B0106.121 | steel | bright (black) | M12 | 18 | 14 | 19 | 21,9 | 17 | | | 0.88 € | | | B0106.14 | steel | bright (black) | M14 | 21 | 16 | 22 | 25,4 | 20 | | | 2.54 € | | | B0106.16 | steel | bright (black) | M16 | 24 | 18 | 24 | 27,7 | 22 | | | 1.19 € | | | B0106.18 | steel | bright (black) | M18 | 27 | 20 | 27 | 31,2 | 24,5 | | | 1.97 € | | | B0106.20 | steel | bright (black) | M20 | 30 | 22 | 30 | 34,6 | 27 | | | 2.26 € | | | B0106.22 | steel | bright (black) | M22 | 33 | 24 | 32 | 36,9 | 29 | | | 3.52 € | | | B0106.24 | steel | bright (black) | M24 | 36 | 26 | 36 | 41,6 | 32 | | | 3.52 € | | | B0106.30 | steel | bright (black) | M30 | 45 | 32 | 46 | 53,1 | 41 | | | 8.27 € | | | B0106.36 | steel | bright (black) | M36 | 54 | 38 | 55 | 63,5 | 50 | | | 14.23 € | | | B0106.806 | stainless steel A2 | bright | M6 | 9 | 7 | 10 | 11,5 | 9 | | | 3.54 € | | | B0106.808 | stainless steel A4 | bright | M8 | 12 | 9 | 13 | 15 | 11 | | | 1.93 € | | | B0106.810 | stainless steel A2 | bright | M10 | 15 | 11,5 | 16 | 18,4 | 15 | | | 2.41 € | | | B0106.811 | stainless steel A2 | bright | M10 | 15 | 11,5 | 17 | 19,6 | 15 | | | 4.86 € | | | B0106.812 | stainless steel A2 | bright | M12 | 18 | 14 | 18 | 20,7 | 17 | | | 3.32 € | | | B0106.816 | stainless steel A2 | bright | M16 | 24 | 18 | 24 | 27,7 | 22 | | | 6.04 € | | | B0106.820 | stainless steel A2 | bright | M20 | 30 | 22 | 30 | 34,6 | 27 | | | 10.11 € | |
