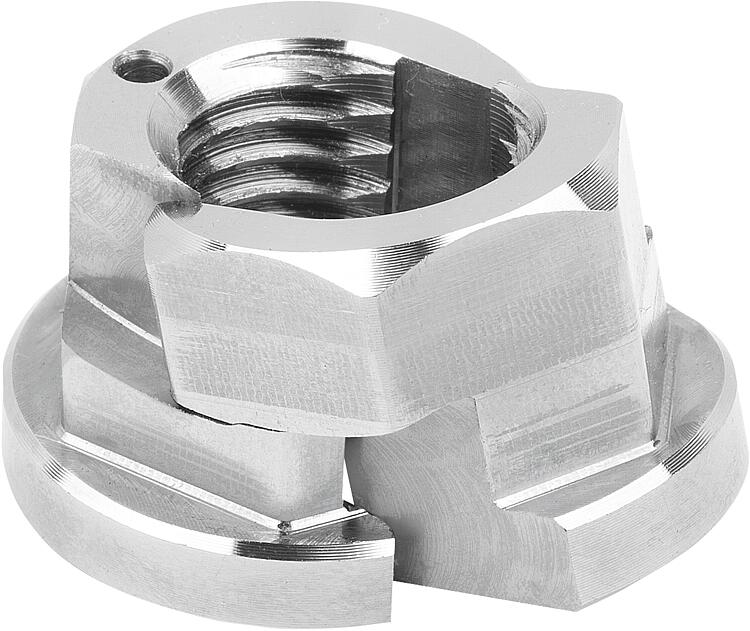

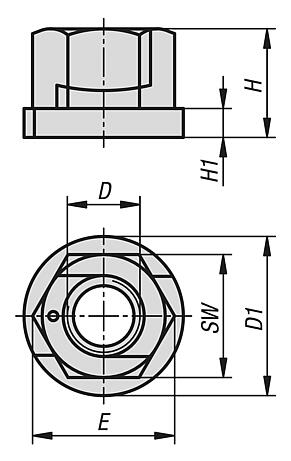

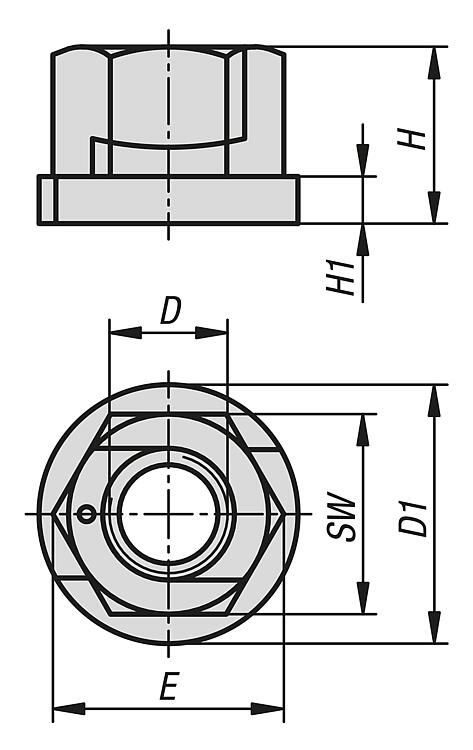

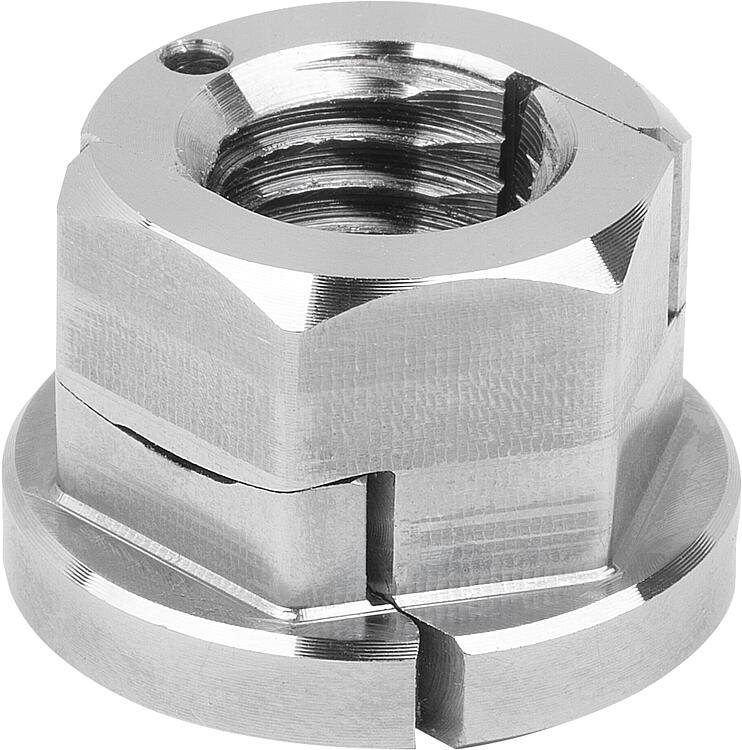

B0619Hexagon nuts, QT steel, two-part with collar |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Two-part hex nuts enable particularly rapid and easy installation - even with long threaded rods, hard-to-reach places or damaged threads. They can be fitted from the side and tightened without the need to remove other components. Ideal for maintenance in corrosive environments or applications with limited processing options. The two halves are secured by a lock, but can be separated using the assembly tool. The strengths are in accordance with industry standards.Material:Carbon steel.Version:Bright.Advantages:- Saves time by repetitive assembly, pre-assembly and set-ups.
- Installation possible despite inaccessibility.On request:Other sizes and materials.Accessory:B0620 assembly tool.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
