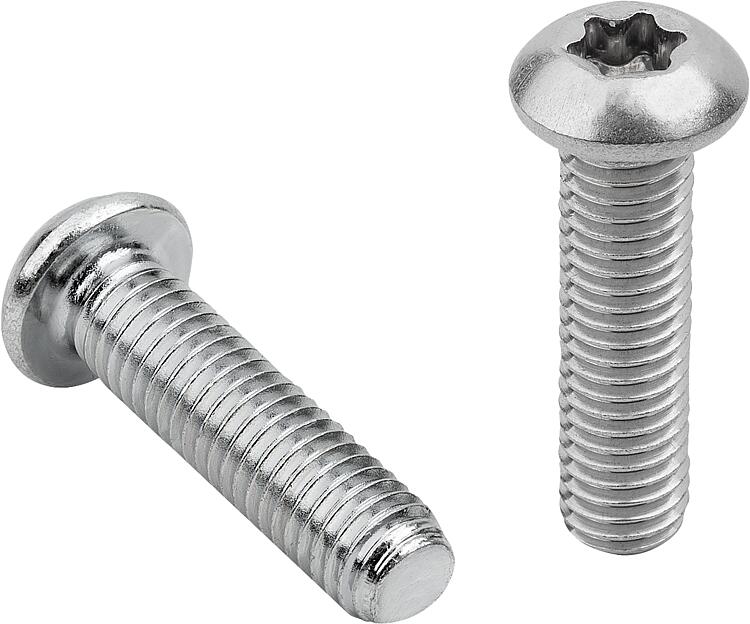

B0667_AScrews with flattened pan head and hexalobular socket similar to... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 10.9, electro zinc-plated.
Stainless steel A2-70, brightNote:DIN 34805-1 - Form A: Screws with flattened pan head and hexalobular socket.
DIN 34805-2 - Form B: Screws with flattened pan head, collar and hexalobular socket.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Main
material | D
| DK | Grade | K | L | Lg
max. | Ls
min. | TX=Internal drive | CAD | Acc. | Price | Order |
|---|
| B0667.1504X08 | A | steel | M4 | 7,6 | 10.9 | 2,45 | 8 | 2,1 | 0 | 20 | | | 0.24 € | | | B0667.1504X10 | A | steel | M4 | 7,6 | 10.9 | 2,45 | 10 | 2,1 | 0 | 20 | | | 0.21 € | | | B0667.1504X12 | A | steel | M4 | 7,6 | 10.9 | 2,45 | 12 | 2,1 | 0 | 20 | | | 0.22 € | | | B0667.1504X16 | A | steel | M4 | 7,6 | 10.9 | 2,45 | 16 | 2,1 | 0 | 20 | | | 0.24 € | | | B0667.1504X20 | A | steel | M4 | 7,6 | 10.9 | 2,45 | 20 | 2,1 | 0 | 20 | | | 0.25 € | | | B0667.1505X10 | A | steel | M5 | 9,5 | 10.9 | 3 | 10 | 2,4 | 0 | 25 | | | 0.24 € | | | B0667.1505X12 | A | steel | M5 | 9,5 | 10.9 | 3 | 12 | 2,4 | 0 | 25 | | | 0.24 € | | | B0667.1505X16 | A | steel | M5 | 9,5 | 10.9 | 3 | 16 | 2,4 | 0 | 25 | | | 0.27 € | | | B0667.1505X20 | A | steel | M5 | 9,5 | 10.9 | 3 | 20 | 2,4 | 0 | 25 | | | 0.28 € | | | B0667.1505X25 | A | steel | M5 | 9,5 | 10.9 | 3 | 25 | 2,4 | 0 | 25 | | | 0.31 € | | | B0667.1506X16 | A | steel | M6 | 10,5 | 10.9 | 3,3 | 16 | 3 | 0 | 30 | | | 0.30 € | | | B0667.1506X20 | A | steel | M6 | 10,5 | 10.9 | 3,3 | 20 | 3 | 0 | 30 | | | 0.30 € | | | B0667.1506X25 | A | steel | M6 | 10,5 | 10.9 | 3,3 | 25 | 3 | 0 | 30 | | | 0.36 € | | | B0667.1508X12 | A | steel | M8 | 14 | 10.9 | 4,5 | 12 | 3,75 | 0 | 40 | | | 0.42 € | | | B0667.1508X16 | A | steel | M8 | 14 | 10.9 | 4,5 | 16 | 3,75 | 0 | 40 | | | 0.43 € | | | B0667.1508X20 | A | steel | M8 | 14 | 10.9 | 4,5 | 20 | 3,75 | 0 | 40 | | | 0.45 € | | | B0667.1508X25 | A | steel | M8 | 14 | 10.9 | 4,5 | 25 | 3,75 | 0 | 40 | | | 0.46 € | | | B0667.1508X30 | A | steel | M8 | 14 | 10.9 | 4,5 | 30 | 3,75 | 0 | 40 | | | 0.46 € | | | B0667.1104X08 | A | stainless steel A2 | M4 | 7,6 | 70 | 2,45 | 8 | 2,1 | 0 | 20 | | | 0.28 € | | | B0667.1104X10 | A | stainless steel A2 | M4 | 7,6 | 70 | 2,45 | 10 | 2,1 | 0 | 20 | | | 0.30 € | | | B0667.1104X12 | A | stainless steel A2 | M4 | 7,6 | 70 | 2,45 | 12 | 2,1 | 0 | 20 | | | 0.31 € | | | B0667.1104X16 | A | stainless steel A2 | M4 | 7,6 | 70 | 2,45 | 16 | 2,1 | 0 | 20 | | | 0.34 € | | | B0667.1104X20 | A | stainless steel A2 | M4 | 7,6 | 70 | 2,45 | 20 | 2,1 | 0 | 20 | | | 0.39 € | | | B0667.1105X08 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 8 | 2,4 | 0 | 25 | | | 0.31 € | | | B0667.1105X10 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 10 | 2,4 | 0 | 25 | | | 0.27 € | | | B0667.1105X12 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 12 | 2,4 | 0 | 25 | | | 0.31 € | | | B0667.1105X16 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 16 | 2,4 | 0 | 25 | | | 0.42 € | | | B0667.1105X20 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 20 | 2,4 | 0 | 25 | | | 0.53 € | | | B0667.1105X25 | A | stainless steel A2 | M5 | 9,5 | 70 | 3 | 25 | 2,4 | 0 | 25 | | | 0.46 € | | | B0667.1106X08 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 8 | 3 | 0 | 30 | | | 0.49 € | | | B0667.1106X10 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 10 | 3 | 0 | 30 | | | 0.43 € | | | B0667.1106X12 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 12 | 3 | 0 | 30 | | | 0.46 € | | | B0667.1106X16 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 16 | 3 | 0 | 30 | | | 0.58 € | | | B0667.1106X20 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 20 | 3 | 0 | 30 | | | 0.53 € | | | B0667.1106X25 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 25 | 3 | 0 | 30 | | | 0.58 € | | | B0667.1106X30 | A | stainless steel A2 | M6 | 10,5 | 70 | 3,3 | 30 | 3 | 0 | 30 | | | 0.67 € | | | B0667.1108X12 | A | stainless steel A2 | M8 | 14 | 70 | 4,5 | 12 | 3,75 | 0 | 40 | | | 0.68 € | | | B0667.1108X16 | A | stainless steel A2 | M8 | 14 | 70 | 4,5 | 16 | 3,75 | 0 | 40 | | | 0.71 € | | | B0667.1108X20 | A | stainless steel A2 | M8 | 14 | 70 | 4,5 | 20 | 3,75 | 0 | 40 | | | 1.02 € | | | B0667.1108X25 | A | stainless steel A2 | M8 | 14 | 70 | 4,5 | 25 | 3,75 | 0 | 40 | | | 1.85 € | | | B0667.1108X30 | A | stainless steel A2 | M8 | 14 | 70 | 4,5 | 30 | 3,75 | 0 | 40 | | | 0.98 € | |
