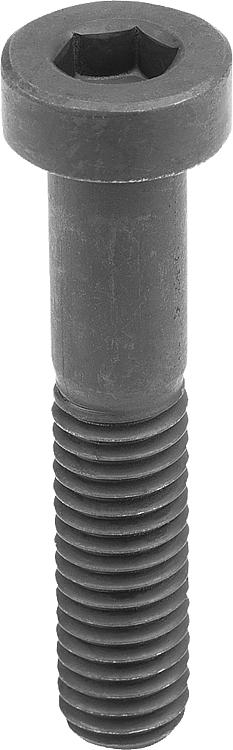

B0127Socket head screws with low head DIN 6912, steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Steel grade 8.8, bright (black) or electro zinc-plated.
Steel grade 10.9, bright (black) or electro zinc-plated. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Grade | Surface finish
body | D | L | DK | K | Ls
min. | Lg
max. | D1 | SW | T | CAD | Acc. | Price | Order |
|---|
| B0127.04X10 | steel | 8.8 | bright (black) | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 |  | | 0.37 € | | | B0127.04X12 | steel | 8.8 | bright (black) | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.37 € | | | B0127.04X16 | steel | 8.8 | bright (black) | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.37 € | | | B0127.04X20 | steel | 8.8 | bright (black) | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.41 € | | | B0127.04X25 | steel | 8.8 | bright (black) | M4 | 25 | 7 | 2,8 | 7,5 | 11 | 2 | 3 | 1,48 | | | 0.46 € | | | B0127.05X10 | steel | 8.8 | bright (black) | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.05X12 | steel | 8.8 | bright (black) | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.05X16 | steel | 8.8 | bright (black) | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.05X20 | steel | 8.8 | bright (black) | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.41 € | | | B0127.05X25 | steel | 8.8 | bright (black) | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.46 € | | | B0127.05X30 | steel | 8.8 | bright (black) | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 0.52 € | | | B0127.06X10 | steel | 8.8 | bright (black) | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.06X12 | steel | 8.8 | bright (black) | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.06X16 | steel | 8.8 | bright (black) | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.49 € | | | B0127.06X20 | steel | 8.8 | bright (black) | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.52 € | | | B0127.06X25 | steel | 8.8 | bright (black) | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.52 € | | | B0127.06X30 | steel | 8.8 | bright (black) | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.52 € | | | B0127.06X35 | steel | 8.8 | bright (black) | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.54 € | | | B0127.06X40 | steel | 8.8 | bright (black) | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.62 € | | | B0127.06X45 | steel | 8.8 | bright (black) | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 0.64 € | | | B0127.06X50 | steel | 8.8 | bright (black) | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 0.67 € | | | B0127.06X60 | steel | 8.8 | bright (black) | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 0.81 € | | | B0127.08X10 | steel | 8.8 | bright (black) | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 0.63 € | | | B0127.08X12 | steel | 8.8 | bright (black) | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.63 € | | | B0127.08X16 | steel | 8.8 | bright (black) | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.63 € | | | B0127.08X20 | steel | 8.8 | bright (black) | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.63 € | | | B0127.08X25 | steel | 8.8 | bright (black) | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.67 € | | | B0127.08X30 | steel | 8.8 | bright (black) | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.72 € | | | B0127.08X35 | steel | 8.8 | bright (black) | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 0.75 € | | | B0127.08X40 | steel | 8.8 | bright (black) | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 0.77 € | | | B0127.08X45 | steel | 8.8 | bright (black) | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 0.85 € | | | B0127.08X50 | steel | 8.8 | bright (black) | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 0.85 € | | | B0127.08X60 | steel | 8.8 | bright (black) | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 0.93 € | | | B0127.08X70 | steel | 8.8 | bright (black) | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 0.93 € | | | B0127.08X80 | steel | 8.8 | bright (black) | M8 | 80 | 13 | 5 | 51,75 | 58 | 4 | 6 | 2,88 | | | 1.34 € | | | B0127.10X20 | steel | 8.8 | bright (black) | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.10X25 | steel | 8.8 | bright (black) | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.10X30 | steel | 8.8 | bright (black) | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.85 € | | | B0127.10X35 | steel | 8.8 | bright (black) | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.93 € | | | B0127.10X40 | steel | 8.8 | bright (black) | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 0.93 € | | | B0127.10X45 | steel | 8.8 | bright (black) | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 0.93 € | | | B0127.10X50 | steel | 8.8 | bright (black) | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 0.93 € | | | B0127.10X60 | steel | 8.8 | bright (black) | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.09 € | | | B0127.10X70 | steel | 8.8 | bright (black) | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 1.36 € | | | B0127.10X80 | steel | 8.8 | bright (black) | M10 | 80 | 16 | 6,5 | 46,5 | 54 | 5 | 8 | 3,35 | | | 1.53 € | | | B0127.10X90 | steel | 8.8 | bright (black) | M10 | 90 | 16 | 6,5 | 56,5 | 64 | 5 | 8 | 3,35 | | | 1.70 € | | | B0127.10X100 | steel | 8.8 | bright (black) | M10 | 100 | 16 | 6,5 | 66,5 | 65 | 5 | 8 | 3,35 | | | 2.41 € | | | B0127.12X20 | steel | 8.8 | bright (black) | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.02 € | | | B0127.12X25 | steel | 8.8 | bright (black) | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.02 € | | | B0127.12X30 | steel | 8.8 | bright (black) | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.02 € | | | B0127.12X35 | steel | 8.8 | bright (black) | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.09 € | | | B0127.12X40 | steel | 8.8 | bright (black) | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.19 € | | | B0127.12X45 | steel | 8.8 | bright (black) | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.34 € | | | B0127.12X50 | steel | 8.8 | bright (black) | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.36 € | | | B0127.12X60 | steel | 8.8 | bright (black) | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 1.63 € | | | B0127.12X70 | steel | 8.8 | bright (black) | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 1.87 € | | | B0127.12X80 | steel | 8.8 | bright (black) | M12 | 80 | 18 | 7,5 | 41,5 | 50 | 6 | 10 | 3,85 | | | 2.13 € | | | B0127.12X90 | steel | 8.8 | bright (black) | M12 | 90 | 18 | 7,5 | 51,5 | 60 | 6 | 10 | 3,85 | | | 2.36 € | | | B0127.12X100 | steel | 8.8 | bright (black) | M12 | 100 | 18 | 7,5 | 61,5 | 70 | 6 | 10 | 3,85 | | | 2.62 € | | | B0127.12X110 | steel | 8.8 | bright (black) | M12 | 110 | 18 | 7,5 | 71,5 | 80 | 6 | 10 | 3,85 | | | 3.43 € | | | B0127.12X120 | steel | 8.8 | bright (black) | M12 | 120 | 18 | 7,5 | 81,5 | 90 | 6 | 10 | 3,85 | | | 3.89 € | | | B0127.16X30 | steel | 8.8 | bright (black) | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.26 € | | | B0127.16X35 | steel | 8.8 | bright (black) | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.33 € | | | B0127.16X40 | steel | 8.8 | bright (black) | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.46 € | | | B0127.16X45 | steel | 8.8 | bright (black) | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.54 € | | | B0127.16X50 | steel | 8.8 | bright (black) | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.69 € | | | B0127.16X60 | steel | 8.8 | bright (black) | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 3.21 € | | | B0127.16X70 | steel | 8.8 | bright (black) | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 3.50 € | | | B0127.16X80 | steel | 8.8 | bright (black) | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 4.12 € | | | B0127.16X90 | steel | 8.8 | bright (black) | M16 | 90 | 24 | 10 | 42 | 52 | 8 | 14 | 5,35 | | | 4.39 € | | | B0127.16X100 | steel | 8.8 | bright (black) | M16 | 100 | 24 | 10 | 52 | 62 | 8 | 14 | 5,35 | | | 4.55 € | | | B0127.16X110 | steel | 8.8 | bright (black) | M16 | 110 | 24 | 10 | 62 | 72 | 8 | 14 | 5,35 | | | 5.42 € | | | B0127.16X120 | steel | 8.8 | bright (black) | M16 | 120 | 24 | 10 | 72 | 82 | 8 | 14 | 5,35 | | | 5.90 € | | | B0127.20X40 | steel | 8.8 | bright (black) | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.95 € | | | B0127.20X45 | steel | 8.8 | bright (black) | M20 | 45 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.05 € | | | B0127.20X50 | steel | 8.8 | bright (black) | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.23 € | | | B0127.20X60 | steel | 8.8 | bright (black) | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.43 € | | | B0127.20X70 | steel | 8.8 | bright (black) | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 8.96 € | | | B0127.20X80 | steel | 8.8 | bright (black) | M20 | 80 | 30 | 12 | 21,5 | 34 | 10 | 17 | 6,32 | | | 9.57 € | | | B0127.20X90 | steel | 8.8 | bright (black) | M20 | 90 | 30 | 12 | 31,5 | 44 | 10 | 17 | 6,32 | | | 10.22 € | | | B0127.20X100 | steel | 8.8 | bright (black) | M20 | 100 | 30 | 12 | 41,5 | 54 | 10 | 17 | 6,32 | | | 10.92 € | | | B0127.20X110 | steel | 8.8 | bright (black) | M20 | 110 | 30 | 12 | 51,5 | 64 | 10 | 17 | 6,32 | | | 11.71 € | | | B0127.20X120 | steel | 8.8 | bright (black) | M20 | 120 | 30 | 12 | 61,5 | 74 | 10 | 17 | 6,32 | | | 13.08 € | | | B0127.404X10 | steel | 8.8 | electro zinc-plated | M4 | 10 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.39 € | | | B0127.404X12 | steel | 8.8 | electro zinc-plated | M4 | 12 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.39 € | | | B0127.404X16 | steel | 8.8 | electro zinc-plated | M4 | 16 | 7 | 2,8 | 1,4 | 3,5 | 2 | 3 | 1,48 | | | 0.39 € | | | B0127.404X20 | steel | 8.8 | electro zinc-plated | M4 | 20 | 7 | 2,8 | 2,5 | 6 | 2 | 3 | 1,48 | | | 0.42 € | | | B0127.404X25 | steel | 8.8 | electro zinc-plated | M4 | 25 | 7 | 2,8 | 7,5 | 11 | 2 | 3 | 1,48 | | | 0.49 € | | | B0127.405X10 | steel | 8.8 | electro zinc-plated | M5 | 10 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.42 € | | | B0127.405X12 | steel | 8.8 | electro zinc-plated | M5 | 12 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.42 € | | | B0127.405X16 | steel | 8.8 | electro zinc-plated | M5 | 16 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.42 € | | | B0127.405X20 | steel | 8.8 | electro zinc-plated | M5 | 20 | 8,5 | 3,5 | 1,8 | 4,2 | 2,5 | 4 | 1,88 | | | 0.42 € | | | B0127.405X25 | steel | 8.8 | electro zinc-plated | M5 | 25 | 8,5 | 3,5 | 5 | 9 | 2,5 | 4 | 1,88 | | | 0.49 € | | | B0127.405X30 | steel | 8.8 | electro zinc-plated | M5 | 30 | 8,5 | 3,5 | 10 | 14 | 2,5 | 4 | 1,88 | | | 0.54 € | | | B0127.406X10 | steel | 8.8 | electro zinc-plated | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.406X12 | steel | 8.8 | electro zinc-plated | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.406X16 | steel | 8.8 | electro zinc-plated | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.50 € | | | B0127.406X20 | steel | 8.8 | electro zinc-plated | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.54 € | | | B0127.406X25 | steel | 8.8 | electro zinc-plated | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.54 € | | | B0127.406X30 | steel | 8.8 | electro zinc-plated | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.54 € | | | B0127.406X35 | steel | 8.8 | electro zinc-plated | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.56 € | | | B0127.406X40 | steel | 8.8 | electro zinc-plated | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.63 € | | | B0127.406X45 | steel | 8.8 | electro zinc-plated | M6 | 45 | 10 | 4 | 22 | 27 | 3 | 5 | 2,38 | | | 0.66 € | | | B0127.406X50 | steel | 8.8 | electro zinc-plated | M6 | 50 | 10 | 4 | 27 | 32 | 3 | 5 | 2,38 | | | 0.69 € | | | B0127.406X60 | steel | 8.8 | electro zinc-plated | M6 | 60 | 10 | 4 | 37 | 42 | 3 | 5 | 2,38 | | | 0.82 € | | | B0127.408X10 | steel | 8.8 | electro zinc-plated | M8 | 10 | 13 | 5 | 0 | 6,25 | 4 | 6 | 2,88 | | | 0.64 € | | | B0127.408X12 | steel | 8.8 | electro zinc-plated | M8 | 12 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.64 € | | | B0127.408X16 | steel | 8.8 | electro zinc-plated | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.64 € | | | B0127.408X20 | steel | 8.8 | electro zinc-plated | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.64 € | | | B0127.408X25 | steel | 8.8 | electro zinc-plated | M8 | 25 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.69 € | | | B0127.408X30 | steel | 8.8 | electro zinc-plated | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.73 € | | | B0127.408X35 | steel | 8.8 | electro zinc-plated | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 0.76 € | | | B0127.408X40 | steel | 8.8 | electro zinc-plated | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 0.78 € | | | B0127.408X45 | steel | 8.8 | electro zinc-plated | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 0.87 € | | | B0127.408X50 | steel | 8.8 | electro zinc-plated | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 0.87 € | | | B0127.408X60 | steel | 8.8 | electro zinc-plated | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 0.94 € | | | B0127.408X70 | steel | 8.8 | electro zinc-plated | M8 | 70 | 13 | 5 | 41,75 | 48 | 4 | 6 | 2,88 | | | 0.95 € | | | B0127.408X80 | steel | 8.8 | electro zinc-plated | M8 | 80 | 13 | 5 | 51,75 | 58 | 4 | 6 | 2,88 | | | 1.36 € | | | B0127.410X20 | steel | 8.8 | electro zinc-plated | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.88 € | | | B0127.410X25 | steel | 8.8 | electro zinc-plated | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.88 € | | | B0127.410X30 | steel | 8.8 | electro zinc-plated | M10 | 30 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.88 € | | | B0127.410X35 | steel | 8.8 | electro zinc-plated | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 0.95 € | | | B0127.410X40 | steel | 8.8 | electro zinc-plated | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 0.95 € | | | B0127.410X45 | steel | 8.8 | electro zinc-plated | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 0.95 € | | | B0127.410X50 | steel | 8.8 | electro zinc-plated | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 0.95 € | | | B0127.410X60 | steel | 8.8 | electro zinc-plated | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.11 € | | | B0127.410X70 | steel | 8.8 | electro zinc-plated | M10 | 70 | 16 | 6,5 | 36,5 | 44 | 5 | 8 | 3,35 | | | 1.39 € | | | B0127.410X80 | steel | 8.8 | electro zinc-plated | M10 | 80 | 16 | 6,5 | 46,5 | 54 | 5 | 8 | 3,35 | | | 1.57 € | | | B0127.410X90 | steel | 8.8 | electro zinc-plated | M10 | 90 | 16 | 6,5 | 56,5 | 64 | 5 | 8 | 3,35 | | | 1.73 € | | | B0127.410X100 | steel | 8.8 | electro zinc-plated | M10 | 100 | 16 | 6,5 | 66,5 | 74 | 5 | 8 | 3,35 | | | 2.46 € | | | B0127.412X20 | steel | 8.8 | electro zinc-plated | M12 | 20 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.04 € | | | B0127.412X25 | steel | 8.8 | electro zinc-plated | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.04 € | | | B0127.412X30 | steel | 8.8 | electro zinc-plated | M12 | 30 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.04 € | | | B0127.412X35 | steel | 8.8 | electro zinc-plated | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.11 € | | | B0127.412X40 | steel | 8.8 | electro zinc-plated | M12 | 40 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.22 € | | | B0127.412X45 | steel | 8.8 | electro zinc-plated | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.36 € | | | B0127.412X50 | steel | 8.8 | electro zinc-plated | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.38 € | | | B0127.412X60 | steel | 8.8 | electro zinc-plated | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 1.66 € | | | B0127.412X70 | steel | 8.8 | electro zinc-plated | M12 | 70 | 18 | 7,5 | 31,5 | 40 | 6 | 10 | 3,85 | | | 1.92 € | | | B0127.412X80 | steel | 8.8 | electro zinc-plated | M12 | 80 | 18 | 7,5 | 41,5 | 50 | 6 | 10 | 3,85 | | | 2.16 € | | | B0127.412X90 | steel | 8.8 | electro zinc-plated | M12 | 90 | 18 | 7,5 | 51,5 | 60 | 6 | 10 | 3,85 | | | 2.41 € | | | B0127.412X100 | steel | 8.8 | electro zinc-plated | M12 | 100 | 18 | 7,5 | 61,5 | 70 | 6 | 10 | 3,85 | | | 2.66 € | | | B0127.412X110 | steel | 8.8 | electro zinc-plated | M12 | 110 | 18 | 7,5 | 71,5 | 80 | 6 | 10 | 3,85 | | | 3.46 € | | | B0127.412X120 | steel | 8.8 | electro zinc-plated | M12 | 120 | 18 | 7,5 | 81,5 | 90 | 6 | 10 | 3,85 | | | 3.92 € | | | B0127.416X30 | steel | 8.8 | electro zinc-plated | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.29 € | | | B0127.416X35 | steel | 8.8 | electro zinc-plated | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.37 € | | | B0127.416X40 | steel | 8.8 | electro zinc-plated | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.49 € | | | B0127.416X45 | steel | 8.8 | electro zinc-plated | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.59 € | | | B0127.416X50 | steel | 8.8 | electro zinc-plated | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 2.72 € | | | B0127.416X60 | steel | 8.8 | electro zinc-plated | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 3.24 € | | | B0127.416X70 | steel | 8.8 | electro zinc-plated | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 3.54 € | | | B0127.416X80 | steel | 8.8 | electro zinc-plated | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 4.18 € | | | B0127.416X90 | steel | 8.8 | electro zinc-plated | M16 | 90 | 24 | 10 | 42 | 52 | 8 | 14 | 5,35 | | | 4.44 € | | | B0127.416X100 | steel | 8.8 | electro zinc-plated | M16 | 100 | 24 | 10 | 52 | 62 | 8 | 14 | 5,35 | | | 4.61 € | | | B0127.416X110 | steel | 8.8 | electro zinc-plated | M16 | 110 | 24 | 10 | 62 | 72 | 8 | 14 | 5,35 | | | 5.47 € | | | B0127.416X120 | steel | 8.8 | electro zinc-plated | M16 | 120 | 24 | 10 | 72 | 82 | 8 | 14 | 5,35 | | | 5.94 € | | | B0127.420X40 | steel | 8.8 | electro zinc-plated | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 7.99 € | | | B0127.420X45 | steel | 8.8 | electro zinc-plated | M20 | 45 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.09 € | | | B0127.420X50 | steel | 8.8 | electro zinc-plated | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.28 € | | | B0127.420X60 | steel | 8.8 | electro zinc-plated | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 8.46 € | | | B0127.420X70 | steel | 8.8 | electro zinc-plated | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 9.00 € | | | B0127.420X80 | steel | 8.8 | electro zinc-plated | M20 | 80 | 30 | 12 | 21,5 | 34 | 10 | 17 | 6,32 | | | 9.61 € | | | B0127.420X90 | steel | 8.8 | electro zinc-plated | M20 | 90 | 30 | 12 | 31,5 | 44 | 10 | 17 | 6,32 | | | 10.28 € | | | B0127.420X100 | steel | 8.8 | electro zinc-plated | M20 | 100 | 30 | 12 | 41,5 | 54 | 10 | 17 | 6,32 | | | 10.96 € | | | B0127.420X110 | steel | 8.8 | electro zinc-plated | M20 | 110 | 30 | 12 | 51,5 | 64 | 10 | 17 | 6,32 | | | 11.77 € | | | B0127.420X120 | steel | 8.8 | electro zinc-plated | M20 | 120 | 30 | 12 | 61,5 | 74 | 10 | 17 | 6,32 | | | 13.13 € | | | B0127.306X10 | steel | 10.9 | bright (black) | M6 | 10 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.69 € | | | B0127.306X12 | steel | 10.9 | bright (black) | M6 | 12 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.69 € | | | B0127.306X16 | steel | 10.9 | bright (black) | M6 | 16 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.69 € | | | B0127.306X20 | steel | 10.9 | bright (black) | M6 | 20 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.73 € | | | B0127.306X25 | steel | 10.9 | bright (black) | M6 | 25 | 10 | 4 | 2,5 | 5,5 | 3 | 5 | 2,38 | | | 0.73 € | | | B0127.306X30 | steel | 10.9 | bright (black) | M6 | 30 | 10 | 4 | 7 | 12 | 3 | 5 | 2,38 | | | 0.73 € | | | B0127.306X35 | steel | 10.9 | bright (black) | M6 | 35 | 10 | 4 | 12 | 17 | 3 | 5 | 2,38 | | | 0.74 € | | | B0127.306X40 | steel | 10.9 | bright (black) | M6 | 40 | 10 | 4 | 17 | 22 | 3 | 5 | 2,38 | | | 0.88 € | | | B0127.308X16 | steel | 10.9 | bright (black) | M8 | 16 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.90 € | | | B0127.308X20 | steel | 10.9 | bright (black) | M8 | 20 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 0.90 € | | | B0127.308X30 | steel | 10.9 | bright (black) | M8 | 30 | 13 | 5 | 3,2 | 7 | 4 | 6 | 2,88 | | | 1.00 € | | | B0127.308X35 | steel | 10.9 | bright (black) | M8 | 35 | 13 | 5 | 6,75 | 13 | 4 | 6 | 2,88 | | | 1.04 € | | | B0127.308X40 | steel | 10.9 | bright (black) | M8 | 40 | 13 | 5 | 11,75 | 18 | 4 | 6 | 2,88 | | | 1.07 € | | | B0127.308X45 | steel | 10.9 | bright (black) | M8 | 45 | 13 | 5 | 16,75 | 23 | 4 | 6 | 2,88 | | | 1.19 € | | | B0127.308X50 | steel | 10.9 | bright (black) | M8 | 50 | 13 | 5 | 21,75 | 28 | 4 | 6 | 2,88 | | | 1.19 € | | | B0127.308X60 | steel | 10.9 | bright (black) | M8 | 60 | 13 | 5 | 31,75 | 38 | 4 | 6 | 2,88 | | | 1.30 € | | | B0127.310X20 | steel | 10.9 | bright (black) | M10 | 20 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.19 € | | | B0127.310X25 | steel | 10.9 | bright (black) | M10 | 25 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.19 € | | | B0127.310X35 | steel | 10.9 | bright (black) | M10 | 35 | 16 | 6,5 | 3,5 | 8 | 5 | 8 | 3,35 | | | 1.30 € | | | B0127.310X40 | steel | 10.9 | bright (black) | M10 | 40 | 16 | 6,5 | 6,5 | 14 | 5 | 8 | 3,35 | | | 1.30 € | | | B0127.310X45 | steel | 10.9 | bright (black) | M10 | 45 | 16 | 6,5 | 11,5 | 19 | 5 | 8 | 3,35 | | | 1.30 € | | | B0127.310X50 | steel | 10.9 | bright (black) | M10 | 50 | 16 | 6,5 | 16,5 | 24 | 5 | 8 | 3,35 | | | 1.30 € | | | B0127.310X60 | steel | 10.9 | bright (black) | M10 | 60 | 16 | 6,5 | 26,5 | 34 | 5 | 8 | 3,35 | | | 1.55 € | | | B0127.312X25 | steel | 10.9 | bright (black) | M12 | 25 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.42 € | | | B0127.312X35 | steel | 10.9 | bright (black) | M12 | 35 | 18 | 7,5 | 4,2 | 9,5 | 6 | 10 | 3,85 | | | 1.55 € | | | B0127.312X45 | steel | 10.9 | bright (black) | M12 | 45 | 18 | 7,5 | 6,5 | 15 | 6 | 10 | 3,85 | | | 1.86 € | | | B0127.312X50 | steel | 10.9 | bright (black) | M12 | 50 | 18 | 7,5 | 11,5 | 20 | 6 | 10 | 3,85 | | | 1.91 € | | | B0127.312X60 | steel | 10.9 | bright (black) | M12 | 60 | 18 | 7,5 | 21,5 | 30 | 6 | 10 | 3,85 | | | 2.27 € | | | B0127.316X30 | steel | 10.9 | bright (black) | M16 | 30 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.17 € | | | B0127.316X35 | steel | 10.9 | bright (black) | M16 | 35 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.29 € | | | B0127.316X45 | steel | 10.9 | bright (black) | M16 | 45 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.55 € | | | B0127.316X40 | steel | 10.9 | bright (black) | M16 | 40 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.44 € | | | B0127.316X50 | steel | 10.9 | bright (black) | M16 | 50 | 24 | 10 | 5 | 11 | 8 | 14 | 5,35 | | | 3.78 € | | | B0127.316X60 | steel | 10.9 | bright (black) | M16 | 60 | 24 | 10 | 12 | 22 | 8 | 14 | 5,35 | | | 4.50 € | | | B0127.316X70 | steel | 10.9 | bright (black) | M16 | 70 | 24 | 10 | 22 | 32 | 8 | 14 | 5,35 | | | 4.88 € | | | B0127.316X80 | steel | 10.9 | bright (black) | M16 | 80 | 24 | 10 | 32 | 42 | 8 | 14 | 5,35 | | | 5.77 € | | | B0127.320X40 | steel | 10.9 | bright (black) | M20 | 40 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 11.15 € | | | B0127.320X50 | steel | 10.9 | bright (black) | M20 | 50 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 11.53 € | | | B0127.320X60 | steel | 10.9 | bright (black) | M20 | 60 | 30 | 12 | 6,5 | 14 | 10 | 17 | 6,32 | | | 11.80 € | | | B0127.320X70 | steel | 10.9 | bright (black) | M20 | 70 | 30 | 12 | 11,5 | 24 | 10 | 17 | 6,32 | | | 12.54 € | |
