Item description/product images |
|
|

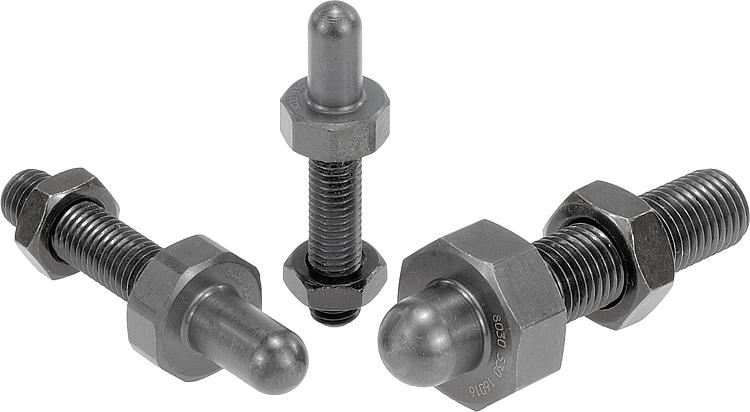

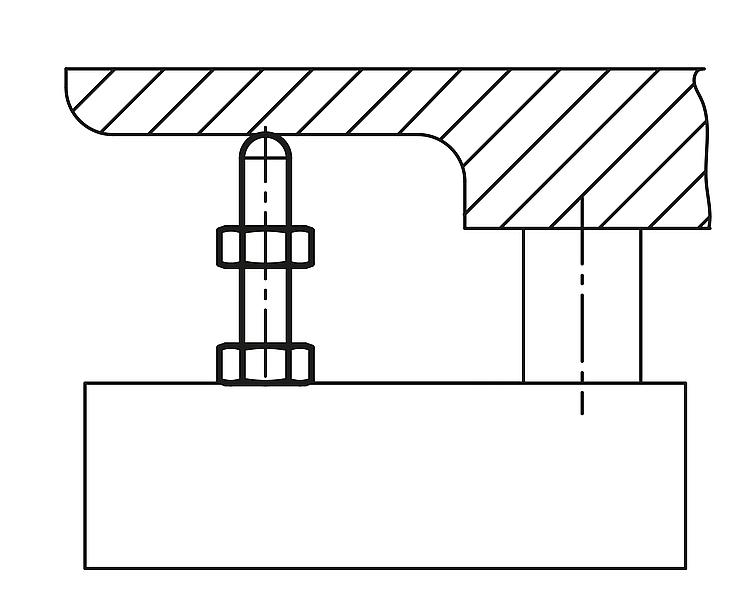

DescriptionMaterial:Carbon steel, tempered.Version:Black oxidised.Note:The rounded nose also allows support bolts to be used as positioning elements for workpieces with matching holes.

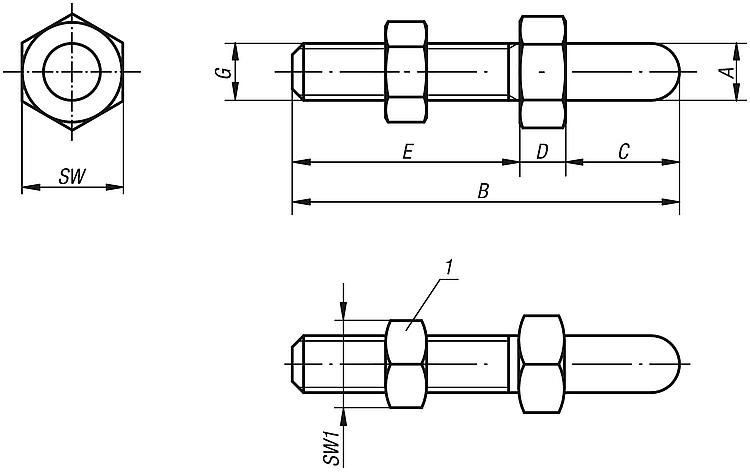

The versions B0192.20020 and B0192.20040 have an octagonal collar.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
