B0193

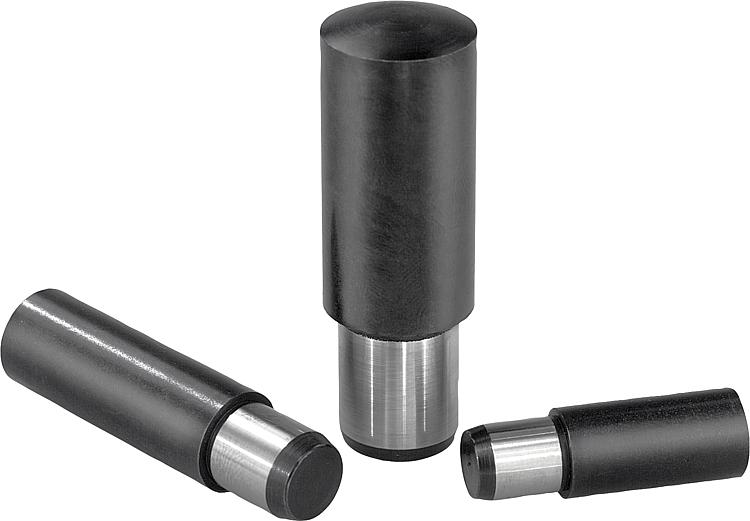

Rest pad black oxidised, hardened and ground steel

Item description/product images

DescriptionMaterial:Steel 1.0301.Version:Case-hardened, black oxidised and ground.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

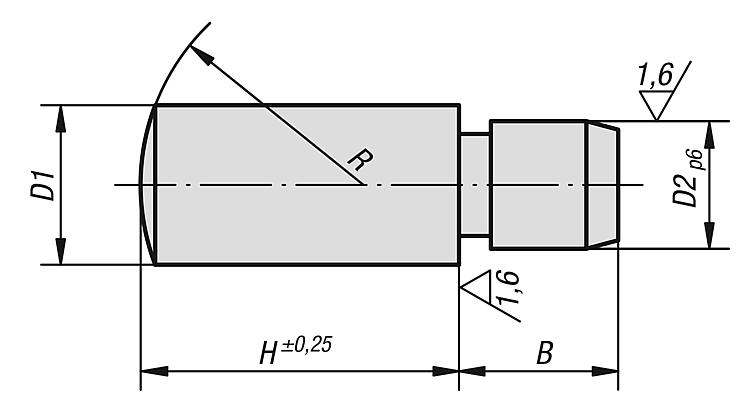

Order No.	H	B	D1	D2	R	Price
B0193.05X8	8	5	5	4	7	2.68 €
B0193.05X10	10	5	5	4	7	3.83 €
B0193.05X12	12	5	5	4	7	4.20 €
B0193.05X16	16	5	5	4	7	4.39 €
B0193.06X10	10	6	6	5	8	3.06 €
B0193.06X12	12	6	6	5	8	3.31 €
B0193.06X16	16	6	6	5	8	3.40 €
B0193.06X20	20	6	6	5	8	4.92 €
B0193.08X12	12	8	8	6	11	3.73 €
B0193.08X16	16	8	8	6	11	3.85 €
B0193.08X20	20	8	8	6	11	3.88 €
B0193.08X25	25	8	8	6	11	4.11 €
B0193.10X16	16	10	10	8	14	3.98 €
B0193.10X20	20	10	10	8	14	4.11 €
B0193.10X25	25	10	10	8	14	4.33 €
B0193.10X32	32	10	10	8	14	4.45 €
B0193.12X20	20	12	12	10	16	4.59 €
B0193.12X25	25	12	12	10	16	4.70 €
B0193.12X32	32	12	12	10	16	5.12 €
B0193.12X40	40	12	12	10	16	5.25 €
B0193.14X20	20	14	14	12	20	5.53 €
B0193.14X25	25	14	14	12	20	5.58 €
B0193.14X32	32	14	14	12	20	5.86 €
B0193.14X40	40	14	14	12	20	6.28 €
B0193.16X25	25	16	16	14	25	6.30 €
B0193.16X32	32	16	16	14	25	6.60 €
B0193.16X40	40	16	16	14	25	6.81 €
B0193.16X50	50	16	16	14	25	6.89 €
B0193.20X25	25	20	20	16	28	7.55 €
B0193.20X32	32	20	20	16	28	8.04 €
B0193.20X40	40	20	20	16	28	8.27 €
B0193.20X50	50	20	20	16	28	8.86 €
