DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.
Note:Rest pads are for supporting machined and unmachined parts. They can also be used as stops and thrust pads in fixtures and toolmaking. Studs or grub screws can be screwed and glued into the tapped hole D to make a support with external thread.Drawing reference:

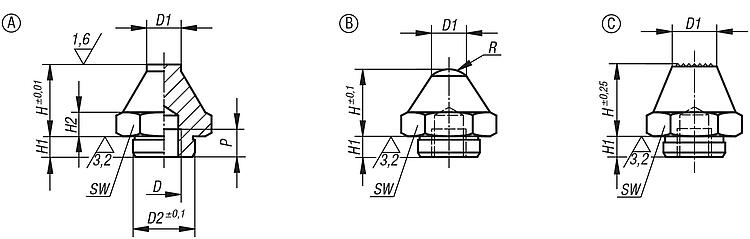

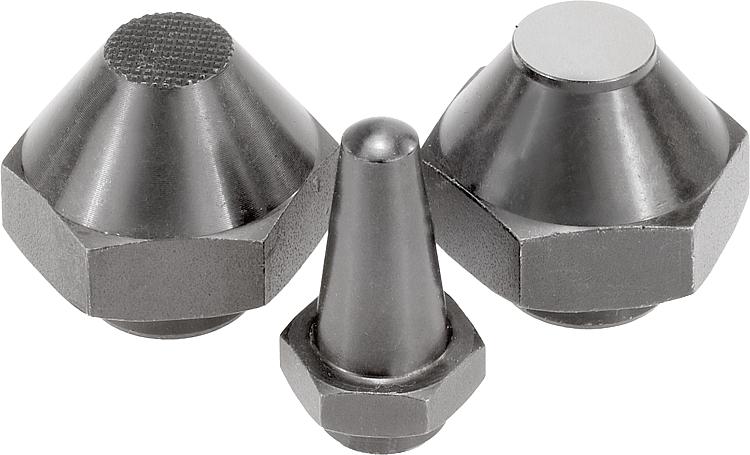

Form A: flat face
Form B: ball end
Form C: diamond grip
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0187 Rest padswith positioning pin 191 kB

Drawings (total overview)

Rest padswith positioning pin

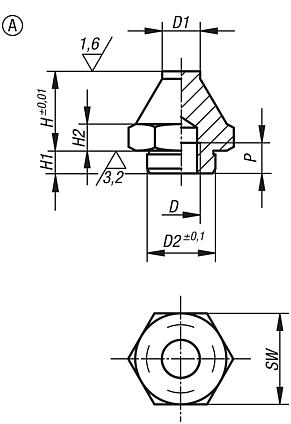

Rest pads with positioning pin, Form A flat face

More information

Drawings

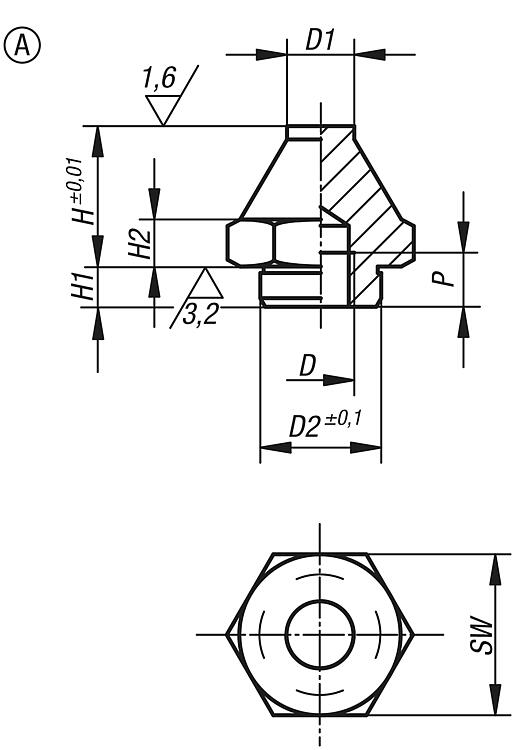

Rest pads with positioning pin, Form A flat face

Item selection/filter

Order No.FormDD1D2HH1H2PSWCADAcc.PriceOrder
B0187.106012AM6711,912,544617 13.62 €
B0187.106025AM6711,92544617 17.10 €
B0187.110020AM101017,820571024 22.17 €
B0187.110040AM101017,840671024 21.57 €
B0187.116030AM162025,83010131641 37.38 €
B0187.116060AM162025,86010131641 38.27 €

Rest pads with positioning pin Form B spherical face

More information

Drawings

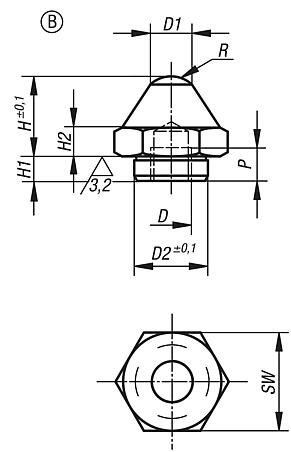

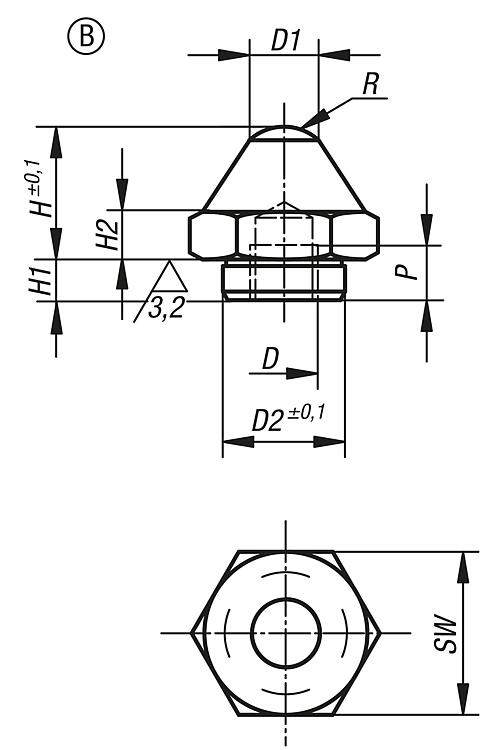

Rest pads with positioning pin Form B spherical face

Item selection/filter

Order No.FormDD1D2HH1H2PRSWCADAcc.PriceOrder
B0187.206012BM6711,912,5446617 12.09 €
B0187.206025BM6711,925446617 16.54 €
B0187.210020BM101017,82057107,524 13.31 €
B0187.210040BM101017,84067107,524 17.43 €
B0187.216030BM162025,8301013162641 22.62 €
B0187.216060BM162025,8601013162641 27.85 €

Rest pads with positioning pin Form C serrated face

More information

Drawings

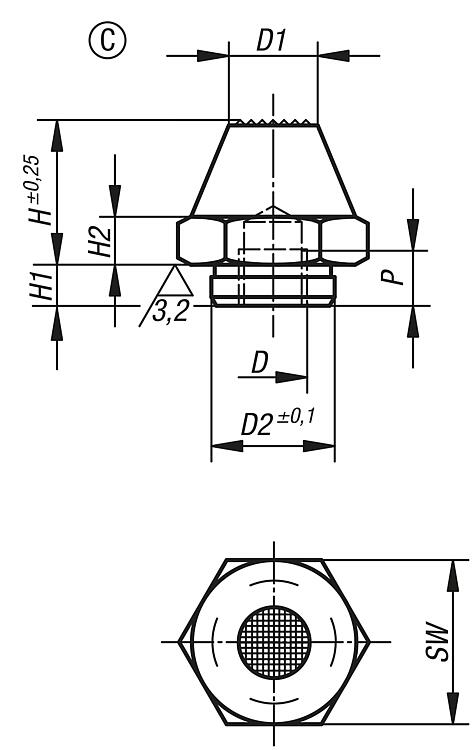

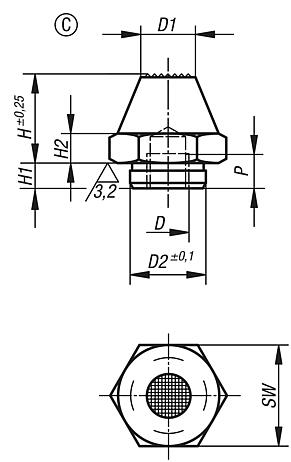

Rest pads with positioning pin Form C serrated face

Item selection/filter

Order No.FormDD1D2HH1H2PSWCADAcc.PriceOrder
B0187.310020CM101017,820571024 27.43 €
B0187.310040CM101017,840671024 67.54 €
B0187.316030CM162025,83010131641 38.02 €
B0187.316060CM162025,86010131641 40.84 €
