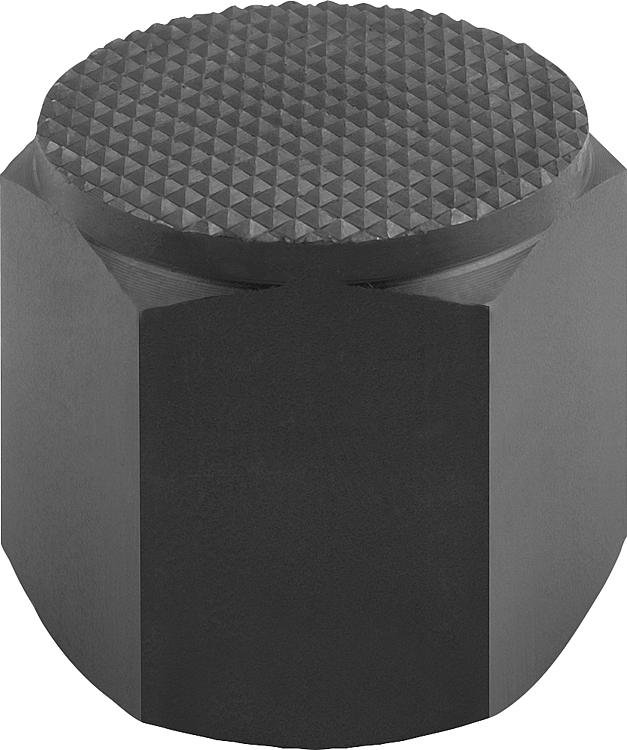

B0183Positioning feet with internal thread and serrated face, Form F |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | D1 | G | H | T | E | SW | CAD | Acc. | Price | Order |
|---|
| B0183.610 | F | 13 | M6 | 10 | 6 | 14,4 | 13 |  | | 8.69 € | | | B0183.6151 | F | 13 | M6 | 15 | 10 | 14,4 | 13 | | | 9.43 € | | | B0183.6101 | F | 17 | M8 | 10 | 6 | 19,4 | 17 | | | 9.97 € | | | B0183.615 | F | 17 | M8 | 15 | 6 | 19,4 | 17 | | | 10.76 € | | | B0183.6251 | F | 17 | M8 | 25 | 16 | 19,4 | 17 | | | 11.03 € | | | B0183.6201 | F | 19 | M10 | 20 | 10 | 21,9 | 19 | | | 11.00 € | | | B0183.6401 | F | 19 | M10 | 40 | 15 | 21,9 | 19 | | | 12.21 € | | | B0183.620 | F | 22 | M12 | 20 | 10 | 25,2 | 22 | | | 11.05 € | | | B0183.625 | F | 22 | M12 | 25 | 15 | 25,2 | 22 | | | 11.37 € | | | B0183.630 | F | 22 | M12 | 30 | 20 | 25,2 | 22 | | | 11.53 € | | | B0183.640 | F | 22 | M12 | 40 | 25 | 25,2 | 22 | | | 12.30 € | | | B0183.650 | F | 22 | M12 | 50 | 25 | 25,2 | 22 | | | 12.97 € | | | B0183.6301 | F | 30 | M16 | 30 | 20 | 33 | 30 | | | 28.98 € | | | B0183.6501 | F | 30 | M16 | 50 | 25 | 33 | 30 | | | 30.37 € | |
