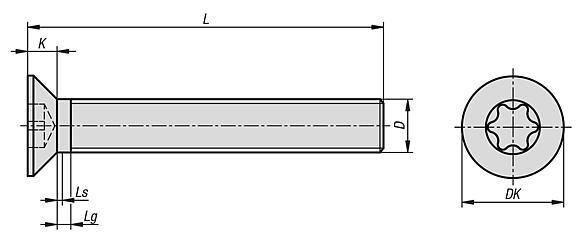

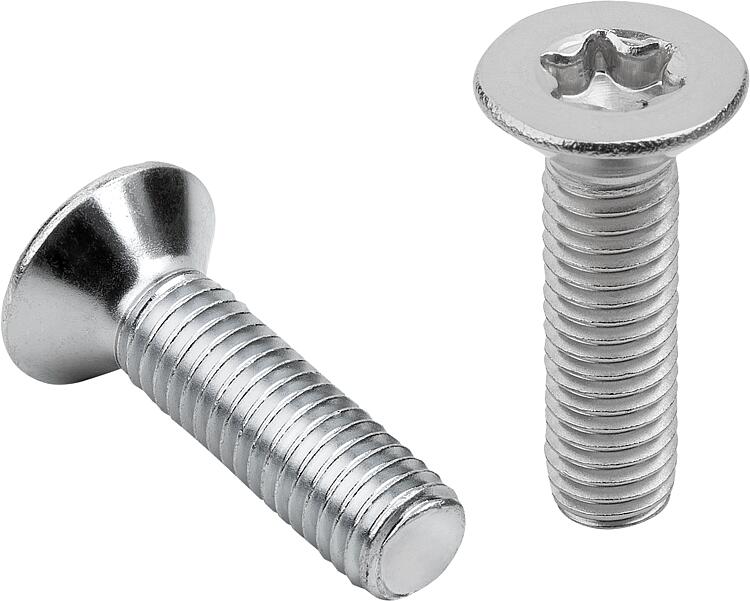

B0666Countersunk screws with hexalobular socket DIN EN ISO 14581 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 8.8, electro zinc-plated.
Stainless steel A2-70, brightSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

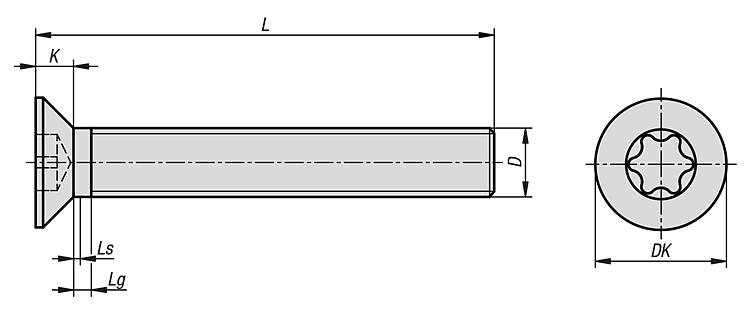

| Order No. | Main
material | D | DK | Grade | K | L | Ls
min. | Lg
max. | TX=Internal drive | CAD | Acc. | Price | Order |
|---|
| B0666.404X10 | steel | M4 | 8,4 | 8.8 | 2,7 | 10 | 0 | 1,4 | 20 | | | 0.15 € | | | B0666.404X12 | steel | M4 | 8,4 | 8.8 | 2,7 | 12 | 0 | 1,4 | 20 | | | 0.15 € | | | B0666.404X16 | steel | M4 | 8,4 | 8.8 | 2,7 | 16 | 0 | 1,4 | 20 | | | 0.18 € | | | B0666.404X20 | steel | M4 | 8,4 | 8.8 | 2,7 | 20 | 0 | 1,4 | 20 | | | 0.19 € | | | B0666.404X25 | steel | M4 | 8,4 | 8.8 | 2,7 | 25 | 0 | 1,4 | 20 | | | 0.21 € | | | B0666.405X10 | steel | M5 | 9,3 | 8.8 | 2,7 | 10 | 0 | 2 | 25 | | | 0.18 € | | | B0666.405X12 | steel | M5 | 9,3 | 8.8 | 2,7 | 12 | 0 | 2 | 25 | | | 0.18 € | | | B0666.405X16 | steel | M5 | 9,3 | 8.8 | 2,7 | 16 | 0 | 2 | 25 | | | 0.19 € | | | B0666.405X20 | steel | M5 | 9,3 | 8.8 | 2,7 | 20 | 0 | 2 | 25 | | | 0.31 € | | | B0666.405X25 | steel | M5 | 9,3 | 8.8 | 2,7 | 25 | 0 | 2 | 25 | | | 0.21 € | | | B0666.406X10 | steel | M6 | 11,3 | 8.8 | 3,3 | 10 | 0 | 2,5 | 30 | | | 0.22 € | | | B0666.406X12 | steel | M6 | 11,3 | 8.8 | 3,3 | 12 | 0 | 2,5 | 30 | | | 0.22 € | | | B0666.406X16 | steel | M6 | 11,3 | 8.8 | 3,3 | 16 | 0 | 2,5 | 30 | | | 0.21 € | | | B0666.406X20 | steel | M6 | 11,3 | 8.8 | 3,3 | 20 | 0 | 2,5 | 30 | | | 0.22 € | | | B0666.406X25 | steel | M6 | 11,3 | 8.8 | 3,3 | 25 | 0 | 2,5 | 30 | | | 0.28 € | | | B0666.406X30 | steel | M6 | 11,3 | 8.8 | 3,3 | 30 | 0 | 2,5 | 30 | | | 0.28 € | | | B0666.408X16 | steel | M8 | 15,8 | 8.8 | 4,65 | 16 | 0 | 3,13 | 45 | | | 0.37 € | | | B0666.408X20 | steel | M8 | 15,8 | 8.8 | 4,65 | 20 | 0 | 3,13 | 45 | | | 0.53 € | | | B0666.408X30 | steel | M8 | 15,8 | 8.8 | 4,65 | 30 | 0 | 3,13 | 45 | | | 0.48 € | | | B0666.104X10 | stainless steel A2 | M4 | 8,4 | 70 | 2,7 | 10 | 0 | 1,4 | 20 | | | 0.27 € | | | B0666.104X12 | stainless steel A2 | M4 | 8,4 | 70 | 2,7 | 12 | 0 | 1,4 | 20 | | | 0.24 € | | | B0666.104X16 | stainless steel A2 | M4 | 8,4 | 70 | 2,7 | 16 | 0 | 1,4 | 20 | | | 0.22 € | | | B0666.104X20 | stainless steel A2 | M4 | 8,4 | 70 | 2,7 | 20 | 0 | 1,4 | 20 | | | 0.24 € | | | B0666.104X25 | stainless steel A2 | M4 | 8,4 | 70 | 2,7 | 25 | 0 | 1,4 | 20 | | | 0.27 € | | | B0666.105X10 | stainless steel A2 | M5 | 9,3 | 70 | 2,7 | 10 | 0 | 2 | 25 | | | 0.28 € | | | B0666.105X12 | stainless steel A2 | M5 | 9,3 | 70 | 2,7 | 12 | 0 | 2 | 25 | | | 0.28 € | | | B0666.105X16 | stainless steel A2 | M5 | 9,3 | 70 | 2,7 | 16 | 0 | 2 | 25 | | | 0.22 € | | | B0666.105X20 | stainless steel A2 | M5 | 9,3 | 70 | 2,7 | 20 | 0 | 2 | 25 | | | 0.24 € | | | B0666.105X25 | stainless steel A2 | M5 | 9,3 | 70 | 2,7 | 25 | 0 | 2 | 25 | | | 0.27 € | | | B0666.106X10 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 10 | 0 | 2,5 | 30 | | | 0.34 € | | | B0666.106X12 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 12 | 0 | 2,5 | 30 | | | 0.34 € | | | B0666.106X16 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 16 | 0 | 2,5 | 30 | | | 0.28 € | | | B0666.106X20 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 20 | 0 | 2,5 | 30 | | | 0.30 € | | | B0666.106X25 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 25 | 0 | 2,5 | 30 | | | 0.31 € | | | B0666.106X30 | stainless steel A2 | M6 | 11,3 | 70 | 3,3 | 30 | 0 | 2,5 | 30 | | | 0.36 € | | | B0666.108X16 | stainless steel A2 | M8 | 15,8 | 70 | 4,65 | 16 | 0 | 3,13 | 45 | | | 0.52 € | | | B0666.108X20 | stainless steel A2 | M8 | 15,8 | 70 | 4,65 | 20 | 0 | 3,13 | 45 | | | 0.48 € | | | B0666.108X25 | stainless steel A2 | M8 | 15,8 | 70 | 4,65 | 25 | 0 | 3,13 | 45 | | | 0.46 € | | | B0666.108X30 | stainless steel A2 | M8 | 15,8 | 70 | 4,65 | 30 | 0 | 3,13 | 45 | | | 0.50 € | |
