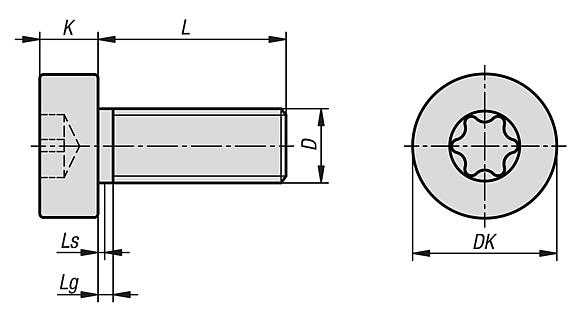

B0665Socket head screws with hexalobular socket, low head, DIN EN ISO... |
go back |
|

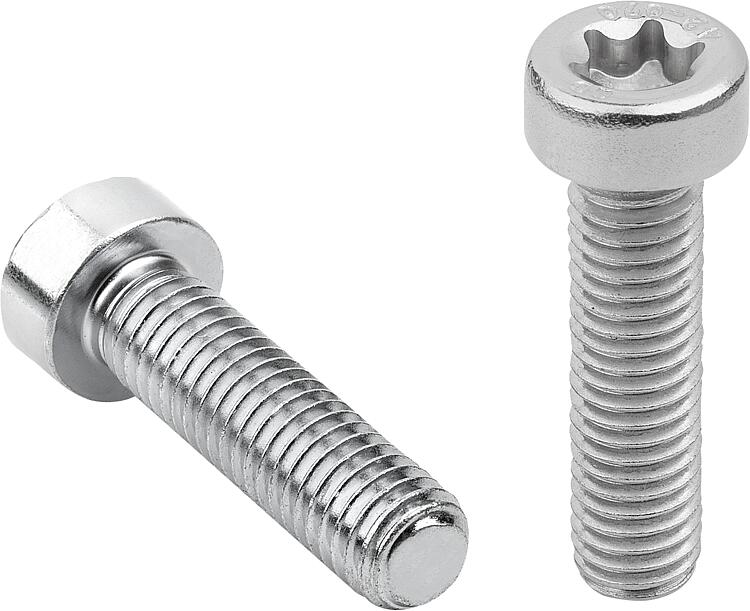

Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 8.8, electro zinc-plated.
Stainless steel A2-70, brightSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D | DK | Grade | K | L | Ls
min. | Lg
max. | TX=Internal drive | CAD | Acc. | Price | Order |
|---|
| B0665.404X10 | steel | M4 | 7 | 8.8 | 3,1 | 10 | 0 | 1,4 | 20 | | | 0.24 € | | | B0665.404X12 | steel | M4 | 7 | 8.8 | 3,1 | 12 | 0 | 1,4 | 20 | | | 0.15 € | | | B0665.405X10 | steel | M5 | 8,5 | 8.8 | 3,65 | 10 | 0 | 1,6 | 25 | | | 0.12 € | | | B0665.405X12 | steel | M5 | 8,5 | 8.8 | 3,65 | 12 | 0 | 1,6 | 25 | | | 0.14 € | | | B0665.405X16 | steel | M5 | 8,5 | 8.8 | 3,65 | 16 | 0 | 1,6 | 25 | | | 0.15 € | | | B0665.406X10 | steel | M6 | 10 | 8.8 | 4,4 | 10 | 0 | 2 | 30 | | | 0.21 € | | | B0665.406X12 | steel | M6 | 10 | 8.8 | 4,4 | 12 | 0 | 2 | 30 | | | 0.22 € | | | B0665.406X16 | steel | M6 | 10 | 8.8 | 4,4 | 16 | 0 | 2 | 30 | | | 0.24 € | | | B0665.406X20 | steel | M6 | 10 | 8.8 | 4,4 | 20 | 0 | 2 | 30 | | | 0.24 € | | | B0665.406X25 | steel | M6 | 10 | 8.8 | 4,4 | 25 | 0 | 2 | 30 | | | 0.34 € | | | B0665.408X16 | steel | M8 | 13 | 8.8 | 5,8 | 16 | 0 | 2,5 | 45 | | | 0.36 € | | | B0665.408X20 | steel | M8 | 13 | 8.8 | 5,8 | 20 | 0 | 2,5 | 45 | | | 0.46 € | | | B0665.408X25 | steel | M8 | 13 | 8.8 | 5,8 | 25 | 0 | 2,5 | 45 | | | 0.60 € | | | B0665.408X30 | steel | M8 | 13 | 8.8 | 5,8 | 30 | 0 | 2,5 | 45 | | | 0.39 € | | | B0665.104X10 | stainless steel A2 | M4 | 7 | 70 | 3,1 | 10 | 0 | 1,4 | 20 | | | 0.46 € | | | B0665.104X12 | stainless steel A2 | M4 | 7 | 70 | 3,1 | 12 | 0 | 1,4 | 20 | | | 0.46 € | | | B0665.104X16 | stainless steel A2 | M4 | 7 | 70 | 3,1 | 16 | 0 | 1,4 | 20 | | | 0.40 € | | | B0665.104X20 | stainless steel A2 | M4 | 7 | 70 | 3,1 | 20 | 0 | 1,4 | 20 | | | 0.42 € | | | B0665.104X25 | stainless steel A2 | M4 | 7 | 70 | 3,1 | 25 | 0 | 1,4 | 20 | | | 0.45 € | | | B0665.105X10 | stainless steel A2 | M5 | 8,5 | 70 | 3,65 | 10 | 0 | 1,6 | 25 | | | 0.58 € | | | B0665.105X12 | stainless steel A2 | M5 | 8,5 | 70 | 3,65 | 12 | 0 | 1,6 | 25 | | | 0.58 € | | | B0665.105X16 | stainless steel A2 | M5 | 8,5 | 70 | 3,65 | 16 | 0 | 1,6 | 25 | | | 0.45 € | | | B0665.105X20 | stainless steel A2 | M5 | 8,5 | 70 | 3,65 | 20 | 0 | 1,6 | 25 | | | 0.48 € | | | B0665.106X10 | stainless steel A2 | M6 | 10 | 70 | 4,4 | 10 | 0 | 2 | 30 | | | 0.71 € | | | B0665.106X12 | stainless steel A2 | M6 | 10 | 70 | 4,4 | 12 | 0 | 2 | 30 | | | 0.71 € | | | B0665.106X16 | stainless steel A2 | M6 | 10 | 70 | 4,4 | 16 | 0 | 2 | 30 | | | 0.56 € | | | B0665.106X20 | stainless steel A2 | M6 | 10 | 70 | 4,4 | 20 | 0 | 2 | 30 | | | 0.62 € | | | B0665.106X25 | stainless steel A2 | M6 | 10 | 70 | 4,4 | 25 | 0 | 2 | 30 | | | 0.64 € | | | B0665.108X25 | stainless steel A2 | M8 | 13 | 70 | 5,8 | 25 | 0 | 2,5 | 45 | | | 1.05 € | | | B0665.108X30 | stainless steel A2 | M8 | 13 | 70 | 5,8 | 30 | 0 | 2,5 | 45 | | | 1.08 € | |
