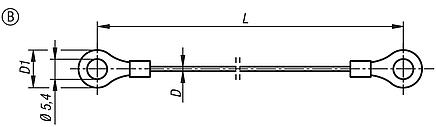

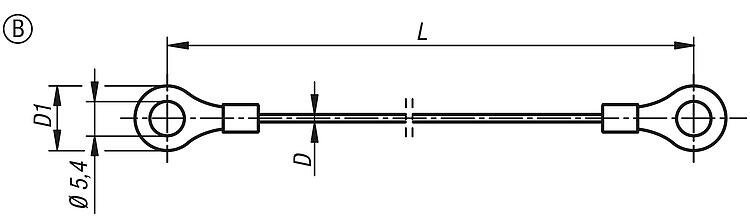

B0092_BRetaining cables Form B, with crimp terminals both ends |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Retaining cables are used to secure loose components to appliances or fixtures. The different types offer a wide range of attachment and freedom of movement options.
A4 stainless steel retaining cables are recommended for applications needing very high corrosion resistance.Material:Standard version:
Retaining cable stainless steel 1.4301.
Crimp terminal aluminium or stainless steel 1.4301.
Stainless steel version A4:
Retaining cable stainless steel 1.4401.
Crimp terminal stainless steel 1.4401. Version:Retaining cable bright or with transparent or black plastic sleeve.Application:For securing loose tools or other components to appliances and equipment.Temperature range:max. 80°C.Accessory:With the retaining cable and key ring B0090 the ball lock pins B0068, B0070, B0072, B0073, B0074, B0075, B0076, B0077, B0078, B0079, B0080, B0081, can be secured so that they cannot be lost.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Form definition | Steel key | Surface finish
body | Main
colour | Material
| Surface finish | Material
| Surface finish | L | D=rope diameter | D1
| CAD | Acc. | Price | Order |
|---|
| B0092.11001 | B | with crimp terminal | 1.4301 | bright | - | Aluminium | bright | Aluminium | bright | 100 | 1,6 | 9,3 |  | | 1.99 € | | | B0092.11501 | B | with crimp terminal | 1.4301 | bright | - | Aluminium | bright | Aluminium | bright | 150 | 1,6 | 9,3 | | | 2.22 € | | | B0092.12001 | B | with crimp terminal | 1.4301 | bright | - | Aluminium | bright | Aluminium | bright | 200 | 1,6 | 9,3 | | | 2.32 € | | | B0092.13001 | B | with crimp terminal | 1.4301 | bright | - | Aluminium | bright | Aluminium | bright | 300 | 1,6 | 9,3 | | | 2.59 € | | | B0092.15001 | B | with crimp terminal | 1.4301 | bright | - | Aluminium | bright | Aluminium | bright | 500 | 1,6 | 9,3 | | | 3.06 € | | | B0092.1100 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Aluminium | bright | Aluminium | bright | 100 | 1,6 | 11,5 | | | 2.10 € | | | B0092.1150 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Aluminium | bright | Aluminium | bright | 150 | 1,6 | 11,5 | | | 2.35 € | | | B0092.1200 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Aluminium | bright | Aluminium | bright | 200 | 1,6 | 11,5 | | | 2.45 € | | | B0092.1300 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Aluminium | bright | Aluminium | bright | 300 | 1,6 | 11,5 | | | 2.72 € | | | B0092.1500 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Aluminium | bright | Aluminium | bright | 500 | 1,6 | 11,5 | | | 3.23 € | | | B0092.11002 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 100 | 1,6 | 9,3 | | | 2.30 € | | | B0092.11502 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 150 | 1,6 | 9,3 | | | 2.59 € | | | B0092.12002 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 200 | 1,6 | 9,3 | | | 2.69 € | | | B0092.13002 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 300 | 1,6 | 9,3 | | | 2.99 € | | | B0092.15002 | B | with crimp terminal | 1.4301 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 500 | 1,6 | 9,3 | | | 3.55 € | | | B0092.11004 | B | with crimp terminal | 1.4401 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 100 | 1,6 | 9,3 | | | 2.77 € | | | B0092.11504 | B | with crimp terminal | 1.4401 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 150 | 1,6 | 9,3 | | | 3.10 € | | | B0092.12004 | B | with crimp terminal | 1.4401 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 200 | 1,6 | 9,3 | | | 3.22 € | | | B0092.13004 | B | with crimp terminal | 1.4401 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 300 | 1,6 | 9,3 | | | 3.59 € | | | B0092.15004 | B | with crimp terminal | 1.4401 | plastic cover | transparent | Stainless steel | bright | Stainless steel | bright | 500 | 1,6 | 9,3 | | | 4.26 € | | | B0092.11003 | B | with crimp terminal | 1.4301 | plastic cover | black | Stainless steel | - | Stainless steel | - | 100 | 1,6 | 9,3 | | | 2.72 € | | | B0092.11503 | B | with crimp terminal | 1.4301 | plastic cover | black | Stainless steel | - | Stainless steel | - | 150 | 1,6 | 9,3 | | | 3.05 € | | | B0092.12003 | B | with crimp terminal | 1.4301 | plastic cover | black | Stainless steel | - | Stainless steel | - | 200 | 1,6 | 9,3 | | | 3.17 € | | | B0092.13003 | B | with crimp terminal | 1.4301 | plastic cover | black | Stainless steel | - | Stainless steel | - | 300 | 1,6 | 9,3 | | | 3.53 € | | | B0092.15003 | B | with crimp terminal | 1.4301 | plastic cover | black | Stainless steel | - | Stainless steel | - | 500 | 1,6 | 9,3 | | | 4.18 € | |
