Product groups

Item description/product images

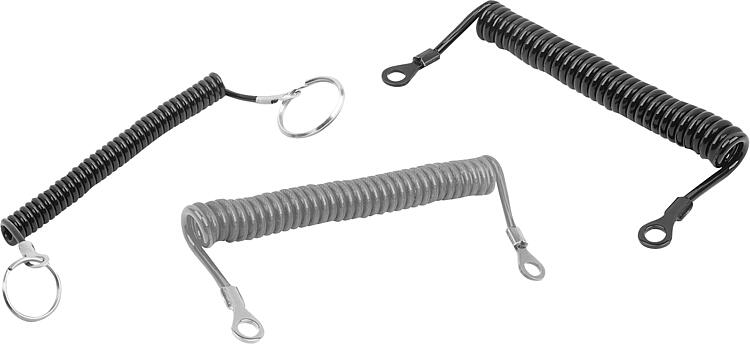

DescriptionProduct description:Elastic spiral cable for securing components to appliances or fixtures.
The spiral design permits the secured component to be used over a wide area relative to the anchor point.
Material:

Spiral cable PUR.
Eye copper, stainless steel 1.4301 or stainless steel 1.4401.
Key ring steel, stainless steel 1.4301 or stainless steel 1.4401.

Version:Spiral cable black or grey.
Eye electro zinc-plated copper.
Eye stainless steel, bright or black passivated.
Key ring chromed steel or bright stainless steel.
Note:Elastic spiral cable to secure equipment parts. Very good reset force, robust and wear-resistant.Application:For securing loose tools or other components to appliances and equipment.Drawing reference:
Form A: with key ring
Form B: without key ring
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0091 Safety spiral cables 147 kB

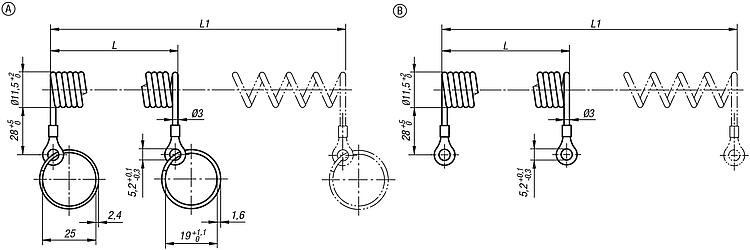

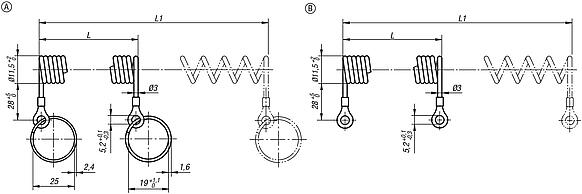

Drawings (total overview)

Safety spiral cables

Retaining spiral cable, Form A, with key ring

More information

Drawings

Retaining spiral cable, Form A, with key ring

Item selection/filter

Order No.

FormForm definitionMain
colour
Key Rings

Steel keyLL1CADAcc.PriceOrder
B0091.10050Awith key ringblacksteel-50250 4.03 €
B0091.10100Awith key ringblacksteel-100500 4.27 €
B0091.10200Awith key ringblacksteel-2001000 4.76 €
B0091.20050Awith key ringblackstainless steel1.430150250 4.38 €
B0091.20100Awith key ringblackstainless steel1.4301100500 4.66 €
B0091.20200Awith key ringblackstainless steel1.43012001000 5.28 €
B0091.40050Awith key ringblackstainless steel1.440150250 5.71 €
B0091.40100Awith key ringblackstainless steel1.4401100500 6.05 €
B0091.40200Awith key ringblackstainless steel1.44012001000 6.87 €

Retaining spiral cable, Form B, without key ring

More information

Drawings

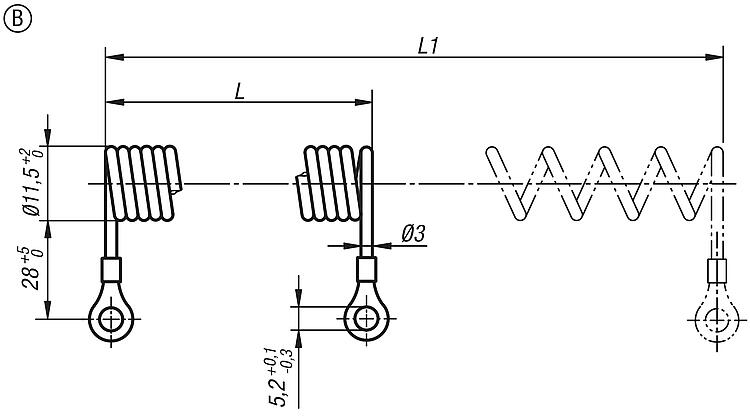

Retaining spiral cable, Form B, without key ring

Item selection/filter

Order No.

FormForm definitionMain
colour
Component
material
Steel keyComponent
colour
LL1CADAcc.PriceOrder
B0091.21050BWithout key ringblackstainless steel1.4301-50250 3.82 €
B0091.21100BWithout key ringblackstainless steel1.4301-100500 4.10 €
B0091.21200BWithout key ringblackstainless steel1.4301-2001000 4.74 €
B0091.41050BWithout key ringblackstainless steel1.4401-50250 5.13 €
B0091.41100BWithout key ringblackstainless steel1.4401-100500 5.44 €
B0091.41200BWithout key ringblackstainless steel1.4401-2001000 6.18 €
B0091.61050BWithout key ringblackstainless steel1.4301black50250 4.60 €
B0091.61100BWithout key ringblackstainless steel1.4301black100500 4.91 €
B0091.61200BWithout key ringblackstainless steel1.4301black2001000 5.69 €
B0091.31050BWithout key ringgreystainless steel1.4301-50250 3.82 €
B0091.31100BWithout key ringgreystainless steel1.4301-100500 4.10 €
B0091.31200BWithout key ringgreystainless steel1.4301-2001000 4.74 €
B0091.51050BWithout key ringgreystainless steel1.4401-50250 5.13 €
B0091.51100BWithout key ringgreystainless steel1.4401-100500 5.44 €
B0091.51200BWithout key ringgreystainless steel1.4401-2001000 6.18 €
