Ball chains
 B0093

Ball chains

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:

A: Chain brass or stainless steel.
B: Chain brass or stainless steel, key ring stainless steel.
C: Chain brass, ring 1.4310 stainless steel.

Note:If no length is specified 1000 mm will be supplied.Drawing reference:
1) same parts

Form A: ball chain, single
Form B: ball chain with key ring
Form C: ball chain with ring clip
Special features:
RoHS

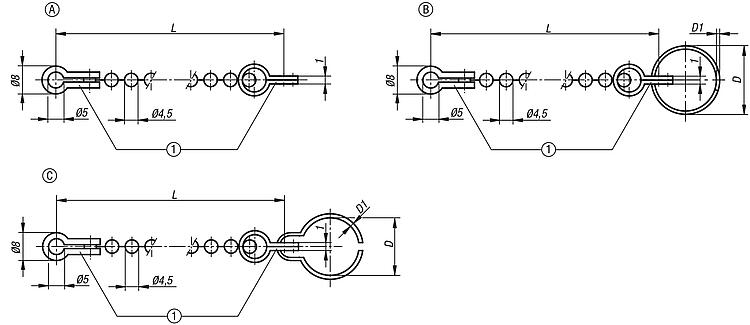

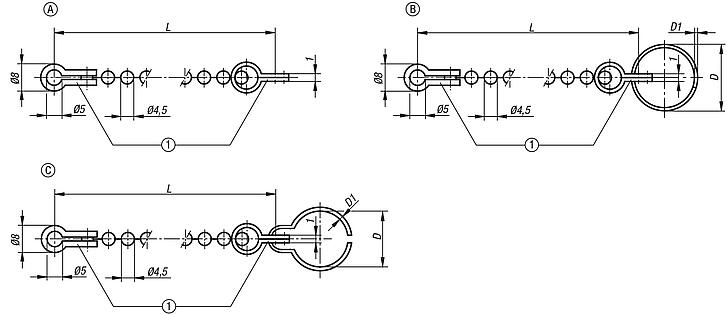

Drawings (total overview)

Ball chains

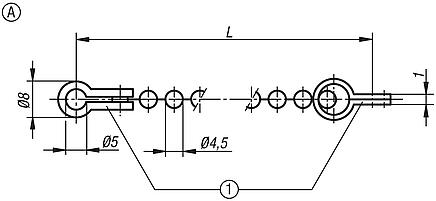

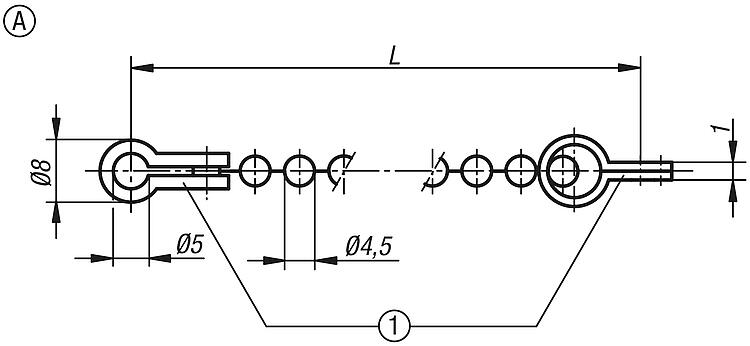

Ball chains, Form A, single

 More information

Drawings
Ball chains, Form A, single

Item selection/filter
Order No.FormMain
material		Material
Form definitionL

CADAcc.PriceOrder
B0093.00X160AbrassBrasssingle160 1.88 €
B0093.00X320AbrassBrasssingle320 2.37 €
B0093.00X500AbrassBrasssingle500 2.94 €
B0093.00X1000AbrassBrasssingle1000 4.51 €
B0093.01X160Astainless steelStainless steelsingle160 2.02 €
B0093.01X320Astainless steelStainless steelsingle320 2.51 €
B0093.01X500Astainless steelStainless steelsingle500 3.09 €
B0093.01X1000Astainless steelStainless steelsingle1000 4.65 €

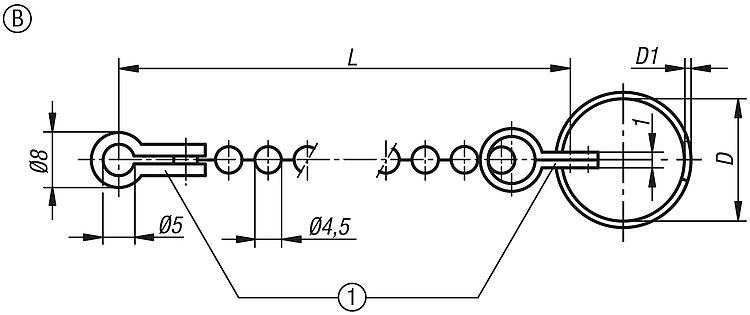

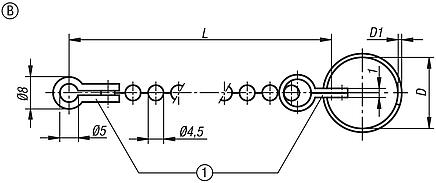

Ball chains, Form B, with key ring

 More information

Drawings
Ball chains, Form B, with key ring

Item selection/filter
Order No.FormMain
material		Form definitionLDD1CADAcc.PriceOrder
B0093.015X160Bbrasswith key ring160151 2.07 €
B0093.019X160Bbrasswith key ring160191 2.13 €
B0093.023X160Bbrasswith key ring160231,2 2.15 €
B0093.028X160Bbrasswith key ring160281,7 2.25 €
B0093.015X320Bbrasswith key ring320151 2.60 €
B0093.019X320Bbrasswith key ring320191 2.64 €
B0093.023X320Bbrasswith key ring320231,2 2.67 €
B0093.028X320Bbrasswith key ring320281,7 2.70 €
B0093.015X500Bbrasswith key ring500151 3.12 €
B0093.019X500Bbrasswith key ring500191 3.15 €
B0093.023X500Bbrasswith key ring500231,2 3.19 €
B0093.028X500Bbrasswith key ring500281,7 3.22 €
B0093.015X1000Bbrasswith key ring1000151 4.59 €
B0093.019X1000Bbrasswith key ring1000191 4.74 €
B0093.023X1000Bbrasswith key ring1000231,2 4.81 €
B0093.028X1000Bbrasswith key ring1000281,7 4.84 €
B0093.115X160Bstainless steelwith key ring160151 2.44 €
B0093.115X320Bstainless steelwith key ring320151 2.71 €
B0093.115X500Bstainless steelwith key ring500151 3.30 €
B0093.115X1000Bstainless steelwith key ring1000151 4.89 €
B0093.119X160Bstainless steelwith key ring160191 2.48 €
B0093.119X320Bstainless steelwith key ring320191 2.78 €
B0093.119X500Bstainless steelwith key ring500191 3.35 €
B0093.119X1000Bstainless steelwith key ring1000191 4.96 €
B0093.123X160Bstainless steelwith key ring160231,2 2.54 €
B0093.123X320Bstainless steelwith key ring320231,2 2.86 €
B0093.123X500Bstainless steelwith key ring500231,2 3.46 €
B0093.123X1000Bstainless steelwith key ring1000231,2 4.97 €
B0093.128X160Bstainless steelwith key ring160281,7 2.60 €
B0093.128X320Bstainless steelwith key ring320281,7 2.89 €
B0093.128X500Bstainless steelwith key ring500281,7 3.51 €
B0093.128X1000Bstainless steelwith key ring1000281,7 5.04 €

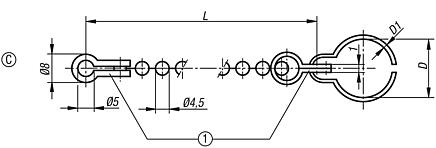

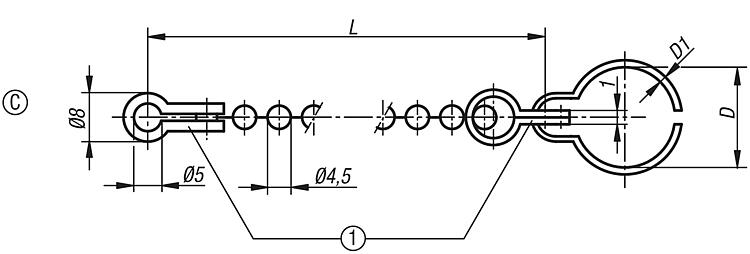

Ball chains, Form C, with ring clip

 More information

Drawings
Ball chains, Form C, with ring clip

Item selection/filter
Order No.Form

Main
material		Form definitionLDD1

Filter
B0093.09X160Cbrasswith ring clip160/320/500/100091
B0093.12X160Cbrasswith ring clip160/320/500/1000121,2
B0093.14X160Cbrasswith ring clip160/320/500/1000141,6
B0093.16X160Cbrasswith ring clip160/320/500/1000161,6
B0093.20X160Cbrasswith ring clip160/320/500/1000202
B0093.24X160Cbrasswith ring clip160/320/500/1000242
B0093.30X160Cbrasswith ring clip160/320/500/1000302,6
B0093.36X160Cbrasswith ring clip160/320/500/1000362,6
