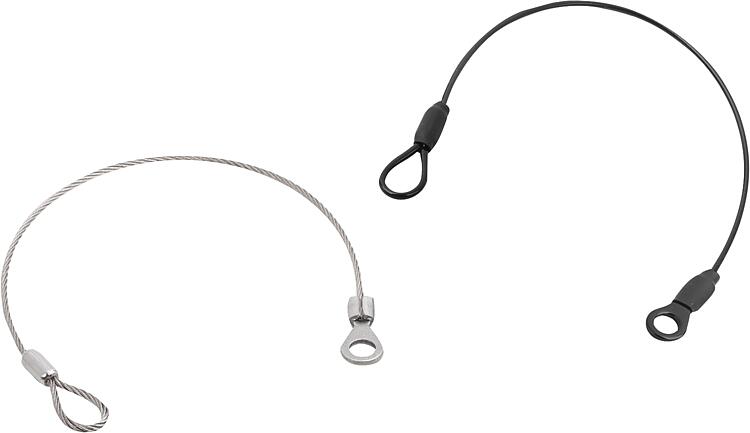

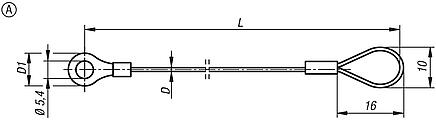

B0092_ARetaining cables Form A, with eye and crimp terminal |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Retaining cables are used to secure loose components to appliances or fixtures. The different types offer a wide range of attachment and freedom of movement options.
A4 stainless steel retaining cables are recommended for applications needing very high corrosion resistance.Material:Standard version:
Retaining cable stainless steel 1.4301.
Clip and crimp terminal aluminium or stainless steel 1.4301.
Stainless steel version A4:
Retaining cable stainless steel 1.4401.
Clip and crimp terminal stainless steel 1.4401. Version:Retaining cable bright or with transparent or black plastic sleeve.Application:For securing loose tools or other components to appliances and equipment.Temperature range:max. 80°C.Accessory:With the retaining cable and key ring B0090 the ball lock pins B0068, B0070, B0072, B0073, B0074, B0075, B0076, B0077, B0078, B0079, B0080, B0081, can be secured so that they cannot be lost.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

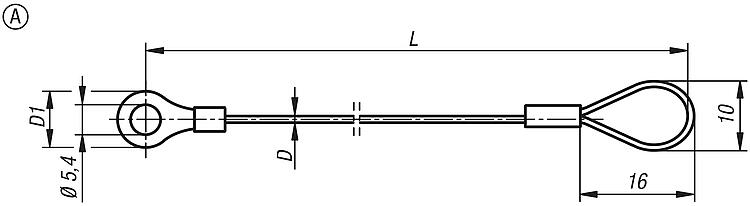

| Order No. | Main
material | Steel key | Surface finish
body | Form | Main
colour | L | D=rope diameter | D1
| Material
| Surface finish | CAD | Acc. | Price | Order |
|---|
| B0092.01001 | stainless steel | 1.4301 | bright | A | - | 100 | 1,6 | 9,3 | Aluminium | bright |  | | 1.81 € | | | B0092.01501 | stainless steel | 1.4301 | bright | A | - | 150 | 1,6 | 9,3 | Aluminium | bright | | | 1.90 € | | | B0092.02001 | stainless steel | 1.4301 | bright | A | - | 200 | 1,6 | 9,3 | Aluminium | bright | | | 2.35 € | | | B0092.03001 | stainless steel | 1.4301 | bright | A | - | 300 | 1,6 | 9,3 | Aluminium | bright | | | 2.53 € | | | B0092.05001 | stainless steel | 1.4301 | bright | A | - | 500 | 1,6 | 9,3 | Aluminium | bright | | | 2.86 € | | | B0092.0100 | stainless steel | 1.4301 | plastic cover | A | transparent | 100 | 1,6 | 11,5 | Aluminium | bright | | | 1.91 € | | | B0092.0150 | stainless steel | 1.4301 | plastic cover | A | transparent | 150 | 1,6 | 11,5 | Aluminium | bright | | | 2.00 € | | | B0092.0200 | stainless steel | 1.4301 | plastic cover | A | transparent | 200 | 1,6 | 11,5 | Aluminium | bright | | | 2.48 € | | | B0092.0300 | stainless steel | 1.4301 | plastic cover | A | transparent | 300 | 1,6 | 11,5 | Aluminium | bright | | | 2.67 € | | | B0092.0500 | stainless steel | 1.4301 | plastic cover | A | transparent | 500 | 1,6 | 11,5 | Aluminium | bright | | | 3.02 € | | | B0092.01002 | stainless steel | 1.4301 | plastic cover | A | transparent | 100 | 1,6 | 9,3 | stainless steel A2 | bright | | | 2.10 € | | | B0092.01502 | stainless steel | 1.4301 | plastic cover | A | transparent | 150 | 1,6 | 9,3 | stainless steel A2 | bright | | | 2.19 € | | | B0092.02002 | stainless steel | 1.4301 | plastic cover | A | transparent | 200 | 1,6 | 9,3 | stainless steel A2 | bright | | | 2.72 € | | | B0092.03002 | stainless steel | 1.4301 | plastic cover | A | transparent | 300 | 1,6 | 9,3 | stainless steel A2 | bright | | | 2.94 € | | | B0092.05002 | stainless steel | 1.4301 | plastic cover | A | transparent | 500 | 1,6 | 9,3 | stainless steel A2 | bright | | | 3.32 € | | | B0092.01004 | stainless steel | 1.4401 | plastic cover | A | transparent | 100 | 1,6 | 9,3 | stainless steel A4 | bright | | | 2.51 € | | | B0092.01504 | stainless steel | 1.4401 | plastic cover | A | transparent | 150 | 1,6 | 9,3 | stainless steel A4 | bright | | | 2.64 € | | | B0092.02004 | stainless steel | 1.4401 | plastic cover | A | transparent | 200 | 1,6 | 9,3 | stainless steel A4 | bright | | | 3.27 € | | | B0092.03004 | stainless steel | 1.4401 | plastic cover | A | transparent | 300 | 1,6 | 9,3 | stainless steel A4 | bright | | | 3.52 € | | | B0092.05004 | stainless steel | 1.4401 | plastic cover | A | transparent | 500 | 1,6 | 9,3 | stainless steel A4 | bright | | | 3.99 € | | | B0092.01003 | stainless steel | 1.4301 | plastic cover | A | black | 100 | 1,6 | 9,3 | stainless steel A2 | black passivated | | | 2.47 € | | | B0092.01503 | stainless steel | 1.4301 | plastic cover | A | black | 150 | 1,6 | 9,3 | stainless steel A2 | black passivated | | | 2.60 € | | | B0092.02003 | stainless steel | 1.4301 | plastic cover | A | black | 200 | 1,6 | 9,3 | stainless steel A2 | black passivated | | | 3.21 € | | | B0092.03003 | stainless steel | 1.4301 | plastic cover | A | black | 300 | 1,6 | 9,3 | stainless steel A2 | black passivated | | | 3.46 € | | | B0092.05003 | stainless steel | 1.4301 | plastic cover | A | black | 500 | 1,6 | 9,3 | stainless steel A2 | black passivated | | | 3.91 € | |
