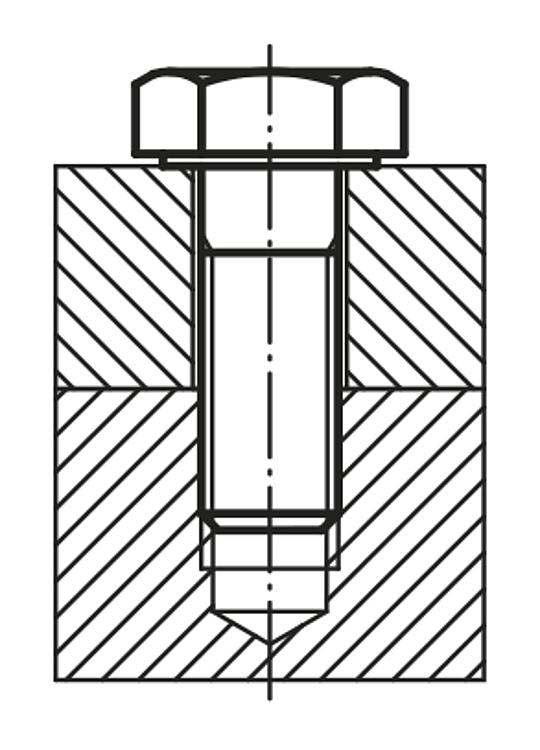

B0097_ESHexagon head bolts with shaft DIN 931/ISO 4014, stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel A2 or stainless steel A4.Version:Stainless steel A2-70, bright.
Stainless steel A4-70, bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

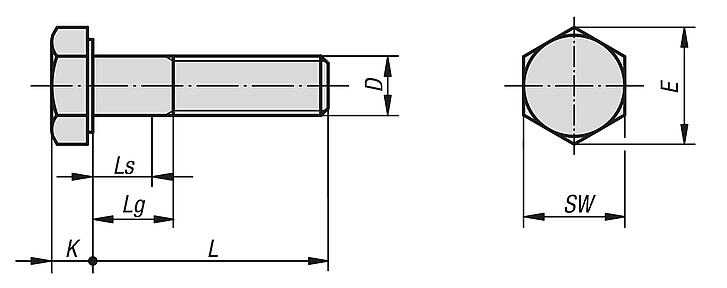

| Order No. | Main
material | Grade | Surface finish
body | D
| L | Ls
min. | Lg
max. | E | K | SW | DIN | ISO | CAD | Acc. | Price | Order |
|---|
| B0097.105X25 | stainless steel A2 | 70 | bright | M5 | 25 | 5 | 9 | 8,79 | 3,5 | 8 | DIN 931 | - |  | | 0.31 € | | | B0097.105X30 | stainless steel A2 | 70 | bright | M5 | 30 | 10 | 14 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.32 € | | | B0097.105X35 | stainless steel A2 | 70 | bright | M5 | 35 | 15 | 19 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.32 € | | | B0097.105X40 | stainless steel A2 | 70 | bright | M5 | 40 | 20 | 24 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.32 € | | | B0097.105X45 | stainless steel A2 | 70 | bright | M5 | 45 | 25 | 29 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.34 € | | | B0097.105X50 | stainless steel A2 | 70 | bright | M5 | 50 | 30 | 34 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.37 € | | | B0097.105X60 | stainless steel A2 | 70 | bright | M5 | 60 | 39 | 44 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.64 € | | | B0097.106X30 | stainless steel A2 | 70 | bright | M6 | 30 | 7 | 12 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.26 € | | | B0097.106X35 | stainless steel A2 | 70 | bright | M6 | 35 | 12 | 17 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.32 € | | | B0097.106X40 | stainless steel A2 | 70 | bright | M6 | 40 | 17 | 22 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.32 € | | | B0097.106X45 | stainless steel A2 | 70 | bright | M6 | 45 | 22 | 27 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.35 € | | | B0097.106X50 | stainless steel A2 | 70 | bright | M6 | 50 | 27 | 32 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.37 € | | | B0097.106X60 | stainless steel A2 | 70 | bright | M6 | 60 | 37 | 42 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.61 € | | | B0097.106X70 | stainless steel A2 | 70 | bright | M6 | 70 | 47 | 52 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.72 € | | | B0097.108X35 | stainless steel A2 | 70 | bright | M8 | 35 | 6,75 | 13 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.49 € | | | B0097.108X40 | stainless steel A2 | 70 | bright | M8 | 40 | 11,75 | 18 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.49 € | | | B0097.108X45 | stainless steel A2 | 70 | bright | M8 | 45 | 16,75 | 23 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.49 € | | | B0097.108X50 | stainless steel A2 | 70 | bright | M8 | 50 | 21,75 | 28 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.52 € | | | B0097.108X60 | stainless steel A2 | 70 | bright | M8 | 60 | 31,75 | 38 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.57 € | | | B0097.108X70 | stainless steel A2 | 70 | bright | M8 | 70 | 41,75 | 48 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.73 € | | | B0097.108X80 | stainless steel A2 | 70 | bright | M8 | 80 | 51,75 | 58 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.93 € | | | B0097.110X100 | stainless steel A2 | 70 | bright | M10 | 100 | 66,5 | 74 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.73 € | | | B0097.110X40 | stainless steel A2 | 70 | bright | M10 | 40 | 6,5 | 14 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.71 € | | | B0097.110X45 | stainless steel A2 | 70 | bright | M10 | 45 | 11,5 | 19 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.72 € | | | B0097.110X50 | stainless steel A2 | 70 | bright | M10 | 50 | 16,5 | 24 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.77 € | | | B0097.110X60 | stainless steel A2 | 70 | bright | M10 | 60 | 26,5 | 34 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.81 € | | | B0097.110X70 | stainless steel A2 | 70 | bright | M10 | 70 | 36,5 | 44 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.93 € | | | B0097.110X80 | stainless steel A2 | 70 | bright | M10 | 80 | 46,5 | 54 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.93 € | | | B0097.110X90 | stainless steel A2 | 70 | bright | M10 | 90 | 56,5 | 64 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.36 € | | | B0097.112X100 | stainless steel A2 | 70 | bright | M12 | 100 | 61,25 | 70 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.92 € | | | B0097.112X110 | stainless steel A2 | 70 | bright | M12 | 110 | 71,25 | 80 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 2.35 € | | | B0097.112X120 | stainless steel A2 | 70 | bright | M12 | 120 | 81,25 | 90 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 2.72 € | | | B0097.112X45 | stainless steel A2 | 70 | bright | M12 | 45 | 6,25 | 15 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 0.91 € | | | B0097.112X50 | stainless steel A2 | 70 | bright | M12 | 50 | 11,25 | 20 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 0.93 € | | | B0097.112X60 | stainless steel A2 | 70 | bright | M12 | 60 | 21,25 | 30 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 0.93 € | | | B0097.112X70 | stainless steel A2 | 70 | bright | M12 | 70 | 31,25 | 40 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.05 € | | | B0097.112X80 | stainless steel A2 | 70 | bright | M12 | 80 | 41,25 | 50 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.26 € | | | B0097.112X90 | stainless steel A2 | 70 | bright | M12 | 90 | 51,25 | 60 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.73 € | | | B0097.116X100 | stainless steel A2 | 70 | bright | M16 | 100 | 52 | 62 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.91 € | | | B0097.116X110 | stainless steel A2 | 70 | bright | M16 | 110 | 62 | 72 | 26,75 | 10 | 24 | DIN 931 | - | | | 3.65 € | | | B0097.116X120 | stainless steel A2 | 70 | bright | M16 | 120 | 72 | 82 | 26,75 | 10 | 24 | DIN 931 | - | | | 3.94 € | | | B0097.116X60 | stainless steel A2 | 70 | bright | M16 | 60 | 12 | 22 | 26,75 | 10 | 24 | DIN 931 | - | | | 1.67 € | | | B0097.116X70 | stainless steel A2 | 70 | bright | M16 | 70 | 22 | 32 | 26,75 | 10 | 24 | DIN 931 | - | | | 1.91 € | | | B0097.116X80 | stainless steel A2 | 70 | bright | M16 | 80 | 32 | 42 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.07 € | | | B0097.116X90 | stainless steel A2 | 70 | bright | M16 | 90 | 42 | 52 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.31 € | | | B0097.605X30 | stainless steel A4 | 70 | bright | M5 | 30 | 10 | 14 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.41 € | | | B0097.605X35 | stainless steel A4 | 70 | bright | M5 | 35 | 15 | 19 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.41 € | | | B0097.605X40 | stainless steel A4 | 70 | bright | M5 | 40 | 20 | 24 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.41 € | | | B0097.605X45 | stainless steel A4 | 70 | bright | M5 | 45 | 25 | 29 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.43 € | | | B0097.605X50 | stainless steel A4 | 70 | bright | M5 | 50 | 30 | 34 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.49 € | | | B0097.605X60 | stainless steel A4 | 70 | bright | M5 | 60 | 39 | 44 | 8,79 | 3,5 | 8 | DIN 931 | - | | | 0.84 € | | | B0097.606X30 | stainless steel A4 | 70 | bright | M6 | 30 | 7 | 12 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.32 € | | | B0097.606X35 | stainless steel A4 | 70 | bright | M6 | 35 | 12 | 17 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.41 € | | | B0097.606X40 | stainless steel A4 | 70 | bright | M6 | 40 | 17 | 22 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.41 € | | | B0097.606X45 | stainless steel A4 | 70 | bright | M6 | 45 | 22 | 27 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.45 € | | | B0097.606X50 | stainless steel A4 | 70 | bright | M6 | 50 | 27 | 32 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.49 € | | | B0097.606X60 | stainless steel A4 | 70 | bright | M6 | 60 | 37 | 42 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.77 € | | | B0097.606X70 | stainless steel A4 | 70 | bright | M6 | 70 | 47 | 52 | 11,05 | 4 | 10 | DIN 931 | - | | | 0.95 € | | | B0097.608X35 | stainless steel A4 | 70 | bright | M8 | 35 | 6,75 | 13 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.64 € | | | B0097.608X40 | stainless steel A4 | 70 | bright | M8 | 40 | 11,75 | 18 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.64 € | | | B0097.608X45 | stainless steel A4 | 70 | bright | M8 | 45 | 16,75 | 23 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.64 € | | | B0097.608X50 | stainless steel A4 | 70 | bright | M8 | 50 | 21,75 | 28 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.67 € | | | B0097.608X60 | stainless steel A4 | 70 | bright | M8 | 60 | 31,75 | 38 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.72 € | | | B0097.608X70 | stainless steel A4 | 70 | bright | M8 | 70 | 41,75 | 48 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 0.96 € | | | B0097.608X80 | stainless steel A4 | 70 | bright | M8 | 80 | 51,75 | 58 | 14,38 | 5,3 | 13 | DIN 931 | - | | | 1.21 € | | | B0097.610X40 | stainless steel A4 | 70 | bright | M10 | 40 | 6,5 | 14 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.93 € | | | B0097.610X45 | stainless steel A4 | 70 | bright | M10 | 45 | 11,5 | 19 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 0.95 € | | | B0097.610X50 | stainless steel A4 | 70 | bright | M10 | 50 | 16,5 | 24 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.02 € | | | B0097.610X60 | stainless steel A4 | 70 | bright | M10 | 60 | 26,5 | 34 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.05 € | | | B0097.610X70 | stainless steel A4 | 70 | bright | M10 | 70 | 36,5 | 44 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.21 € | | | B0097.610X80 | stainless steel A4 | 70 | bright | M10 | 80 | 46,5 | 54 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.21 € | | | B0097.610X90 | stainless steel A4 | 70 | bright | M10 | 90 | 56,5 | 64 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 1.76 € | | | B0097.610X100 | stainless steel A4 | 70 | bright | M10 | 100 | 66,5 | 74 | 18,9 | 6,4 | 17 | DIN 931 | - | | | 2.27 € | | | B0097.612X45 | stainless steel A4 | 70 | bright | M12 | 45 | 6,25 | 15 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.18 € | | | B0097.612X50 | stainless steel A4 | 70 | bright | M12 | 50 | 11,25 | 20 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.21 € | | | B0097.612X60 | stainless steel A4 | 70 | bright | M12 | 60 | 21,25 | 30 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.21 € | | | B0097.612X70 | stainless steel A4 | 70 | bright | M12 | 70 | 31,25 | 40 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.37 € | | | B0097.612X80 | stainless steel A4 | 70 | bright | M12 | 80 | 41,25 | 50 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 1.64 € | | | B0097.612X90 | stainless steel A4 | 70 | bright | M12 | 90 | 51,25 | 60 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 2.27 € | | | B0097.612X100 | stainless steel A4 | 70 | bright | M12 | 100 | 61,25 | 70 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 2.49 € | | | B0097.612X110 | stainless steel A4 | 70 | bright | M12 | 110 | 71,25 | 80 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 3.07 € | | | B0097.612X120 | stainless steel A4 | 70 | bright | M12 | 120 | 81,25 | 90 | 21,1 | 7,5 | 19 | DIN 931 | - | | | 3.55 € | | | B0097.616X60 | stainless steel A4 | 70 | bright | M16 | 60 | 12 | 22 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.17 € | | | B0097.616X70 | stainless steel A4 | 70 | bright | M16 | 70 | 22 | 32 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.48 € | | | B0097.616X80 | stainless steel A4 | 70 | bright | M16 | 80 | 32 | 42 | 26,75 | 10 | 24 | DIN 931 | - | | | 2.69 € | | | B0097.616X90 | stainless steel A4 | 70 | bright | M16 | 90 | 42 | 52 | 26,75 | 10 | 24 | DIN 931 | - | | | 3.01 € | | | B0097.616X100 | stainless steel A4 | 70 | bright | M16 | 100 | 52 | 62 | 26,75 | 10 | 24 | DIN 931 | - | | | 3.79 € | | | B0097.616X110 | stainless steel A4 | 70 | bright | M16 | 110 | 62 | 72 | 26,75 | 10 | 24 | DIN 931 | - | | | 4.75 € | | | B0097.616X120 | stainless steel A4 | 70 | bright | M16 | 120 | 72 | 82 | 26,75 | 10 | 24 | DIN 931 | - | | | 5.14 € | |
