Item description/product images

DescriptionMaterial:

Plate die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.

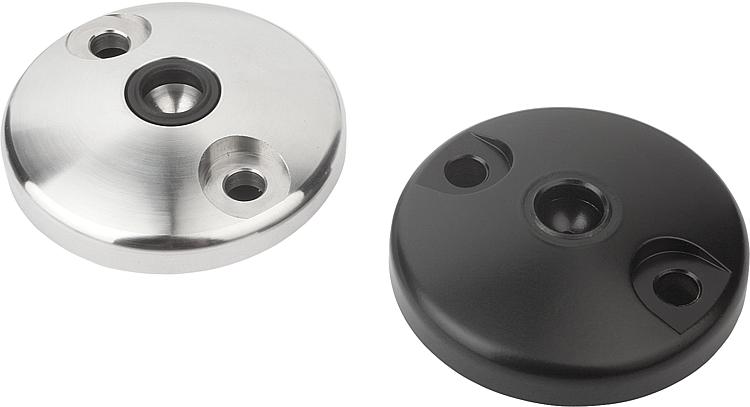

Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see B0354.
For matching ball joints see B0355.

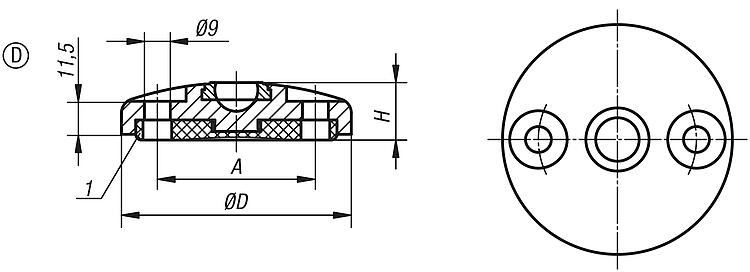

Drawing reference:
1) From plate Ø 80
Form D with screw-on hole (open), with anti-slip plate
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0357 Swivel feet plates, Form D 142 kB
 BLOHM_TH_010_Gelenkfuesse_DE 647 kB

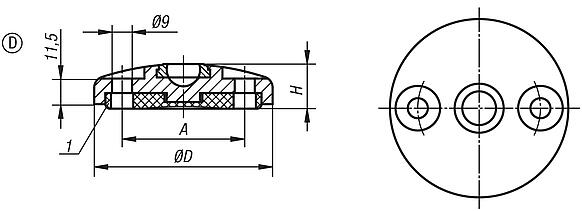

Drawings

Swivel feet plates, Form D

Item selection/filter

Order No.FormMain
material
DAHLoad rating
max. kN
CADAcc.PriceOrder
B0357.40801Dzinc80552030  14.29 €
B0357.41001Dzinc100742035  19.19 €
B0357.41201Dzinc120942035  20.87 €
B0357.40802Dstainless steel80552035  33.32 €
B0357.41002Dstainless steel100742040  50.25 €
B0357.41202Dstainless steel120942040  63.93 €
