B0379Levelling feet with knurled base |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Polyamide.
Screw, steel.Version:Black.
Screw electro zinc-plated.Note:Levelling feet with knurled base. Rigid version.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

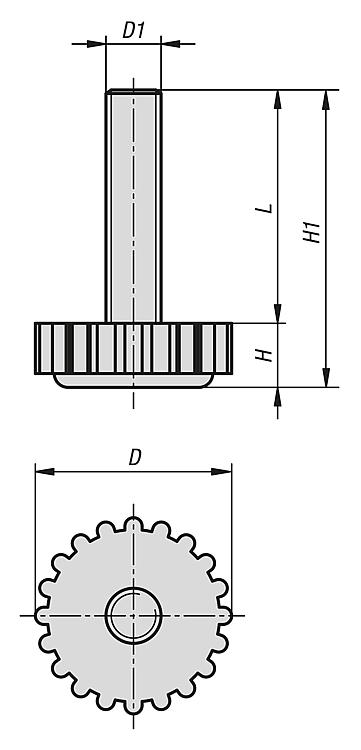

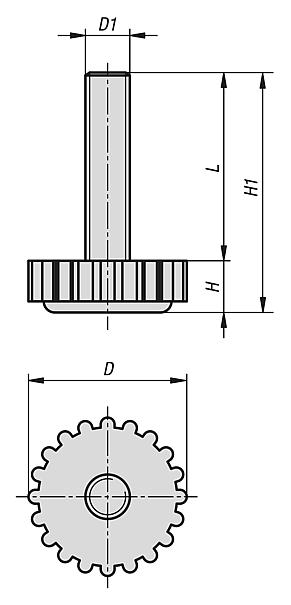

| D | D1 | H | H1 | L | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0379.2805X016 | 28,5 | M5 | 9,3 | 25,3 | 16 | 2 |  | | 0.39 € | | | B0379.2805X020 | 28,5 | M5 | 9,3 | 29,3 | 20 | 2 | | | 0.40 € | | | B0379.2805X025 | 28,5 | M5 | 9,3 | 34,3 | 25 | 2 | | | 0.42 € | | | B0379.2805X040 | 28,5 | M5 | 9,3 | 49,3 | 40 | 2 | | | 0.57 € | | | B0379.2806X016 | 28,5 | M6 | 9,3 | 25,3 | 16 | 3,5 | | | 0.34 € | | | B0379.2806X020 | 28,5 | M6 | 9,3 | 29,3 | 20 | 3,5 | | | 0.35 € | | | B0379.2806X030 | 28,5 | M6 | 9,3 | 39,3 | 30 | 3,5 | | | 0.38 € | | | B0379.2806X040 | 28,5 | M6 | 9,3 | 49,3 | 40 | 3,5 | | | 0.48 € | | | B0379.2806X050 | 28,5 | M6 | 9,3 | 59,3 | 50 | 3,5 | | | 0.57 € | | | B0379.2808X016 | 28,5 | M8 | 9,3 | 25,3 | 16 | 4,5 | | | 0.38 € | | | B0379.2808X020 | 28,5 | M8 | 9,3 | 29,3 | 20 | 4,5 | | | 0.39 € | | | B0379.2808X030 | 28,5 | M8 | 9,3 | 39,3 | 30 | 4,5 | | | 0.40 € | | | B0379.2808X040 | 28,5 | M8 | 9,3 | 49,3 | 40 | 4,5 | | | 0.43 € | | | B0379.2808X050 | 28,5 | M8 | 9,3 | 59,3 | 50 | 4,5 | | | 0.48 € | | | B0379.2808X060 | 28,5 | M8 | 9,3 | 69,3 | 60 | 4,5 | | | 0.82 € | | | B0379.2808X080 | 28,5 | M8 | 9,3 | 89,3 | 80 | 4,5 | | | 1.00 € | |
