B0374

Levelling feet in Hygienic DESIGN

go back

Products
- Product overview
  - Levelling feet
    - Levelling feet
      - Levelling feet in Hygienic DESIGN

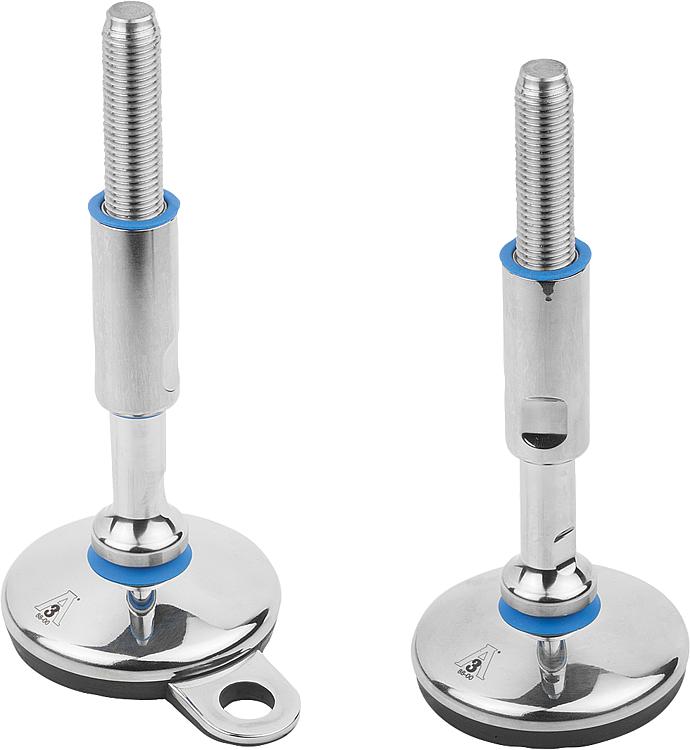

Item description/product images

Show/filter all items

DescriptionMaterial:

Foot plate and threaded spindle stainless steel 1.4301.
Rubber base (NBR) Shore 85 +/-5, FDA tested.
Rubber seal, silicone, FDA tested.

Version:Foot plate, high-gloss polished.
Threaded spindle, bright.
Rubber base, black.
Rubber seal, blue.Note:Certified according to 3-A Sanitary Standard.

The high surface quality, the double sealing of the thread and the special seal on the machine foot's spindle joint prevent dirt from sticking and reduce cleaning times to a minimum.

The machine foot is supplied with the 3-A logo.Application:The machine foot is particularly suitable for machines, plants and appliances in the foodstuff industry, breweries, dairies, beverage and pharmaceutical industries.Accessory:Thread cover B0522.Drawing reference:

1) Adjustment range

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0374 Levelling feet in Hygienic DESIGN

282 kB

BLOHM-3-A-Zertifikat_2025

161 kB

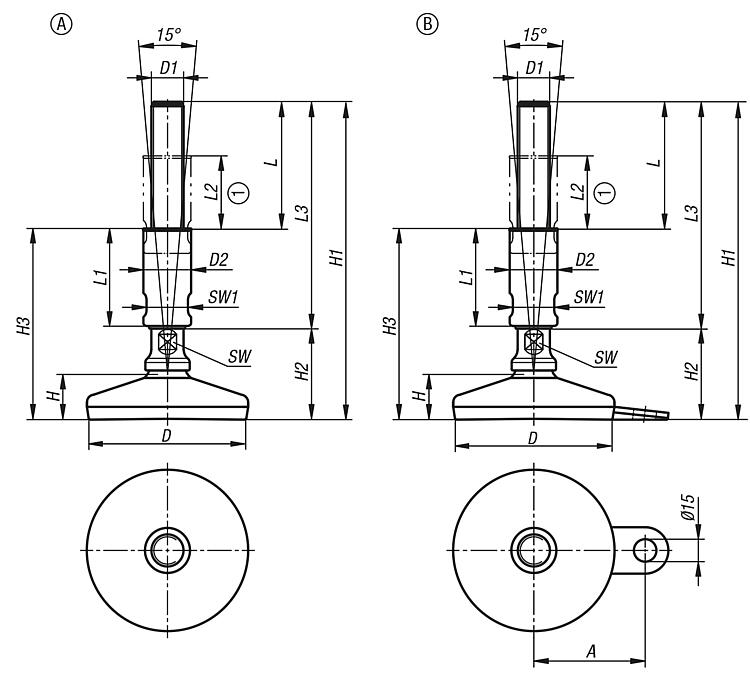

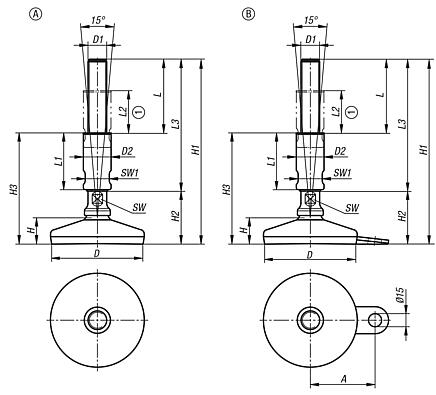

Drawings (total overview)

Levelling feet in Hygienic DESIGN, Form A

More information

Drawings

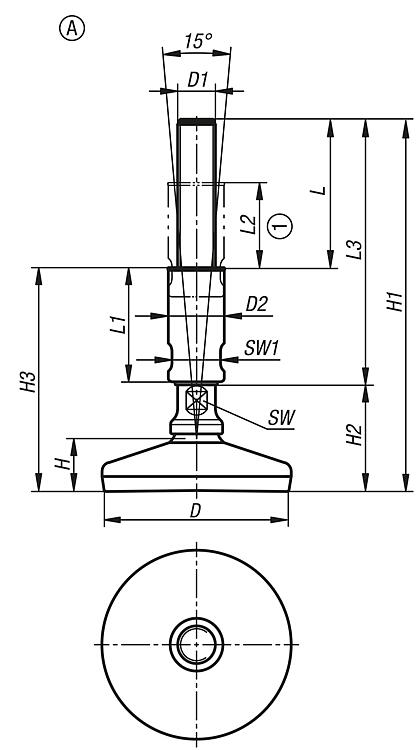

Levelling feet in Hygienic DESIGN, Form A

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	H2	H3	L	L1	L2	L3	SW	SW1	Load rating max. kN (static load only)	Price
B0374.106012X140	A	60	M12	24	23	191	51	112	79	60	45	140	13	20	10	65.57 €
B0374.106012X190	A	60	M12	24	23	241	51	137	104	85	70	190	13	20	10	79.30 €
B0374.106016X140	A	60	M16	24	23	191	51	112	79	60	45	140	13	20	10	65.57 €
B0374.106016X190	A	60	M16	24	23	241	51	137	104	85	70	190	13	20	10	79.45 €
B0374.108016X140	A	80	M16	24	25	193	53	114	79	60	45	140	13	20	20	68.13 €
B0374.108016X190	A	80	M16	24	25	243	53	139	104	85	70	190	13	20	20	81.81 €
B0374.108020X140	A	80	M20	30	25	193	53	114	79	60	45	140	17	26	20	71.55 €
B0374.108020X190	A	80	M20	30	25	243	53	139	104	85	70	190	17	26	20	82.54 €
B0374.108024X140	A	80	M24	35	25	193	53	114	79	60	45	140	20	30	20	77.80 €
B0374.108024X190	A	80	M24	35	25	243	53	139	104	85	70	190	20	30	20	88.19 €
B0374.110016X140	A	100	M16	24	28	196	56	117	79	60	45	140	13	20	25	71.42 €
B0374.110016X190	A	100	M16	24	28	246	56	142	104	85	70	190	13	20	25	85.07 €
B0374.110020X140	A	100	M20	30	28	196	56	117	79	60	45	140	17	26	25	74.82 €
B0374.110020X190	A	100	M20	30	28	246	56	142	104	85	70	190	17	26	25	85.82 €
B0374.110024X140	A	100	M24	35	28	196	56	117	79	60	45	140	20	30	25	81.05 €
B0374.110024X190	A	100	M24	35	28	246	56	142	104	85	70	190	20	30	25	91.45 €
B0374.112016X140	A	120	M16	24	32	200	60	121	79	60	45	140	13	20	30	80.91 €
B0374.112016X190	A	120	M16	24	32	250	60	146	104	85	70	190	13	20	30	94.56 €
B0374.112020X140	A	120	M20	30	32	200	60	121	79	60	45	140	17	26	30	84.34 €
B0374.112020X190	A	120	M20	30	32	250	60	146	104	85	70	190	17	26	30	95.33 €
B0374.112024X140	A	120	M24	35	32	200	60	121	79	60	45	140	20	30	30	90.57 €
B0374.112024X190	A	120	M24	35	32	250	60	146	104	85	70	190	20	30	30	100.95 €

Levelling feet in Hygienic DESIGN, Form B

More information

Drawings

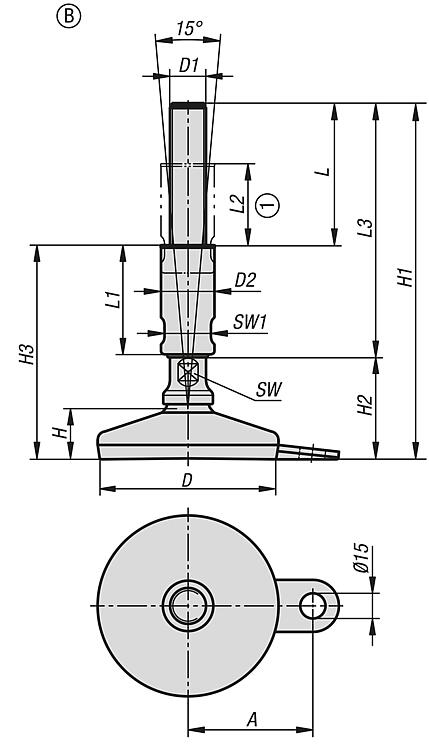

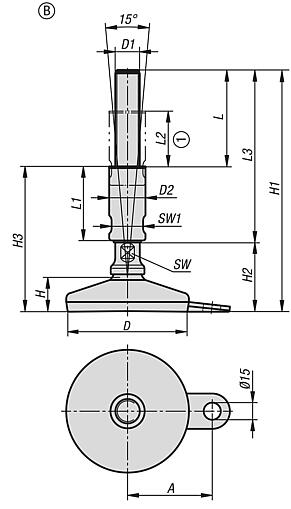

Levelling feet in Hygienic DESIGN, Form B

Item selection/filter

Order No.	Form	A	D	D1	D2	H	H1	H2	H3	L	L1	L2	L3	SW	SW1	Load rating max. kN (static load only)	Price
B0374.206012X140	B	45	60	M12	24	23	191	51	112	79	60	45	140	13	20	10	69.53 €
B0374.206012X190	B	45	60	M12	24	23	241	51	137	104	85	70	190	13	20	10	83.21 €
B0374.206016X140	B	45	60	M16	24	23	191	51	112	79	60	45	140	13	20	10	69.53 €
B0374.206016X190	B	45	60	M16	24	23	241	51	137	104	85	70	190	13	20	10	83.37 €
B0374.208016X140	B	54	80	M16	24	25	193	53	114	79	60	45	140	13	20	20	71.42 €
B0374.208016X190	B	54	80	M16	24	25	243	53	139	104	85	70	190	13	20	20	85.07 €
B0374.208020X140	B	54	80	M20	30	25	193	53	114	79	60	45	140	17	26	20	74.82 €
B0374.208020X190	B	54	80	M20	30	25	243	53	139	104	85	70	190	17	26	20	85.82 €
B0374.208024X140	B	54	80	M24	35	25	193	53	114	79	60	45	140	20	30	20	81.05 €
B0374.208024X190	B	54	80	M24	35	25	243	53	139	104	85	70	190	20	30	20	91.45 €
B0374.210016X140	B	69	100	M16	24	28	196	56	117	79	60	45	140	13	20	25	75.57 €
B0374.210016X190	B	69	100	M16	24	28	246	56	142	104	85	70	190	13	20	25	89.22 €
B0374.210020X140	B	69	100	M20	30	28	196	56	117	79	60	45	140	17	26	25	78.97 €
B0374.210020X190	B	69	100	M20	30	28	246	56	142	104	85	70	190	17	26	25	89.97 €
B0374.210024X140	B	69	100	M24	35	28	196	56	117	79	60	45	140	20	30	25	85.21 €
B0374.210024X190	B	69	100	M24	35	28	246	56	142	104	85	70	190	20	30	25	95.60 €
