DescriptionMaterial:Plate thermoplastic, die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.
Version:Thermoplastic plate black.
Die-cast zinc plate blue electro zinc-plated.
Stainless steel plate bright.Note for ordering:If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix “assembled” to the order number for the plate and spindle.
(e.g. B0368.10303 and B0367.080801 “assembled”.)
Note:ECO levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.

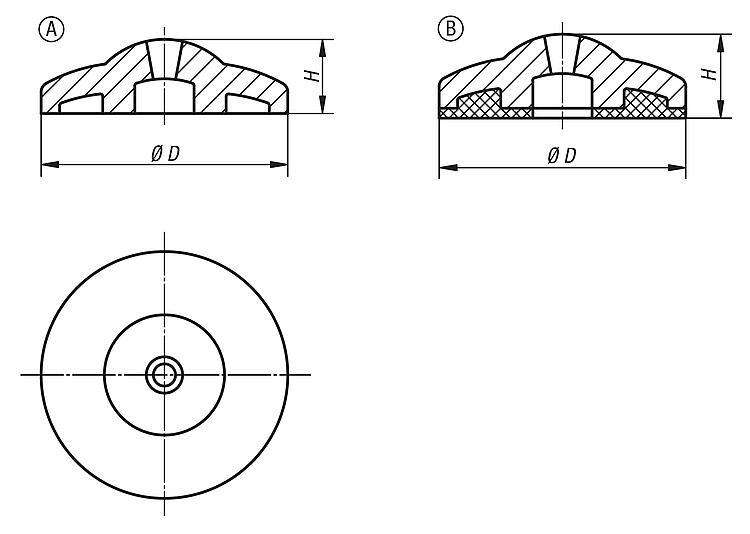

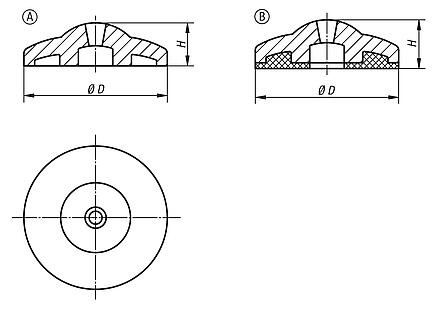

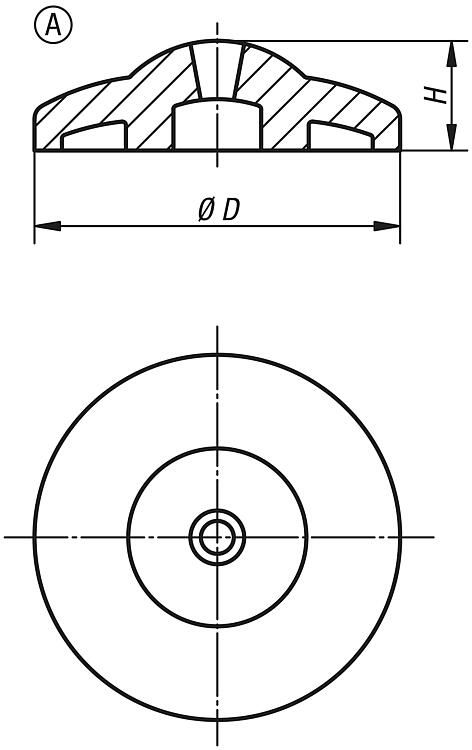

For matching threaded spindles see B0367.Drawing reference:Form A without anti-slip plate

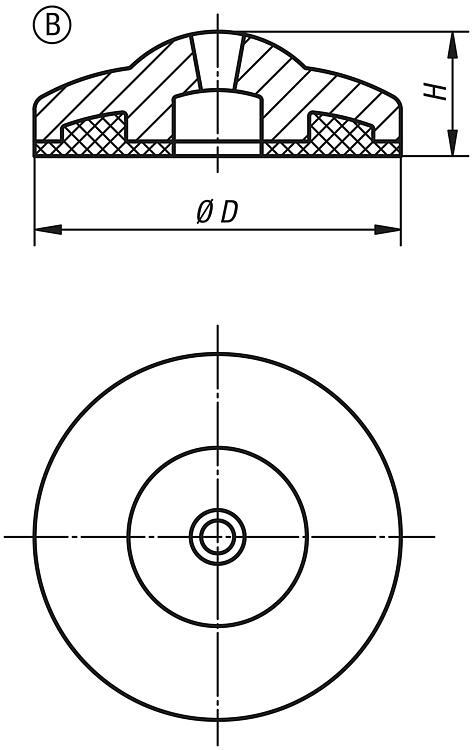

Form B with anti-slip plate
