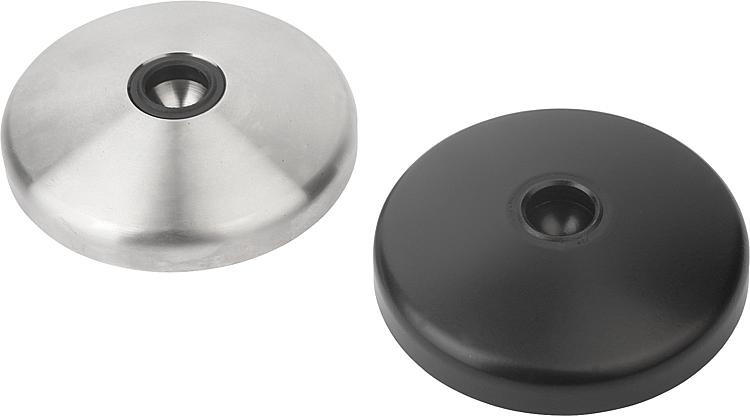

Item description/product images

DescriptionMaterial:

Plates die-cast zinc or stainless steel 1.4305.

Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see B0354.
For matching ball joints see B0355.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0357 Swivel feet plates, Form A 128 kB
 BLOHM_TH_010_Gelenkfuesse_DE 647 kB

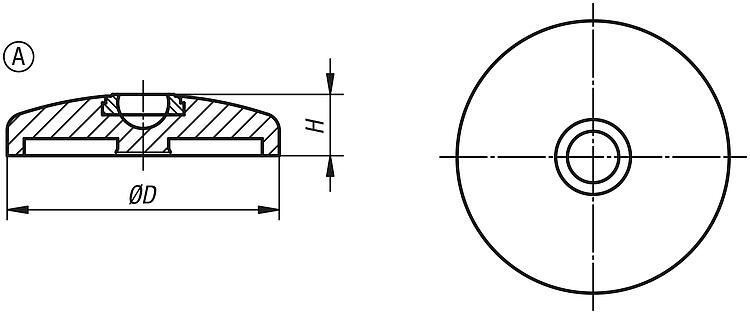

Drawings

Swivel feet plates, Form A

Item selection/filter

Order No.FormMain
material
D

AHLoad rating
max. kN
CADAcc.PriceOrder
B0357.10301Azinc30-1820  4.74 €
B0357.10401Azinc40-1830  5.42 €
B0357.10451Azinc45-1830  6.39 €
B0357.10501Azinc50-1830  6.39 €
B0357.10601Azinc60-1830  7.53 €
B0357.10801Azinc80-1830  10.23 €
B0357.11001Azinc100-1835  13.89 €
B0357.11201Azinc120-1835  15.32 €
B0357.10302Astainless steel30-1820  9.65 €
B0357.10402Astainless steel40-1830  10.71 €
B0357.10452Astainless steel45-1830  12.22 €
B0357.10502Astainless steel50-1835  14.24 €
B0357.10602Astainless steel60-1835  18.15 €
B0357.10802Astainless steel80-1835  28.98 €
B0357.11002Astainless steel100-1840  44.58 €
B0357.11202Astainless steel120-1840  57.98 €
