Item description/product images

DescriptionMaterial:

Plates die-cast zinc or stainless steel 1.4305.

Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see B0354.
For matching ball joints see B0355.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0357 Swivel feet plates, Form C 137 kB
 BLOHM_TH_010_Gelenkfuesse_DE 647 kB

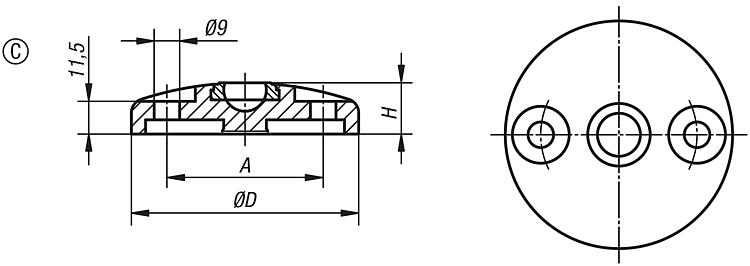

Drawings

Swivel feet plates, Form C

Item selection/filter

Order No.FormMain
material
DAHLoad rating
max. kN
CADAcc.PriceOrder
B0357.30801Czinc80551830  13.01 €
B0357.31001Czinc100741835  16.72 €
B0357.31201Czinc120941835  18.11 €
B0357.30802Cstainless steel80551835  31.96 €
B0357.31002Cstainless steel100741840  47.56 €
B0357.31202Cstainless steel120941840  60.93 €
