B0441R-clips similar to DIN 11024 |
go back |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Steel electro zinc-plated.
Stainless steel bright.Note:R-clips are used for securing bolts and axles. They are easy to install and can be reused. The ends have no sharp edges.

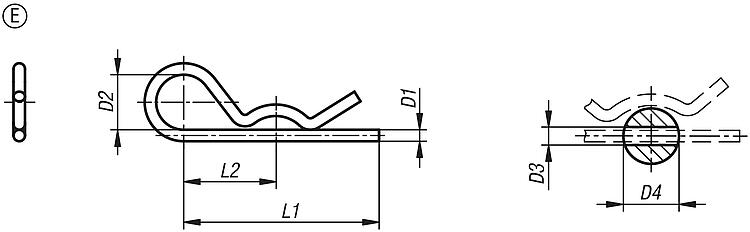

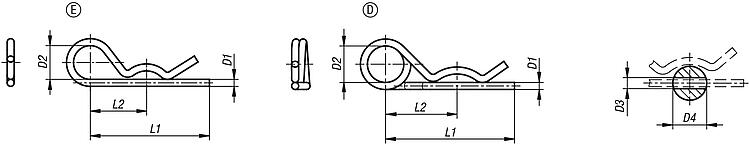

Double coil R-clips have a flatter spring characteristics and are easier to install. The double coil allows a tether cable to be attached to prevent loss.Drawing reference:Form E: with single coil.
Form D: with double coil (coil direction can differ from the drawing). DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
|
| Order No. | Form | Main
material | D1 | D2
| D3 | D4=for
screw Ø | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| B0441.12225 | D | steel | 2,25 | 20 | 2,5 | 9-11,2 | 42 | 24 |  | | 0.49 € | | | B0441.12280 | D | steel | 2,8 | 20 | 3,2 | 11,2-14 | 48 | 26 | | | 0.57 € | | | B0441.12360 | D | steel | 3,6 | 20 | 4 | 14-20 | 64 | 32 | | | 0.61 € | | | B0441.12450 | D | steel | 4,5 | 25 | 5 | 20-26 | 80 | 39 | | | 0.67 € | | | B0441.12560 | D | steel | 5,6 | 25 | 6,3 | 26-34 | 97 | 45 | | | 1.52 € | | | B0441.12630 | D | steel | 6,3 | 30 | 7 | 34-45 | 125 | 56 | | | 1.70 € | | | B0441.12700 | D | steel | 7 | 30 | 8 | 45-56 | 150 | 63 | | | 3.52 € | | | B0441.22225 | D | stainless steel A2 | 2,25 | 20 | 2,5 | 7-9 | 42 | 24 | | | 0.53 € | | | B0441.22280 | D | stainless steel A2 | 2,8 | 20 | 3,2 | 11-14 | 48 | 26 | | | 0.80 € | | | B0441.22360 | D | stainless steel A2 | 3,6 | 20 | 4 | 14-20 | 64 | 32 | | | 2.09 € | | | B0441.22450 | D | stainless steel A2 | 4,5 | 25 | 5 | 20-26 | 80 | 39 | | | 3.10 € | | | B0441.22560 | D | stainless steel A2 | 5,6 | 25 | 6,3 | 26-34 | 97 | 45 | | | 4.31 € | |
|
