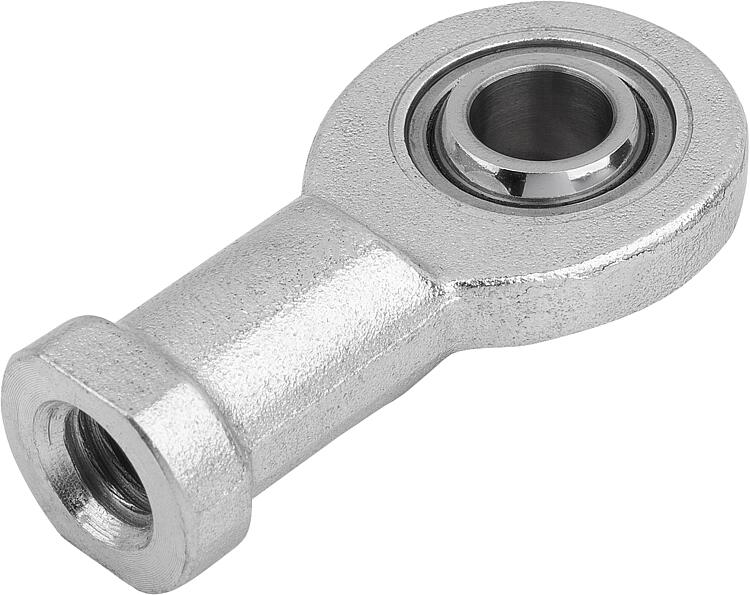

B0554Rod ends with plain bearing, internal thread, narrow head, DIN... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 6-12 turned steel.
From size (D) 17 forged steel.
Ball joint ball bearing steel, hardened, ground, polished and hard chromed.
Bearing shell ball bearing steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 Form Series E.Special features: DownloadHere is all the information as a PDF datasheet:

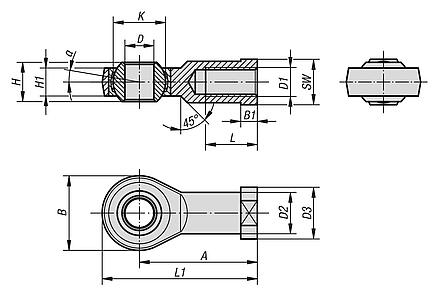

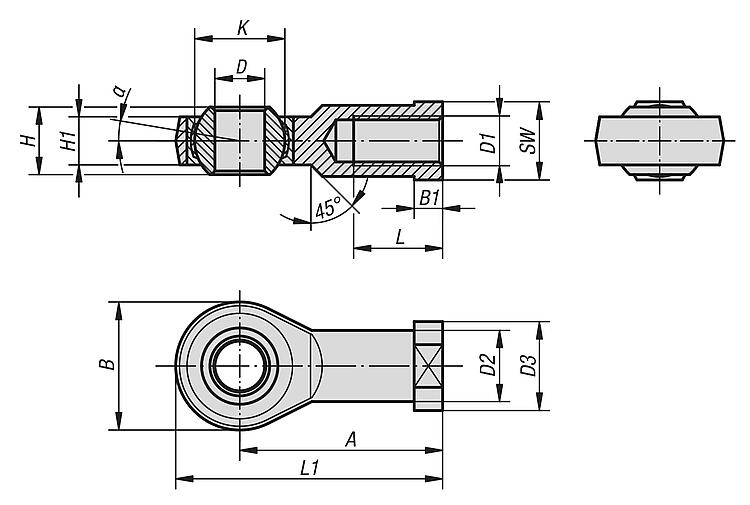

Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 2 | Main
material | A | B
| B1 | D | D1 | D2 | D3 | H | H1 | K | L | L1 | α | SW | Dynamic
base loads
kN | Static
base loads
kN | | CAD | Acc. | Price | Order |
|---|
| B0554.06 | RH thread | free-cutting steel | 30 | 21 | 5 | 6 | M6 | 10 | 13 | 6 | 4,4 | 10 | 11 | 40,5 | 13 | 11 | 3,6 | 8,15 | 0-32 |  | | 9.26 € | | | B0554.08 | RH thread | free-cutting steel | 36 | 24 | 5 | 8 | M8 | 12,5 | 16 | 8 | 6 | 13 | 15 | 48 | 15 | 14 | 5,85 | 12,9 | 0-32 | | | 9.91 € | | | B0554.10 | RH thread | free-cutting steel | 43 | 29 | 6,5 | 10 | M10 | 15 | 19 | 9 | 7 | 16 | 20 | 57,5 | 12 | 17 | 8,65 | 17,6 | 0-32 | | | 10.51 € | | | B0554.10125 | RH thread | free-cutting steel | 43 | 29 | 6,5 | 10 | M10x1,25 | 15 | 19 | 9 | 7 | 16 | 20 | 57,5 | 12 | 17 | 8,65 | 17,6 | 0-32 | | | 10.51 € | | | B0554.12 | RH thread | free-cutting steel | 50 | 34 | 6,5 | 12 | M12 | 17,5 | 22 | 10 | 8 | 18 | 23 | 67 | 11 | 19 | 11,4 | 24,5 | 0-40 | | | 11.73 € | | | B0554.12125 | RH thread | free-cutting steel | 50 | 34 | 6,5 | 12 | M12x1,25 | 17,5 | 22 | 10 | 8 | 18 | 23 | 67 | 11 | 19 | 11,4 | 24,5 | 0-40 | | | 11.73 € | | | B0554.17 | RH thread | QT steel | 67 | 46 | 10 | 17 | M16 | 24 | 30 | 14 | 14 | 25 | 34 | 90 | 10 | 27 | 22,4 | 45 | 0-40 | | | 17.27 € | | | B0554.20 | RH thread | QT steel | 77 | 53 | 10 | 20 | M20x1,5 | 27,5 | 35 | 16 | 16 | 29 | 40 | 103,5 | 9 | 32 | 31,5 | 60 | 0-50 | | | 27.17 € | | | B0554.25 | RH thread | QT steel | 94 | 64 | 12 | 25 | M24x2,0 | 33,5 | 42 | 20 | 20 | 35,5 | 48 | 126 | 7 | 36 | 51 | 83 | 0-50 | | | 36.08 € | | | B0554.30 | RH thread | QT steel | 110 | 73 | 15 | 30 | M30x2,0 | 40 | 50 | 22 | 22 | 40,7 | 56 | 146,5 | 6 | 41 | 66,5 | 110 | 0-50 | | | 49.56 € | | | B0554.061 | LH thread | free-cutting steel | 30 | 21 | 5 | 6 | M6 | 10 | 13 | 6 | 4,4 | 10 | 11 | 40,5 | 13 | 11 | 3,6 | 8,15 | 0-32 | | | 9.26 € | | | B0554.081 | LH thread | free-cutting steel | 36 | 24 | 5 | 8 | M8 | 12,5 | 16 | 8 | 6 | 13 | 15 | 48 | 15 | 14 | 5,85 | 12,9 | 0-32 | | | 9.91 € | | | B0554.101 | LH thread | free-cutting steel | 43 | 29 | 6,5 | 10 | M10 | 15 | 19 | 9 | 7 | 16 | 20 | 57,5 | 12 | 17 | 8,65 | 17,6 | 0-32 | | | 10.51 € | | | B0554.101251 | LH thread | free-cutting steel | 43 | 29 | 6,5 | 10 | M10x1,25 | 15 | 19 | 9 | 7 | 16 | 20 | 57,5 | 12 | 17 | 8,65 | 17,6 | 0-32 | | | 10.51 € | | | B0554.121 | LH thread | free-cutting steel | 50 | 34 | 6,5 | 12 | M12 | 17,5 | 22 | 10 | 8 | 18 | 23 | 67 | 11 | 19 | 11,4 | 24,5 | 0-40 | | | 11.73 € | | | B0554.121251 | LH thread | free-cutting steel | 50 | 34 | 6,5 | 12 | M12x1,25 | 17,5 | 22 | 10 | 8 | 18 | 23 | 67 | 11 | 19 | 11,4 | 24,5 | 0-40 | | | 11.73 € | | | B0554.171 | LH thread | QT steel | 67 | 46 | 10 | 17 | M16 | 24 | 30 | 14 | 14 | 25 | 34 | 90 | 10 | 27 | 22,4 | 45 | 0-40 | | | 17.27 € | | | B0554.201 | LH thread | QT steel | 77 | 53 | 10 | 20 | M20x1,5 | 27,5 | 35 | 16 | 16 | 29 | 40 | 103,5 | 9 | 32 | 31,5 | 60 | 0-50 | | | 27.17 € | | | B0554.251 | LH thread | QT steel | 94 | 64 | 12 | 25 | M24x2,0 | 33,5 | 42 | 20 | 20 | 35,5 | 48 | 126 | 7 | 36 | 51 | 83 | 0-50 | | | 36.08 € | | | B0554.301 | LH thread | QT steel | 110 | 73 | 15 | 30 | M30x2,0 | 40 | 50 | 22 | 22 | 40,7 | 56 | 146,5 | 6 | 41 | 66,5 | 110 | 0-50 | | | 49.56 € | |
